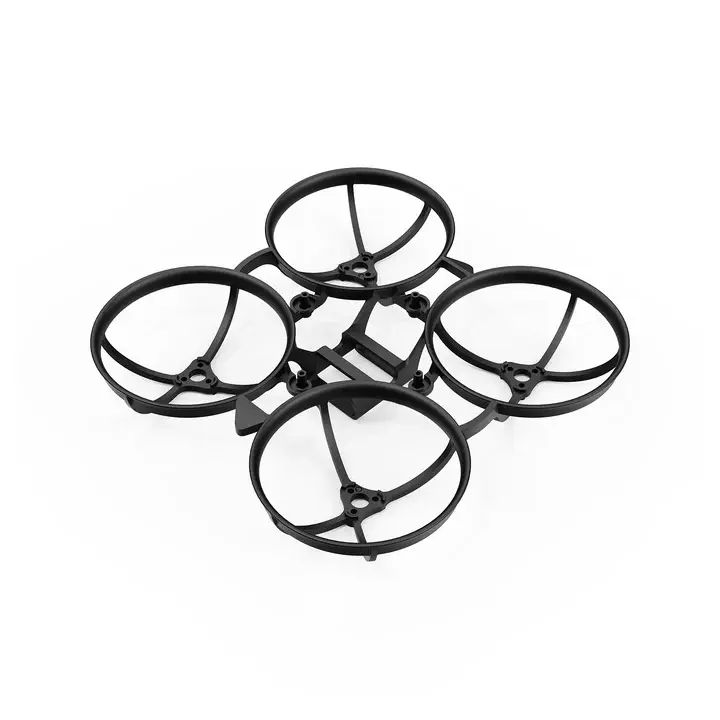

Ramka BetaFPV Air75 II Czarna
Air75 II to ulepszona, druga generacja ramy whoop o rozstawie 75 mm, przeznaczona do mikro dronów bezszczotkowych. Charakteryzuje się lżejszą i mocniejszą konstrukcją oraz poprawioną geometrią osłon śmigieł, co przekłada się na lepszą wydajność i wytrzymałość. Zaprojektowana pod śmigła 40 mm oraz kontrolery lotu o rozstawie 25,5×25,5 mm, idealna do lotów wewnątrz pomieszczeń, freestyle’u i wyścigów. Doskonały wybór do budowy lub modernizacji mikro zestawu FPV.
Ramka BetaFPV Air75 II Czarna - nowa forma, najlepsza wydajność
The Air75 II Brushless Whoop Frame is a lightweight and durable structure designed for small FPV whoop drones. Redesigned arm braces and optimized duct geometry improve stability and PID response. The reshaped structure of Air75 II Brushless Whoop Frame increases thrust by up to 11%, enhancing propulsion efficiency and flight performance. Weighing only 4 g, the Air75 II Brushless Whoop Frame is made from resilient material that absorbs impacts and improves crash resistance.
Lighter, Stronger, Faster – Air75 II Brushless Whoop Frame
The Air75 II Brushless Whoop Frame is an upgraded version of the popular whoop platform, redesigned to deliver improved performance and durability. Compared to the previous generation, the structure of the Air75 II Brushless Whoop Frame has been refined to reduce weight, minimize vibration, and enhance overall flight characteristics. With updated frame geometry, the Air75 II Brushless Whoop Frame provides improved stability, better PID response, and more efficient propulsion. At the same time, the Air75 II Brushless Whoop Frame maintains strong impact resistance, making it a reliable choice for dynamic FPV flying and training.
Key features of the Air75 II Brushless Whoop Frame:
Arm braces reduced from 6 to 4 + optimized duct geometry increase 11% thrust—while maintaining uncompromising durability
Optimized connecting braces reduce frame amplitude and achieve ideal PID step response
Pilot-Focused Details: Motor fixed slots, motor screw protection structure, enlarged FC mounting holes (25.5 × 25.5mm), and lowered duct profile
Optimized PP blend makes it crash ready

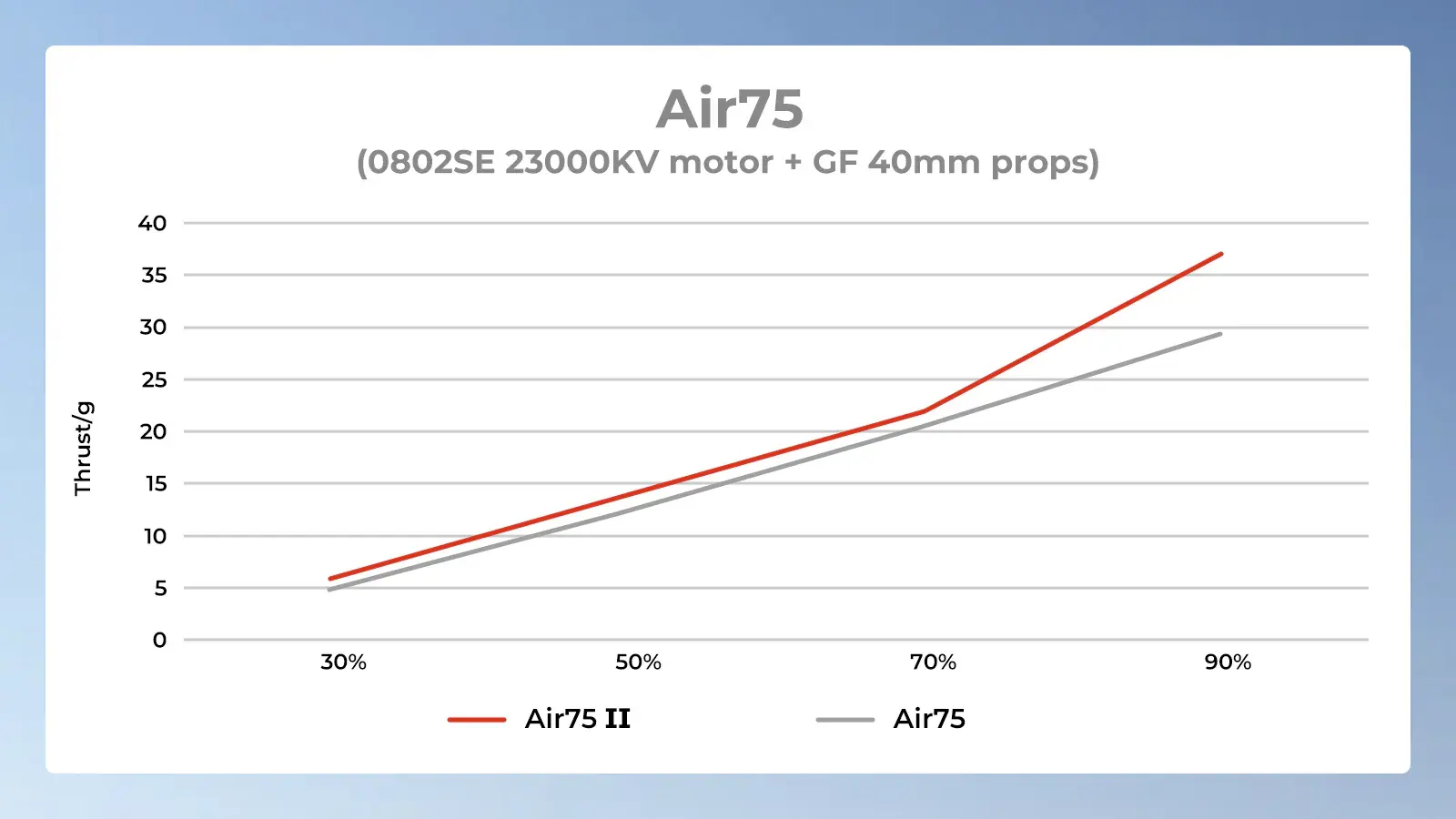

Reshaped Frame Design – +11% Thrust
The Air75 II Brushless Whoop Frame features a redesigned structure that improves propulsion efficiency and flight performance. By reducing the number of arm braces from 6 to 4 and refining the duct aerodynamics, airflow efficiency has been significantly improved. As a result, the Air75 II Brushless Whoop Frame delivers up to 11% higher thrust compared to the previous generation, providing faster throttle response and more dynamic quadcopter performance.

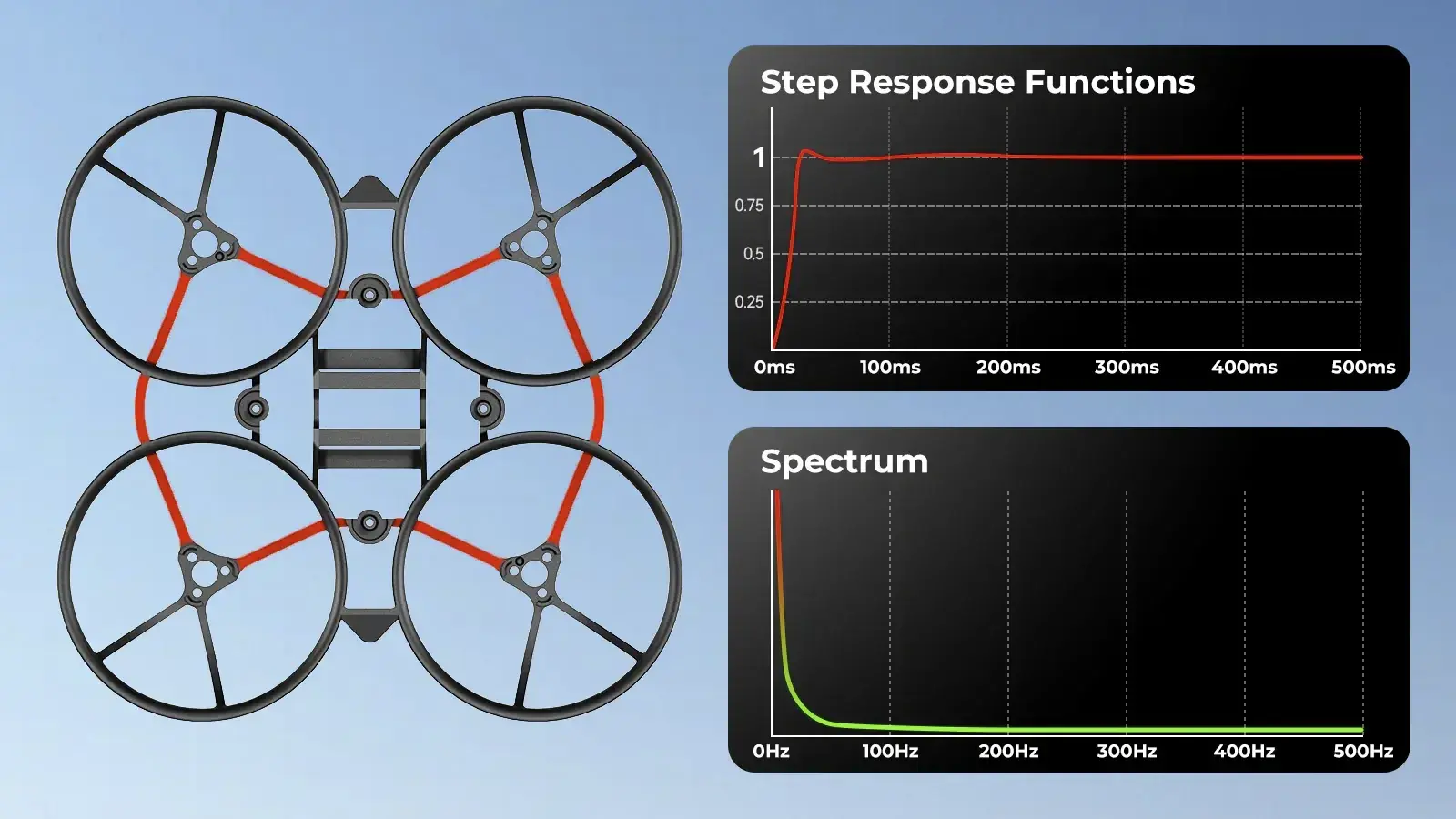

Stable and Precise Flight
After numerous structural refinements, the final connecting arm design in the Air75 II Brushless Whoop Frame effectively reduces frame vibration. When paired with proper Feedforward tuning, the frame achieves a near-perfect PID step response, resulting in crisp maneuvers, fast stick response, and a smooth freestyle flying experience.
Optimized Resilient Material
The Air75 II Brushless Whoop Frame is made from an optimized polypropylene (PP) blend designed for flexibility and impact resistance. This material has been tested in demanding FPV environments and is capable of absorbing energy from hard crashes and sudden impacts. As a result, the Air75 II Brushless Whoop Frame remains durable even during aggressive freestyle flying, helping the quad recover quickly after rough landings or collisions.

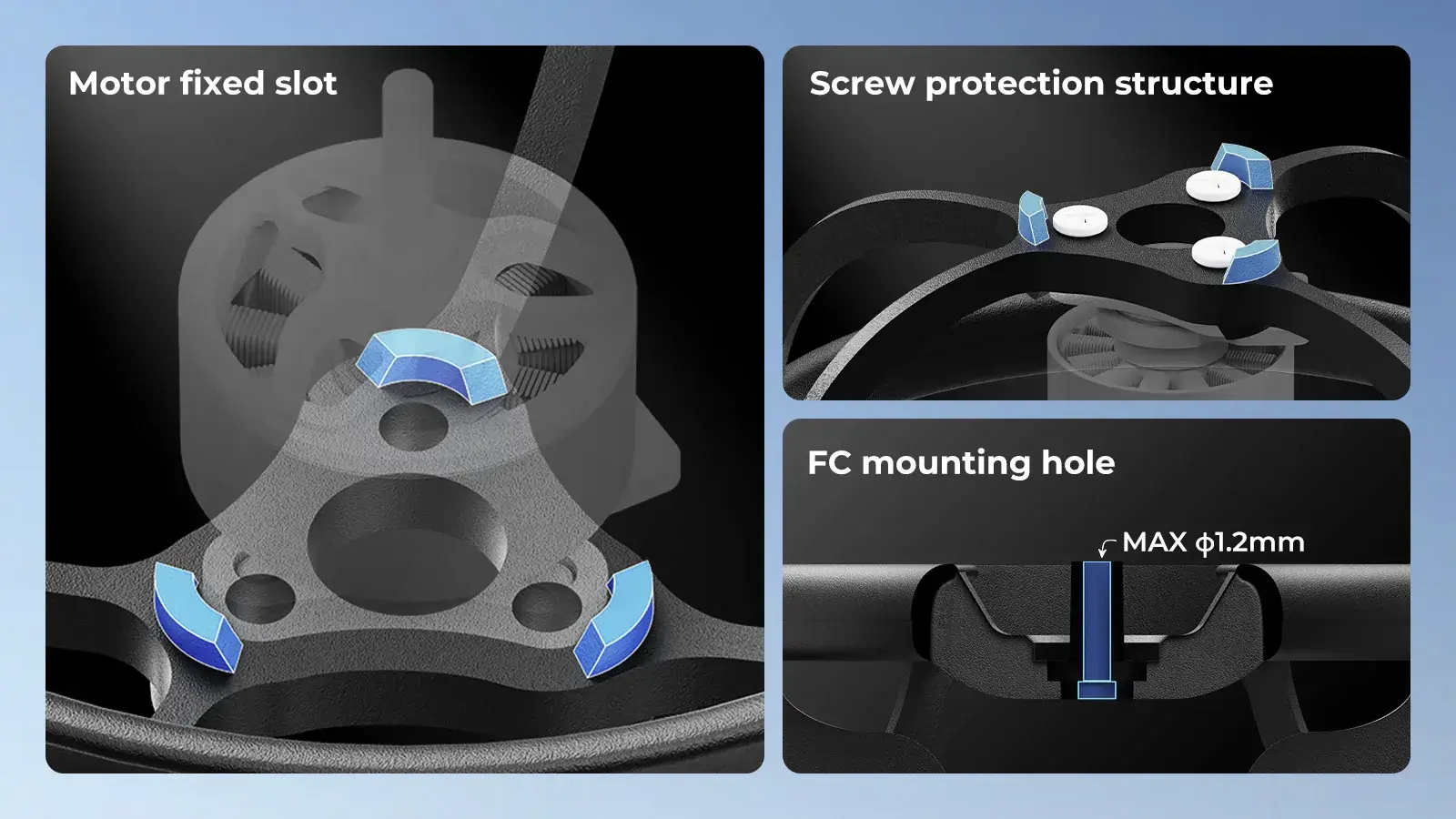

Details That Matter
Attention to detail is a key part of the Air75 II Brushless Whoop Frame design. Retained motor fixed slots help ensure precise motor alignment, while the new motor screw protection structures help deflect impact forces during crashes. Additionally, enlarged 1.2 mm FC mounting holes allow the use of 1.4 mm screws, making electronics installation easier and improving overall compatibility and durability.

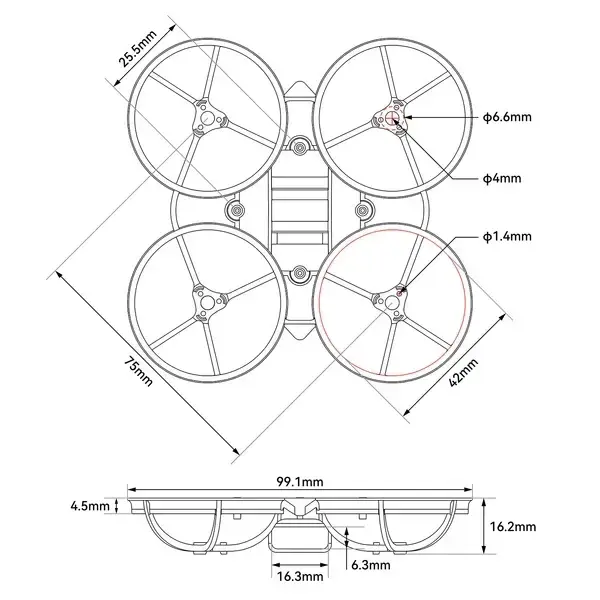

Air75 II Brushless Whoop Frame - Specifications:
Material | PP (Polypropylene) |
Weight | 4.00 g |
Wheelbase | 75 mm |
Duct Diameter | 42.0 mm |
Duct Height | 4.5 mm |
Arm Braces | 4 |
Motor Mounting | 3 × M1.4 (6.6 mm) |
Flight Controller Mounting | 25.5 × 25.5 mm |
Compatible Propellers | 40 mm propellers |
Battery Slot Size | 16.3 × 6.3 mm |
Maximum Frame Size | 99.1 × 99.1 × 16.2 mm |
Colors | Black |

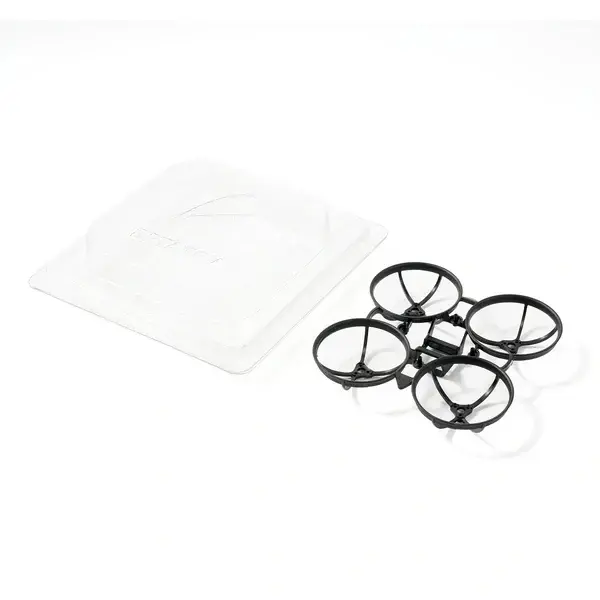

Air75 II Brushless Whoop Frame Black Package Includes
- 1x Air75 II Brushless Whoop Frame
