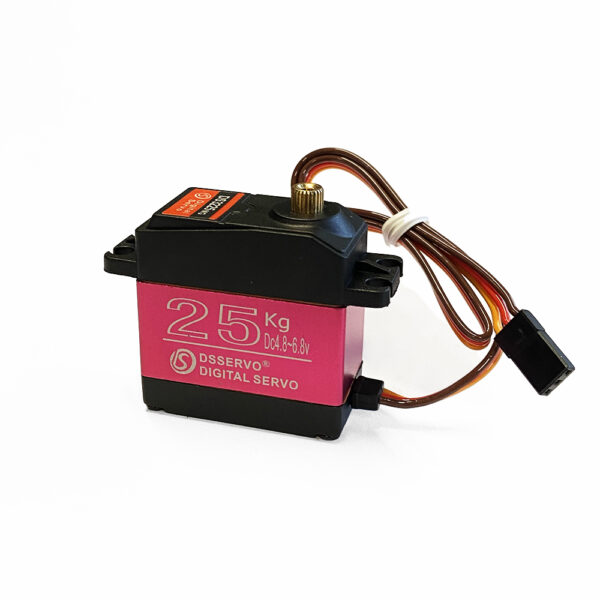

Servo DS3225 - 25kg
A super-powerful servo! Among other things, it can be used to extend and retract the gimbal in modern long-range observation drones. Only your imagination limits the use of this product.
Super-powerful DS3225 Servo - 25kg!
DSservo DS3225 25kg is a digital servo characterized by high torque, precision and responsiveness, fast heat transfer and built-in metal gearbox.
Servo DS3225 - 25kg - Key Features
- High torque - maximum torque is 25 kg at 6.8 V
- High-quality metal and anodized gears ensure better precision and service life
- CNC-machined aluminum housing aids heat transfer and ensures efficient operation of the mechanism
- Screws with waterproof caps ensure waterproofing of the entire mechanism
- Standard digital servo with good performance
Servo DS3225 - 25kg - Specification
Manufacturer | DSservo |
Operating Temperature Range | -15°C~70°C |
Operating Voltage Range | 4.8-6.8V |
Gear Ratio | 275 |
Bearing | Double bearing |
Waterproof Performance | IP66 |
Idle Current (at stopped) | 5V: 4mA 6.8V: 5mA |
Operating Speed (at no load) | 5V: 0.15s/60 ° 6.8V: 0.13s/60 ° |
Stall Torque (at locked) | 5V: 21kg-cm 6.8V: 24.5kg-cm |
Stall Current (at locked) | 5V: 1.9A 6.8V: 2.3A |
Dead Band Width | 3µs |
Material | metal + plastic |
Dimensions | 40 x 20 x 40.5 mm |
Weight | 60g |
Control System | PWM |
Pulse Width Range | 500~2500us |
Neutral Position | 1500us |
Operating Frequency | 50-330Hz |
Serwo DS3225 - 25kg - Package includes
- DS3225 servo
- Gaskets
- Set of screws
- Set of orifices and caps
- Servo arm
