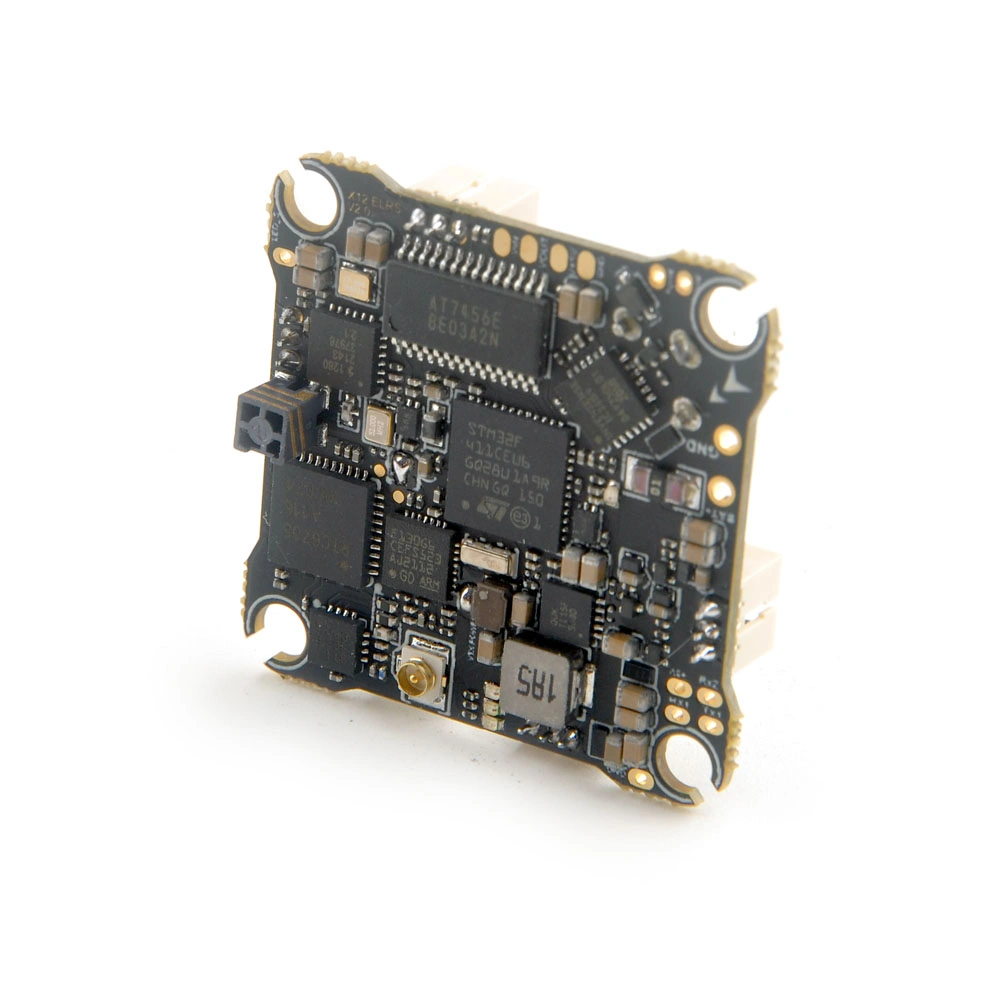

Happymodel X12 ELRS 5in1 AIO Flight Controller

https://www.bzbuas.com/web/image/product.template/589/image_1920?unique=87459b4

Upgrade your drone and use the Happymodel X12 ELRS, a versatile 5-in-1 AIO (All-In-One) flight controller that integrates ExpressLRS 2.4G, OpenVTX and 12A BLHeli_S ESC. The controller offers exceptional responsiveness and increased range with low latency, making it ideal for racing and complex maneuvers. The built-in receiver and VTX streamline installation, reducing weight and increasing reliability. Ideal for hobbyists and professionals alike, the X12 offers performance and precision in drone control.
284.55 zł 284.55 PLN VAT Excluded
284.55 zł VAT Excluded

This combination does not exist.

Contact Us

Terms and Conditions

1S or 2S Tiny Whoop? With the Happymodel X12 ELRS 5in1 AIO Flight Controller, You Can do it Both Ways!

Deciding between a 1S or 2S Tiny Whoop? The Happymodel X12 ELRS 5in1 AIO flight controller lets you enjoy both options effortlessly! With its versatile design, you can switch between 1S for a smoother flight and 2S for enhanced power and agility. Equipped with ExpressLRS technology, the X12 ensures long-range, low-latency control, making your flying experience more responsive. Its compact size fits perfectly in your Tiny Whoop frame, providing a seamless setup.

Happymodel-X12-ELRS-5in1-AIO-flight-controller


Happymodel X12 ELRS 5in1 AIO Flight Controller V2.0/V2.1 Diagram

 Happymodel-X12-ELRS-5in1-AIO-flight-controller

Happymodel X12 ELRS 5in1 AIO Flight Controller Specification

Betaflight Firmware Version

betaflight_4.4.0_STM32F411

VTX Antenna

U.FL

Weight

5.1g

Size

30mm*30mm*8mm

Flight Controller

X12 ELRS V2.1 Flight Controller built-in ELRS 2.4G receiver

Target: CRAZYBEEF4SX1280

MCU: STM32F411CEU6 (100MHz, 512K FLASH)

Sensor: ICM20689 or BMI270 or ICM42688P (SPI connection)

Mount hole size: 25.5mm*25.5mm

Power supply: 1-2S battery input (DC 2.9V-8.7V)

Built-in 12A (each) Blheli_S 4in1 ESC

Built-in Betaflight OSD (SPI Control)

Built-in 5.8G OpenVTX 0mW~400mW

Built-in ExpressLRS 2.4G

Built-in voltage meter sensor, voltage meter; scale 110

Built-in current meter sensor, current meter; scale 470

Onboard 4in1 ESC

Power supply: 1-2S LiPo/LiPo HV

Current: 12A continuous peak 15A (3 seconds)

Support BLHeliSuite programmable

Factory firmware: Z_H_30_REV16_7.HEX

Default protocol: DSHOT300

Support Bluejay firmware

When use Blujay firmware with 48kHz, should set startup power to 1100/1200

Onboard SPI ExpressLRS 2.4GHz Receiver

Packet Rate option: 50Hz/150Hz/250Hz/500Hz

ExpressLRS firmware version: V2.0*

RF Frequency: 2.4GHz

Antenna : SMD antenna

Telemetry output Power: <12dBm

Receiver protocol:  SPI ExpressLRS

Compatible with ExpressLRS V2.0 TX Module

Couldn’t flash separately ExpressLRS firmware

*SPI receiver compatibility with ExpressLRS v3.x requires your flight controller be flashed with Betaflight 4.4.0 or newer. If you are running Betaflight 4.3.0 or Betaflight 4.3.1, your receiver will only work with ExpressLRS v2.x. Please update to Betaflight 4.4 or newer for ExpressLRS v3.x compatibility.

Onboard 5.8g OPENVTX

Firmware version: OPENVTX

Smartaudio v2.1

PIT Mode support

RCE Mode support

Channels: 48ch

Transmitting Power: 0/RCE/25mW/100mW/400mW

Power supply: DC 5V

Current (5V): <650mA (400mW)

Antenna connector: U.FL



Happymodel-X12-ELRS-5in1-AIO-flight-controller

Happymodel X12 ELRS 5in1 AIO Flight Controller Package Include

  • 1* Happymodel X12 ELRS 5in1 AIO
  • 1* Silicone wire pigtail PH2.0
  • 1* Silicone wire pigtail XT30
  • 1* Silicone wire camera cable
  • 1* VTX dipole antenna with u.FL connector
  • 1* Set of shock absorbing washers
  • 1* Set of screws
  • 1* Set of stickers
