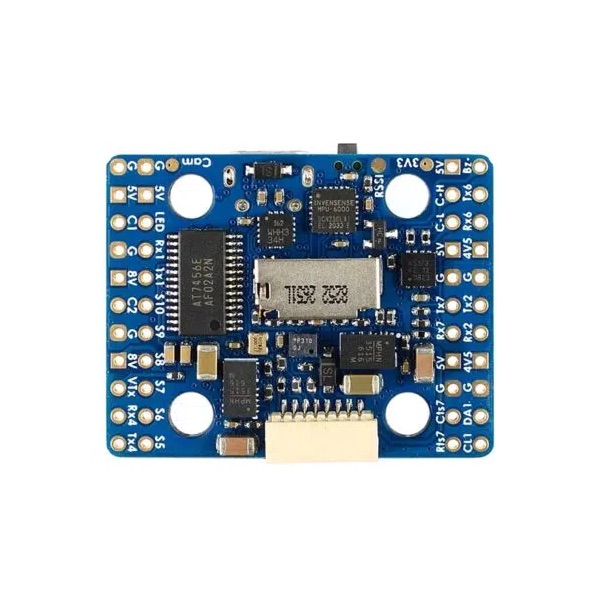

Flight Controller H743-MINI
Matek H743-MINI is one of the newest flight controllers on the FPV systems market. A wide range of connections for all kinds of devices make this controller suitable for virtually any project. Compatible with ArduPilot, INAV and BetaFlight software.
This product is no longer available.
Mateksys Flight Controller H743-MINI - small size, big possibilities!
The Matek H743-MINI flight controller supports software from BetaFlight, ArduPilot and Inav. It has two video inputs (switchable) and a wide input voltage range of 6.3V to 36V DC (2S to 8S LiPo). This flight controller can be used for four-engine multi-rotors.
Specification of the Flight Controller H743-MINI
PROCESSOR | STM32H743VIT6 |
FREQUENCY | 480MHz |
RAM | 1MB |
FLASH | 2MB |
V1.0 IMU | PU6000 (SPI 1) & ICM20602 (SPI4) |
V1.5 IMU | MPU6000 (SPI 1) & ICM42605 (SPI4) |
V3 IMU | ICM42688-P (SPI 1) & ICM42605 (SPI4) |
BAROMETER | Infineon DPS310(12C2) |
OSD | AT7456E (SPI2) |
BLACK BOX | slot karty MicroSD (SDIO) |
FC Flight Controller Software Firmware
- ArduPilot(ChiBiOS): MATEKH743
- BetaFlight: MATEKH743
- INAV: MATEKH743
INPUTS/OUTPUTS
- 5.5x UART (1,2,4,6,7, Rx8)
- 11x PWM output
- 2x I2C (I2C1/DA1 CL1 pady, no I2C2 breakout)
- 1x CAN (C-H, C-L pady)
- 5x ADC (VBAT, Current, RSSI, VB2, CU2)
- 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
- 1x input for JST-SH1.0_8pin plug (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
- Dual Camera Inputs Switch
- 8V ON/OFF switch
POWER
Battery voltage | 6.3~36V (2-8S LiPo) |
BEC | 5V 1.5A continuous (MAX.2A) |
BEC | 8V 1.5A continuous (MAX.2A) 8V stable when Vbat>=10V, 8V gives out 80% of Vbat when Vbat< 10V |
LDO 3.3V | 200mA |
Second battery input | pad supports max of 69 V |
USB current draw | 200mA@SV with Betaflight, lSOmA@SV with ArduPilot |
MOUNTING | 20x 20mm/3mm w/ silicone grommets 20 x 20mm/2mm w/ silicone and brass grommets |
DIMENSIONS | 36x 28 x6,5 mm |
WEIGHT | 7g |
What's included in the Flight Controller H743-MINI
- 1x H743-MINI
- 6x Silicon grommets M4 to M3
- 6x Brass grommets M3 to M2
- 1x JST-SH1.0_8pin cable, 5cm
- 2x JST-SH1.0_8pin connectors
