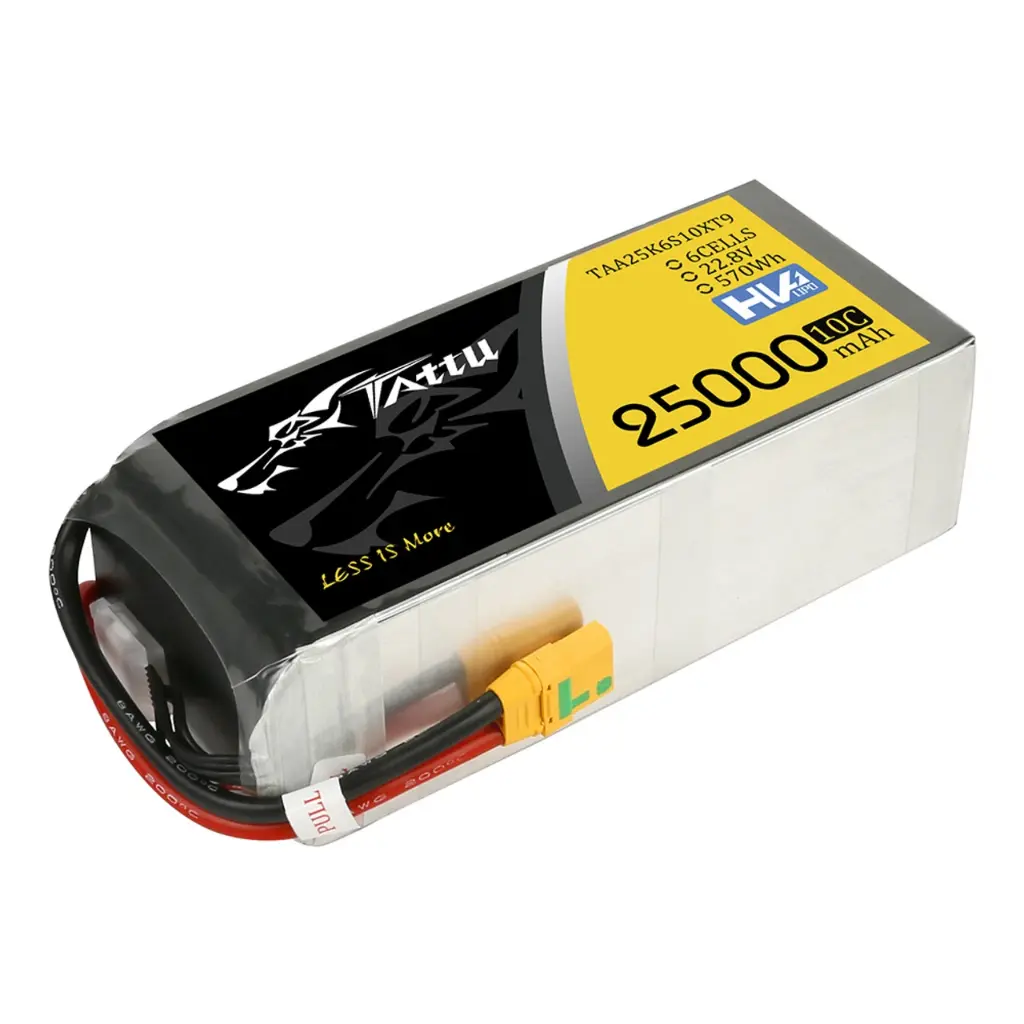

Tattu LiHV 25000mAh 22.8V 10C 6S1P Battery
Tattu LiHV 25000mAh 22.8V 10C 6S1P Battery – High-Voltage LiHV Technology for Professional Drones
The Tattu LiHV 25000mAh 22.8V 10C 6S1P Battery uses advanced high-voltage LiHV cells with a single-cell voltage of up to 4.35V. This allows the battery to deliver up to 15% more capacity compared to standard LiPo batteries, resulting in longer flight time and improved operational efficiency. With stable performance and long cycle life, the Tattu LiHV 25000mAh 22.8V 10C 6S1P Battery is an excellent choice for professional UAV platforms used in mapping, inspections, aerial filming, cargo transport, and other demanding drone missions.
Key Advantages
Maximum Capacity
The Tattu LiHV 25000mAh 22.8V 10C 6S1P Battery provides very high capacity, enabling exceptionally long flight times. This allows operators to perform longer missions without frequent battery swaps while maintaining stable performance throughout the flight.
Low Internal Resistance
Low internal resistance ensures stable voltage output until the end of the flight. This helps maintain reliable performance of the drone’s propulsion and onboard systems while improving overall operational stability.
Anti-Spark Connector
The built-in anti-spark solution increases safety during battery connection. It reduces sparking and helps protect connectors and onboard electronics from sudden current surges.
High Energy Density
Thanks to its optimized cell design, the Tattu LiHV 25000mAh 22.8V 10C 6S1P Battery offers very high energy density relative to its weight. This allows drones to achieve greater efficiency while maintaining a favorable capacity-to-weight ratio.
Safety and Build Quality
Tattu batteries are manufactured to high safety and quality standards. The Tattu LiHV 25000mAh 22.8V 10C 6S1P Battery has passed the UN 38.3 test, one of the most important international safety standards for lithium polymer batteries.
High Voltage – More Power
The Tattu LiHV 25000mAh 22.8V 10C 6S1P Battery uses LiHV technology with up to 4.35V per cell. This provides more power and improved efficiency for demanding drone operations.
Long Cycle Life
The Tattu LiHV 25000mAh 22.8V 10C 6S1P Battery is designed for long cycle life and consistent performance over many charge and discharge cycles. This makes it a reliable power solution for professional drone applications.
For optimal performance and safe charging, it is recommended to use the dedicated Tattu charger TA1000. BUY NOW
Frequently Asked Questions - Tattu LiHV 25000mAh 22.8V 10C 6S1P Battery
The Tattu LiHV 25000mAh 22.8V 10C 6S1P Battery should be charged using a charger compatible with LiPo/LiHV batteries. The recommended charging rate is around 1C, and the charger should be set to the correct cell count and LiHV mode. Always monitor the charging process to ensure safe operation.
When not used for an extended period, the Tattu LiHV 25000mAh 22.8V 10C 6S1P Battery should be stored at around 50% charge (storage voltage). The battery should be kept in a cool, dry place away from direct sunlight and high temperatures.
Thanks to LiHV technology, each cell of the Tattu LiHV 25000mAh 22.8V 10C 6S1P Battery can be charged up to 4.35V per cell. To reach this voltage safely, a charger that supports the LiHV charging mode is required.
During operation, it is recommended that the Tattu LiHV 25000mAh 22.8V 10C 6S1P Battery does not drop below approximately 3.5–3.7V per cell. Avoiding deep discharge helps protect the battery and extend its service life.
To maximize the lifespan of the Tattu LiHV 25000mAh 22.8V 10C 6S1P Battery, avoid overcharging, deep discharging, and charging in extreme temperatures. Using a high-quality charger and regularly checking the battery condition will help maintain optimal performance over many cycles.
WARNING
• Do not overcharge or over-discharge the battery.
• Do not expose the battery to high temperatures.
• Do not throw the battery into fire.
• Do not immerse the battery in water.
Tattu LiHV 25000mAh 22.8V 10C 6S1P Battery Specifications
Minimum Capacity | 25000mAh |
Configuration | 6S1P |
Nominal Voltage | 22.8V |
Power | 570 Wh |
Net Weight(±20g) | 2577g |
Dimensions | 207mm L x 91mm W x 65mm H |
Discharge Plug | XT90-S |
Tattu LiHV 25000mAh 22.8V 10C 6S1P Battery Package Includes
- 1x Tattu LiHV 25000mAh 22.8V 10C 6S1P Battery
- 1x User Manual
