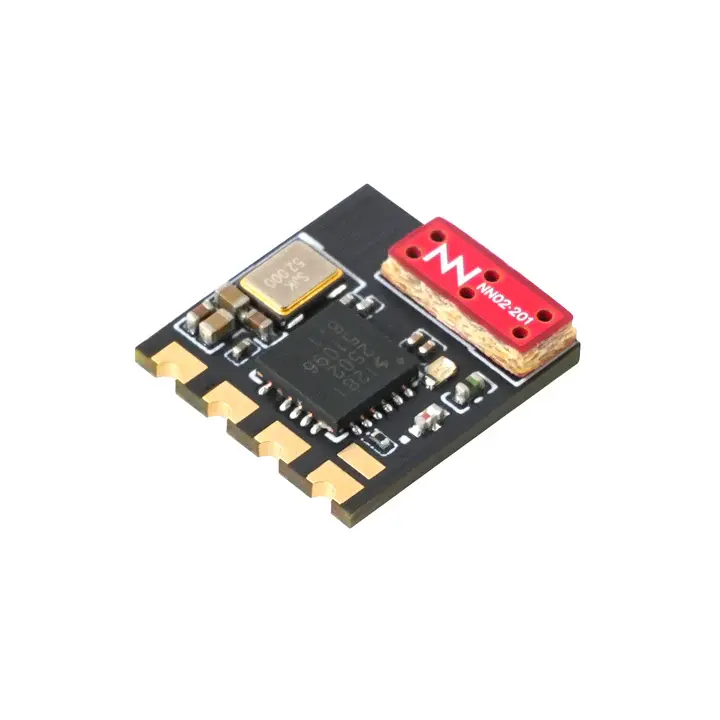

BetaFPV ELRS Lite Receiver 2.4G Flat Antenna V1.2
The BetaFPV ELRS Lite Receiver 2.4G Flat Antenna V1.2 is an ultra-light, compact module for FPV drones that delivers fast, low-latency control using the ExpressLRS system. Designed for small builds like tiny whoops and racing drones, it features a built-in flat antenna and ensures stable, long-range signal performance in a minimal footprint.
BetaFPV ELRS Lite Receiver 2.4G Flat Antenna V1.2 – Phenomenal ExpressLRS Performance in a Miniature Form
The BetaFPV ELRS Lite Receiver 2.4G Flat Antenna V1.2 is an advanced, ultra-lightweight receiver based on the revolutionary ExpressLRS open-source project. Designed specifically for micro drones and weight-sensitive builds, this version features a built-in ceramic "flat" antenna, eliminating the risk of damage during crashes while maintaining impressive range. The V1.2 version brings improved stability and hardware refinements, making the BetaFPV ELRS Lite Receiver 2.4G Flat Antenna V1.2 a top choice for competitive Whoop racing and freestyle micro builds.
Key features of BetaFPV ELRS Lite Receiver 2.4G Flat Antenna V1.2
ExpressLRS Protocol
Best-in-class latency and extreme long-range capabilities for demanding FPV pilots. This open-source protocol ensures an incredibly fast link between your transmitter and the drone, which is crucial for racing.
Integrated Flat Antenna
Features a durable, low-profile design that is practically immune to mechanical damage during flight. This integrated solution means no more snapped antennas or signal loss during aggressive crashes or racing maneuvers.
V1.2 Update
Features enlarged pads for easier soldering and significantly improved hardware stability. This user-friendly upgrade ensures a much safer installation and better signal processing for tiny electronics.
Ultra-Lightweight
With a weight of just 0.47g, this receiver is the perfect choice for Whoops where every gram matters. It's miniature size makes it incredibly compact and ensures it will fit literally anywhere.
Optimized for Micro Drones – Easier Soldering with V1.2

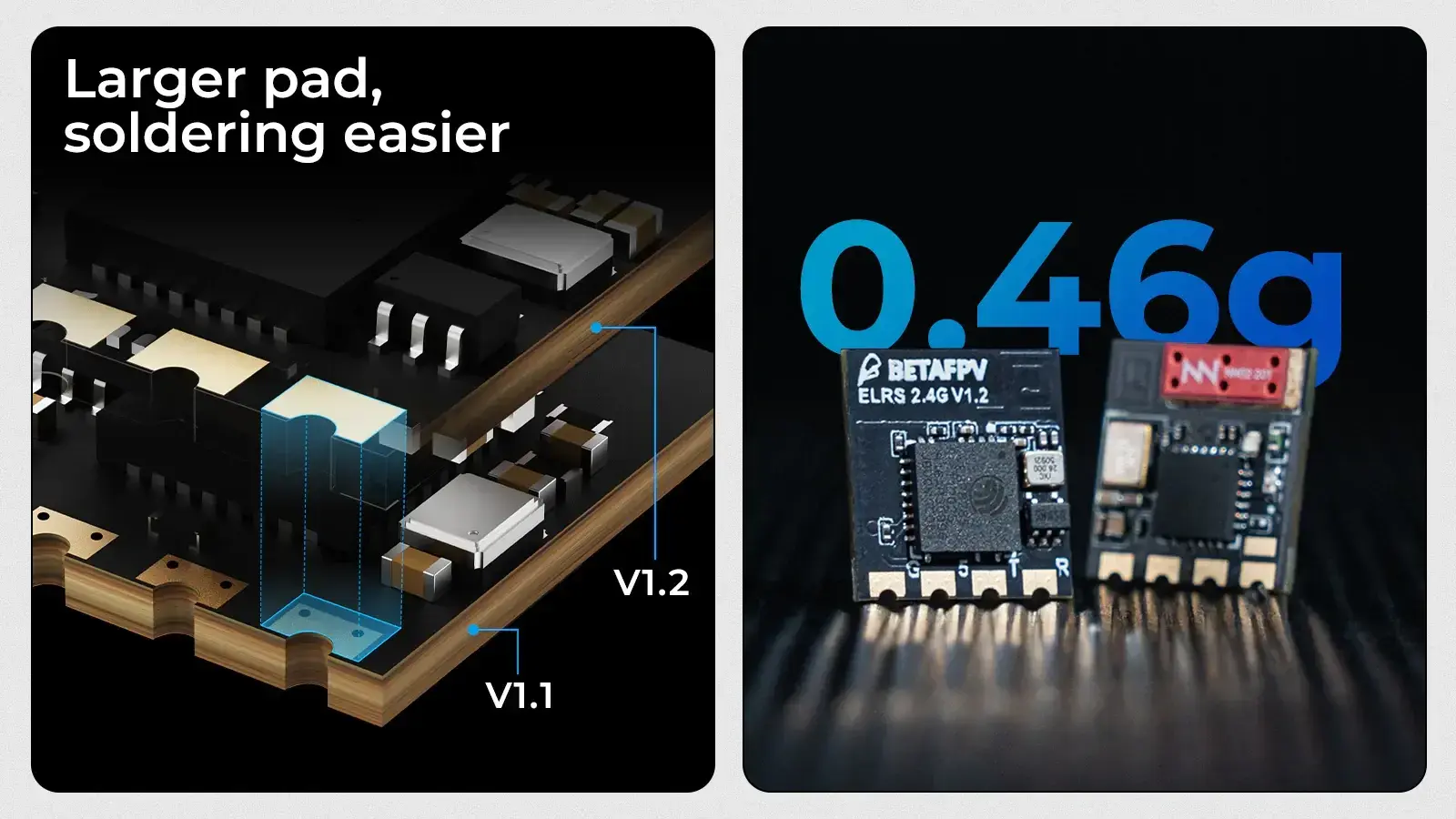

In version V1.2, the BetaFPV ELRS Lite Receiver 2.4G Flat Antenna V1.2 features enlarged solder pads. This hardware upgrade makes the soldering process much easier and safer, significantly reducing the risk of accidental short circuits or damaged traces during installation. At only 0.47g, it remains one of the lightest and most user-friendly receivers for racing rigs.
Revolutionary ExpressLRS Technology and Fantastic Range with BetaFPV ELRS Lite Receiver 2.4G Flat Antenna V1.2

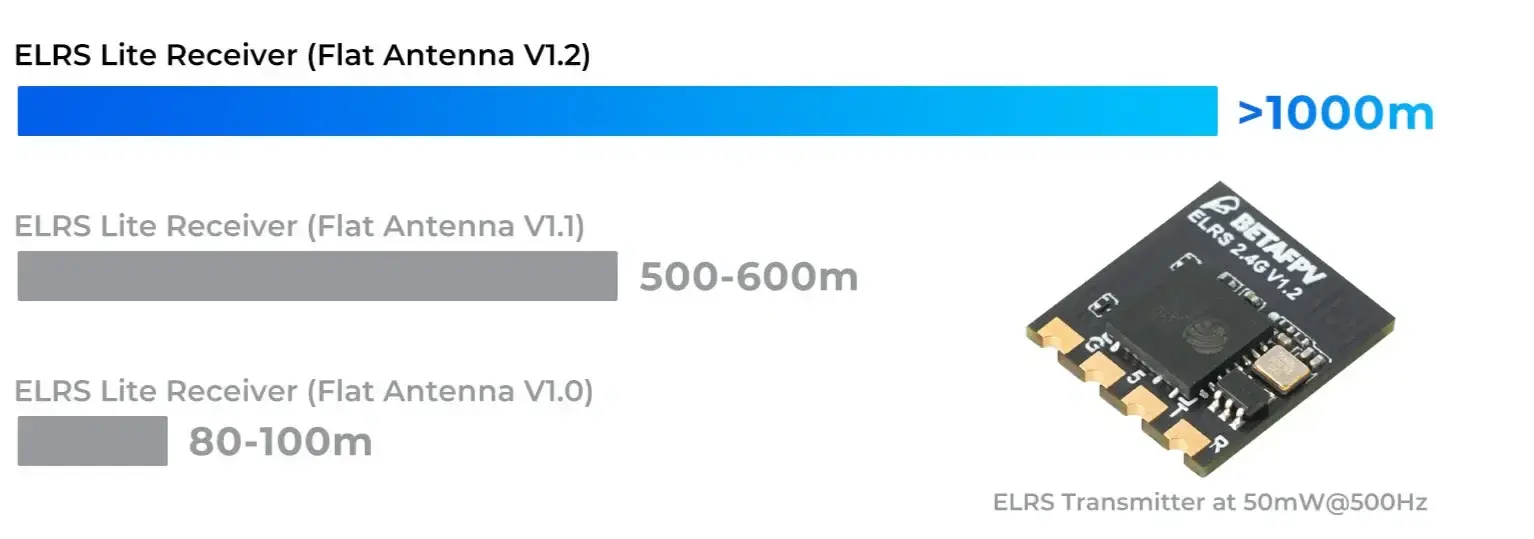

The BetaFPV ELRS Lite Receiver 2.4G Flat Antenna V1.2 utilizes the ExpressLRS protocol, which is currently the benchmark for low latency and performance. Despite its miniature size and integrated antenna, this receiver offers a stable and reliable signal at distances of up to 1000 meters, ensuring full control even during long-range micro missions.

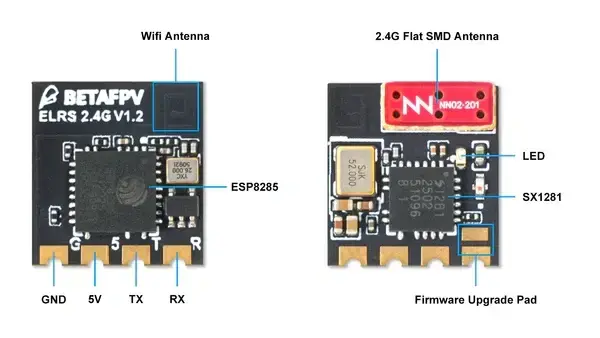

BetaFPV ELRS Lite Receiver 2.4G Flat Antenna V1.2 Specifications
Antenna | SMD ceramic antenna |
| Frequency | 2.4GHz ISM |
| Telemetry Power | 17mW |
Input voltage | 5V |
| MCU | ESP8285 |
| RF Chip | SX128X |
Weight | 0.46g |
Dimensions | 11x10x3mm |
BetaFPV ELRS Lite Receiver 2.4G Flat Antenna V1.2 Package Includes
- 1x BetaFPV ELRS Lite Receiver 2.4G Flat Antenna V1.2
- 2x Spare shrink tube
- 4x 30awg silicon connection wires (1 black, 1 red, 1 white, 1 yellow)
