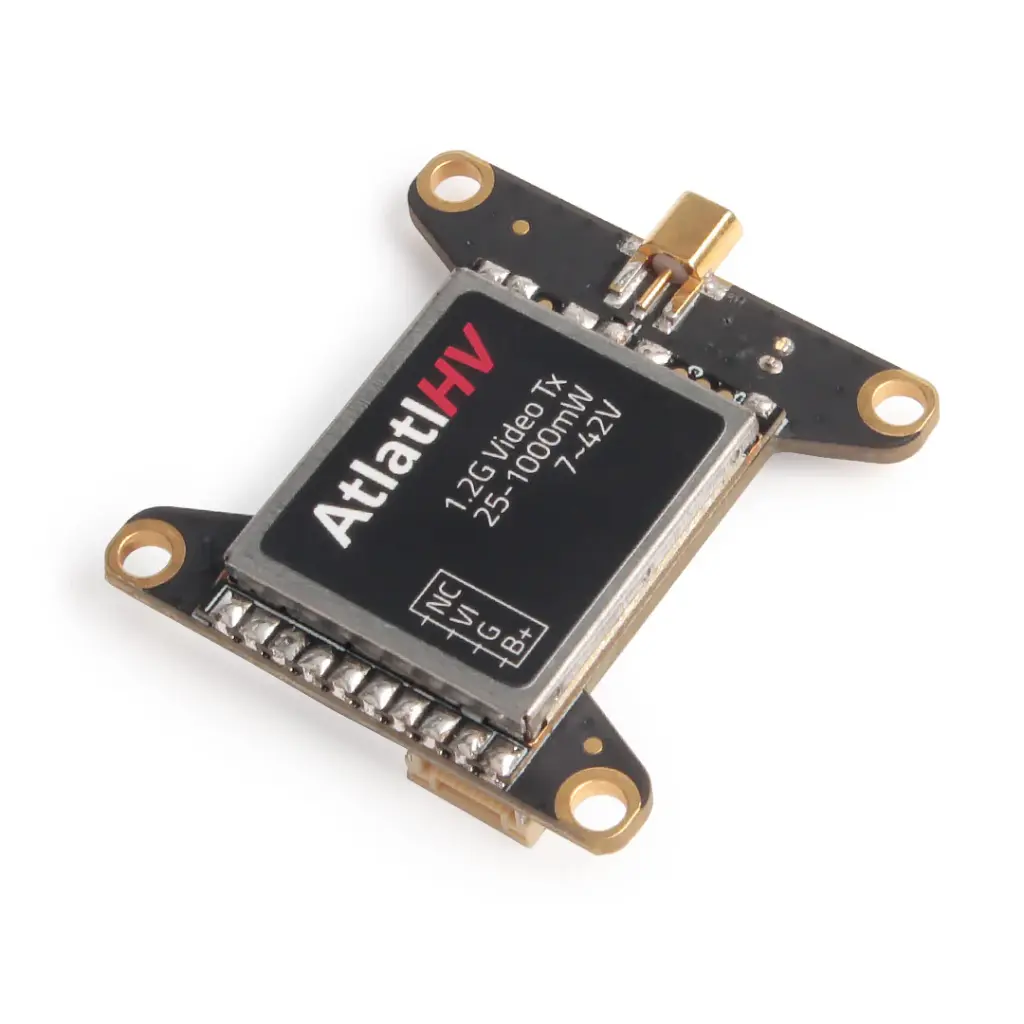

Holybro Atlatl HV V2 1.2GHz 1W VTx

https://www.bzbuas.com/web/image/product.template/669/image_1920?unique=85a2390
Atlatl HV V2 1.2GHz 1W VTx is a low-frequency VTX compared to those operating in the 5.8GHz frequency band. It has excellent diffraction capability and strongly counteracts interference and external penetration. Images are clear and stable, and it provides long transmission distance in various operating environments.
234.93 zł 234.93 PLN VAT Included
191.00 zł VAT Included
Contact to order

This combination does not exist.

Contact Us

Terms and Conditions

Holybro Atlatl HV V2 1.2GHz 1W VTx low frequencies, longer range

Holybro Atlatl HV V2 1.2GHz 1W VTx - Product features

  • It supports up to 9 frequency channels.
  • Variable transmit power: Pit/ 25/ 200/ 1000mW.
  • Pit mode allows for safe power without the risk of throwing other pilots into space.
  • Built-in microphone so you can listen to the engines as you fly, no matter how far away you are.
  • Standard 30.5 x 30.5 mm mounting holes allow the Atlatl to be mounted directly into the flight controller stack.


Adjustment of output power and frequency channel

Holybro-Atlatl-HV-V2-1.2GHz-1W-VTx

Holybro Atlatl HV V2 1.2GHz 1W VTx Transmission power


Tryb Pit

25 mW

200 mW

1000 mW

P2

ON

OFF

ON

OFF

P1

ON

ON

OFF

OFF


Holybro Atlatl HV V2 1.2GHz 1W VTx Frequency table


CS3

CS3

CS1

S1

CH1: 1080MHzONONONOFF
CH2: 1120MHzOFFONONOFF
CH3: 1160MHzONOFFONOFF
CH4: 1200MHzOFFOFFONOFF
CH5: 1240MHzONONOFFOFF

CH6: 1280MHz

OFF

ON

OFF

OFF

CH7: 1320MHz

ON

OFF

OFF

OFF

CH8: 1380MHz

OFF

OFF

OFF

OFF

CH9: 1258MHz

ON

ON

OFF

ON


CAUTION: Make sure to connect the antenna before turning it on! Otherwise you will burn the module.


Holybro Atlatl HV V2 1.2GHz 1W VTx - Specifications

Output power

0,5 mW (pit mode), 25 mW, 200 mW, 1000 mW

Sound

Monophonic 6.5 MHz ( optional 6.0 MHz )

Antenna connector

MMCX

Input voltage

2-8S LiPo

Dimensions

35x35x9 mm

Mounting holes:

Standard 30.5 mm square to center of holes

Weight

9.3 g (VTX only)


Holybro Atlatl HV V2 1.2GHz 1W VTx - Pinout

Holybro-Atlatl-HV-V2-1.2GHz-1W-VTx

Holybro Atlatl HV V2 1.2GHz 1W VTx - Package includes

  • 1x Holybro Atlatl HV V2 1.2GHz 1W VTx
  • 1x 80mm SMA~MMCX Cable
  • 1x 150mm 4pin JST GH Wire
