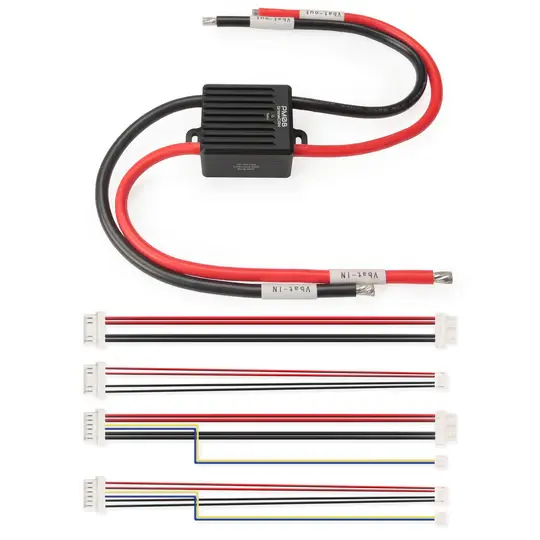

Holybro PM08-CAN Power Module 14S, 200A (Tinned Wires)
The PM08-CAN Power Module 14S, 200A (Tinned Wires) is a heavy-duty power module for drones, supporting up to 14S LiPo batteries and 200A continuous current. This variant comes with tinned wires instead of pre-soldered connectors, allowing you to choose and install the connectors that best fit your needs. It uses the DroneCAN protocol for reliable communication and provides stable power with dual 5V BEC outputs, making it ideal for large drones requiring precise power management.
Holybro PM08-CAN Power Module 14S, 200A (Tinned Wires) High-Precision Power Monitor
The Holybro PM08‑CAN is a high-precision power module designed for drones and UAVs using up to 14S LiPo batteries. It supports up to 200A continuous current and communicates via DroneCAN, offering accurate voltage, current, and temperature telemetry. With dual 5V BEC outputs and galvanic isolation for low-noise data, it ensures stable power to your flight controller and peripherals. This version with tinned wires is ideal for flexible, custom installations.
Holybro PM08-CAN Power Module 14S, 200A (Tinned Wires) Features
- Supports 2-14S & 200A Cont, 400A Burst
- DroneCAN Communication Protocol
- Small & Compact Design
- Two 5V Output with Independent BEC IC and Circuitry
- Separated Sensor and BEC Board to Minimize Electrical Noise Interference
- Galvanically Isolated Current Sensor IC (AEC-Q100 Grade 1 qualified)
- High Accuracy Temperature Sensor for Temperature Monitor
- High-Efficiency Aluminum Heat Dissipation Shell
- Software-Controlled CAN Termination
Holybro PM08-CAN Power Module 14S, 200A (Tinned Wires) Specifications
Processor | STM32F405RG 168MHz 1024KB Flash 196KB RAM |
Voltage input | 7~60.9V (2S~14S) |
Continuous current | 200A |
Burst current | 400A @ 25℃ 1 sec 1000A @ 25℃ < 1 sec |
Max current sensing | 376A |
Voltage accuracy | ±0.1V |
Current accuracy | ±5% |
Temperature accuracy | ±1℃ |
Wire gauge | 8 AWG (high-strand silicon-insulated) |
Power port output | 5.3V/3A each port |
Protocol | DroneCAN |
Operating temperature | -25℃~85℃ |
Firmware upgrade | Support |
Calibration | Support |
Size | 45mm×41mm×26mm (Not Include Cable) |
Weight | 185g (Include Cable) |
Holybro PM08-CAN Power Module 14S, 200A (Tinned Wires) Pinout
Interface Type
- Power & CAN Port: Molex CLIK-Mate 2mm 6Pin
- Battery IN/OUT Options:
- XT90 Connectors
- Tinned Wires
- XT90 & Ring Terminals
LED Status
- Flashing quickly continuously: MCU is in the bootloader stage, waiting for the firmware to be flash
- Flashing quickly for 3 seconds, and then on for 1 second: Waiting for CAN connection
- Flashing slowly (one-second intervals): CAN is successfully connected
Reference Links
PX4 & Flight Controller Setup Instruction
Holybro PM08-CAN Power Module 14S, 200A (Tinned Wires) Package Includes
- 1x Holybro PM08-CAN Power Module 14S, 200A (Tinned Wires)
- 1x Set of Power and CAN Cables
