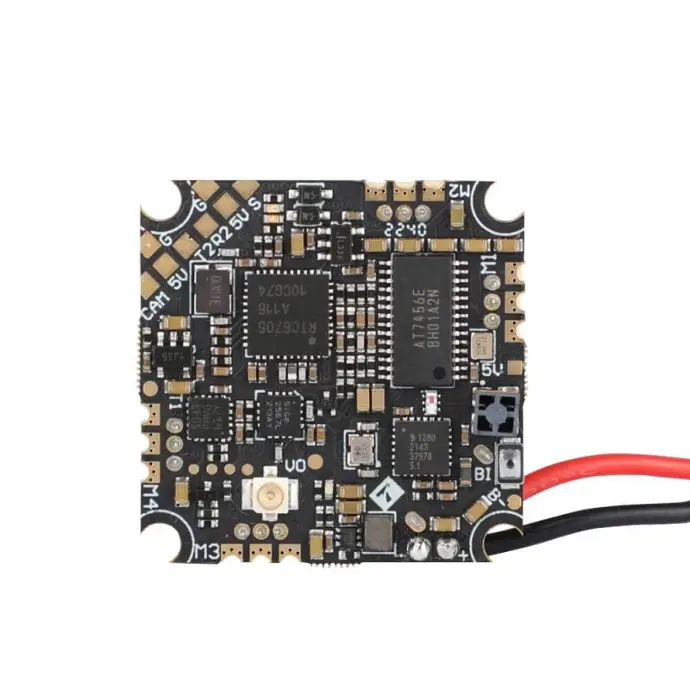

T-Motor F4 6A 1S AIO Flight Controller ELRS
The T-Motor F4 6A 1S AIO Flight Controller ELRS offers a lightweight design and robust performance with high quality
The latest AIO 5-in-1 flight controller from T-Motor for TinyWhoops significantly reduces the model's weight. In this flight controller, you will find a 50mW video transmitter supported by SmartAudio, as well as an ELRS receiver that supports the latest software. This controller is the ideal choice for building an ultralight model with T-Motor quality.

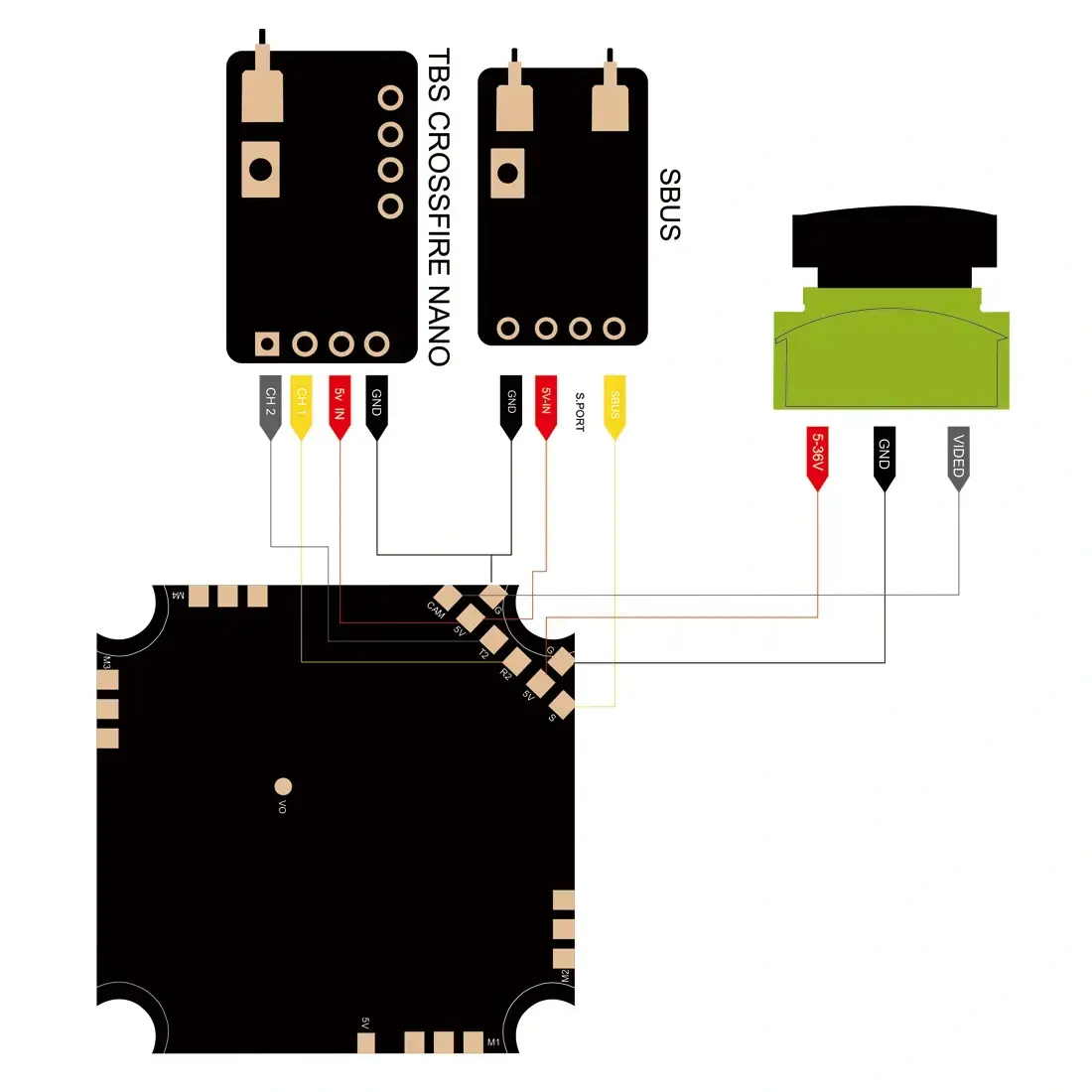

T-Motor F4 6A 1S AIO Flight Controller ELRS Wire Diagram

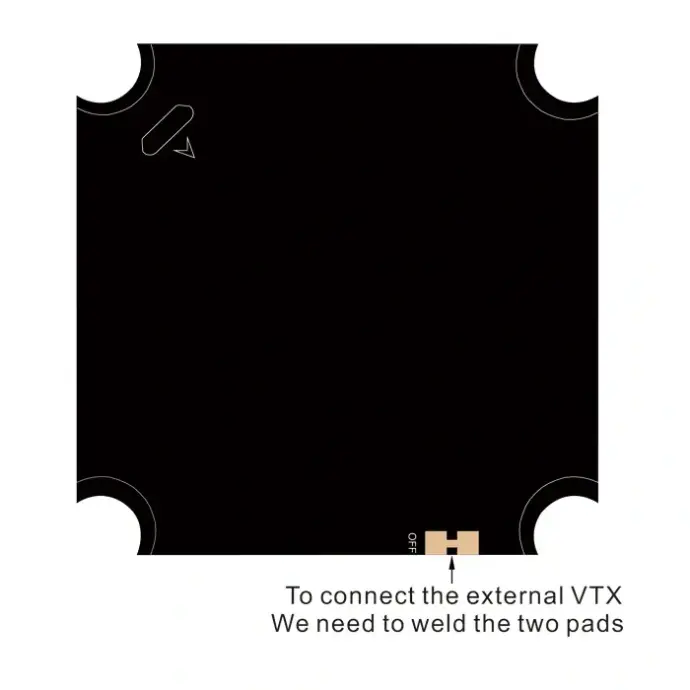

The built-in video transmitter (VTX) on the T-Motor F4 6A 1S AIO Flight Controller ELRS can be disabled.

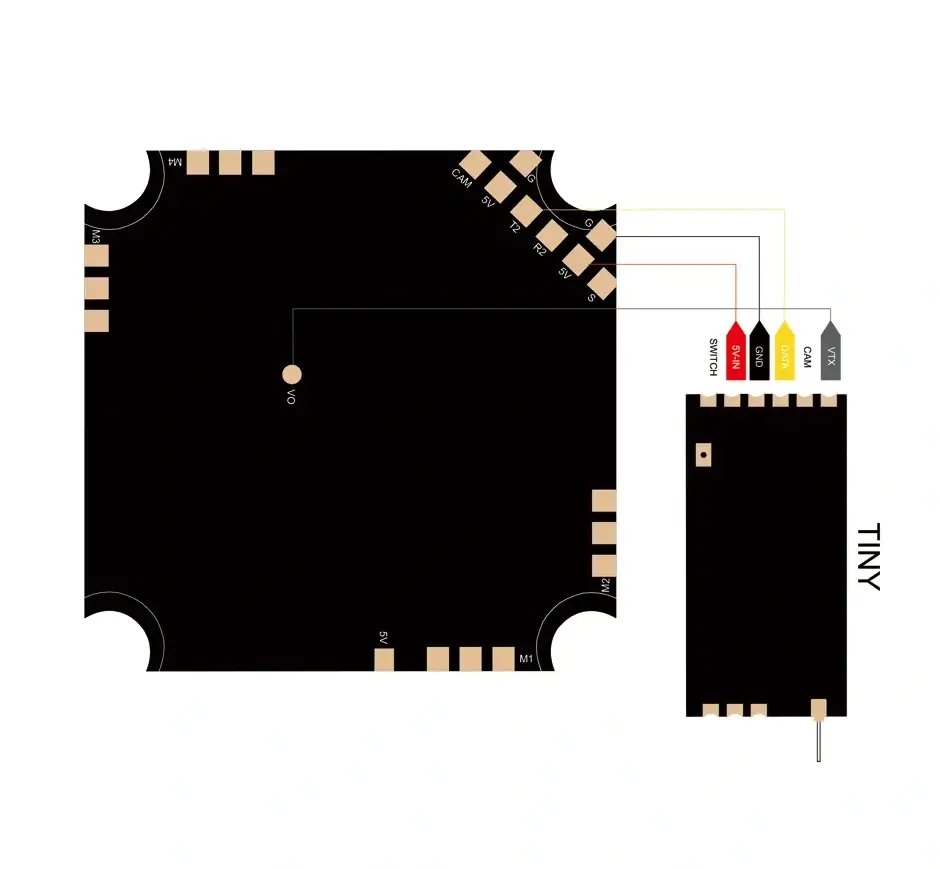

This allows you to connect an external analog VTX of any brand, with any transmission power and frequency of your choice.
T-Motor F4 6A 1S AIO Flight Controller ELRS Specs
Input Voltage | 1S |
Continous Current | 6A |
Peak Current | 7A |
ESC Software | BLUEJAY |
MCU | STM32F411 |
Gyroscope | BMI270 |
Receiver | SPI ELRS 2.4G V2.0 |
VTX | 48CH 50mW Smartaudio 1.0 |
Transmitting Power | 25mW/50mW |
Antenna Connector | U.FL |
Size | 29.5*29.5mm |
Weight | 6.7g |
Monting Hole | 25.5*25.5mm/M2 |
T-Motor F4 6A 1S AIO Flight Controller ELRS Package Includes
- 1x T-Motor F4 6A 1S AIO Flight Controller ELRS with PH2.0 Power Cable Soldered
- 6x Silicone Shock-Absorbing Washer
- 1x VTX Antenna
- 1x BT2.0 Power Cable
- 1x Set of T-Motor Stickers
