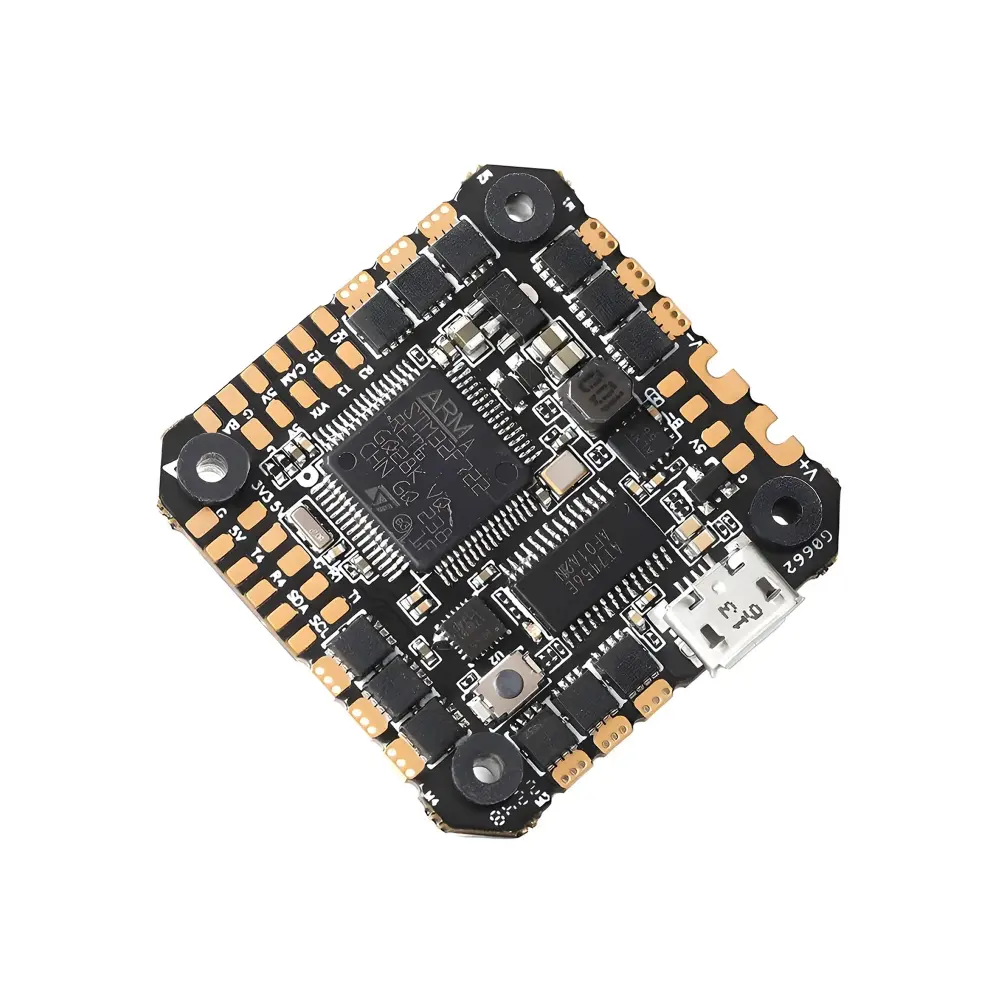

T-Motor F7 AIO 35A 6S Flight Controller

https://www.bzbuas.com/web/image/product.template/3470/image_1920?unique=0a51055
The T-Motor F7 AIO 35A 6S Flight Controller is a compact flight controller featuring advanced components such as an onboard ESC with Bluejay & BLHeli_S firmware, a quality MPU series gyroscope for improved noise reduction, 16MB Blackbox space, and an integrated barometer. With support for both HD and Analog, this versatile AIO flight controller offers a current of 35A, a 5V/1.5A BEC, and an HD VTX socket, making this 25.5x25.5mm AIO an ideal choice for high-performance drone builds.
317.07 zł 317.07 PLN VAT Excluded
317.07 zł VAT Excluded

This combination does not exist.

emax-eco-ii-series-2207-brushless-motor-1900kv

 Powerful Magnets

The internal layout of the Emax ECO II Series 2207 Brushless Motor 1900KV utilizes upgraded N52SH arc magnets featuring enhanced thermal stability. These premium magnets produce an incredibly strong magnetic field, ensuring a highly linear throttle curve and instant responsiveness to your transmitter inputs. Consequently, the motor maintains its full power output even during prolonged, aggressive flight sessions, completely eliminating the common issue of heat-induced performance fades.

emax-eco-ii-series-2207-brushless-motor-1900kv

 Powerful Magnets

The internal layout of the Emax ECO II Series 2207 Brushless Motor 1900KV utilizes upgraded N52SH arc magnets featuring enhanced thermal stability. These premium magnets produce an incredibly strong magnetic field, ensuring a highly linear throttle curve and instant responsiveness to your transmitter inputs. Consequently, the motor maintains its full power output even during prolonged, aggressive flight sessions, completely eliminating the common issue of heat-induced performance fades.

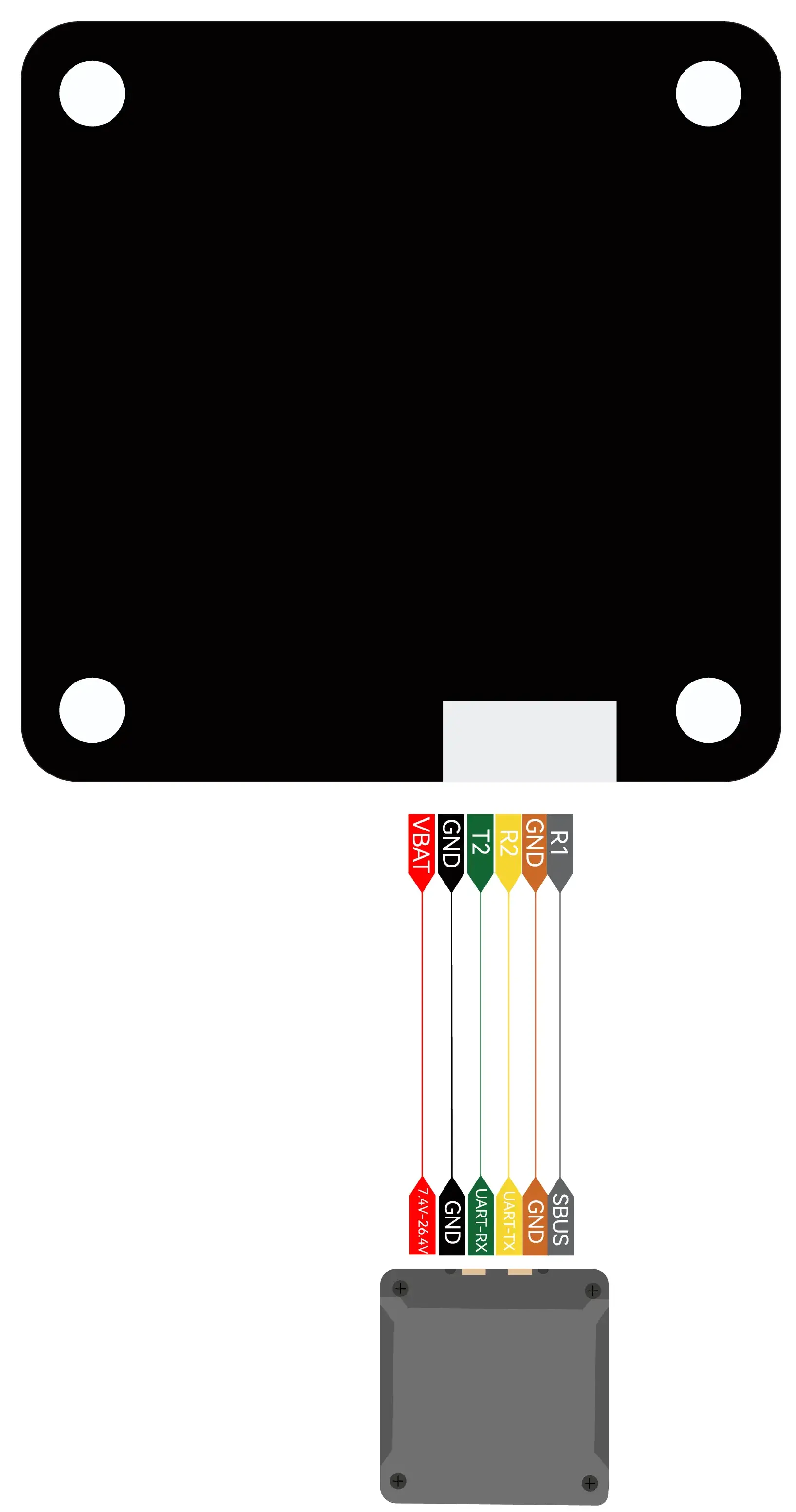

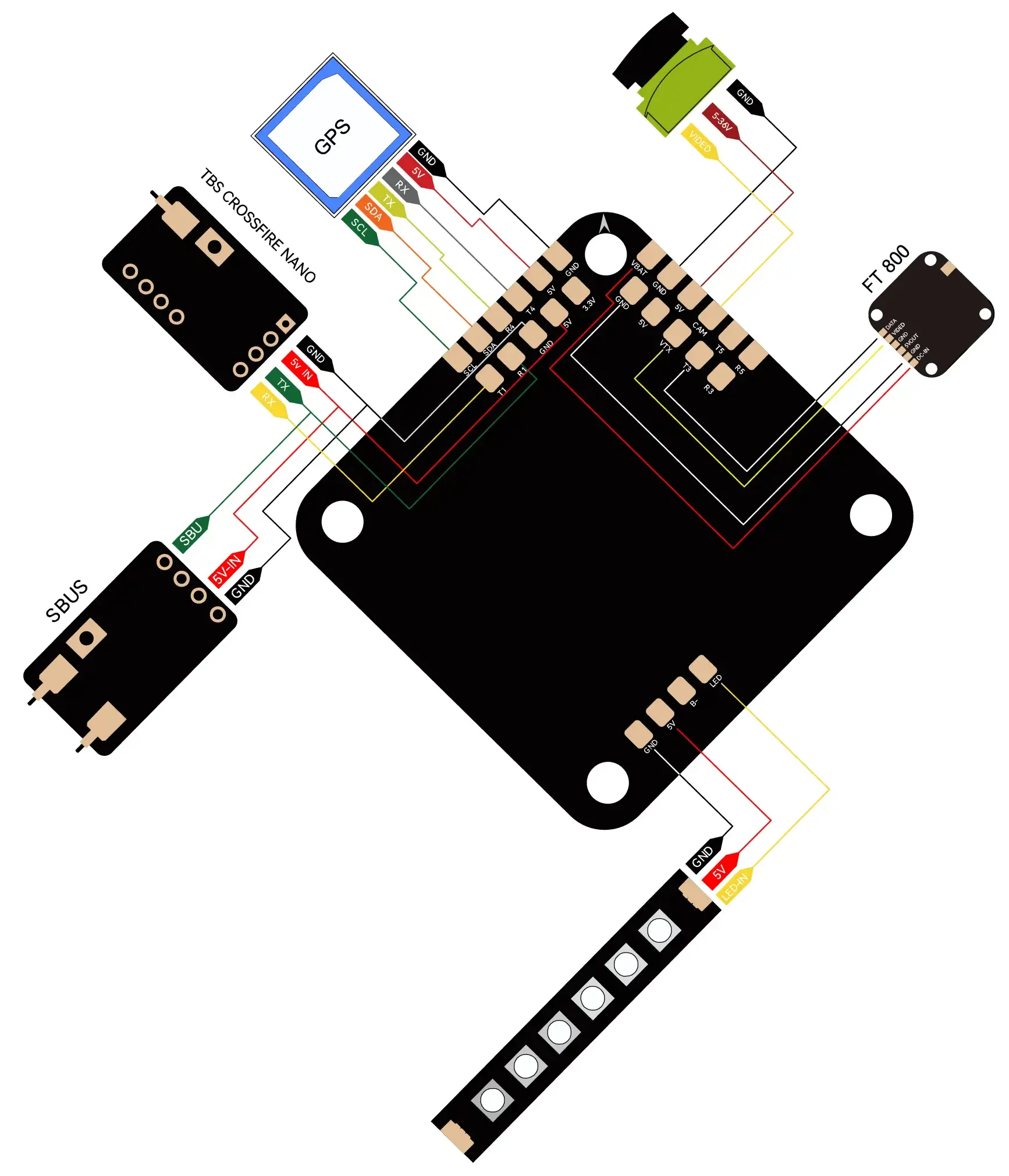

T-Motor F7 AIO 35A 6S Flight Controller Pinout


T-Motor F7 AIO 35A 6S Flight Controller Specifications

Model

T-HOBBY F7 35A/45A AIO

Mounting Hole

25.5mm x 25.5mm / ⌀3mm

ESC Firmware

BLS

Continuous Current

35A

Barometer

BMP280

MCU

STM32F722

Input Voltage

3S - 6S

OSD

AT7456&HD

Peak Current

40A

Blackbox

16MB

Gyroscope

MPU6500

Size

39mm x 39mm

BEC

5V / 1.5A

Weight

10g

Motor Recommendation

P1804 / F2004 / F2203.5

T-Motor F7 AIO 35A 6S Flight Controller Package Includes

  • 1x T-Motor F7 AIO 35A 6S Flight Controller
  • 1x Amass XT60 9cm AWG16 Cable
  • 1x 6pin Wiring Harness
  • 1x Rubycon 35v 1000μF Capacitor
  • 2x Heat Shrinks for Capacitor Legs
  • 4x Silicone O-Ring
  • 6x Silicone Grommets
  • 1x Set of Stickers
