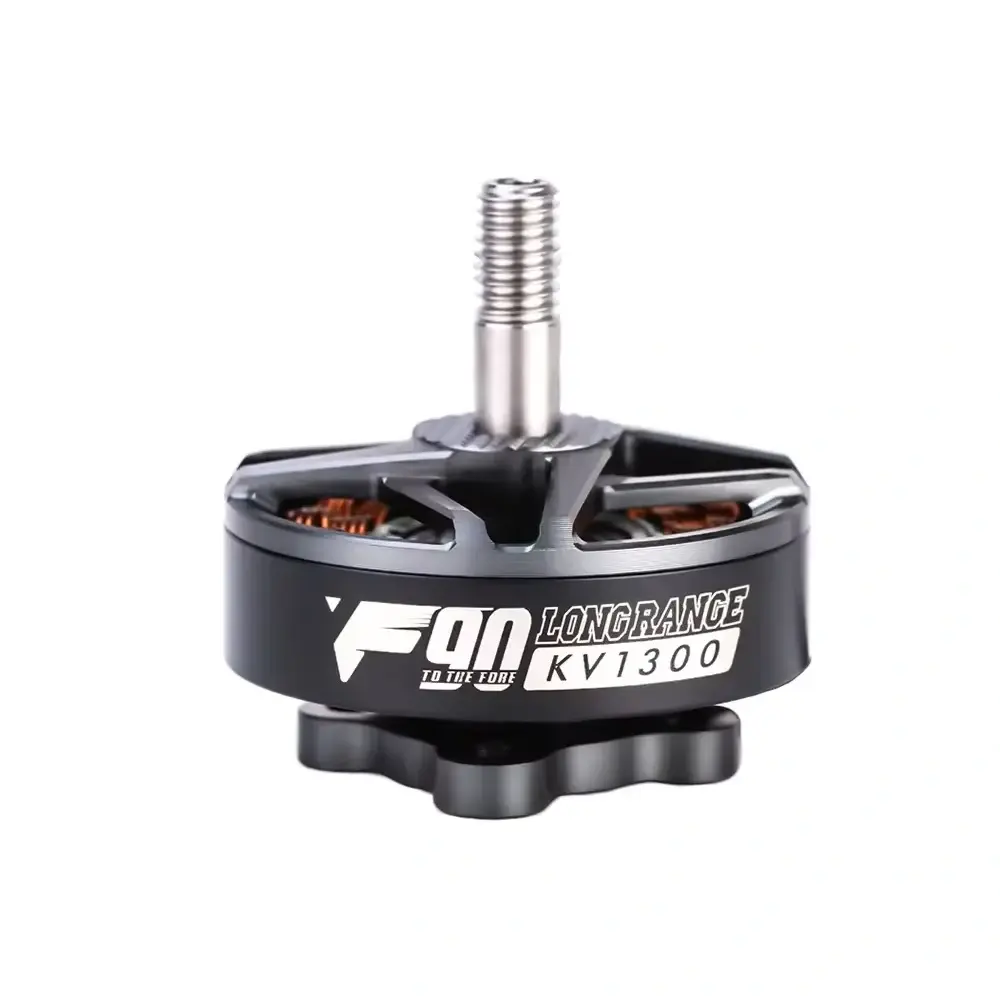

T-Motor F90 2806.5 Long Range Motor KV1300
Unmatched power and efficiency for long-range flights with T-Motor F90 2806.5 Long Range Motor KV1300
The T-Motor F90 2806.5 Long Range Motor KV1300 is a top-tier power unit created specifically for FPV pilots seeking maximum range and reliability. Thanks to its advanced 2806.5 dimensions and optimal 1300KV winding, this component works perfectly with 6S battery setups. It provides an excellent compromise between massive thrust and low power consumption. High-quality bearings and a reinforced shaft guarantee smooth operation without vibrations, directly translating into crystal-clear camera footage. By choosing the T-Motor F90 2806.5 Long Range Motor KV1300, you invest in uncompromising quality and confidence for every single flight.
For long flowing lines
The T-Motor F90 2806.5 Long Range Motor KV1300 is engineered for cinematic flight enthusiasts who prioritize perfect smoothness. With precise throttle control and stable torque, the T-Motor F90 2806.5 Long Range Motor KV1300 allows you to fly long flowing lines without sudden jerks. Outstanding factory balancing completely eliminates micro-vibrations, ensuring your cinematic drone footage captures a professional, cinematic feel regardless of the challenging weather conditions encountered in mountain areas or over open terrain.
Easy to carry heavier camera
If you plan to equip your unmanned aerial vehicle with professional recording gear, the T-Motor F90 2806.5 Long Range Motor KV1300 is the ultimate heavy-duty solution. Its massive power reserve allows the T-Motor F90 2806.5 Long Range Motor KV1300 to easily lift heavier action cameras or even full-size cameras without sacrificing flight dynamics. High torque guarantees absolute control over your aircraft, giving you total confidence that your drone powered by the T-Motor F90 2806.5 Long Range Motor KV1300 will maintain full stability and responsiveness even under maximum payload.
T-Motor F90 2806.5 Long Range Motor KV1300 Specifications
Motor Dimensions | 33.4mm x 34.7mm |
Lead | 20#AWG 230mm |
Shaft Diameter | 4mm |
Idle Current (10V) | 0.95A |
Max. Power (60s) | 1059W |
Weight (Incl. Cable) | 46.6g |
Internal Resistance | 76mΩ |
Configuration | 12N16P |
Rated Voltage (LiPo) | 5-6S |
Peak Current (60s) | 45.1A |

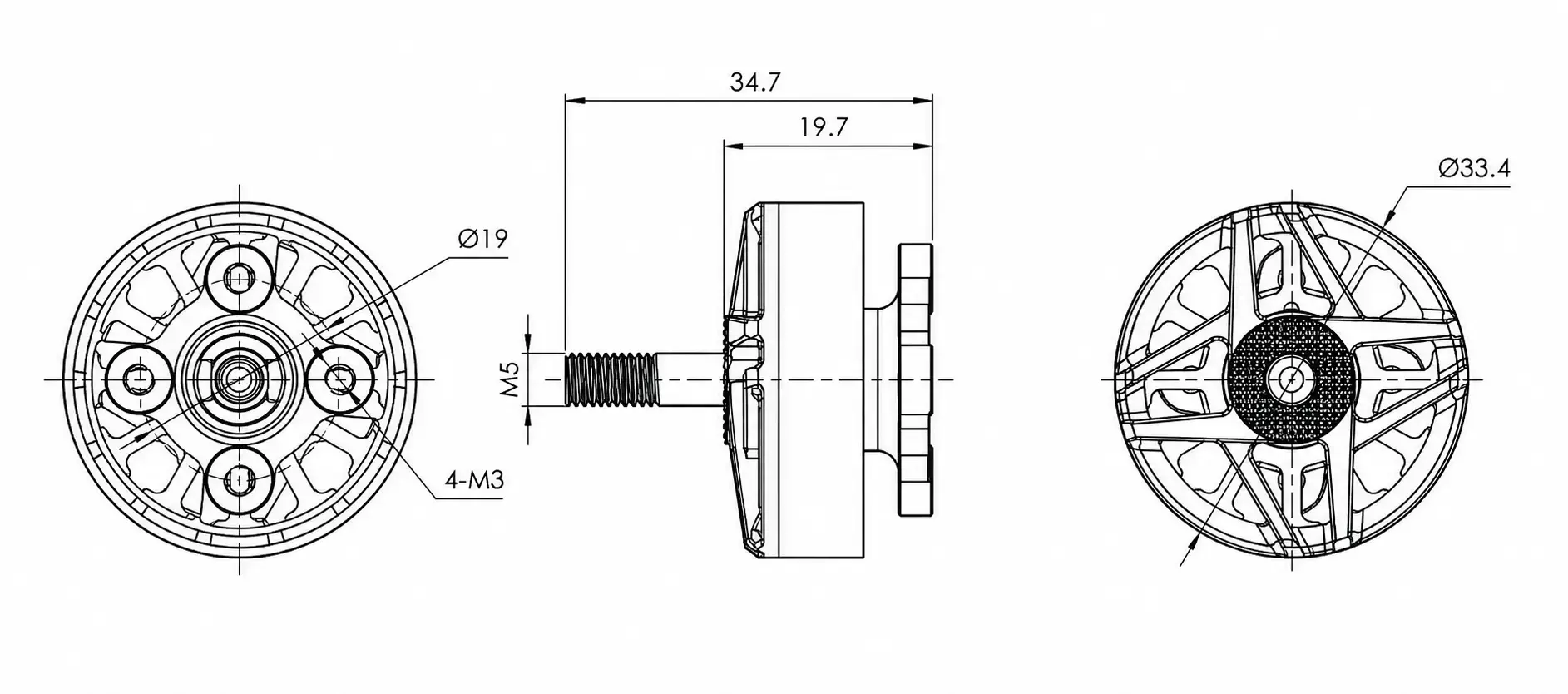

T-Motor F90 2806.5 Long Range Motor KV1300 Dimensions

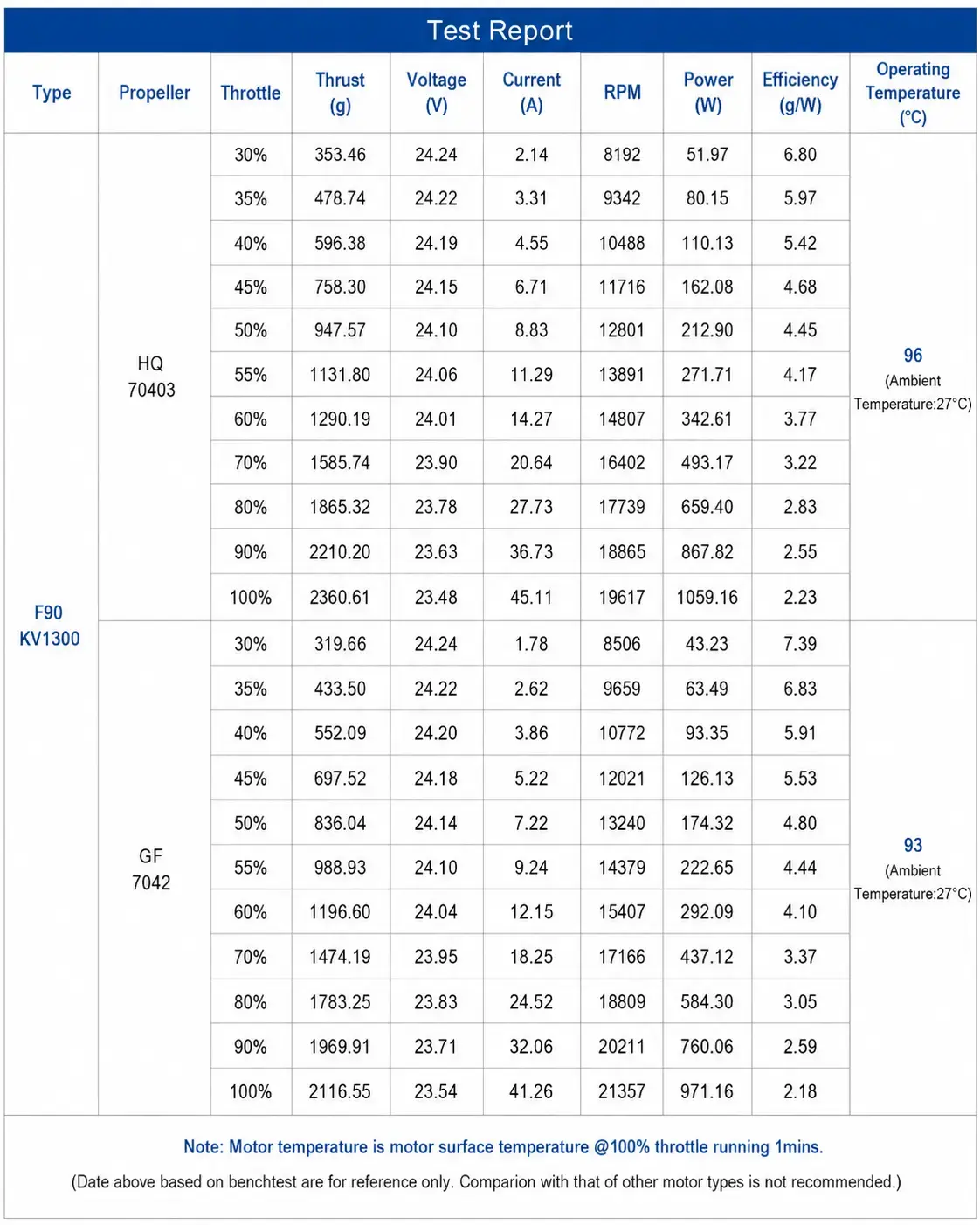

T-Motor F90 2806.5 Long Range Motor KV1300 Test Report

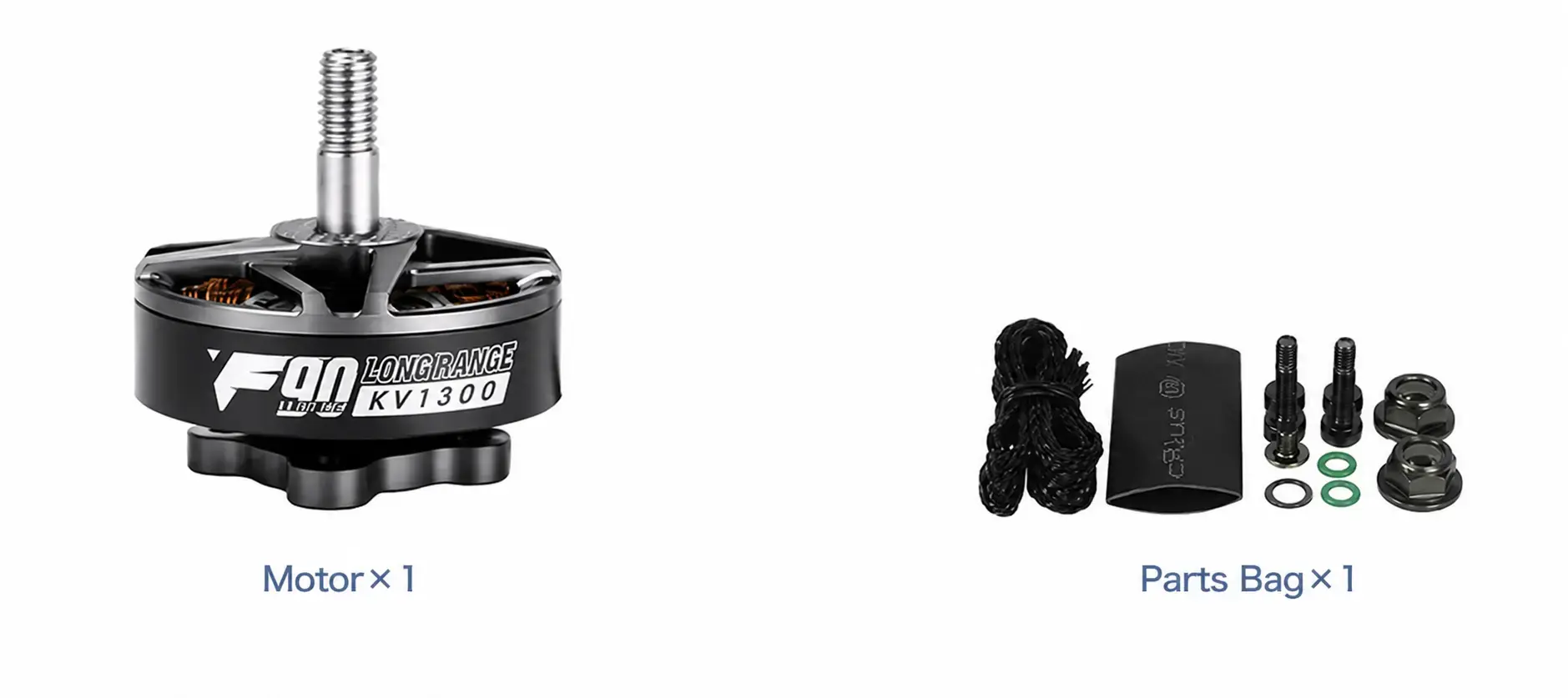

T-Motor F90 2806.5 Long Range Motor KV1300 Package Includes
- 1x T-Motor F90 2806.5 Long Range Motor KV1300
- 1x M5 Flanged Locknut
- 1x Set of frame mounting screws
- 1x Washer and shaft retaining clip
