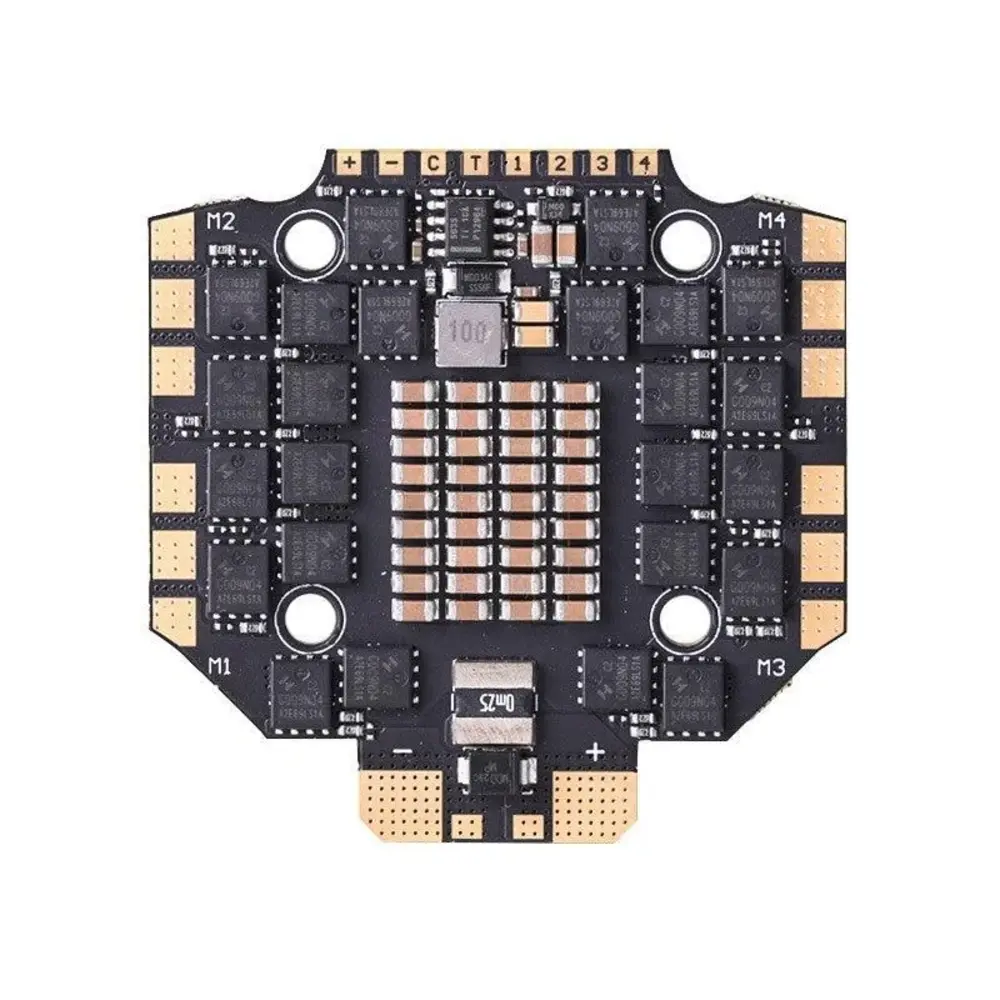

T-Motor Cine 80A 4IN1 8S Electronic Speed Controller
The T-Motor Cine 80A 4IN1 8S Electronic Speed Controller is the ESC for builds where the payload costs more than the drone itself. It gives a heavy cinelifter a deep current reserve on high-voltage packs, so the motors keep a smooth, steady line under a full-size camera. Protected electronics, a signal plug that stays locked in place and a light board leave you free to think about the shot, not about the wiring.
T-Motor Cine 80A 4IN1 8S Electronic Speed Controller — Massive Power for Heavy Cinelifters
The T-Motor Cine 80A 4IN1 8S Electronic Speed Controller is the most powerful T-Motor 4-in-1 ESC in our range. It runs on 4-8S LiPo packs and delivers 80A of continuous current to each of the four motors, with up to 90A for 10 seconds. It is controlled by an STM32G071 microcontroller and comes pre-flashed with AM32, an open-source 32-bit firmware. Two groups of MOSFETs connected in parallel reduce heat generation, dual TVS diodes at the output stage protect the circuit, and a locking socket keeps the 8-pin signal plug from falling out. The board measures 52.5x52.5mm, weighs 29.4g and mounts on a 30.5x30.5mm pattern with Ø4mm holes. T-Motor designed it for heavy-lift cinematic rigs, 7-11 inch long-range platforms and 8S freestyle builds, and recommends pairing it with VELOX V3115 and V3120 motors. The kit includes an XT60H cable, a 50V 1000µF capacitor, dampers and an 8-pin cable set.
Why Choose the Cine 80A
A cinelifter carries the most expensive part of the whole build. The ESC is what decides whether the motors get enough power and whether the electronics hold up flight after flight.
Top of the T-Motor Range
This is the most powerful T-Motor 4-in-1 ESC we sell. 80A per motor, with 90A available for 10 seconds, gives a heavy cinelifter the reserve it needs on big props, so the motors are never left short at the moment you need them.
80A on 29.4g
All that current fits on a 29.4g board that mounts on a standard 30.5x30.5mm pattern. Every gram you save on the electronics is a gram left for the camera, the lens or the battery.
Protects Expensive Gear
Dual TVS diodes at the output stage protect the circuit, and the 8-pin signal plug sits in a locking socket that keeps it in place in flight. When the drone carries a cinema camera, these are the details that count.
Less Heat Under Load
Two groups of MOSFETs connected in parallel share the load. According to T-Motor, this reduces heat generation and improves stability, which matters in long, demanding flights with a heavy payload.
Dual TVS Protection
Two TVS diodes work at the output stage of the ESC. According to T-Motor, they protect the circuit and improve its operating stability.
STM32G071 Microcontroller
The ESC is controlled by a 32-bit STM32G071 microcontroller from the STM32 G0 family, which runs the pre-flashed AM32 firmware.
Locking Signal Socket
The 8-pin cable plugs into a socket that locks it in place and prevents the connector from falling off.
T-Motor Cine 80A 4IN1 8S Electronic Speed Controller Suitable Applications
Heavy-Lift Cinematic Rigs
A cinelifter with a full-size camera needs current in reserve on every channel. 80A per motor lets the drone carry the camera smoothly and still respond firmly when you correct the line of the shot.
7-11 Inch Long Range
Big propellers and long flights load the ESC for minutes at a time. Parallel MOSFETs that share the load and a plug that stays locked in place are what you want far from the take-off point.
8S Freestyle
On 8S every punch-out asks for a lot of current at once. Up to 90A for 10 seconds per motor gives a high-voltage freestyle build room to play.
T-Motor Cine 80A 4IN1 8S Electronic Speed Controller Recommended Motors
T-Motor recommends pairing this ESC with VELOX motors:
- VELOX V3120 (500KV, 700KV)
- VELOX V3115 (400KV, 640KV, 900KV)
Frequently asked questions - T-Motor Cine 80A 4IN1 8S Electronic Speed Controller
It mounts on the standard 30.5x30.5mm pattern with Ø4mm holes, and the dampers are in the kit. The board itself measures 52.5x52.5mm, so check that your frame has room for it.
Yes. It works with LiPo packs from 4S to 8S, so one ESC covers both 6S builds and 8S setups.
Our units come pre-flashed with AM32, an open-source 32-bit firmware. Older descriptions of this ESC online may still mention BLHeli_32.
You need a 30.5x30.5mm flight controller that accepts 8S power, because it is powered through the ESC connector. Before connecting, compare the pin order of the 8-pin cable with your flight controller.
T-Motor Cine 80A 4IN1 8S Electronic Speed Controller Specification
MCU | STM32G071 |
Firmware | AM32 |
Input Voltage | 4-8S LiPo |
Continuous Current | 80A x4 |
Burst Current | 90A x4 (10s) |
MOSFETs | Two groups connected in parallel |
Protection | Dual TVS diodes at the output stage |
Signal Connector | 8-pin, locking socket |
Dimensions | 52.5x52.5mm |
Mounting Pattern | 30.5x30.5mm, Ø4mm |
Weight | 29.4g |
T-Motor Cine 80A 4IN1 8S Electronic Speed Controller Package Includes
- 1x T-Motor Cine 80A 4IN1 8S Electronic Speed Controller
- 1x XT60H Male Cable, 12AWG
- 1x 50V 1000µF Capacitor
- 1x Set of Dampers
- 1x 8-Pin Cable Set
