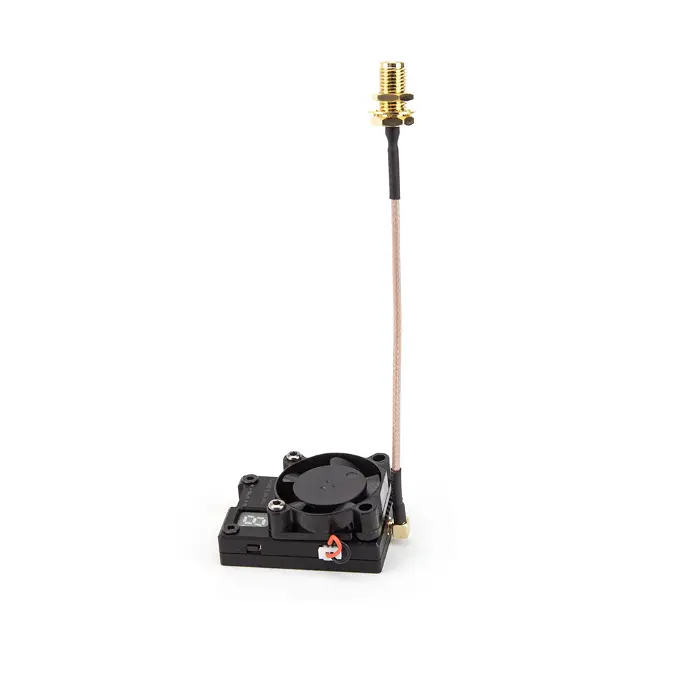

SKYZONE ATOMRC TX1200 Analog VTX
More power, less problems - meet your new VTX friend!
The SKYZONE ATOMRC TX1200 Analog VTX is a powerful video transmitter designed for long-range FPV systems. It operates at 1200mW, offering a choice of output power: 200mW, 800mW or 1200mW. It supports multiple frequency bands and has a seven-segment display for easy status monitoring. The transmitter is equipped with active and passive cooling, including a fan to prevent overheating during prolonged operation. It also supports the IRC protocol, often used in video transmission systems. Translated with DeepL.com (free version)
17g and 1200mW? That's like an ant carrying an elephant!
It weighs only 17 grams and measures 25.5x36.5mm, making it compact and suitable for a variety of applications, especially drones. It is powered by a wide voltage range (7-26V), giving it versatility in FPV applications.
SKYZONE ATOMRC TX1200 Analog VTX Specification
Weight | 17g |
Dimension | 25.5X36.5mm |
Power | 200/800/1200mW |
Voltage | 7~26V |
CH | 40 |
Mounting Hole | 20X30mm |
Package SKYZONE ATOMRC TX1200 Analog VTX Includes
- 1x SKYZONE ATOMRC TX1200 Analog VTX
- 1x Cooling Fan
- 1x MMCX to SMA pigtail
- 1x JST Silicone Cable for FC
- 1x Set of Fan Mounting Screws
