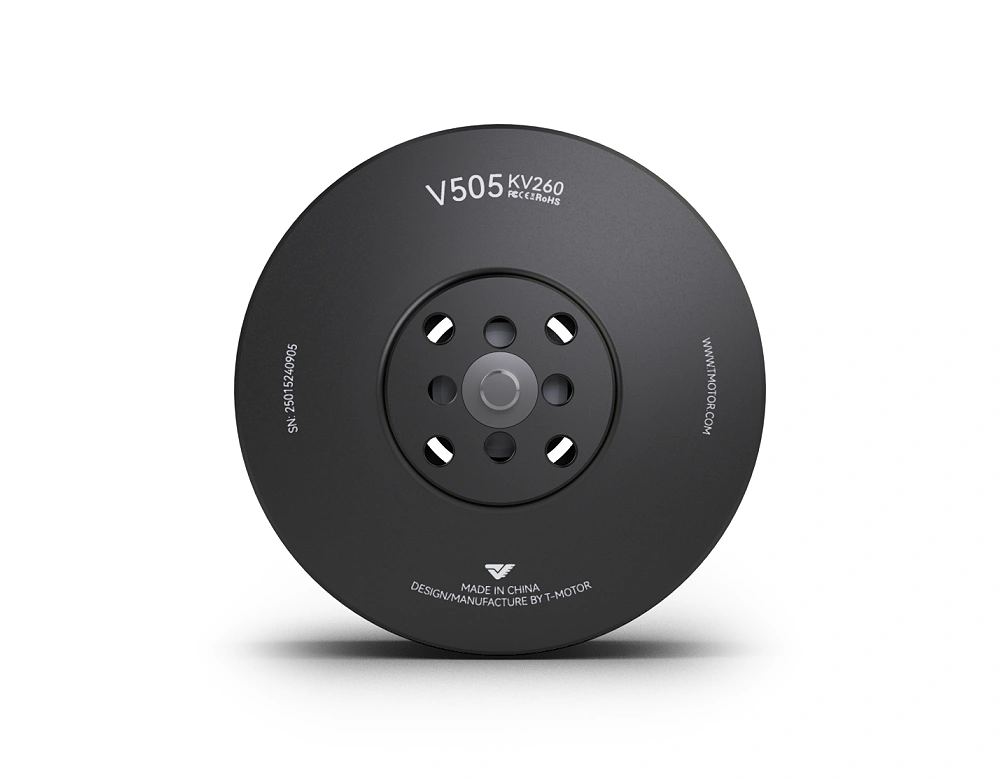

T-Motor VTOL V505 KV260 12S Brushless motor

https://www.bzbuas.com/web/image/product.template/1016/image_1920?unique=3441a03

The T-Motor VTOL V505 KV260 12S Brushless motor gives a mid-size VTOL aircraft the confidence it needs at the most demanding moments of every flight. Plenty of thrust in reserve makes takeoff, hover and transition calm and predictable, even with a payload on board. Heat-resistant materials, active cooling and IP45 protection keep it working day after day in the field, so your missions stay on schedule.

495.12 zł 495.12 PLN VAT Excluded
495.12 zł VAT Excluded
Price on request

This combination does not exist.

T-Motor VTOL V505 KV260 12S Brushless motor — Sharp Takeoff, Steady Landing

The T-Motor VTOL V505 KV260 12S Brushless motor is a lift motor from the T-Motor V series, designed for the vertical takeoff and landing propulsion of VTOL aircraft. It runs on 12S LiPo packs (42-52V) and in the manufacturer's bench test produced up to 8,741g of thrust at full throttle on a P17x5.8 propeller and 7,500g on a P16x5.4. It handles 52A peak current and 2500W of power for 180 seconds. The 24N28P motor measures Ø55.6x38.9mm and weighs 215g (255g with cables). It has IP45 protection, 696ZZ bearings and 600mm 16AWG leads. T-Motor recommends it for composite-wing VTOL aircraft with a quad takeoff weight of 10-15kg, paired with the FLAME 60A 12S ESC.

T-Motor VTOL V505 KV260 12S Brushless motor with a carbon propeller

Built to Withstand Heat

In a VTOL aircraft the lift motors do the hardest work during takeoff, hover and transition. The V505 is wound with enamelled wire rated to 220°C (Class C) and uses curved magnets rated to 150°C (Class E), which strengthens its passive heat resistance. A centrifugal fan structure improves active heat dissipation, and the stator has an anti-rust treatment and coatings resistant to 180°C.

Rotor and stator of the T-Motor VTOL V505 KV260 12S Brushless motor
T-Motor V505 and V605 VTOL motors from the V series

The V Series for VTOL Propulsion

T-Motor designed the V series specifically for VTOL power systems. These motors combine plenty of power with a high thrust-to-weight ratio, strong overload capability and adaptability to the environment they work in, all to keep every flight safe. The V505 is the smaller sibling of the V605, sized for VTOL aircraft with a 10-15kg quad takeoff weight.

T-Motor VTOL V505 KV260 12S Brushless motor Key Features

Plenty of Thrust in Reserve

In T-Motor's bench test the V505 reached 8,741g of thrust at full throttle on a P17x5.8 propeller. With 2.5-3.5kg per motor recommended for VTOL flight, that leaves a solid reserve for takeoff and transition.

Ready for Field Work

IP45 protection, an anti-rust treated stator and coatings resistant to 180°C prepare the V505 for outdoor work, where water spray is part of the job.

Made for 12S

It runs on 12S LiPo packs (42-52V) and handles 52A peak current and 2500W for 180 seconds. A higher voltage means less current for the same power.

Precision Build

The rotor is dynamically balanced to ≤5mg and runs on 696ZZ bearings. A well-balanced rotor sends less vibration into the airframe and the flight controller.

Recommended VTOL Propulsion Setup with the T-Motor VTOL V505 KV260 12S Brushless motor

T-Motor recommends the following setup for a composite-wing VTOL aircraft built around the V505.

Lift Motors

Motor

V505 KV260

Propeller

P16x5.4 / P17x5.8

ESC

FLAME 60A 12S

Battery / Voltage

12S LiPo (4.2V/cell) / 42-52V

Thrust per Motor

2.5-3.5kg

MTOW (Quad)

10-15kg

Pusher Motor

Motor

AT4125 KV250 / AT4130 KV230

Propeller

16x8 / 16x10

ESC

AT115A (6-12S)

Battery / Voltage

12S LiPo (4.2V/cell) / 42-52V

Thrust

2-3kg

In a coaxial configuration, allow for a 25% loss of performance.

T-Motor VTOL V505 KV260 12S Brushless motor Test Report

T-Motor bench-tested the V505 with two T-Motor propellers, P16x5.4 and P17x5.8, at 46.9-47.9V. Selected measurement points are shown below.

T-Motor P16x5.4 Propeller

Throttle

Thrust (g)

Current (A)

Input Power (W)

Efficiency (g/W)

RPM

40%

1892

6.13

293.65

6.44

5509

50%

2660

9.16

438.36

6.07

6397

60%

3372

12.83

613.04

5.50

7225

70%

4246

17.91

853.77

4.97

8114

80%

5301

24.09

1145.40

4.63

8953

90%

6299

31.57

1496.04

4.21

9737

100%

7500

42.21

1990.36

3.77

10606

T-Motor P17x5.8 Propeller

Throttle

Thrust (g)

Current (A)

Input Power (W)

Efficiency (g/W)

RPM

40%

2329

7.51

359.81

6.47

5293

50%

3203

11.68

558.10

5.74

6202

60%

4093

16.37

780.69

5.24

6993

70%

5149

22.88

1087.99

4.73

7817

80%

6292

30.61

1451.23

4.34

8580

90%

7349

39.85

1881.00

3.91

9291

100%

8741

52.93

2483.87

3.52

10075

T-Motor VTOL V505 KV260 12S Brushless motor thrust graph with P16x5.4 and P17x5.8 propellers

We drew this graph from the full T-Motor test data (all measurement points from 40% to 100% throttle).

Motor surface temperature after 10 minutes at 80% throttle was 85°C with the P16x5.4 and 107°C with the P17x5.8, at an ambient temperature of 22°C. Data from the T-Motor test bench, for reference.

T-Motor VTOL V505 KV260 12S Brushless motor Dimensions

T-Motor VTOL V505 KV260 12S Brushless motor technical drawing

T-Motor VTOL V505 KV260 12S Brushless motor Specification

Model / KV

V505 KV260

Configuration

24N28P

Shaft Diameter

6mm inside the motor, 4mm output end

Bearings

696ZZ (imported)

Leads

16AWG, 600mm

Battery / Voltage

12S LiPo (4.2V/cell), 42-52V

Idle Current (18V)

1.5A

Peak Current

52A (continuous for 180s)

Max Power

2500W (continuous for 180s)

Max Thrust

8741g (P17x5.8, 100% throttle)

Internal Resistance

58mΩ

Stator

Anti-rust treatment, coatings resistant to 180°C

Magnet Temperature Rating

Class E, 150°C

Winding Wire Temperature Rating

Class C, 220°C

Coil Withstand Voltage

500V / 5s

Rotor Dynamic Balance

≤5mg

Ingress Protection

IP45

Recommended ESC

FLAME 60A 12S

Recommended Propeller

P16x5.4 / P17x5.8

Weight

215g (255g with cables)

Dimensions

Ø55.6x38.9mm

T-Motor VTOL V505 KV260 12S Brushless motor Package Includes

  • 1x T-Motor VTOL V505 KV260 12S Brushless motor
  • 1x Mounting Parts Bag
T-Motor VTOL V505 KV260 12S Brushless motor package contents
