BetaFPV LAVA II 680mAh 1S 95C LiHV Battery
BetaFPV LAVA II 680mAh 1S 95C LiHV Battery – High Endurance and Uncompromised Performance

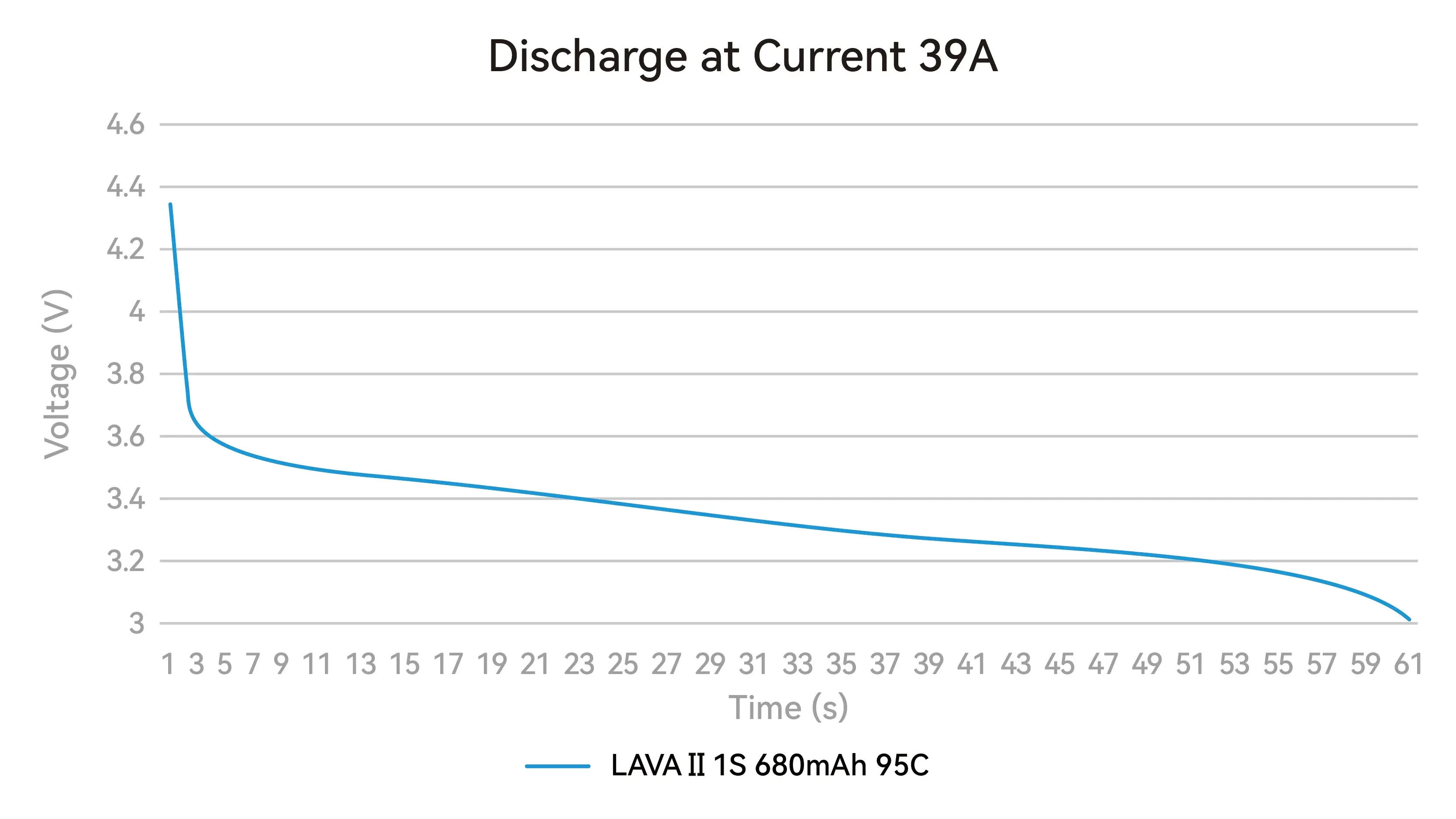

The new LAVA series marks a breakthrough in the micro FPV category, offering significantly higher performance than standard cells. Utilizing an innovative Z-Folding process, the BetaFPV LAVA II 680mAh 1S 95C LiHV Battery features increased energy density and a more stable discharge curve. In practice, this means a powerful "punch" and a longer battery lifespan, making it the perfect choice for racing Whoops like the Meteor75 Pro or Air75. This advanced construction significantly reduces internal resistance, ensuring that the BetaFPV LAVA II 680mAh 1S 95C LiHV Battery maintains consistent power delivery even at the end of the flight. Pilots can now enjoy more aggressive maneuvers without the fear of sudden voltage drops during critical moments.
LAVA 1S Battery vs. LAVA II 1S Battery
While the previous LAVA series focused on smaller capacities, the BetaFPV LAVA II 680mAh 1S 95C LiHV Battery pushes the boundaries of the 1S ecosystem. Compared to the previous 75C generation, this new version offers a massive 26.7% increase in discharge rate (now 95C), providing unparalleled power for larger builds. The introduction of the 680mAh capacity in the LAVA II series allows pilots to achieve significantly longer flight times while maintaining the same high-voltage stability (0.1V higher than before).
Z-Folding Process
By implementing the proprietary Z-Folding process, the BetaFPV LAVA II 680mAh 1S 95C LiHV Battery achieves a 5% higher energy density compared to traditional wound-cell designs. This precision engineering not only enhances the power-to-weight ratio but also significantly extends the cycle life of the BetaFPV LAVA II 680mAh 1S 95C LiHV Battery, ensuring long-term reliability for demanding pilots.
Key features of BetaFPV LAVA II 680mAh 1S 95C LiHV Battery
- Higher Discharge Rate - The 95C rating of the BetaFPV LAVA II 680mAh 1S 95C LiHV Battery provides a massive current boost, ensuring flight stability.
- BT2.0 Connector - Eliminates the voltage sag common with PH2.0 connectors, allowing you to utilize the cell's full potential.
- Z-Folding Technology - Achieves 5% higher energy density and significantly extended cycle life compared to traditional wound cells.
- Compact & Durable - Designed with a vibrant new green and yellow livery, signaling the advanced performance within.
BetaFPV LAVA II 680mAh 1S 95C LiHV Battery Specifications
Capacity | 680mAh |
Power | 2.58Wh |
C-rate | 95C |
Max Voltage | 4.35V |
Storage Voltage | 3.85V |
Battery Type | LiHV |
Connector | BT2.0 |

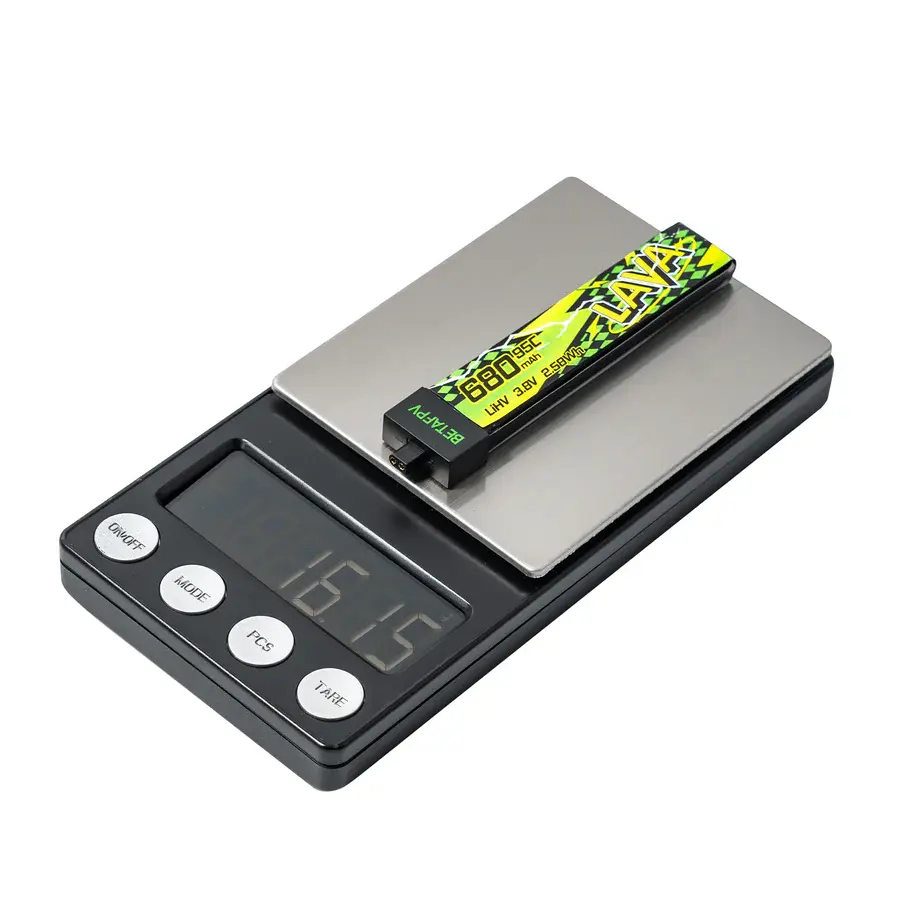

Weight | 16.2 g |

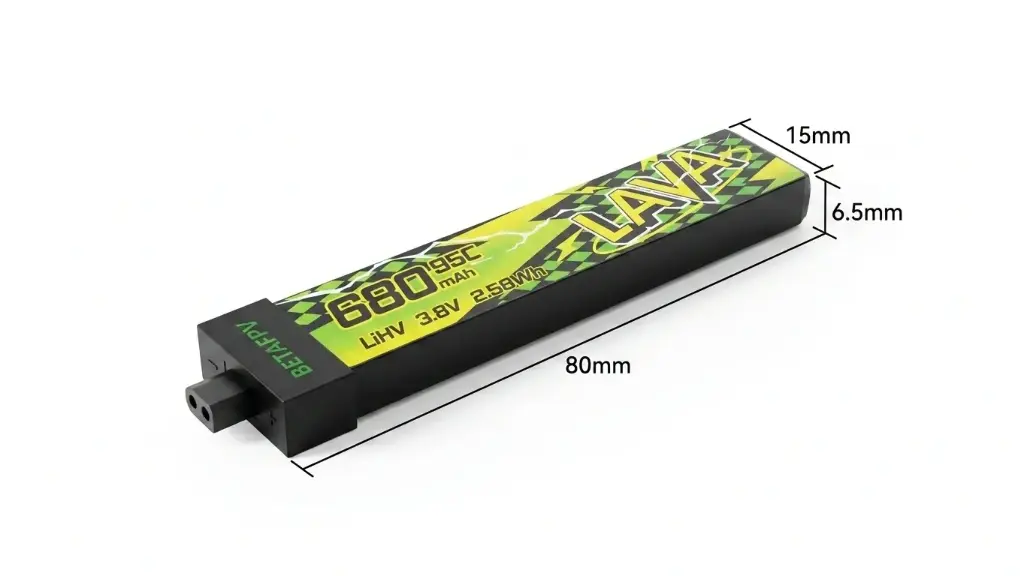

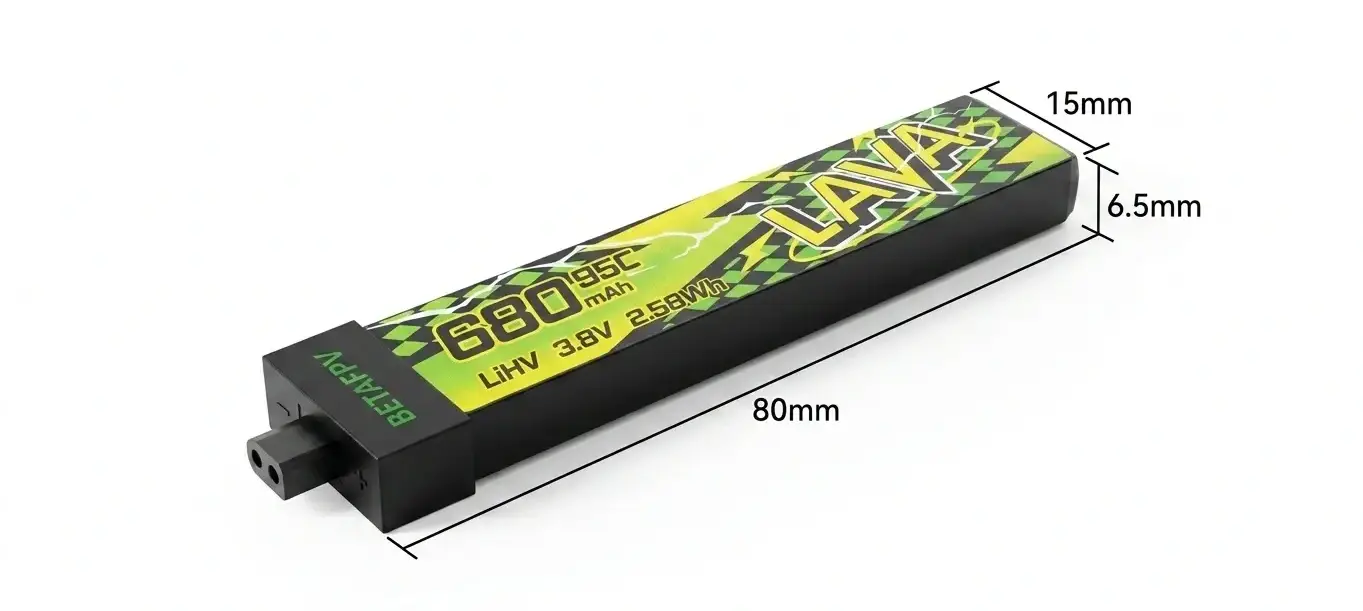

Dimensions | 80x15x6.5 mm |
BetaFPV LAVA II 680mAh 1S 95C LiHV Battery Package Includes
- 1x or 4x BetaFPV LAVA II 680mAh 1S 95C LiHV Battery (depending on the selected option)
- Before use, the battery must be fully charged.
- Only use a charger designed for lithium-polymer/lithium-ion batteries and never leave the battery unattended during the charging process.
- When charging, always keep the battery away from flammable and explosive materials.
- Never overcharge the battery. The maximum voltage for a LiPo battery is 4.2V per cell, and for a LiHV battery, it is 4.35V per cell.
- Never discharge the battery below 3V per cell under load.
- Fully charged batteries should not be stored for more than 3 days. For long-term storage, maintain a voltage between 3.8V and 3.9V.
- Do not disassemble, crush, short-circuit, or expose to flames or other ignition sources.
- Do not use batteries that are deformed or swollen.
