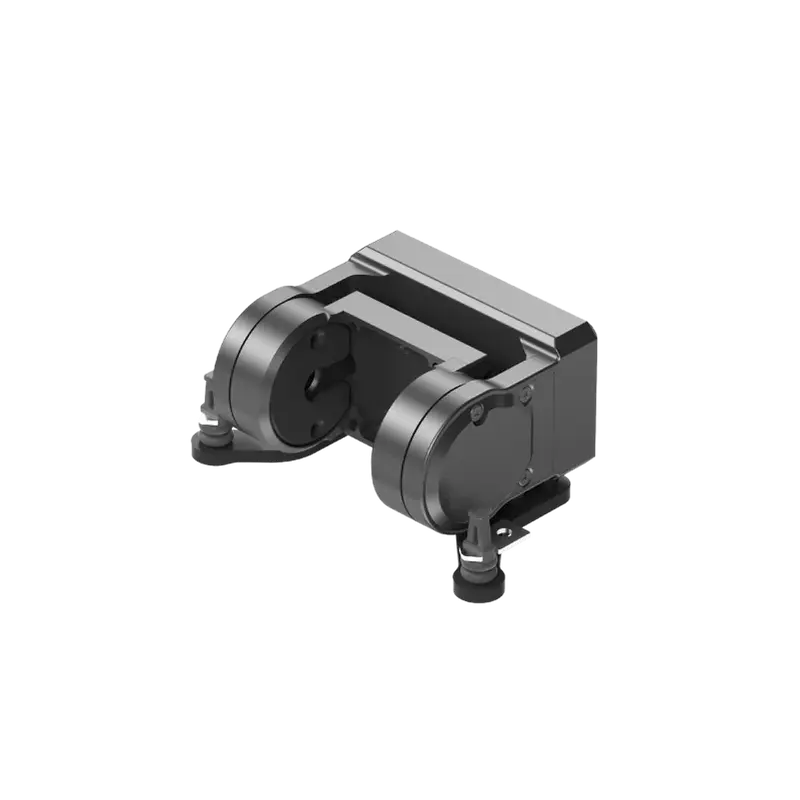

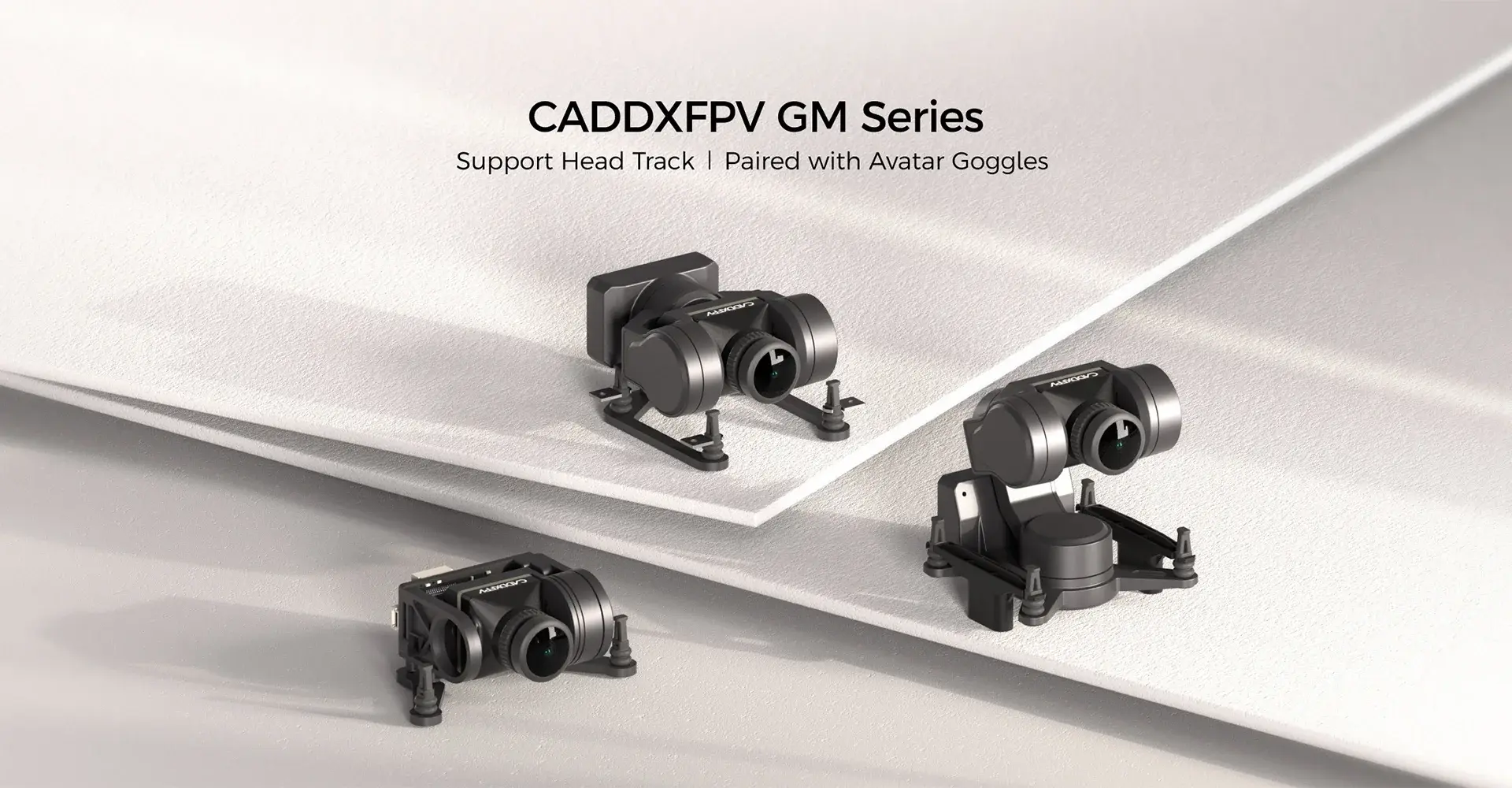

Caddx GM1 V2 Single-Axis Gimbal CVBS Head Tracking Makes FPV More Immersive

Head tracking changes the way the pilot interacts with the FPV camera. Instead of keeping the view permanently fixed to the vehicle, GM1 V2 can move the camera according to head movement when used in a compatible system. This creates a more natural way of looking around during FPV operation and can be especially useful when observing the surroundings without changing the direction of the entire vehicle.

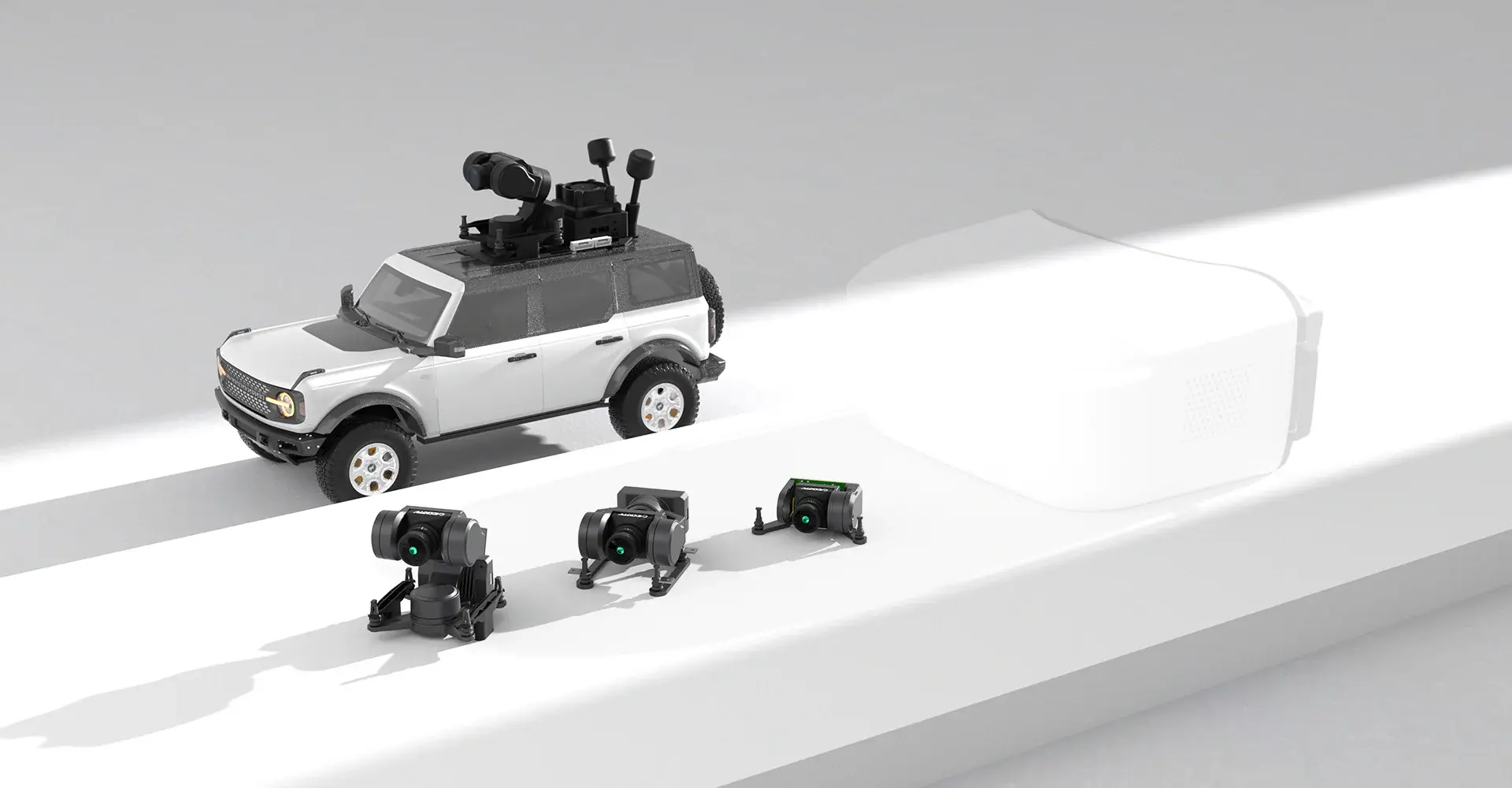

Caddx GM1 V2 Single-Axis Gimbal CVBS A Moving Camera Adds More Control to Ground FPV

An FPV camera does not have to remain permanently fixed in one direction. On RC ground vehicles, controllable pitch movement can help the operator adjust the viewing angle to the terrain, speed and immediate surroundings. The GM series is officially positioned for RC cars as well as aerial FPV platforms, making the same head-tracking and stabilization concept useful beyond drones alone.

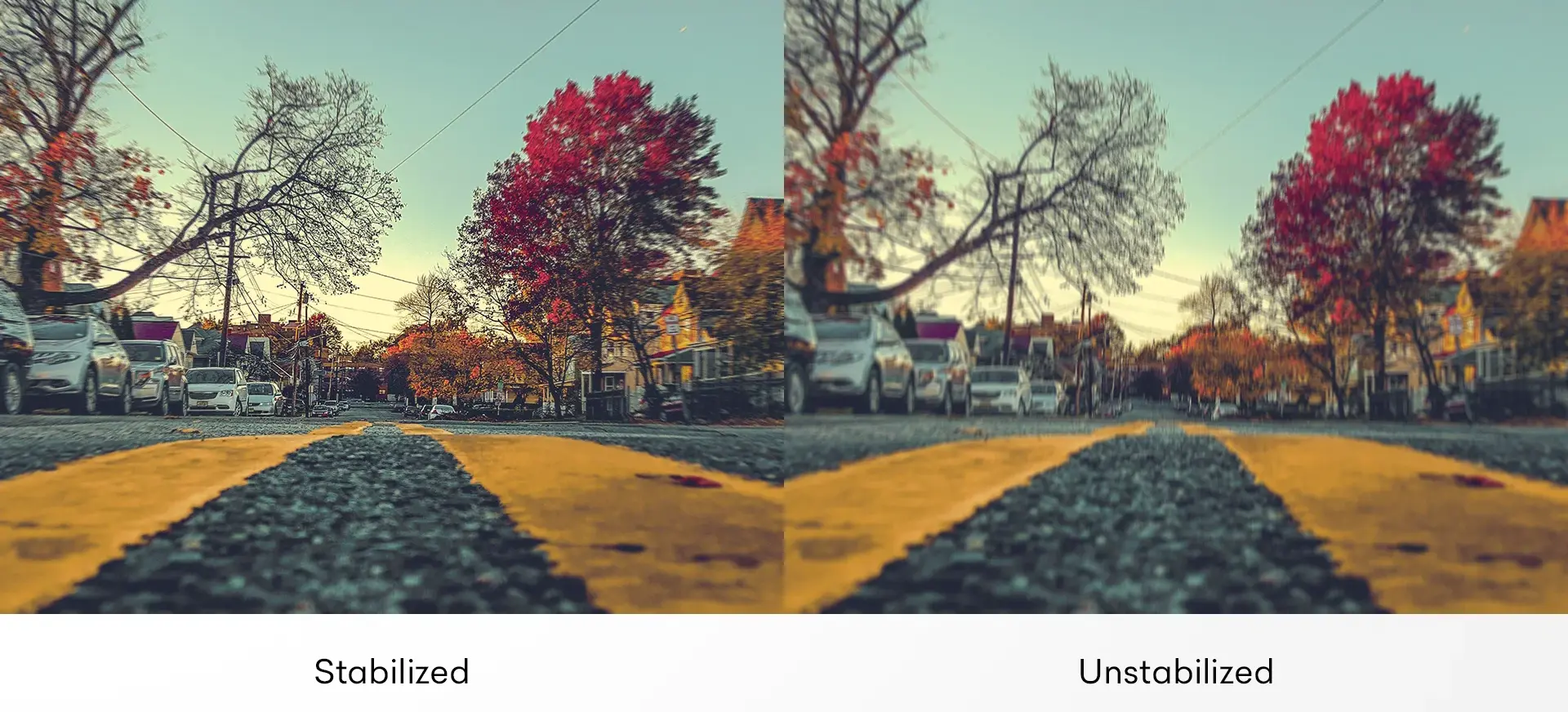

Caddx GM1 V2 Single-Axis Gimbal CVBS Mechanical Stabilization for a Cleaner FPV View

Mechanical stabilization helps reduce unwanted camera movement before it reaches the pilot's view. This is particularly useful on platforms exposed to vibration, rapid attitude changes or uneven terrain. Instead of relying solely on a rigid camera mount, the gimbal actively controls the camera axis to provide a smoother and more controlled FPV experience.

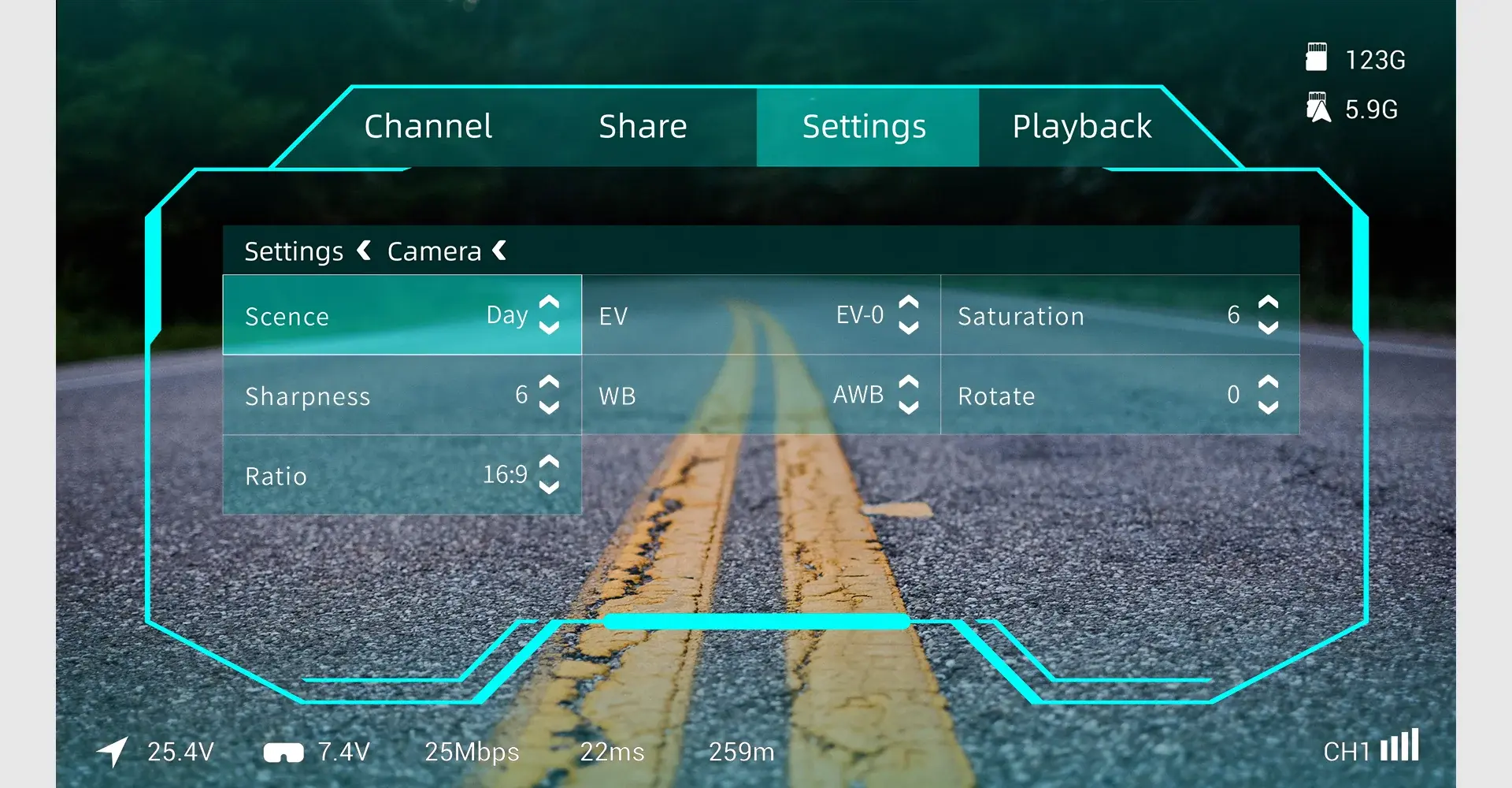

Caddx GM1 V2 Single-Axis Gimbal CVBS Control Without Leaving the FPV Experience

A compatible Avatar setup allows gimbal functions to be incorporated into the FPV workflow rather than treating the camera mount as a completely separate accessory. Caddx states that gimbal modes and sensitivity can be managed through the Avatar goggles menu or through PWM control, giving the pilot direct control over how the gimbal responds.

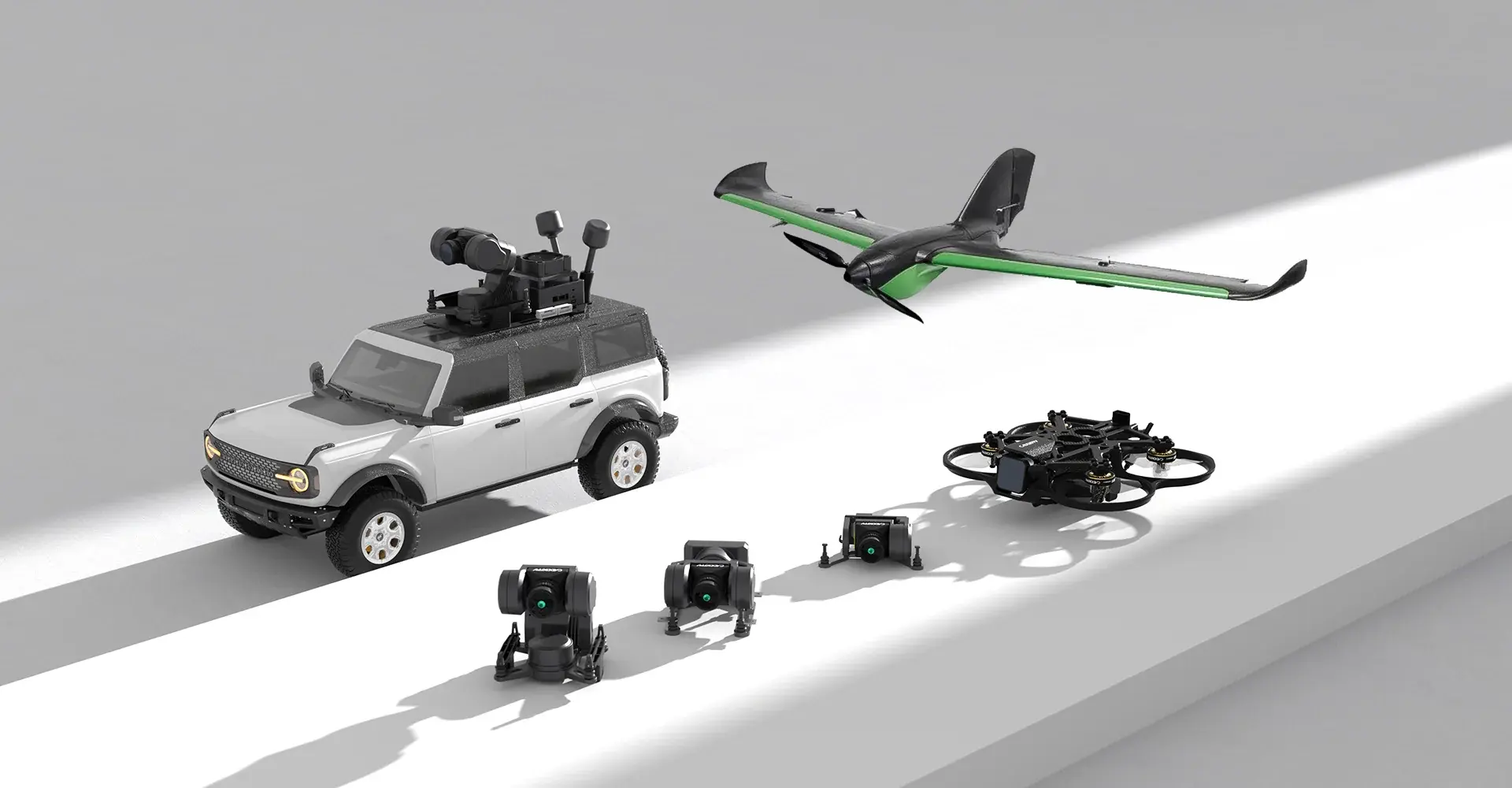

Caddx GM1 V2 Single-Axis Gimbal CVBS One Gimbal Concept for Different FPV Platforms

The GM series is designed for more than one type of RC vehicle. FPV drones, fixed-wing aircraft and RC cars can all benefit from controllable camera orientation, depending on the way the vehicle is operated. GM1 V2 is the single-axis option in the range, making it suitable where pitch control and stabilization are required without moving to a larger two- or three-axis system.

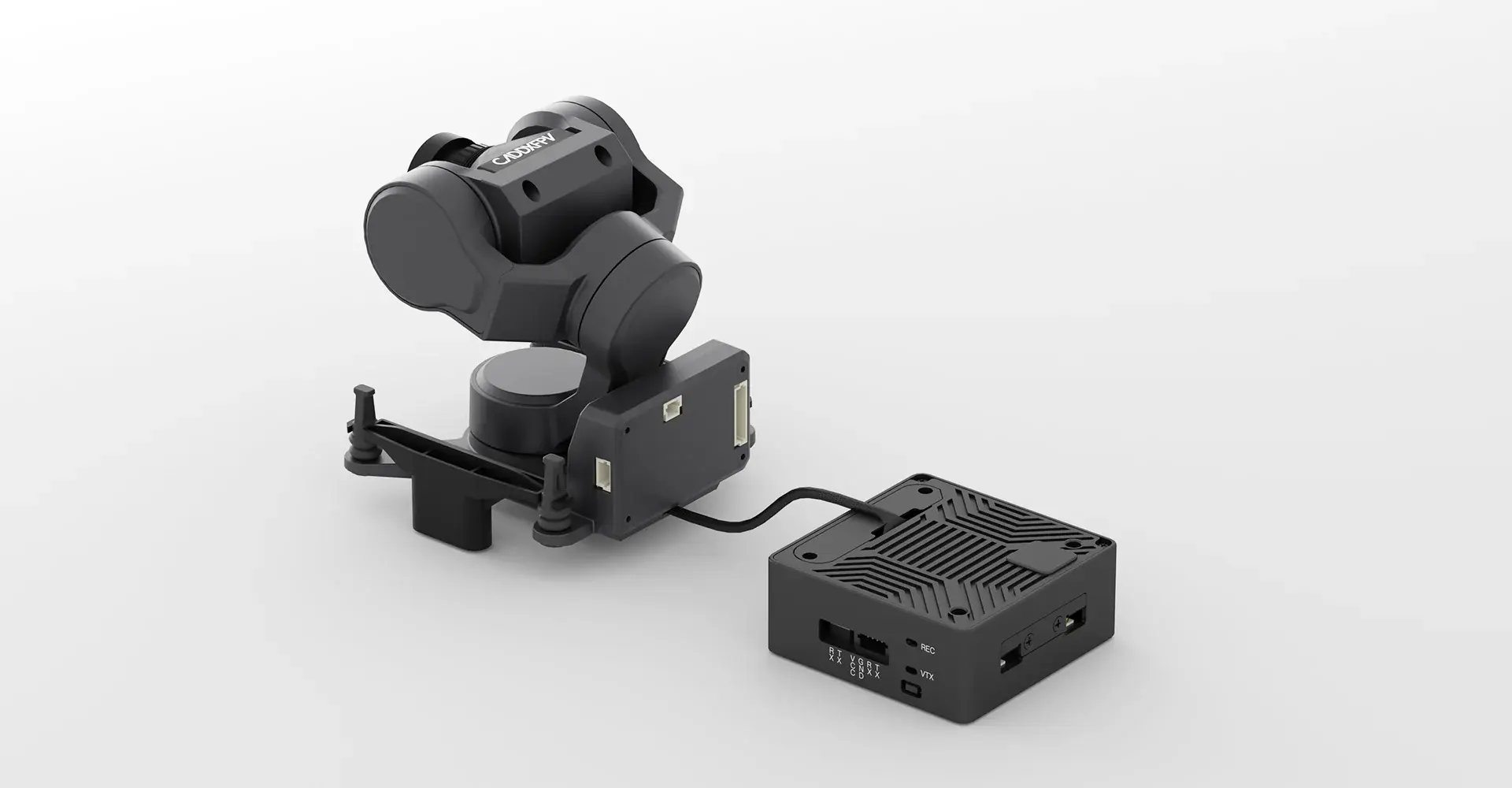

Caddx GM1 V2 Single-Axis Gimbal CVBS Flexible Integration with Compatible FPV Systems

GM1 V2 offers several control methods that make it easier to integrate into different electronic architectures. UART, S.Bus, CRSF, MAVLink and PWM support allow the gimbal to be controlled through different RC, flight-controller and autopilot configurations, provided the complete installation is configured correctly.

For head tracking through the Walksnail ecosystem, Caddx states that the GM gimbals are not compatible with V1 VTX, Mini 1s, Nano V3 or GT VTX and lists V2 VTX, V2 VTX Dual and Moonlight VTX as supported options.

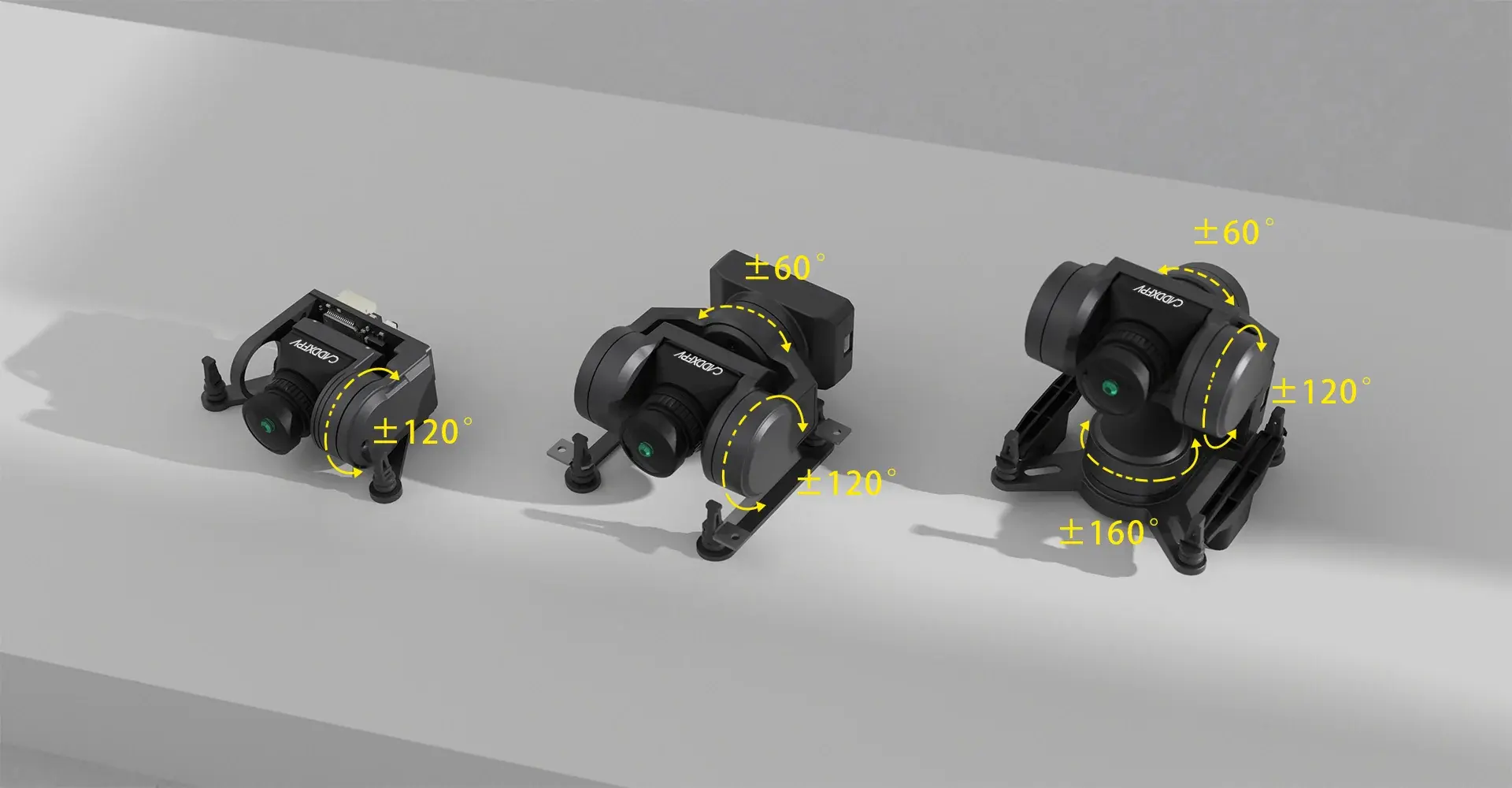

Caddx GM1 V2 Single-Axis Gimbal CVBS ±120° Pitch Control Without a Multi-Axis Mechanism

GM1 V2 concentrates its movement on a single pitch axis with a controllable range of ±120°. This keeps the concept simpler than a two- or three-axis gimbal while still giving the pilot substantial vertical camera movement. It is a practical choice for installations where pitch adjustment is the main requirement and additional roll or yaw axes are unnecessary.
