GEPRC GEP-M10 Series GPS Module

Upgrade your FPV drone with the GEPRC GEP-M10 Series GPS Module and enjoy ultra-fast GPS lock, stable positioning and safer flights thanks to the latest u-blox M10 chip supporting up to 32 satellites at once. Perfect for Return-to-Home, long range and cinematic flying — compact, lightweight and ready to keep your drone locked in with precision from takeoff to landing.

61.79 zł VAT Excluded

VERSION
- GEP-M10nano
- GEP-M10-DI

This combination does not exist.

Add to cart Buy now

Terms and Conditions

Precision You Can Trust, Wherever You Fly Precision You Can Trust, Wherever You Fly

GEPRC GEP-M10 Series GPS Module - Precision You Can Trust, Wherever You Fly

M10 Chip

Powered by the u-blox M10050 chip, the module delivers reliable GPS performance with fast signal acquisition and accurate navigation data.

Fast Positioning

Supports fast and precise positioning with up to 32 satellites, ensuring stable location tracking during FPV, multirotor, and fixed-wing flights.

IST8310 Magnetometer

IST8310 magnetometer provides accurate azimuth and heading data, improving orientation and navigation reliability.

Joint Positioning

Supports GPS, BDS, Galileo, QZSS, and SBAS joint positioning for stronger signal coverage and more stable positioning performance.

DPS310 High Precision Barometer

The optional DPS310 barometer provides sensitive altitude-change data, helping improve height measurement accuracy during flight.

Stable Connection

Stable connection quality and support for multiple satellite systems help maintain dependable positioning even in demanding flight conditions.

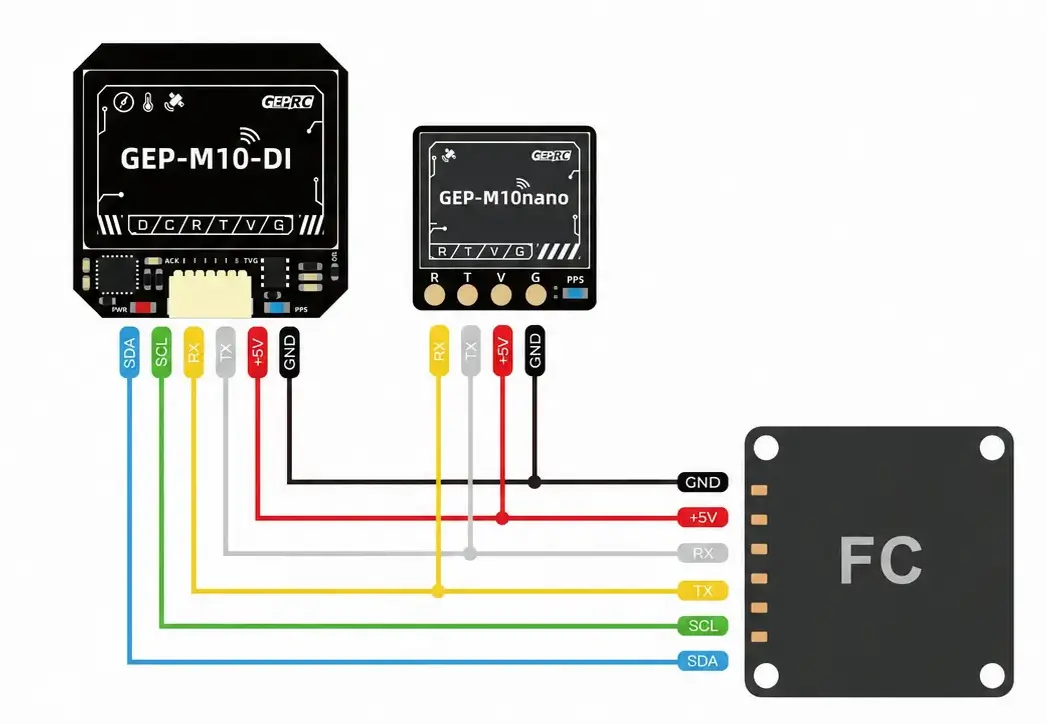

GEPRC GEP-M10 Series GPS Module Wiring Diagram

GEPRC GEP-M10 Series GPS Module Specifications

Model	GEP-M10nano	GEP-M10-DI
GPS Chip	u-blox M10	u-blox M10
Magnetometer	No	IST8310
Barometer	No	DPS310
Input voltage	3.3V-5V	3.3V-5V
Receiving frequency	GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1	GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
Operating mode	GPS+BDS+GALILEO+QZSS+SBAS Joint positioning	GPS+BDS+GALILEO+QZSS+SBAS Joint positioning
Channel	72ch	72ch
Number of navigation satellites	Up to 32	Up to 32
Output protocol	UART (ublox)	UART (ublox), i2c (Baro, Mag)
Baud rate	115200bps	115200bps
Update frequency	10Hz	10Hz
Speed frequency	0.05m/s	0.05m/s
Horizontal positioning frequency	2D ACC1.5m (open-air)	2D ACC1.5m (open-air)
Timing accuracy	30ns	30ns
Receiver sensitivity	Trace-162dBm, Capture-160dBm	Trace-162dBm, Capture-160dBm
Dynamic characteristics	Maximum altitude: 50000m, maximum speed: 500m/s	Maximum altitude: 50000m, maximum speed: 500m/s
Maximum acceleration	4G	4G
Size	15mm x 15mm x 5.5mm	22mm x 22mm x 8.2mm
Weight	2.5g	7.8g

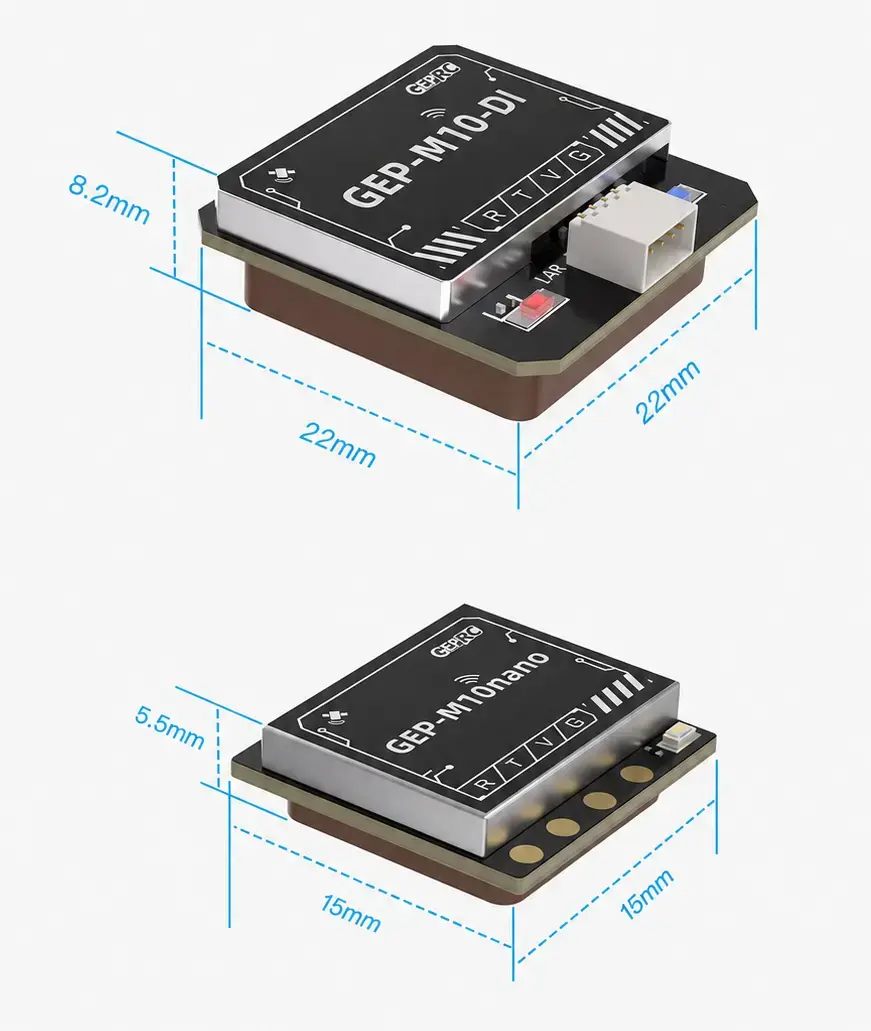

GEPRC GEP-M10 Series GPS Module Dimensions

GEPRC GEP-M10 Series GPS Module Package Includes

1x GEPRC GEP-M10 Series GPS Module
1x terminal wire
1x GEPRC GEP-M10 Series GPS Module instruction manual
1x heat shrink tubing
