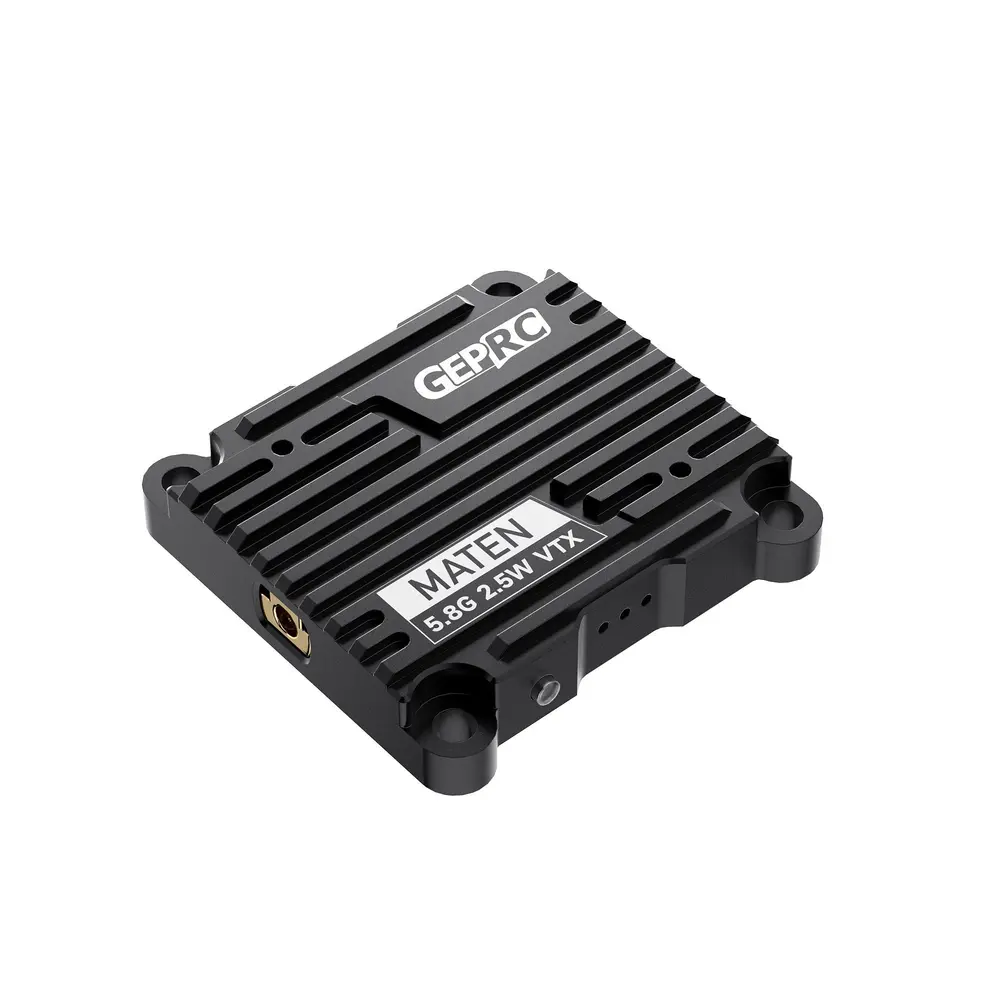

GEPRC MATEN 5.8G 2.5W VTX
Powerful and Stable Video Transmission – GEPRC MATEN 5.8G 2.5W VTX
GEPRC MATEN 5.8G 2.5W VTX is built for pilots who need high RF output, strong signal penetration, and flexible configuration. Five adjustable power levels, PIT mode, and OSD-based parameter control make it easy to adapt the transmitter to different flying conditions. Integrated thermal protection and the aluminum housing help reduce overheating risk, although GEPRC still recommends continuous airflow during operation.
Key Features of GEPRC MATEN 5.8G 2.5W VTX
- Up to 2500 mW output: provides substantial transmission power for long-range applications.
- Five power levels and PIT mode: allow the output to be adapted to different flight scenarios.
- 72 channels: offer a wide selection of frequencies in the 5.8 GHz band.
- IRC Tramp support: enables convenient VTX configuration through a compatible OSD.
- 7–36 V input range: supports FPV builds powered by 2–8S batteries.
- 5 V / 600 mA output: can supply a camera or cooling fan.
- CNC aluminum housing: improves heat dissipation and mechanical protection.
- Thermal protection: helps prevent heat-related damage.
- Built-in microphone: transmits real-time sound from the aircraft.
- MMCX antenna connector: provides a compact connection for compatible antennas.
GEPRC MATEN 5.8G 2.5W VTX Dimensions
GEPRC MATEN 5.8G 2.5W VTX Mounting Hole Spacing
How to adjust The VTX
GEPRC MATEN 5.8G 2.5W VTX Pinout
VTX Table for GEPRC MATEN 5.8G 2.5W VTX | vtxtable bands 8 vtxtable channels 8 vtxtable band 1 BOSCAM_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725 vtxtable band 2 BOSCAM_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866 vtxtable band 3 BOSCAM_E E CUSTOM 5705 5685 5665 5645 5885 5905 5925 5945 vtxtable band 4 FATSHARK F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880 vtxtable band 5 RACEBAND R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917 vtxtable band 6 BAND_L L CUSTOM 5362 5399 5436 5473 5510 5547 5584 5621 vtxtable band 7 BAND_U U CUSTOM 5325 5348 5366 5384 5402 5420 5436 5456 vtxtable band 8 BAND_O O CUSTOM 5474 5492 5510 5528 5546 5564 5582 5600 vtxtable powerlevels 5 vtxtable powervalues 25 200 600 1600 2500 vtxtable powerlabels 25 200 600 1W6 MAX save |
If you want to use the H band, delete the O band above and then copy the following command into the CLI. | vtxtable band 8 BAND_H H CUSTOM 5653 5693 5733 5773 5813 5853 5893 5933 |
WARNING
To ensure trouble-free operation, the GEPRC MATEN 5.8G 2.5W VTX requires compliance with several key rules.
- Installing antenna before use.
- Flying with constant airflow and under a well-ventilated environment to prevent overheating. Install a cooling fan if operating in confined conditions.
- The 5V Output is for a Camera/Cooling Fan use only! Do not connect the battery input to the 5V Output, severe damage will occur to VTX.
GEPRC MATEN 5.8G 2.5W VTX Specifications
Model | MATEN 5.8G 2.5W VTX |
Dimension | 36.4mm x 36.4mm x 7.9mm |
Mounting Hole | 30.5mm x 30.5mm / M3 |
Microphone | Built-in Microphone |
Input Voltage | DC 7V - 36V (2S - 8S Battery) |
| Channel | 72CH |
Output Voltage | 5V (600mA) |
Frequency | 5.8G |
Antenna Interface | MMCX |
Cable Interface | SH1.0 6pin |
Weight | 18g |
Protocol | IRC Tramp |
Output Power | 25mW / 200mW / 600mW / 1600mW / 2500mW / Pit Mode |
GEPRC MATEN 5.8G 2.5W VTX Package Includes
- 1x GEPRC MATEN 5.8G 2.5W VTX
- 1x MMCX Copper Tube Antenna
- 1x MMCX to SMA Connector
- 1 x sh1.0 6P Connecting cable
- 5x M3*7 Screws
- 5x M3*8 Screws
- 5x M3 x 10 Hexagon
- 5x M3*5 Isolation Column
- 5x M3 Nylon Nut
- 1x Product Description
