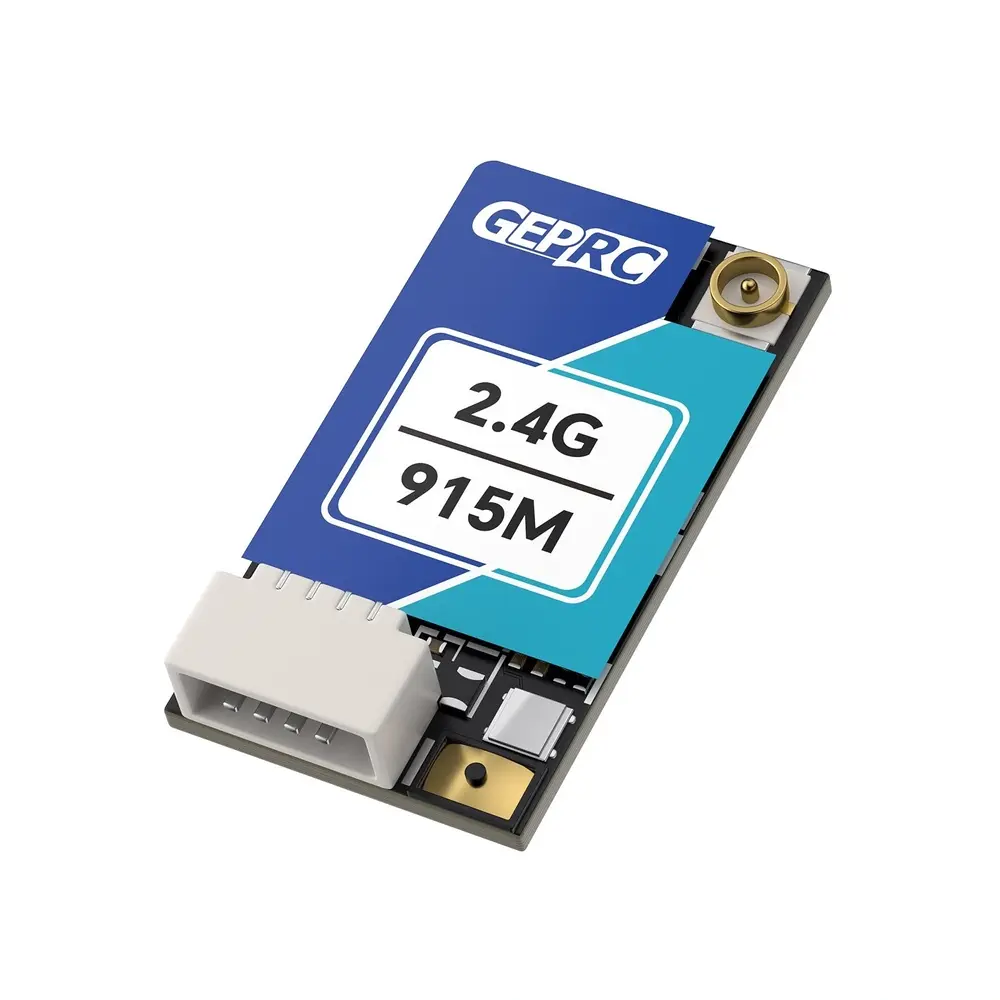

GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver

The GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver is a compact, ultra-reliable ExpressLRS receiver built for pilots who want total confidence in every flight. Powered by the LR1121 chip with true dual-band support (915/868 MHz and 2.4 GHz), it lets you switch between long-range penetration and ultra-low-latency performance when it matters most. A precision TCXO keeps the signal rock solid in all conditions, while the SH1.0 connector makes installation quick and clean. This is the small upgrade that makes a big difference—keeping your drone locked in and responsive so you can fly further, faster, and with zero hesitation.

80.49 zł VAT Excluded

This combination does not exist.

Add to cart Buy now

Terms and Conditions

Maximum Range and Uncompromising Stability thanks to GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver

The GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver is a technological masterpiece engineered for the most demanding FPV drone pilots. At the heart of the device is the advanced Semtech LR1121 RF chip, which, combined with the powerful ESP32-C3 processor, guarantees lightning-fast signal processing and minimal latency. Thanks to the built-in TCXO oscillator, the GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver maintains perfect frequency stability even during sudden temperature shifts. It is the ideal choice for long-range flights and extreme freestyle, where the reliability of the RC link determines the safety of the entire aircraft platform.

Architectural Advantages of GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver

LR1121 Chip

915M+2.4G Dual-Band

Top-Tier ESP32-C3 Chip

Integrated TCXO

100mW TLM Power

ExpressLRS 3.5

Easy Installation and Powerful Telemetry with GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver

The GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver offers a range of modern features that significantly enhance user convenience and diagnostic capabilities. Equipped with an SH1.0 connector, the GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver enables lightning-fast plug-and-play installation without the need for complex soldering. The module allows for wireless firmware updates via its built-in WiFi module, making the management of the ExpressLRS system effortless. Additionally, a powerful telemetry output of up to 100 mW and an extremely high refresh rate of up to 1000 Hz guarantee a constant, real-time view of flight parameters and incredibly smooth control.

Key Features of the GEPRC ELRS Nano 915M/2.4G Dual-Band RC Receiver

Semtech LR1121 RF Chip

A cutting-edge RF solution that supports advanced dual-band communication in the sub-GHz range (150–960 MHz) and 2.4 GHz.

Dedicated Dual-Band T-Antenna

A specially designed T-type antenna (915M+2.4G) offers powerful reception on both frequencies without the need for cumbersome hardware swaps.

ESP32-C3 RISC-V Processor

A high-performance, 32-bit single-core chip clocked at up to 160 MHz, ensuring lightning-fast response times and smooth operation.

Built-in TCXO Oscillator

Temperature compensation guarantees a stable operating frequency and safe flight in extreme thermal conditions without the risk of signal loss.

GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver Specifications

Chips	ESP32-C3, LR1121
Crystal Oscillator	TCXO
Frequency Bands	915MHz(FCC), 868MHz(EU), 2.4GHz(ISM)
Refresh Rate	25Hz-1000Hz
Operating Voltage	5V
Antenna Connector	ipex1
TLM Power	100mW
Firmware	GEPRC 900/2400 Single Dual-Band RX
Dimension	11.1×20.4×5.2mm
Weight	0.95g (only receiver)

GEPRC ELRS Nano 915M/2.4G Dual-Band Receiver Package Includes

1x ELRS Nano 915M/2.4G Dual-Band Receiver
1x 915M/2.4G dual-band T-antennas
1x Heat shrink tube
1x 4-pin silicone connect cable
1x User manual
