Caddx Ant Camera 4:3 Black
Caddx Ant Camera 4:3 Black — Full-Featured in Nano Size

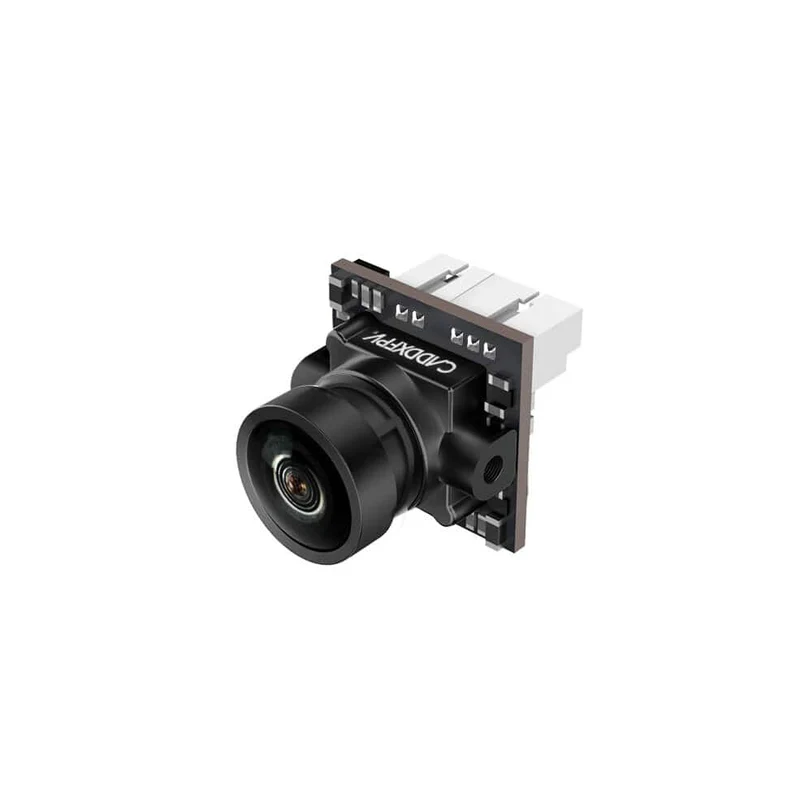

The Caddx Ant Camera 4:3 Black is an analog nano FPV camera that weighs 2g. It has a 1/3" CMOS sensor with 1200TVL horizontal resolution and a 1.8mm lens with a 165° field of view, and it outputs a 4:3 picture as an analog CVBS signal, so you pair it with a separate analog video transmitter. It offers 3D DNR noise reduction, Global WDR and a minimum illumination of 0.001 lux. The camera has an OSD menu, switches between PAL and NTSC, and runs on 5-18V. The board measures 14x14mm, and with the included case it measures 19x19mm. The kit includes the camera, a 19mm case, 4 screws and a 3-pin silicone cable.
Caddx Ant Camera 4:3 Black Key Features
Almost Weightless
The camera weighs just 2g. A lighter camera leaves more of the weight budget for the rest of your build.
Sharp Picture
A 1/3" CMOS sensor with 1200TVL horizontal resolution. Higher resolution means more detail in the analog picture.
Clean After Dark
3D DNR noise reduction and a minimum illumination of 0.001 lux. The picture has less noise when the light fades.
Light and Shadow
Global WDR balances bright and dark areas of the frame. You can see detail both in the sky and in the shadows.
Wide View
A 1.8mm lens with a 165° field of view and a 4:3 picture. You see more of what is around the drone.
OSD Menu
The camera has an OSD menu with switchable PAL and NTSC. You can set the picture and the TV system to match your gear.
Clean Picture When the Light Fades
Caddx's comparison shows the same night scene without and with 3D DNR noise reduction. With 3D DNR the picture has visibly less noise.
Frequently asked questions - Caddx Ant Camera 4:3 Black
No. Caddx sells the 4:3 and 16:9 versions as separate variants, and the OSD menu has no aspect ratio setting. This camera always outputs a 4:3 picture.
Yes. The camera outputs an analog CVBS video signal (Video out), which you connect to an analog video transmitter (VTX).
Yes. The camera supports both systems, and you switch between them in the OSD menu. You open the menu with the middle button of an OSD menu board, which is not included in the kit.
Caddx Ant Camera 4:3 Black Dimensions
Caddx Ant Camera 4:3 Black Wiring Diagram
Wire colours on the diagram:
- Red: power input 5-18V
- Dark grey: GND
- Yellow: video out (CVBS)
- Green: OSD signal to the OSD menu board
- Grey: GND of the OSD menu board
To open the menu, press the middle button on the OSD menu board. The OSD menu board is not included in the kit.
Caddx Ant Camera 4:3 Black Specification
Sensor | 1/3" CMOS |
Horizontal Resolution | 1200TVL |
Aspect Ratio | 4:3 |
Lens | 1.8mm |
Field of View | 165° |
TV System | NTSC / PAL (switchable) |
Video Output | CVBS |
Electronic Shutter | PAL 1/50-1/100000s, NTSC 1/60-1/100000s |
Minimum Illumination | 0.001Lux @ F1.2 |
S/N Ratio | >52dB (AGC off) |
WDR | Global WDR |
Noise Reduction | 3D DNR |
AGC / BLC | Yes / Yes |
Synchronization | Internal |
OSD Menu | Yes |
Power Input | DC 5-18V |
Dimensions | 14x14mm (19x19mm with case) |
Weight | 2g |
Operating Temperature | -20 to +60°C |
Operating Humidity | 20-80% |
Caddx Ant Camera 4:3 Black Package Includes
- 1x Caddx Ant Camera 4:3 Black
- 1x 19mm Case
- 4x Screw
- 1x 3-Pin Silicone Cable
- 1x Warranty Card
