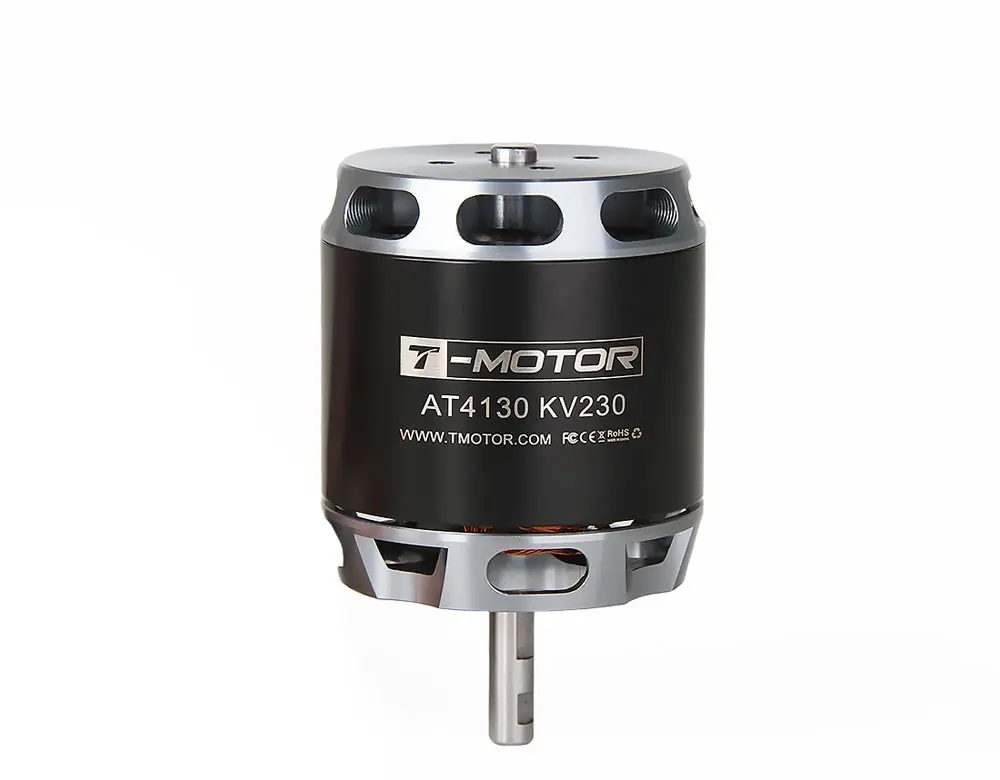

T-Motor AT4130 Long Shaft Fixed Wing Brushless Motor
T-Motor AT4130 Long Shaft Fixed Wing Brushless Motor – Reliable Power for Fixed-Wing and VTOL Platforms
T-Motor AT4130 Long Shaft Fixed Wing Brushless Motor combines a reinforced structure, extended 6mm shaft and cooling-focused housing in a motor designed for demanding fixed-wing and VTOL applications. High-temperature-resistant magnetic materials and the ventilated motor body support operation under sustained load, while the 50mm x 79mm format makes the AT4130 suitable for larger RC aircraft and UAV projects where propulsion performance must be matched carefully to the complete power system.
Robust Body and Release Freely
The semi-box-shaped design features lateral outlet holes combined with an internal heat dissipation structure. This advanced configuration boosts the overall mechanical strength of the T-Motor AT4130 Long Shaft Fixed Wing Brushless Motor, while significantly improving cooling efficiency. It effectively ensures highly reliable and stable performance, protecting your setup even during the most demanding flights.
The Upgraded AT Series
The upgraded AT series is expertly designed for fixed-wing models, VTOL, UAVs, and industrial-driven applications. The T-Motor AT4130 Long Shaft Fixed Wing Brushless Motor utilizes high-temperature resistance arc magnets specifically selected for their incredibly strong power output. It offers highly efficient and stable endurance, showcasing the true beauty of the perfect balance between superior craftsmanship and raw power.
Precision Machining That Supports Reliable Operation
The T-Motor AT4130 Long Shaft Fixed Wing Brushless Motor is built with attention to machining quality and fit between key components. According to the manufacturer, the motor uses carefully selected materials and refined workmanship, which matters in practice when you want a propulsion unit that works smoothly, holds alignment well and remains dependable in regular fixed-wing or VTOL use. In a larger power system, details like machining accuracy are not just cosmetic — they support consistency and long-term durability.
Secure Shaft Design for More Confident Flying
The long-shaft design is paired with a C-clip lock shaft and shaft collar to improve retention and operating security at higher rotational speed. This helps reduce the risk of the rotor loosening during operation and gives the complete propulsion system a more secure mechanical foundation. For the user, that means more confidence when the motor is working under load in a fixed-wing or VTOL aircraft, especially where stable and predictable operation matters.
High-Temperature Windings for Durability and Efficiency
The manufacturer highlights high-temperature enameled wire with an insulating layer and hand-made winding as key elements of the motor’s construction. In practice, this supports better temperature resistance, long service life and stable operation under load. For the user, it means a motor designed not only for thrust, but also for repeatable performance and efficiency when used as part of a properly matched propulsion system.
T-Motor AT4130 Long Shaft Fixed Wing Brushless Motor Test Report
T-Motor AT4130 Long Shaft Fixed Wing Brushless Motor Dimensions
T-Motor AT4130 Long Shaft Fixed Wing Brushless Motor Specifications
Motor Dimensions | 50mm x 79mm |
Lead | Enameled Wire 100mm |
Shaft Diameter | In: 6mm; Out: 6mm |
Idle Current (10V) | 1.4A (230KV) / 2.5A (450KV) |
Max. Power (180s) | 2500W (230KV) / 1800W (450KV) |
Weight (Incl. Cable) | 408g |
Internal Resistance | 60mΩ (230KV) / 16.8mΩ (450KV) |
Configuration | 12N14P |
Rated Voltage (LiPo) | 12S (230KV) / 6S (450KV) |
Peak Current (180s) | 60A (230KV) / 75A (450KV) |
T-Motor AT4130 Long Shaft Fixed Wing Brushless Motor Package Includes
- 1x T-Motor AT4130 Long Shaft Fixed Wing Brushless Motor
- 1x Parts Bag
