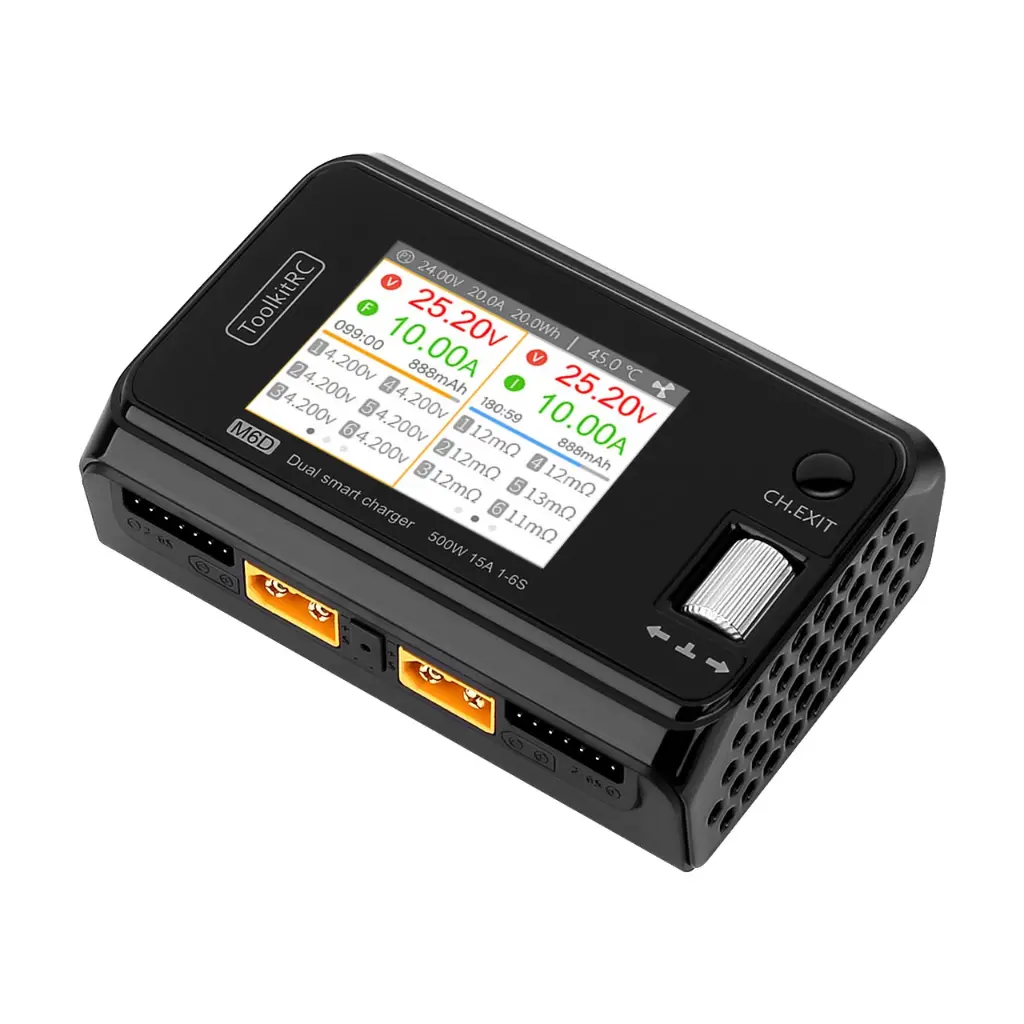

Small, compact, high-powered - ToolKitRC M6D charger
The ToolKitRC M6D charger is smaller, lighter and almost as powerful as its big sister M6DAC
With two available charging channels and useful functions for discharge, cyclic charging and general settings, you can't go wrong with this smart device when handling batteries. The charging process can be done both synchronously and asynchronously with the ToolKitRC M6D charger.
What does synchronous or asynchronous mean? This means that if, for example, two batteries are charged in synchronous mode, the actual charge is the same, and the charger can thus provide a maximum charging current of up to 25A. On the other hand, in asynchronous mode, the two batteries are charged separately, so the maximum current value we can use is 15A.
ToolKitRC M6D Charger Specs
Input Voltage | DC 7-28 V, max 30 A |
Charging Power | 0,1-15 A, 250 W x2 (Asynchronous Mode) 0,1-25 A, 500 W (Synchronous Mode) |
Discharge Power | 0,1–15 A, 250 W x2 (Recycling Mode) 0,1–3 A, 12 W x2 (Normal Mode) |
Charging Accuracy | <0,005 V |
USB-A | 2.1 A 5 V Output / Firmware Update Port |
Balancing Current | 800 mA, 2-6 S |
Supported Number of LiPo/ LiFe/ LiIon/ LiHv cells | 1-6 S |
Supported Number of NiMH/ NiCd cells | 1-16 S |
Supported Number of Pb cells | 1-10 S |
Display | IPS 2,4" 320x240 px LCD |
Dimensions | 98x68x35 mm |
Weight | 220 g |
PACKAGE DETAIL
- 1x Charger ToolKitRC M6D
- 1x USB-A cable for Firmware Update
- 1x Display Protection
- 1x Manual
