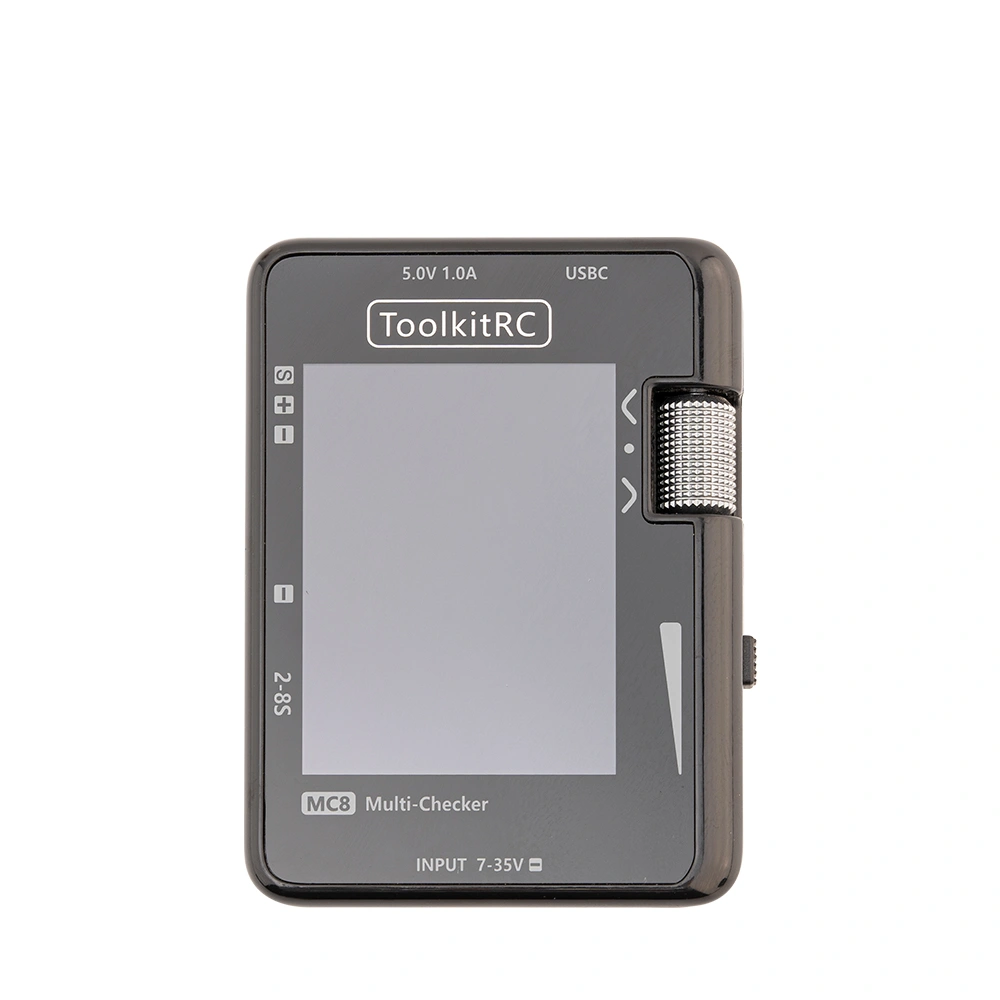

ToolkitRC MC8 Multi Checker
ToolkitRC MC8 Multi Checker: Precision That Makes Batteries Dance with Joy!
The MC8 is a modern, compact measurement tool that combines sleek design with advanced functionality. Equipped with a vivid color IPS display, it offers exceptional measurement precision of up to 5 mV, making it indispensable for drone enthusiasts, RC model enthusiasts and technological novices. With the ToolkitRC MC8, you can easily test and monitor batteries, achieving the highest accuracy and reliability in your projects.
MC8: Master Measuring and Balancing - Because Batteries Also Like Order!
- Measures and balances lithium batteries
- Measurement and output of various signals (PWM, PPM, SBUS)
- Wide input voltage range from DC 7.0-35.0V
- Includes main, balance and signal inputs
- Dual USB-A, USB-C output
- USB-C 20 PD fast charging output
- Protection against overcharging
ToolkitRC MC8 Multi Checker Specifications
Main Port XT60 | 7.0V-35.0V @MAX 25A |
Signal port input | <6.0V |
Balance Input | 0.5V-5.0V Lixx, 2-8S |
Balance Current | max. 60mA, 2-8S |
Balance Accuracy | <0,005 V, 4,2 V |
USB-A Output | 5.0V@1.0A firmware upgrade |
USB-C Output | 5.0V-12.0V @MAX 20W |
USB-C Protocol | PD3.0, QC3.0, AFC, SCP, FCP |
Display | LCD IPS 2.0″ 240×240px |
Dimensions | 68x50x15mm |
Weight | 50g |
Measurement Specifications
| PWM | 500us-2500us, 20-400Hz |
| PPM | 880-2200us×8CH @20-50Hz |
| SBUS | 880-2200us×16CH @20-100Hz |
Output Specifications
| PWM | 1000-2000us @20-1000Hz |
| PPM | 880-2200us×8CH @50Hz |
| SBUS | 880-2200us×16CH @74Hz |
ToolkitRC MC8 Multi Checker Package Detail
- 1x ToolkitRC MC8 Multi Checker
- 1x USB Cable
- 1x Screen Protector
- 1x Manual
