FPV LED Gates is a DIY kit for building three glowing FPV race gates for a micro drone track. Designed for indoor use, the gates are app-controlled and fully customizable. Perfect for practicing FPV flying while learning the basic soldering and microcontroller programming. A detailed user manual is included, and the tools required for assembly are sold separately in the FPV Repair Kit.
Whoop LED Race Gates – Modular FPV Gates
for Indoor & Night Flying
Take your FPV flying to the next level with our Whoop LED Race Gates — designed for pilots who value flexibility, style, and quick setup. Whether you’re training your Whoop indoors or lighting up a night track, these modular gates are built to perform and impress.
Made from durable transparent PETG, they’re lightweight yet tough enough for countless crashes and rebuilds. Perfect for indoor use, but also suitable for outdoor flying — just avoid prolonged exposure to direct sunlight or high heat.
Whoop LED Race Gates Play-based learning
Oprogramowanie WLED
Sterowanie diodami LED oparte na nowoczesnym oprogramowaniu WLED
Pozwala w prosty sposób zarządzać kolorami, jasnością oraz efektami świetlnymi (ponad 100 efektów, palety, makra), a także dzielić pasek LED na segmenty, co daje dużą elastyczność w konfiguracji i personalizacji oświetlenia.
Pasek LED
z zestawem rurek
Pasek LED jest urządzeniem wykonawczym.
Odbiera od sterownika polecenia dotyczące: koloru, poziomu jasności, czasu świecenia
Rurki pełnią fukcje stelaża całej konstrukcji.
Płyta główna
z gniazdem DC
Płyta główna, do której podłączane są mikrokontroler oraz przetwornica 5V.
Płytka wyposażona jest w gniazdo zasilania oraz pola lutownicze umożliwiające podłączenie paska LED.
Dodatkowo została zaprojektowana tak, aby odprowadzać nadmiar ciepła wytwarzanego przez elementy elektroniczne, co wydłuża ich żywotność.
ESP32 Powered Dedicated Controller for Whoop LED Race Gates
This controller is designed as an innovative solution for managing LED gates in FPV (First Person View) applications. Key features and components include:
- Xiao ESP32 C3 Module Board – Provides powerful processing and reliable wireless connectivity for real-time control and monitoring.
- Goldpin Connectors – Ensure easy and secure connections between components, simplifying assembly.
- LED FPV Main Board – Connects the ESP32, BEC, and peripherals, while dissipating heat from the circuits.
- Matek Micro BEC 6S – Supplies a stable 5V voltage to the ESP32 for consistent power delivery.
- DC 5.5x2.5mm Socket – Allows convenient power connections, enhancing usability.
- Custom 3D-Printed Housing – Protects internal components while offering a sleek and ergonomic design.
This setup provides beginners with an excellent opportunity to learn how the FPV LED Gates Controller works and how it is built.
Whoop LED Race Gates the joy of flying
Become the hero of your own FPV adventure. Build it yourself, light up your track, and experience flying in a whole new way. With the Whoop LED Race Gates – DIY kit, your creativity becomes part of the race.
WARNING: DIY assembly required
FPV LED Gates Specification
Single Gate Dimensions | 65x65x105cm |
| Total Weight (3 Gate Set) | 1860g |
Single Circle Diameter | 50cm |
Single LED Strip Lenght | 1.5m |
Single LED Strip Width | 10mm |
Single LED Strip Load Current | 1.8A (at maximum brightness, white light) |
LED Strip Voltage Input | 12V |
LED Strip Cable Lenght | 20cm |
Power Supply Voltage Output | 12V |
Power Supply Max Current Output | 2A |
Controller Voltage Input | 12V DC |
Controller Connector Input | DC 5.5/2.5mm Socket |
ESP32 Voltage Input | 5V DC |
Matek Micro BEC 6S Voltage Input | 6-30V |
Matek Micro BEC 6S Voltage Output | 5V/9V (adjustable, default is 5V ) |
Matek Micro BEC 6S Load Current | 1.5A Continous; Max. 2.5A 5s/minute |

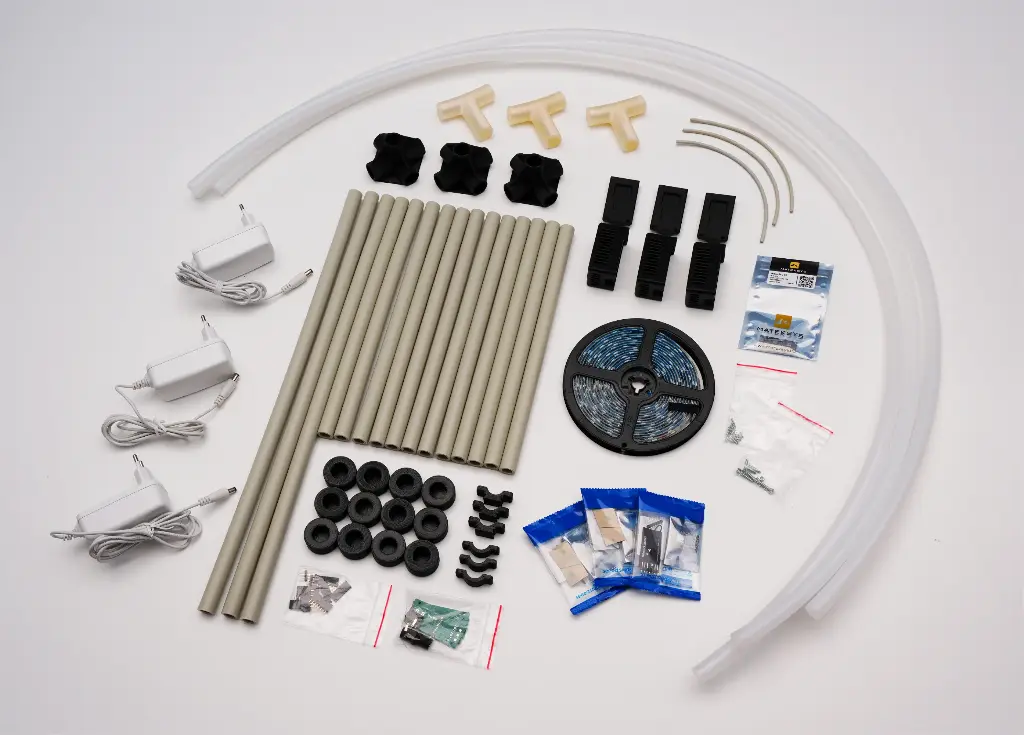

Whoop LED Race Gates - DIY package include
- 3x Pre-cut Flexible Pipe
- 3x LED FPV Main Board
- 1x Pre-cut Stiff Pipes Set
- 3x 3D Printed Housing for the Controller
- 3x Pre-cut WS2811 LED Strip
- 1x Set of Screws and Bolts.
- 3x Xiao ESP32 C3 Module Board
- 1x Goldpin Connectors and Wires Set
- 3x Matek Micro BEC 6S
- 1x 3D Printed Pipe Mounting Set
- 3x DC 5,5x2,5mm Socket
- 3x Switching Power Supply 12V/2A - DC 5.5/2.5mm Plug
- 1x Bag
- 1x assembly instructions
