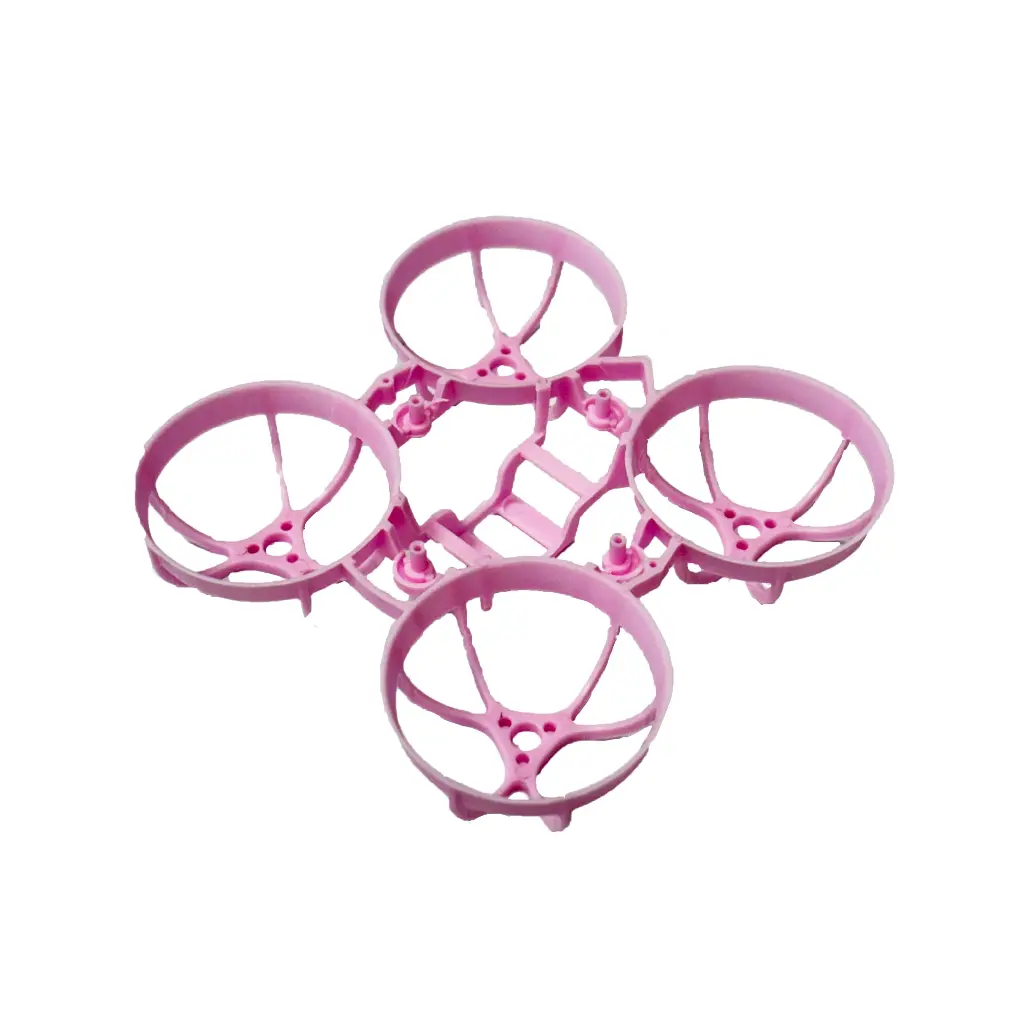

Meteor65 Brushless Whoop Frame Pink
Meteor65 Brushless Whoop Frame Pink – Pink You Can't Miss
A 65mm 1S brushless frame for the Meteor65 Brushless Whoop Quadcopter. With a low-profile battery slot and a triangle bilateral stretch structure at the motor mounting positions, this PP frame weighs only 3.14g. It fits whoop-style flight controllers with 26x26mm mounting holes, 0603 and 080X series brushless motors and 31mm 3-blade propellers. This one is pink. It is a durable, solid frame, ideal for beginners and for learning to fly. It is designed for low-KV motors (19500-23000KV), and the matching battery is the Tattu 1S 300mAh.
Meteor65 Brushless Whoop Frame Pink Key Features
Compact Build
Compared to previous 65mm frames, the low-profile battery slot lowers the drone's center of gravity. According to the manufacturer, this gives the drone a more compact feel.
Durable Motor Mounts
The motor mounting positions use a triangle bilateral stretch structure. According to the manufacturer, it gives a more durable frame and a smoother flight experience.
Ultralight
Made of PP, the frame weighs only 3.14g, one of the lightest frames with 26x26mm FC mounting columns. A lighter frame means a lighter drone.
Fits Whoop Boards
The 26x26mm mounting columns are fully compatible with whoop-style flight controllers. A typical whoop AIO board mounts straight onto the frame.
Product photos are for reference only. The exact color of the frame may vary slightly from the photos shown.
Meteor65 colorful frames!
The Meteor series has become popular with pilots since its release. The frames are as durable as before and now come in many colors, so you can personalize your drone. Choose the one color you like, or collect them all to mix and match your drones.
Improvements

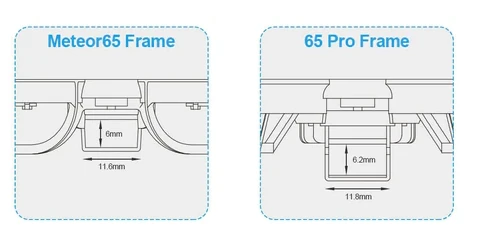

Lower Battery Slot
The battery slot has a low profile, which lowers the drone's center of gravity and makes it more compact. The drawing compares it with the 65 Pro frame: a 6mm slot height instead of 6.2mm.

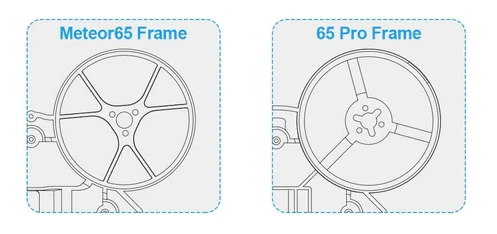

Triangle Motor Mount Supports
A structure with double-sided branched triangular supports has been used, strengthening the motor mount and improving the frame's aesthetics.

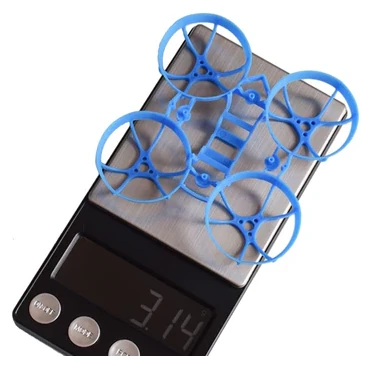

Only 3.14g
A very lightweight frame weighing only 3.14g, featuring mounting posts with a 26x26mm spacing, compatible with whoop-type AIO flight controllers. The photo shows a frame of the same series in another color.
Meteor65 Brushless Whoop Frame Pink Recommended Parts
The Meteor65 frame is compatible with whoop-style flight controllers. To build a drone on it, we recommend:
- Propellers: Gemfan 31mm 3-blade props (PC plastic, 1.0mm shaft hole)
- Motors: low-KV (19500-23000KV) 0603 and 080X series brushless motors, e.g. BetaFPV 0802SE 19500KV
- Batteries: Tattu 1S 300mAh BT2.0 or BetaFPV BT2.0 300mAh 1S
- FC: F4 1S brushless flight controller
- Screws: Meteor series motor fixing screws pack (40 pcs)

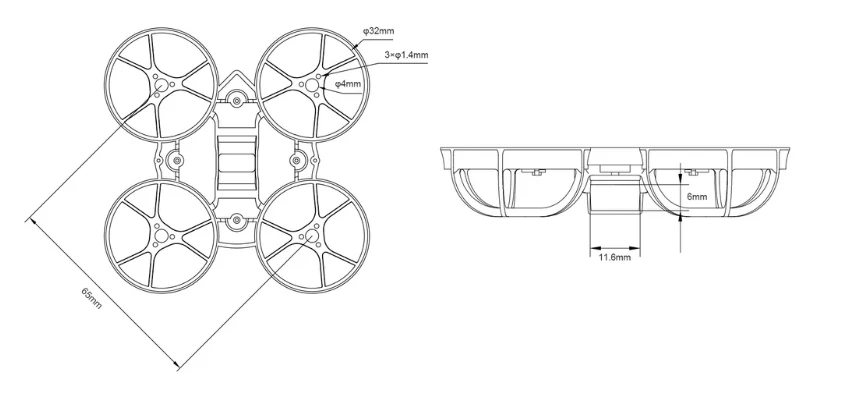

Meteor65 Brushless Whoop Frame Pink Dimensions
Meteor65 Brushless Whoop Frame Pink Specification
Item | Meteor65 Frame |
Color | Pink |
Material | PP |
Wheelbase | 65mm |
FC Mounting Holes | 26x26mm, fully compatible with whoop-style FC boards |
Motor Mounting Holes | For 0603 and 080X series motors |
Weight | 3.14g |
Recommended Props | 31mm, 3-blade |
Meteor65 Brushless Whoop Frame Pink Package Includes
- 1x Meteor65 Brushless Whoop Frame Pink
