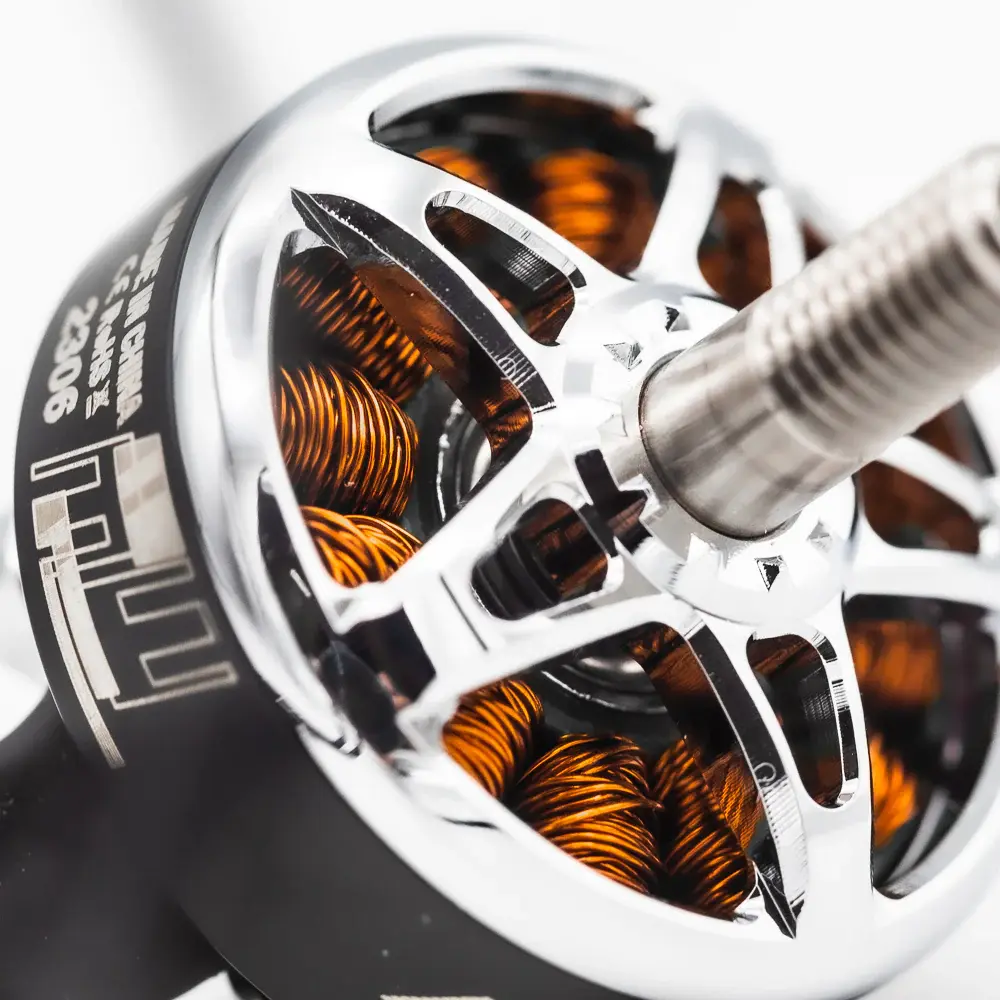

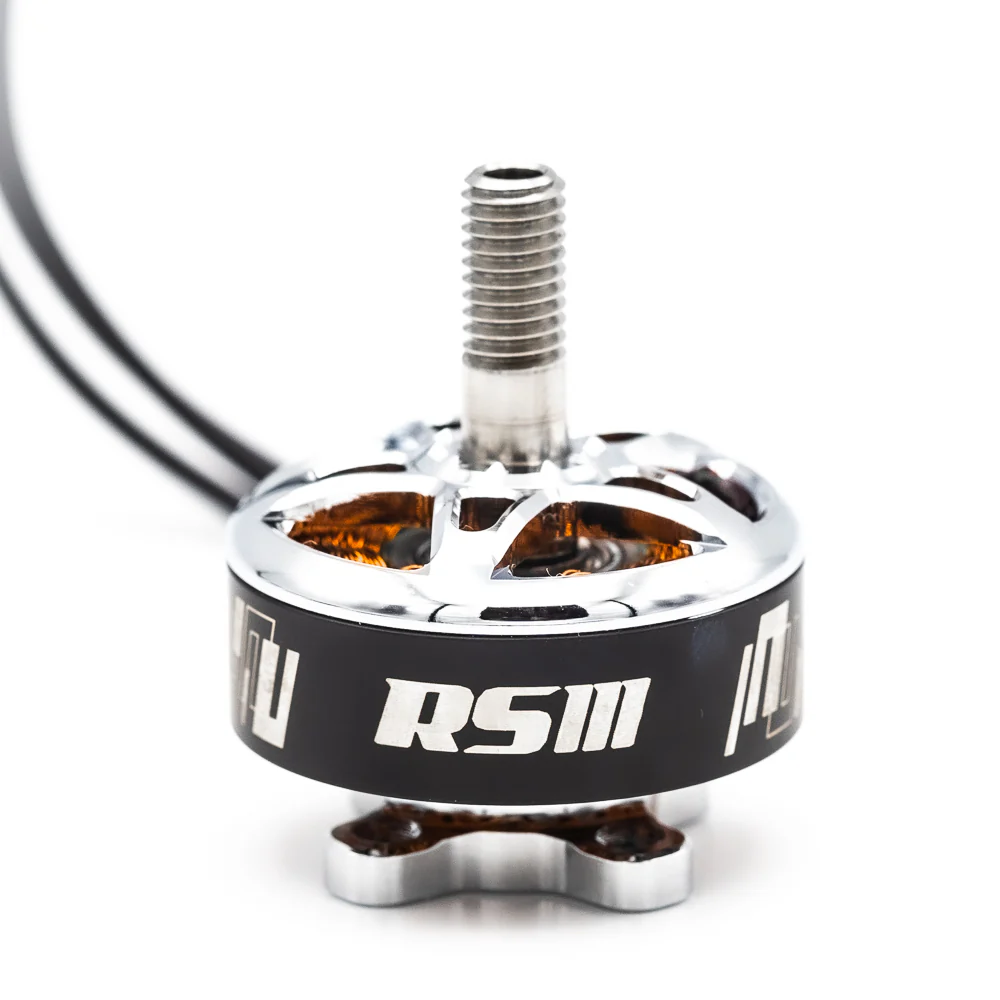

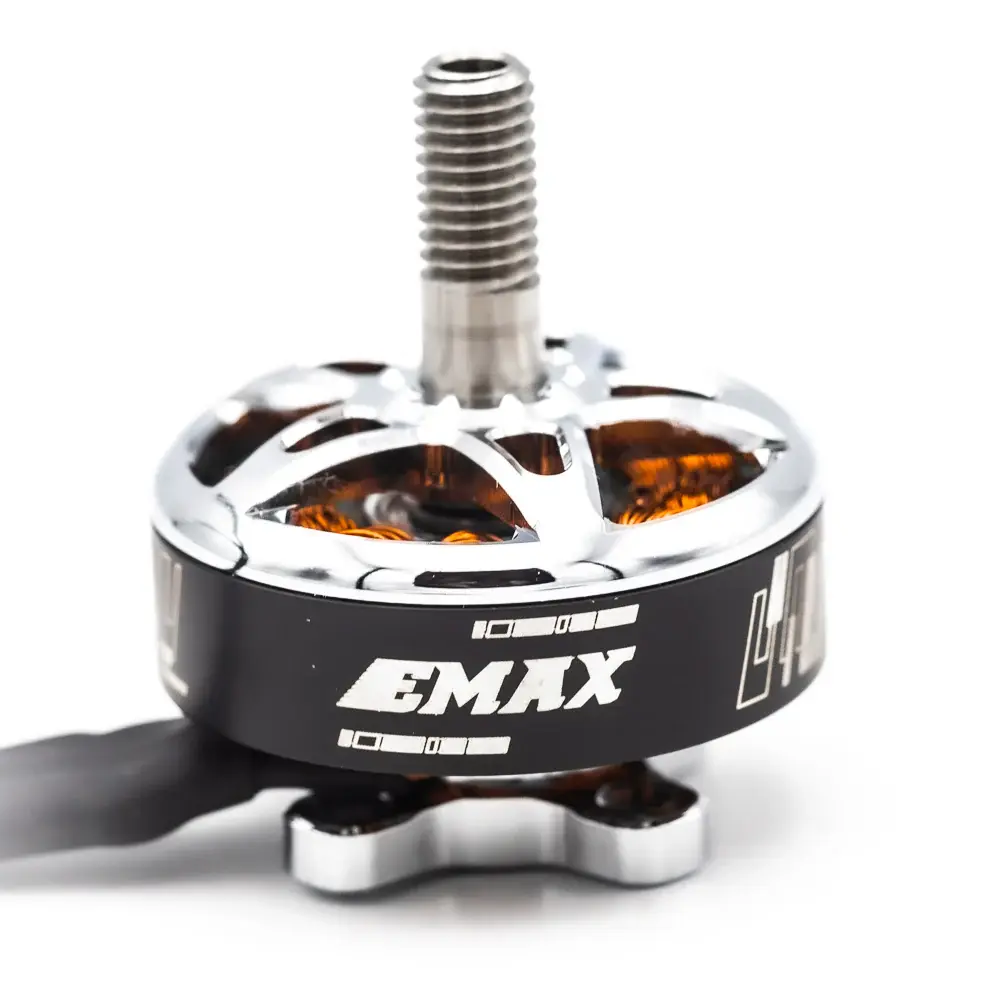

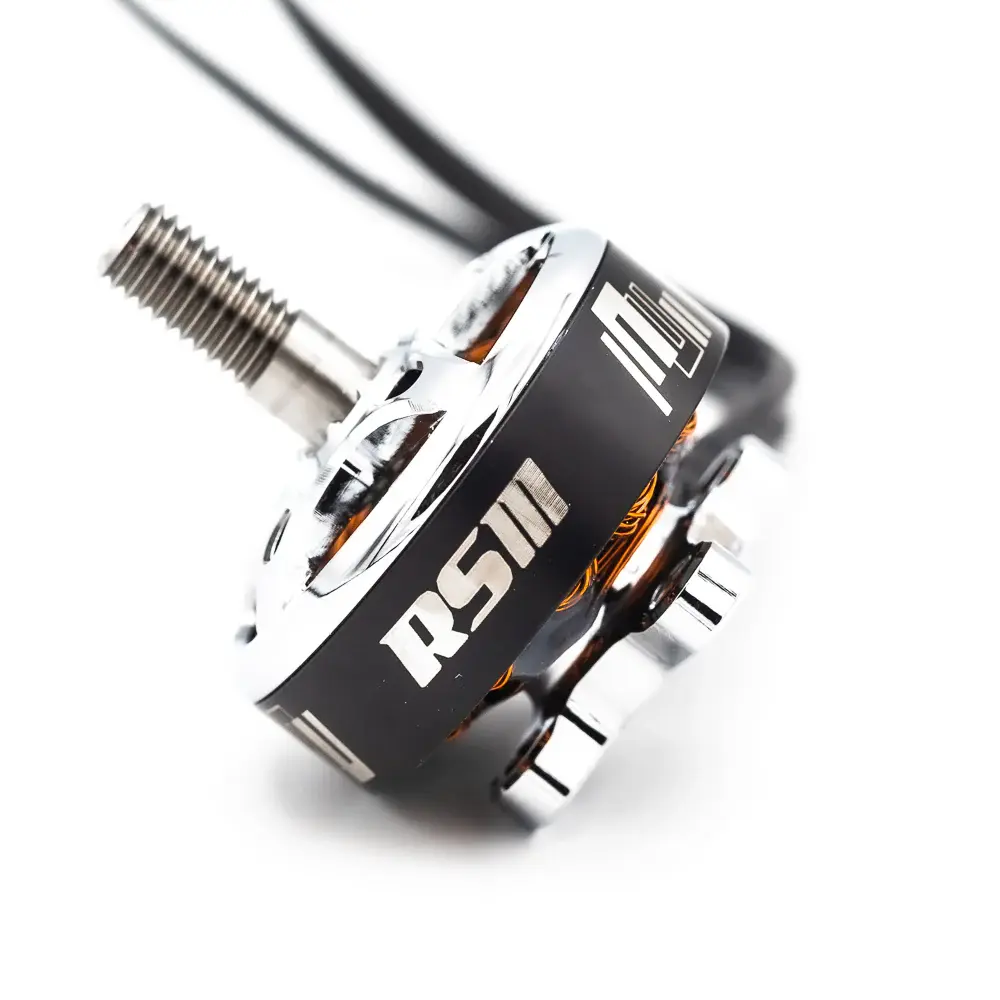

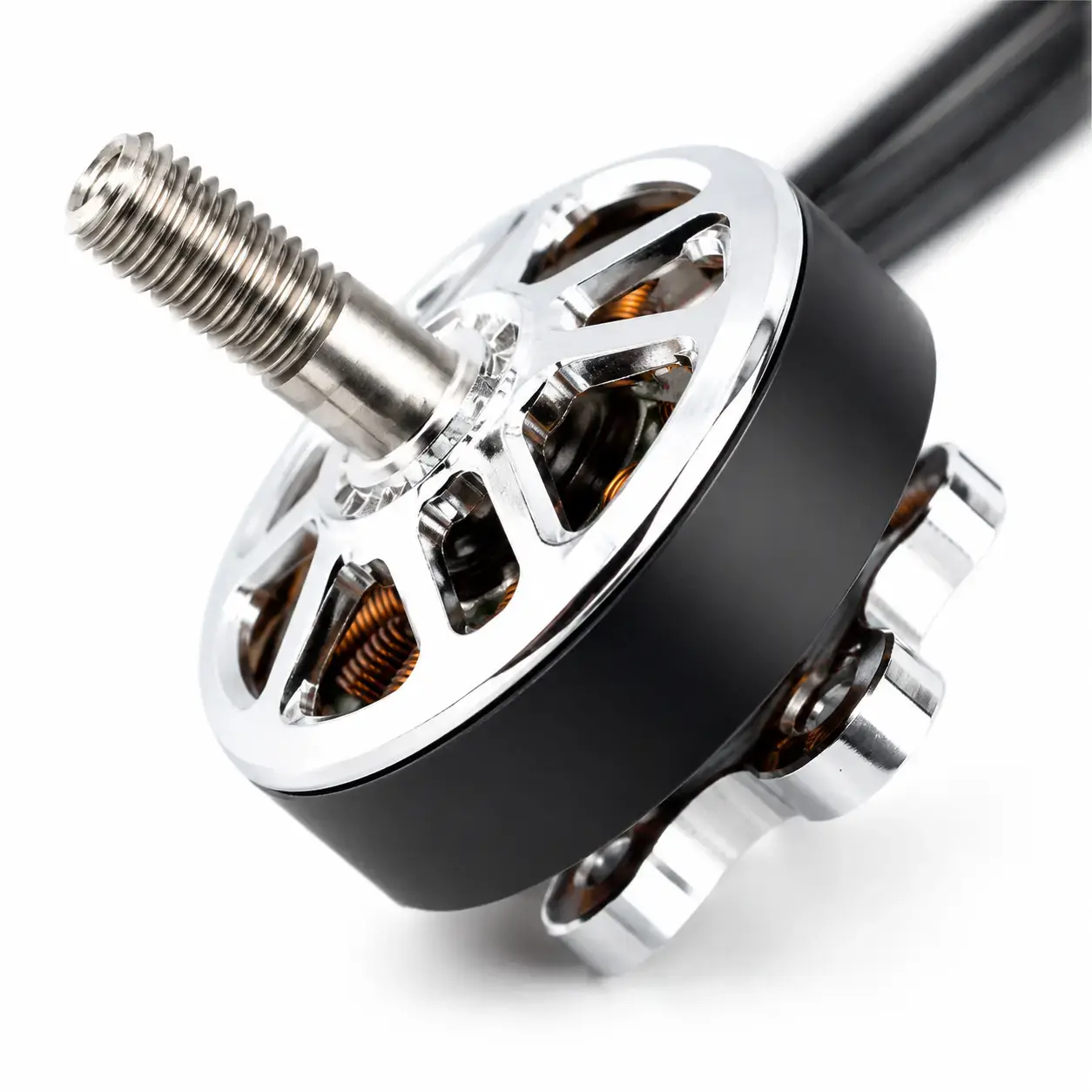

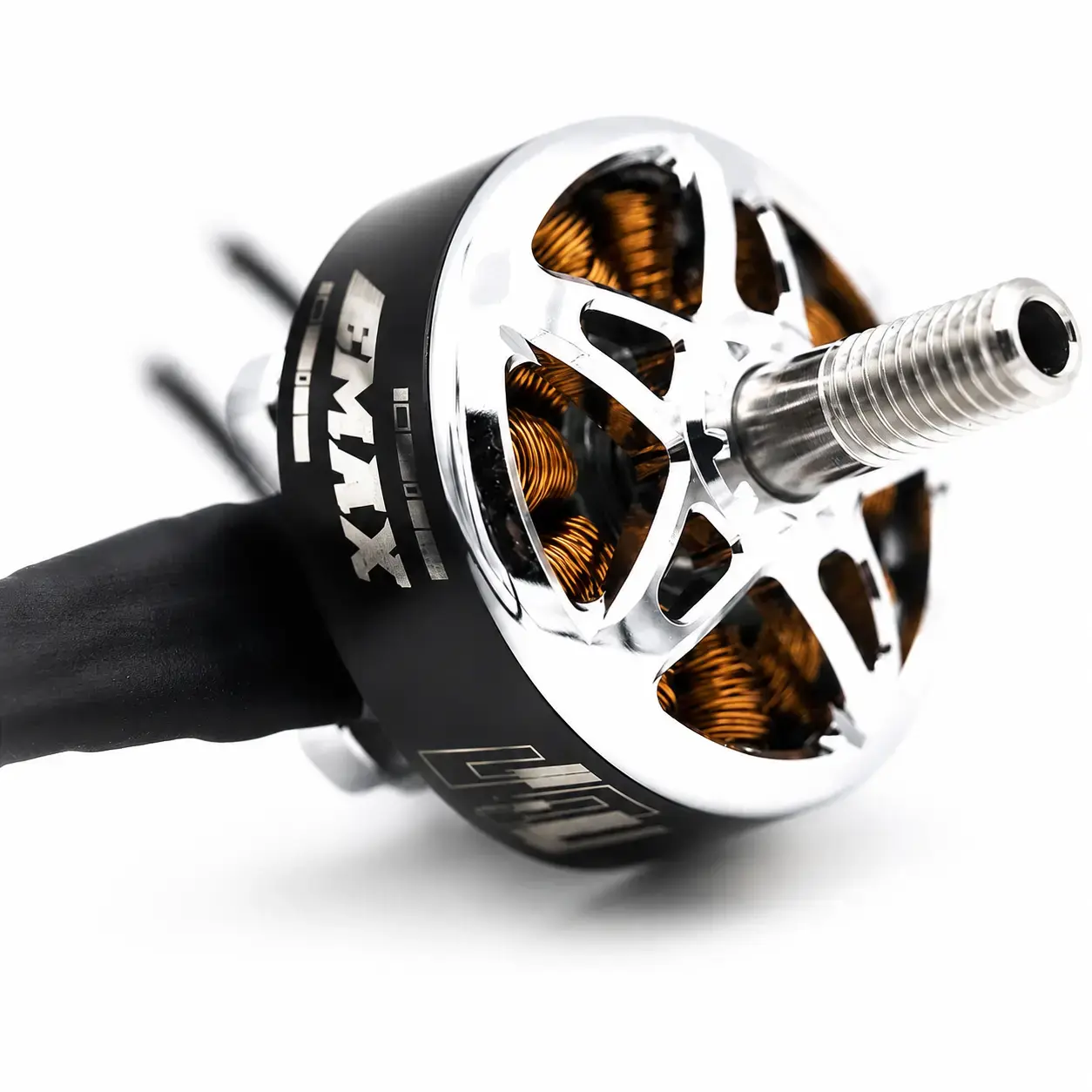

Emax RSIII 2306 Brushless Motor 2100KV
Take your FPV racing performance to the absolute limit - Emax RSIII 2306 Brushless Motor 2100KV
The Emax RSIII 2306 Brushless Motor 2100KV represents the pinnacle of modern FPV motor engineering, tailored specifically for high-stakes racing and aggressive freestyle. This third-generation Red Standard motor introduces a completely redesigned stator and bell structure to maximize airflow and overall electrical efficiency. With its perfectly tuned 2100KV rating, the Emax RSIII 2306 Brushless Motor 2100KV provides exceptionally smooth, linear power across the entire throttle band. It is built to withstand extreme racing conditions while maintaining peak performance, making it the preferred choice for professional pilots worldwide.
6S Power
Optimized specifically for modern high-voltage platforms, the Emax RSIII 2306 Brushless Motor 2100KV unlocks the true performance potential of 6S LiPo batteries. The 2100KV configuration delivers massive top-end speed while maintaining incredible electrical efficiency and precise low-end resolution. When running on high voltage, the Emax RSIII 2306 Brushless Motor 2100KV provides instantaneous recovery from high-altitude dives and unmatched straight-line punch.
Durability

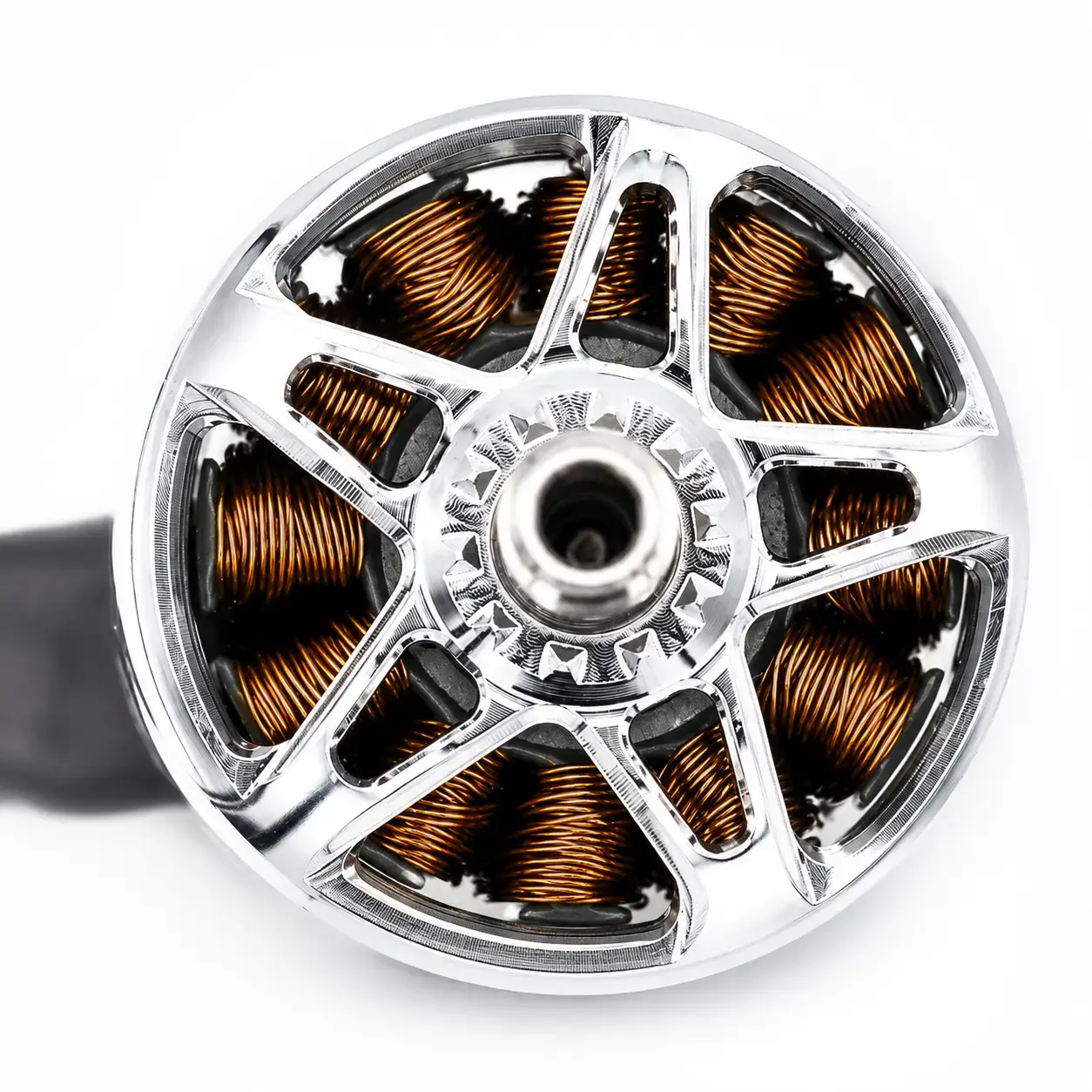

Built to survive the harshest impacts on rigid race gates, the Emax RSIII 2306 Brushless Motor 2100KV features an upgraded, high-strength premium aluminum bell. The reinforced internal structure effectively prevents deformation under heavy impacts, protecting the delicate internal stator and windings from damage. Additionally, the Emax RSIII 2306 Brushless Motor 2100KV utilizes a secure lock-screw retention system instead of a standard snap ring for maximum reliability.
Lightweight

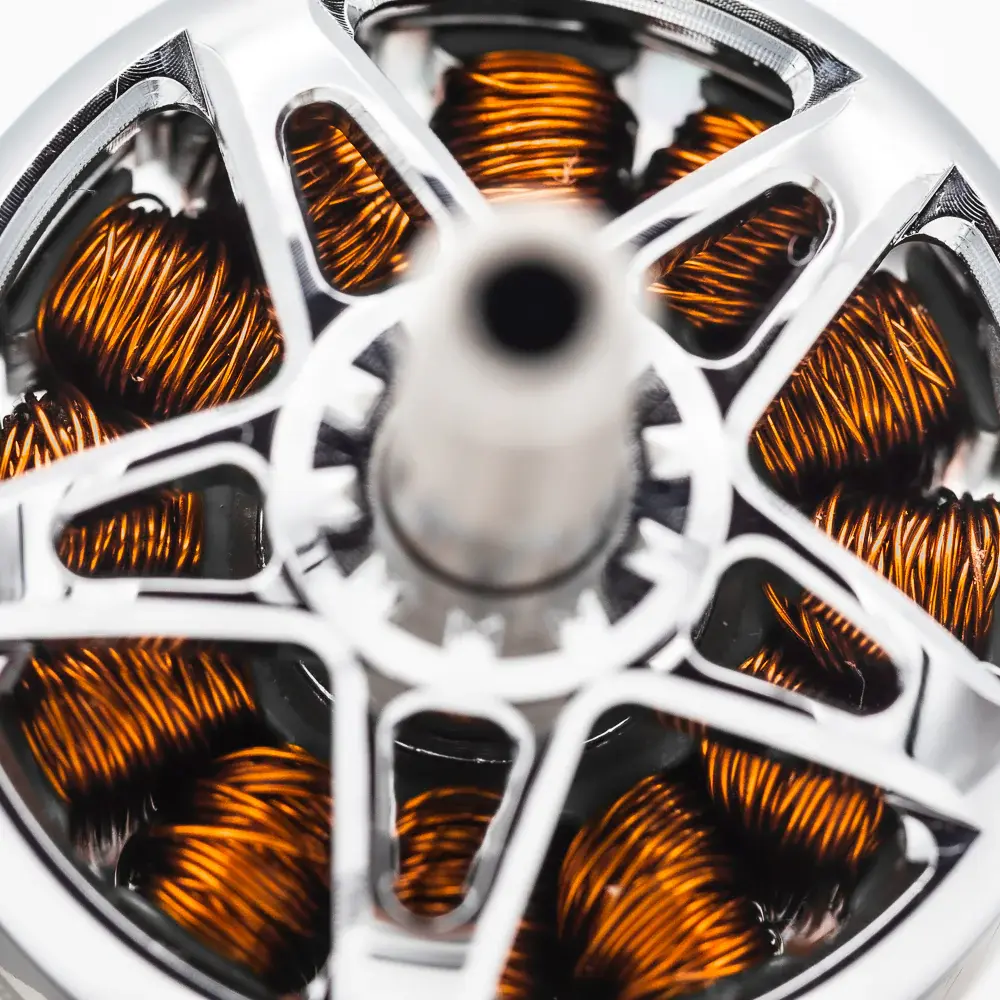

Weight optimization is critical in competitive racing, and the Emax RSIII 2306 Brushless Motor 2100KV achieves a remarkably low mass through its hollow titanium alloy shaft. This significant reduction in rotational inertia allows your flight controller to make much faster micro-adjustments in the air. Ultimately, the lightweight design of the Emax RSIII 2306 Brushless Motor 2100KV ensures sharper cornering responses and crisper aerodynamic maneuvers.

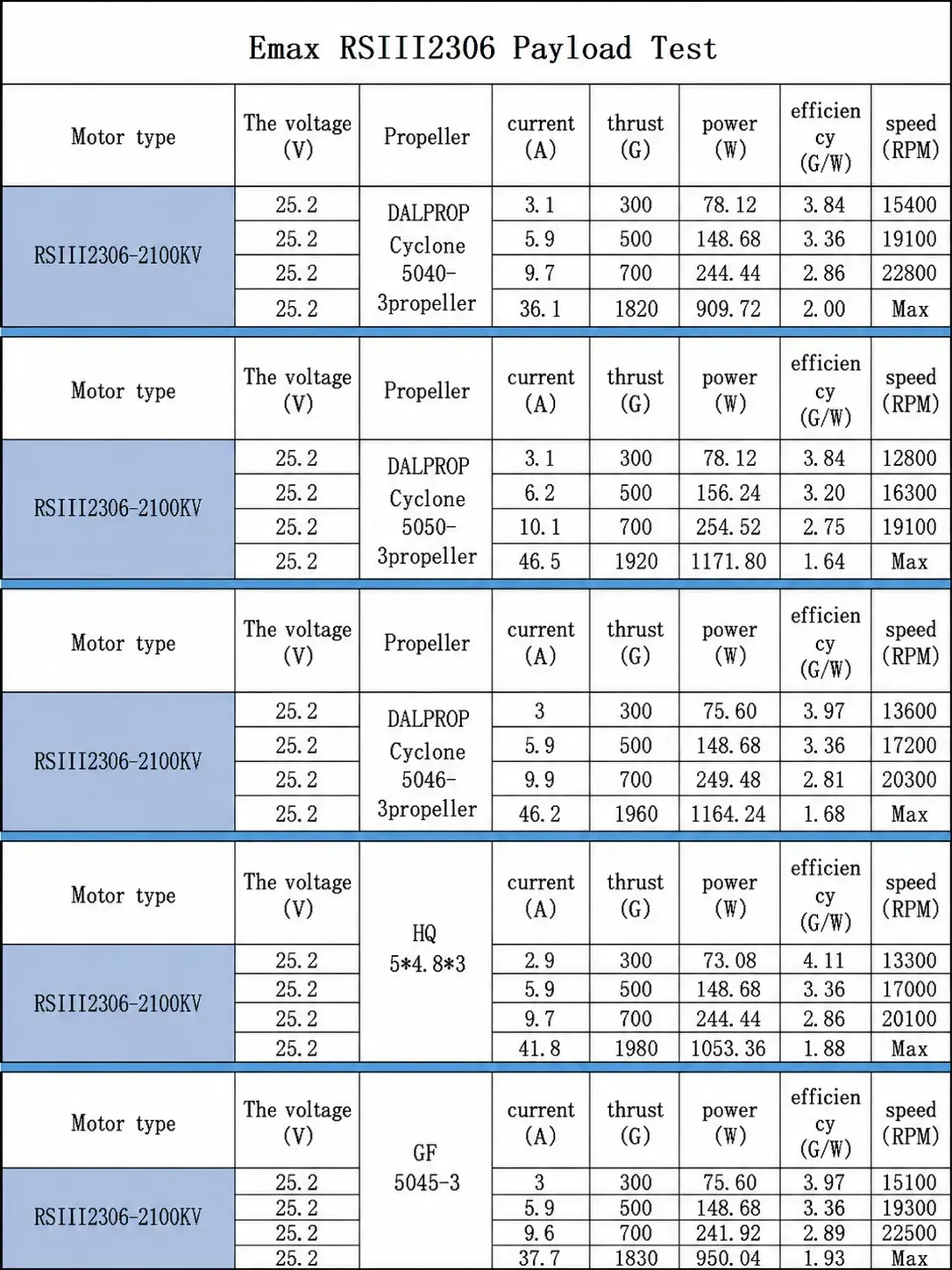

Emax RSIII 2306 Brushless Motor 2100KV Test Report

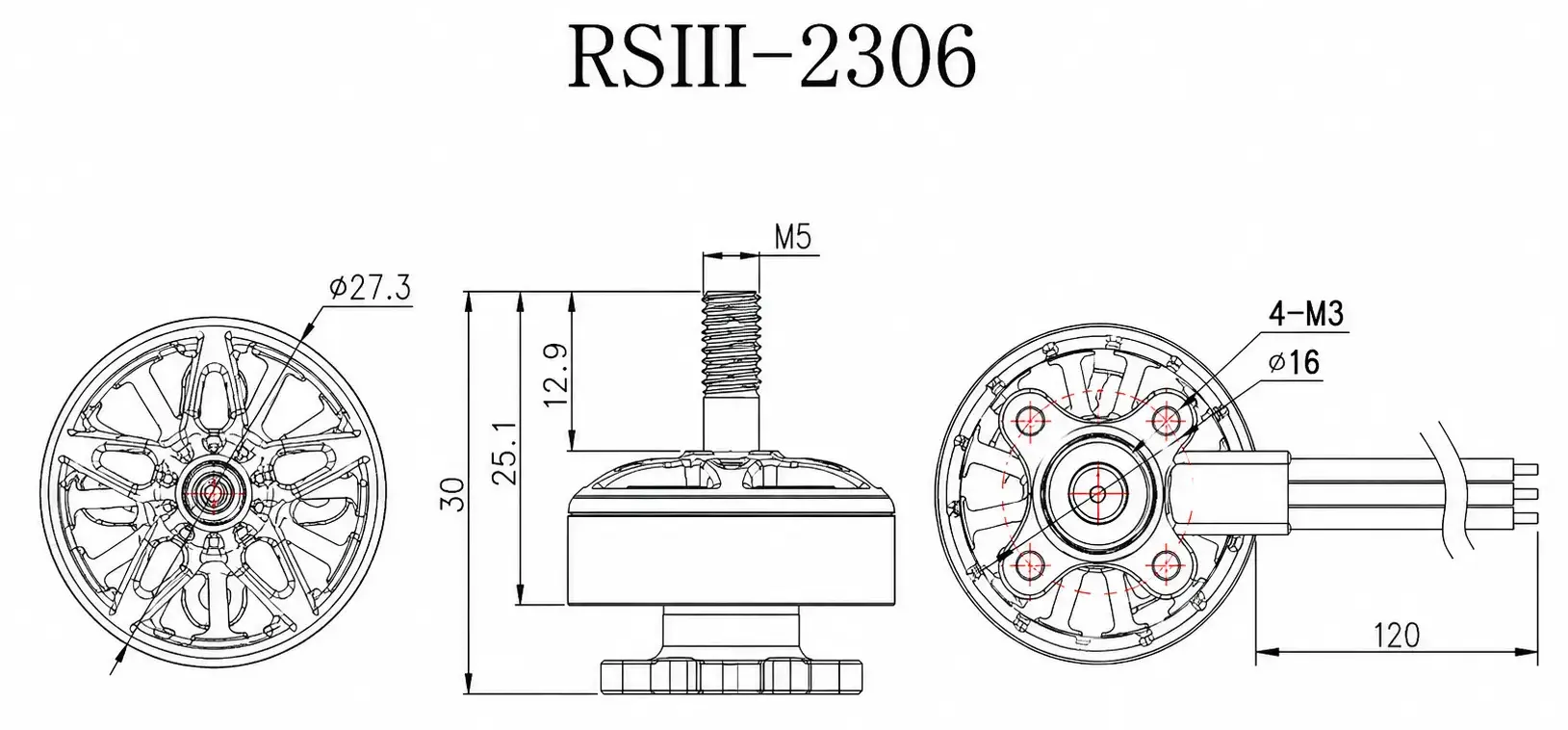

Emax RSIII 2306 Brushless Motor 2100KV Dimensions

Emax RSIII 2306 Brushless Motor 2100KV Specifications
Motor Dimensions | 27.3mm x 32mm |
Framework | 12N14P |
Bearing Shaft | 4mm |
Lead | 20#AWG 120mm |
Weight (Excl. Cable) | 27.8g |
Idle Current (10V) | 1.4A |
Internal Resistance | 57mΩ |
No. of cells | 3S - 6S |
Propeller | 5" |
Peak Current (6S) | 46A |
Max. Power (6S) | 1160W |

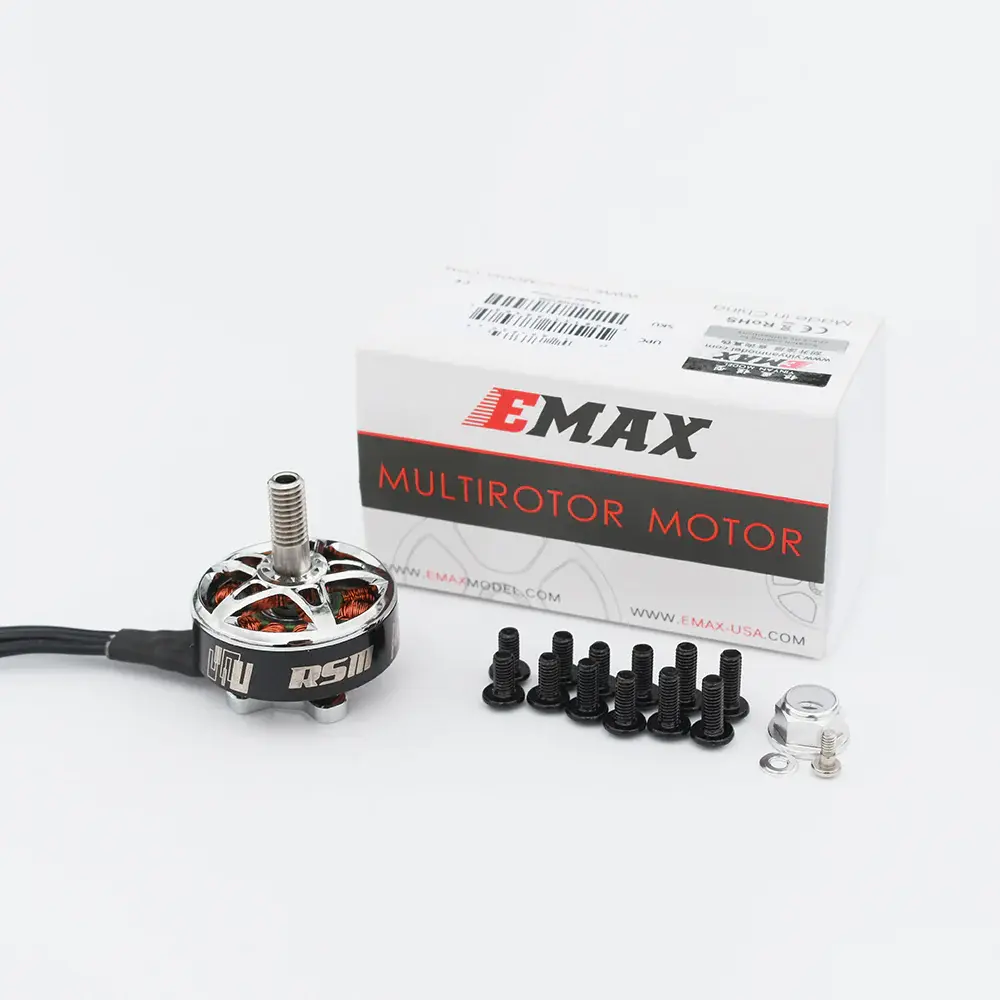

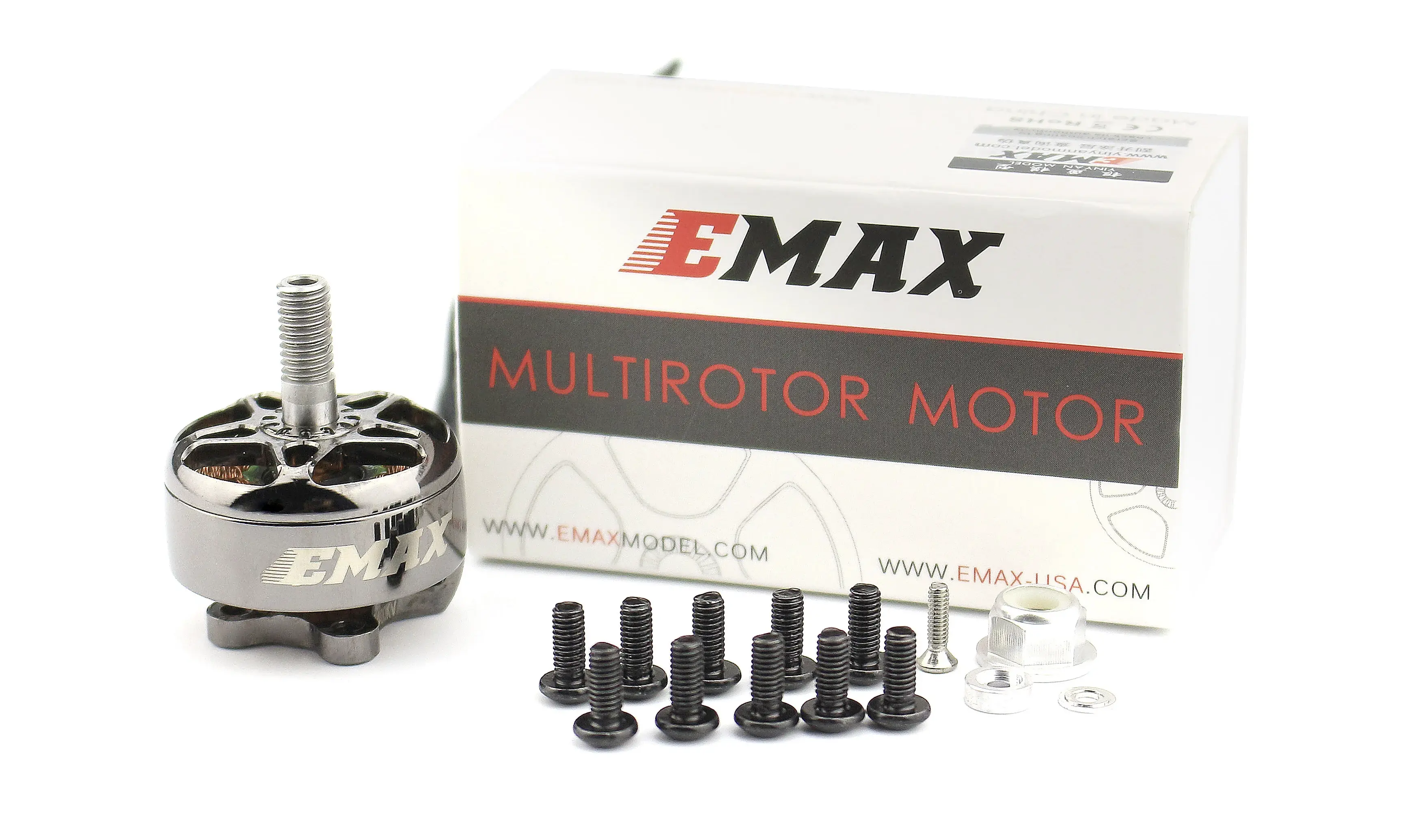

Emax RSIII 2306 Brushless Motor 2100KV Package Includes
- 1x Emax RSIII 2306 Brushless Motor 2100KV
- 5x МЗ*8 Ѕсrеw
- 5x M3*7 Screw
- 5x МЗ*6 Ѕсrеw
- 1x Aluminum M5 nylock nut
- 1x Washer and Screw for shaft
