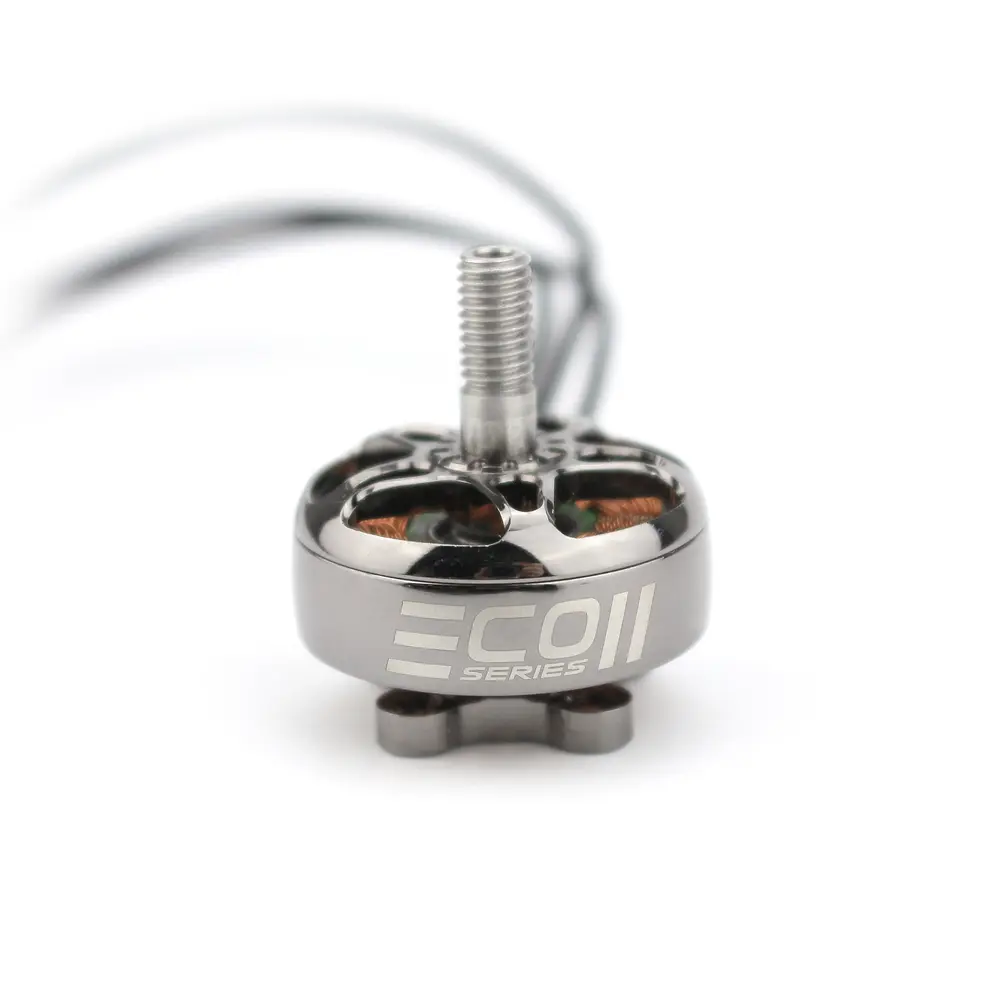

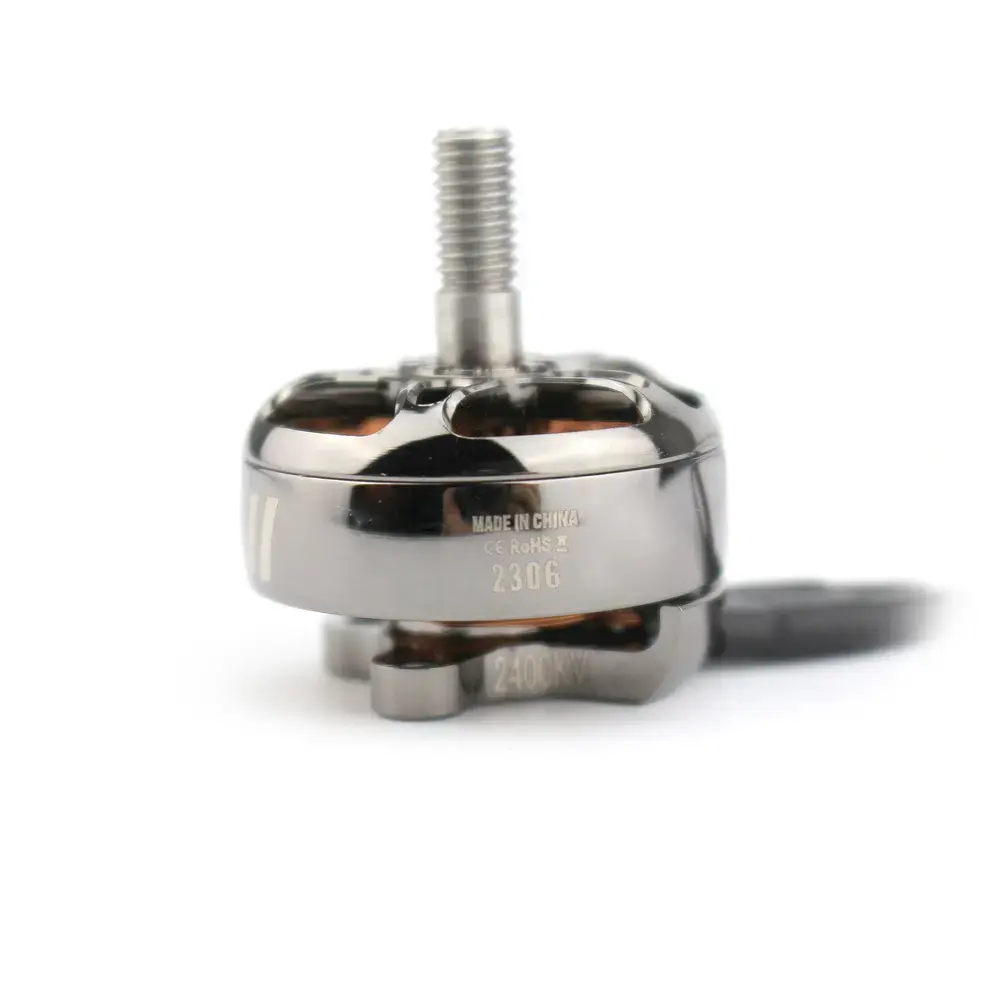

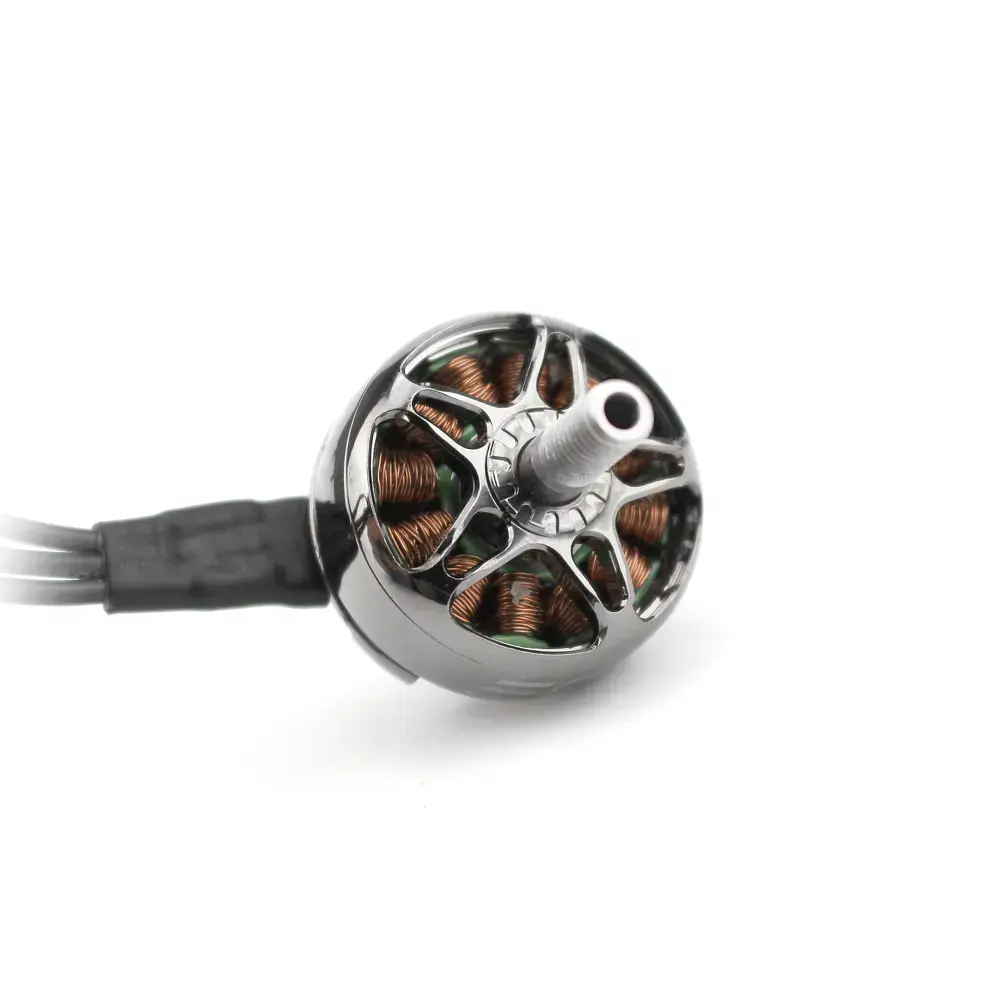

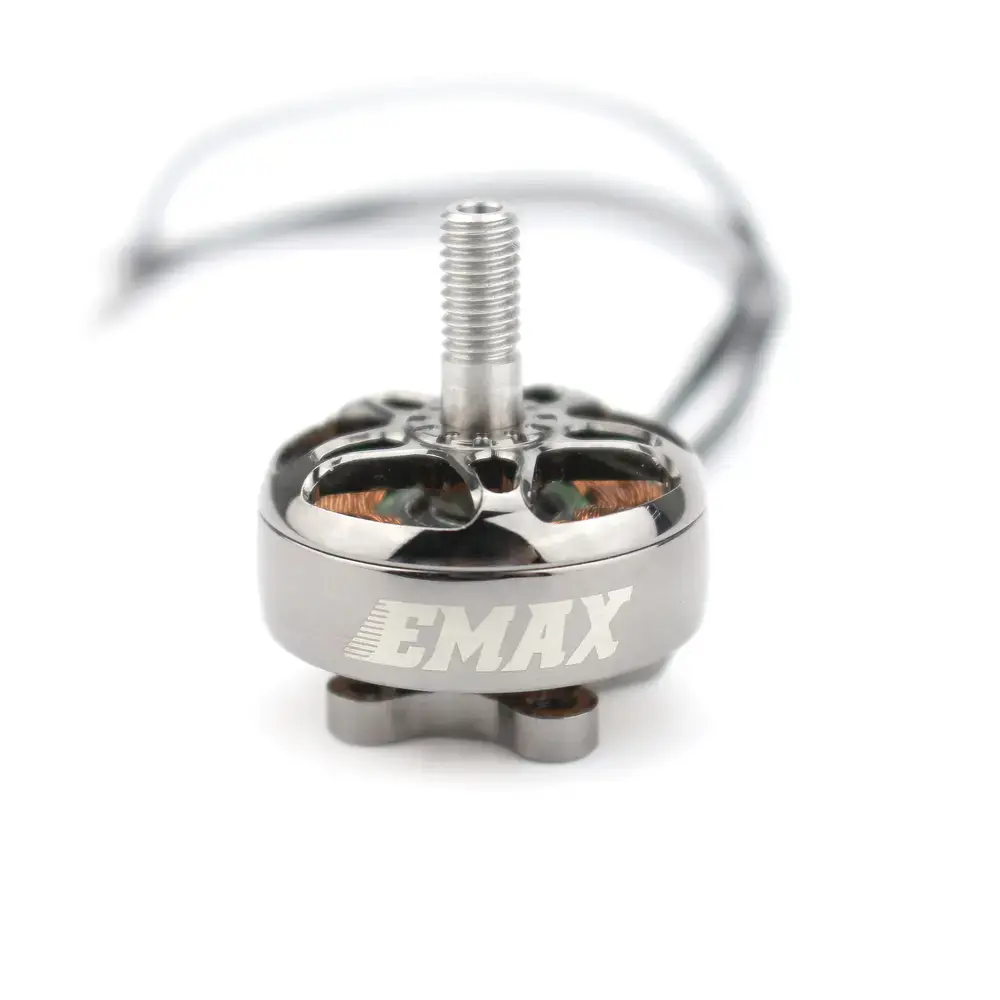

Emax ECO II Series 2306 Brushless Motor 2400KV

https://www.bzbuas.com/web/image/product.template/3395/image_1920?unique=998938c
Unlock explosive speed and razor-sharp responsiveness with the Emax ECO II Series 2306 2400KV — a high-performance brushless motor built for FPV pilots who demand aggressive throttle response, precision control, and full confidence at high RPM. Optimized for 3–4S LiPo setups, this 2400KV variant is made for fast, punchy 5” freestyle and racing builds where instant power matters most. Upgraded with N52SH magnets, reinforced construction, and ultra-smooth bearings, the ECO II 2306 delivers relentless thrust, high efficiency at speed, and the durability to survive hard crashes while keeping you locked into every line.
46.34 zł 46.34 PLN VAT Excluded
46.34 zł VAT Excluded
Price on request

    This combination does not exist.

    Incredible Performance and Precision in Every Flight with Emax ECO II 2306 2400KV Brushless Motor

    The Emax ECO II 2306 2400KV Brushless Motor was created for the most demanding FPV pilots, offering an outstanding price-to-performance ratio. The second generation of the popular ECO series introduces numerous improvements, including a more durable construction and an optimized magnetic field. This ensures not only higher torque but also a longer lifespan under extreme loads. By choosing the Emax ECO II 2306 2400KV Brushless Motor, you gain the confidence that your drone will handle any acrobatic maneuver and the toughest racing tracks while maintaining full stability.

    emax-eco-ii-series-2306-brushless-motor-2400kv

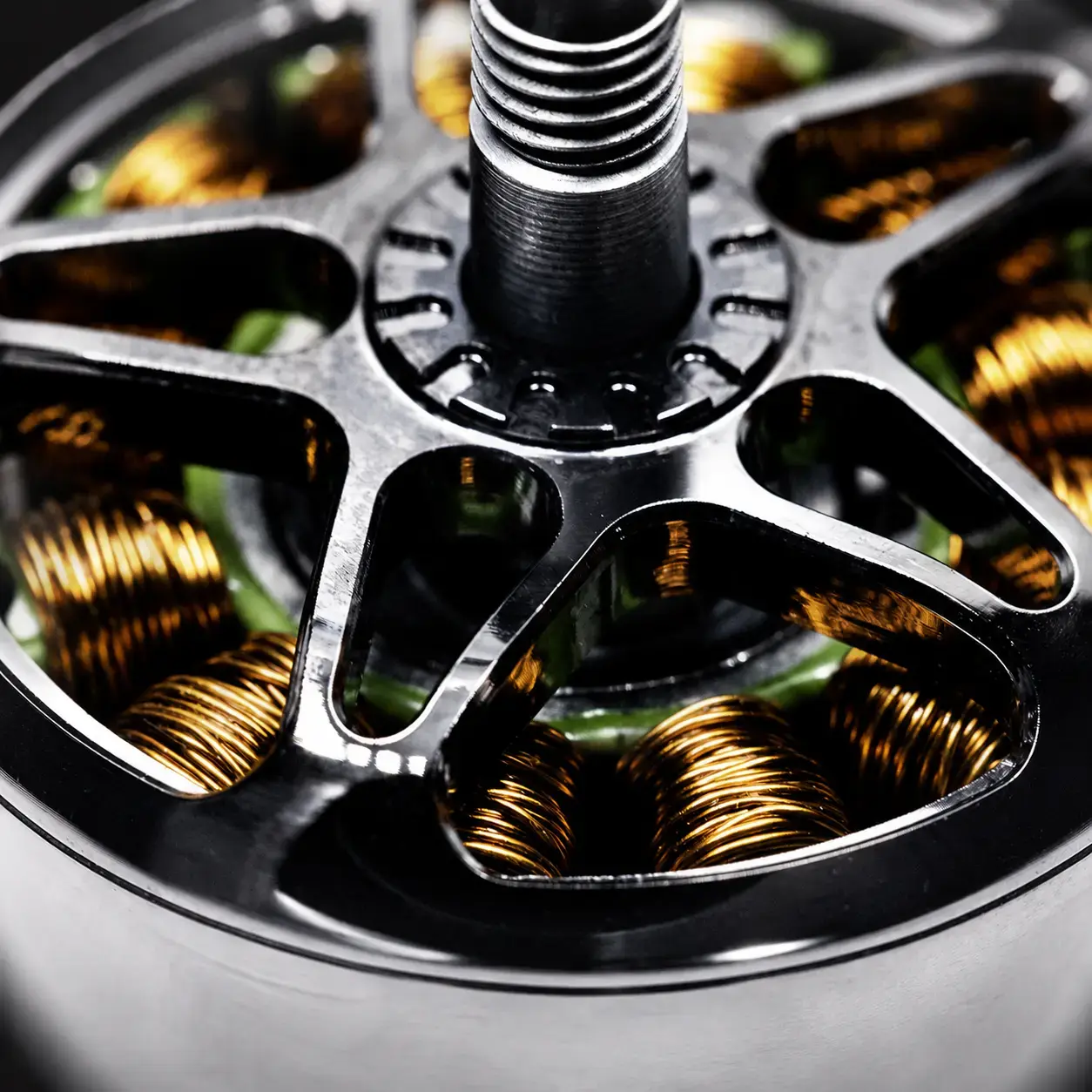

    Modern Design

    The appearance of components also matters, which is why the Emax ECO II 2306 2400KV Brushless Motor stands out with an elegant, shiny bell housing that is also highly aerodynamic. The anodized surface finish effectively protects against scratches, dust, and corrosion. Furthermore, such an open design provides better airflow, which effectively prevents overheating and is essential to maintaining peak performance of the Emax ECO II 2306 2400KV Brushless Motor during intense flight sessions.

    emax-eco-ii-series-2306-brushless-motor-2400kv

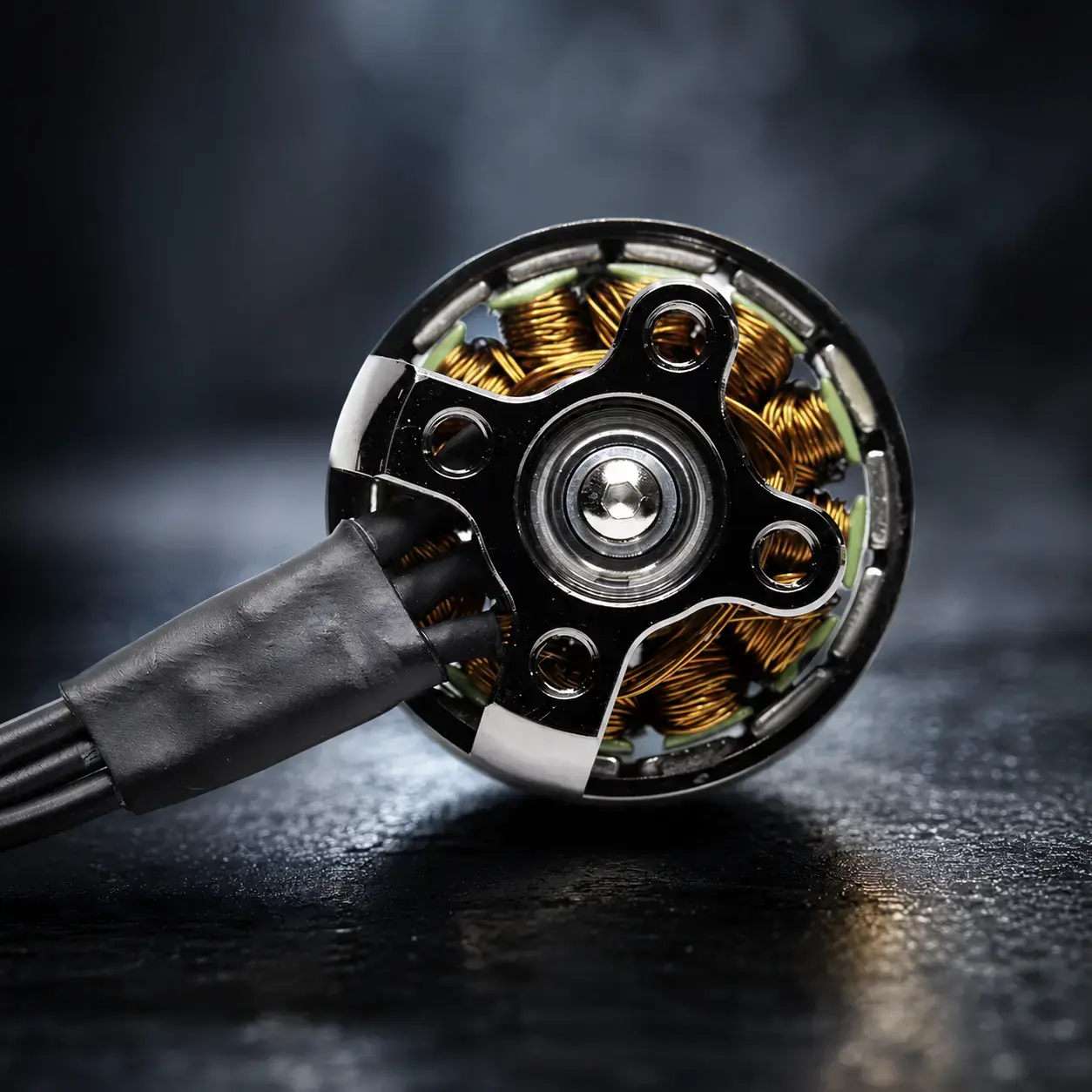

    Powerful Magnets

    The new series utilizes upgraded, curved N52SH magnets that drastically improve responsiveness and torque. The Emax ECO II 2306 2400KV Brushless Motor owes its incredible dynamics and much faster stick response to them. A stronger magnetic field translates to smoother operation and better control over the FPV drone, which is absolutely crucial when performing highly complex aerial maneuvers.

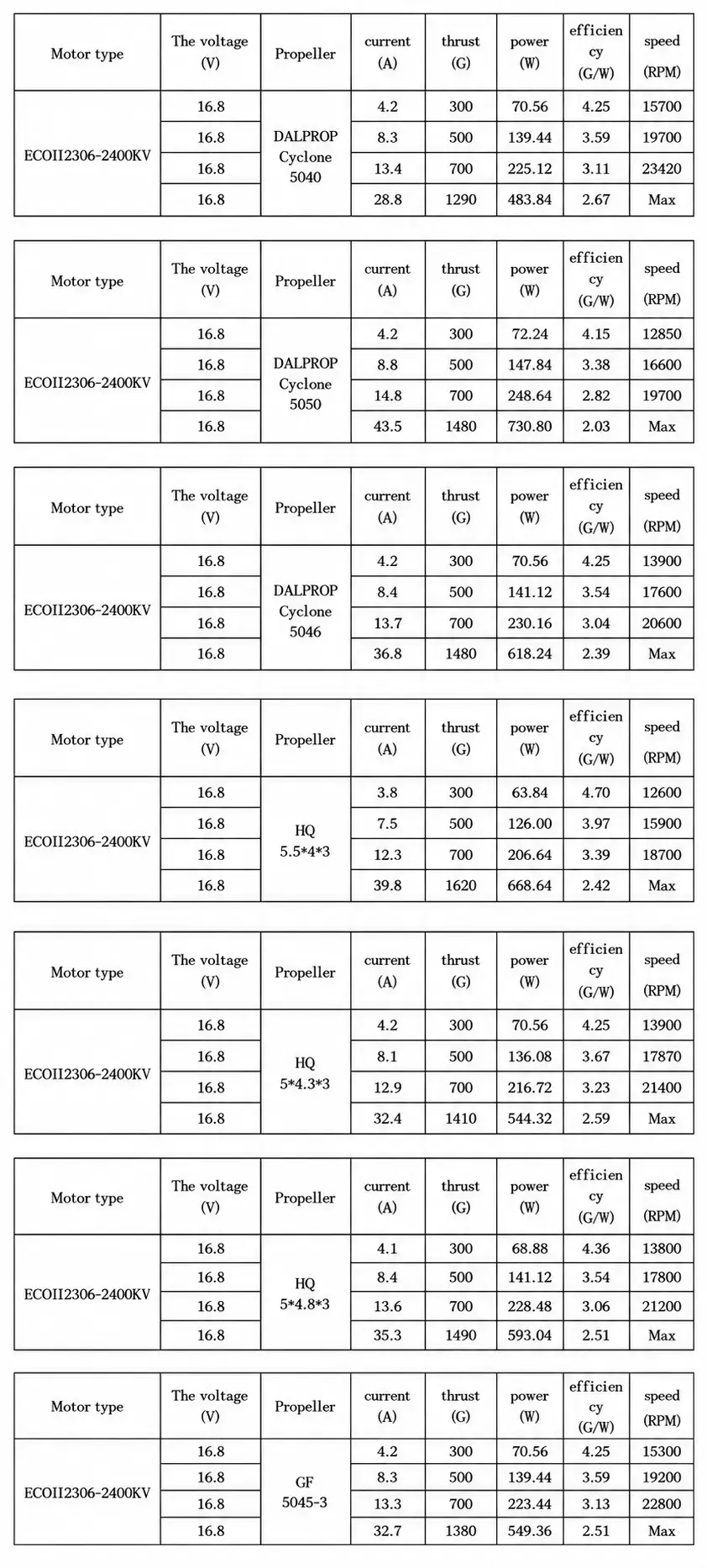

    Emax ECO II Series 2306 Brushless Motor 2400KV Test Report

    emax-eco-ii-series-2306-brushless-motor-2400kv

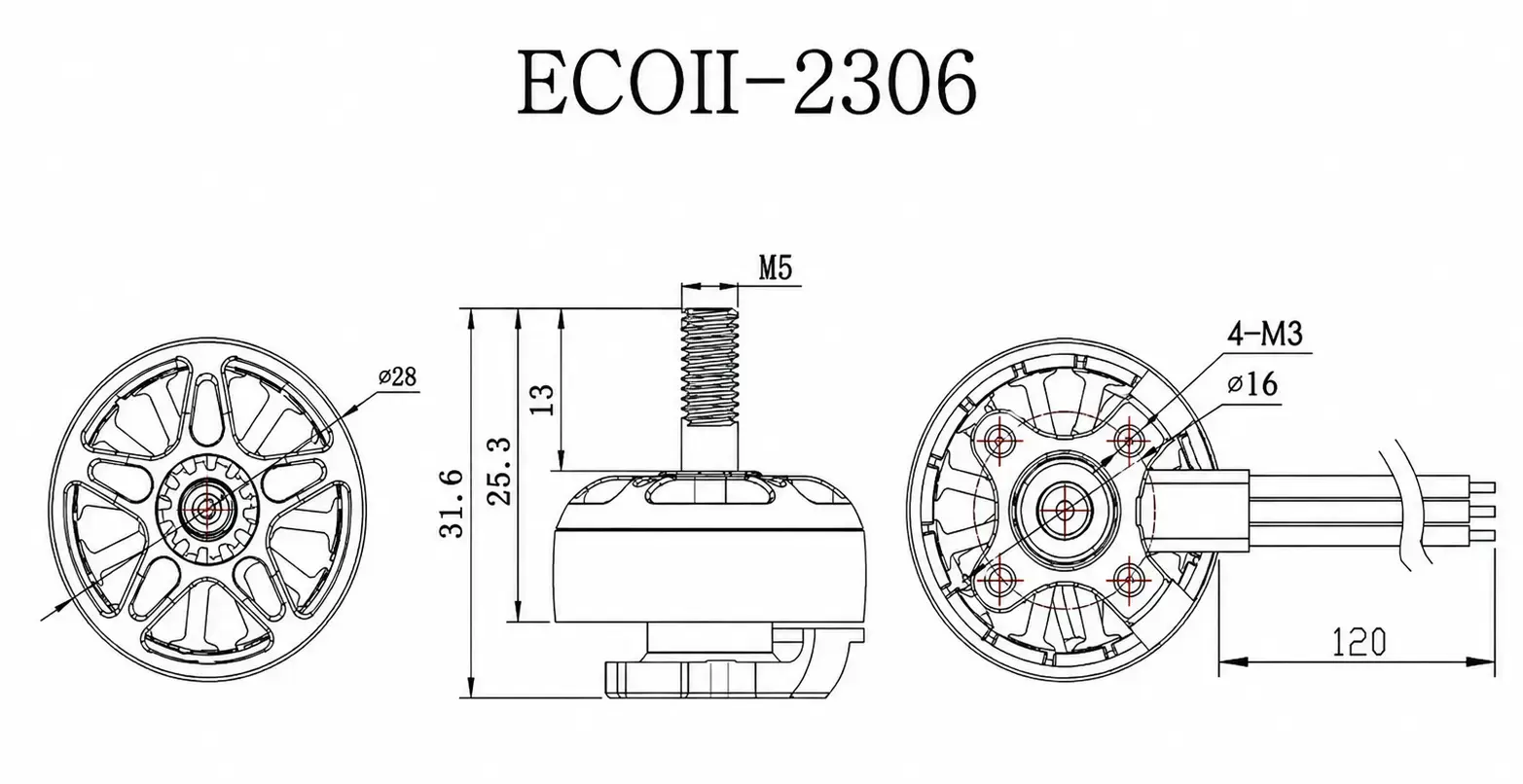

    Emax ECO II Series 2306 Brushless Motor 2400KV Dimensions

    emax-eco-ii-series-2306-brushless-motor-2400kv

    Emax ECO II Series 2306 Brushless Motor 2400KV Specifications

    Motor Dimensions

    28mm x 31.6mm

    Framework

    12N14P

    Bearing Shaft

    4mm

    Lead

    20#AWG 120mm

    Weight (Excl. Cable)

    30.2g

    Idle Current (10V)

    1.8A

    Internal Resistance

    47mΩ

    No. of cells

    3S - 4S

    Propeller

    5" - 5.5"

    Peak Current (4S)

    44A

    Max. Power (4S)

    740W

    emax-eco-ii-series-2306-brushless-motor-2400kv

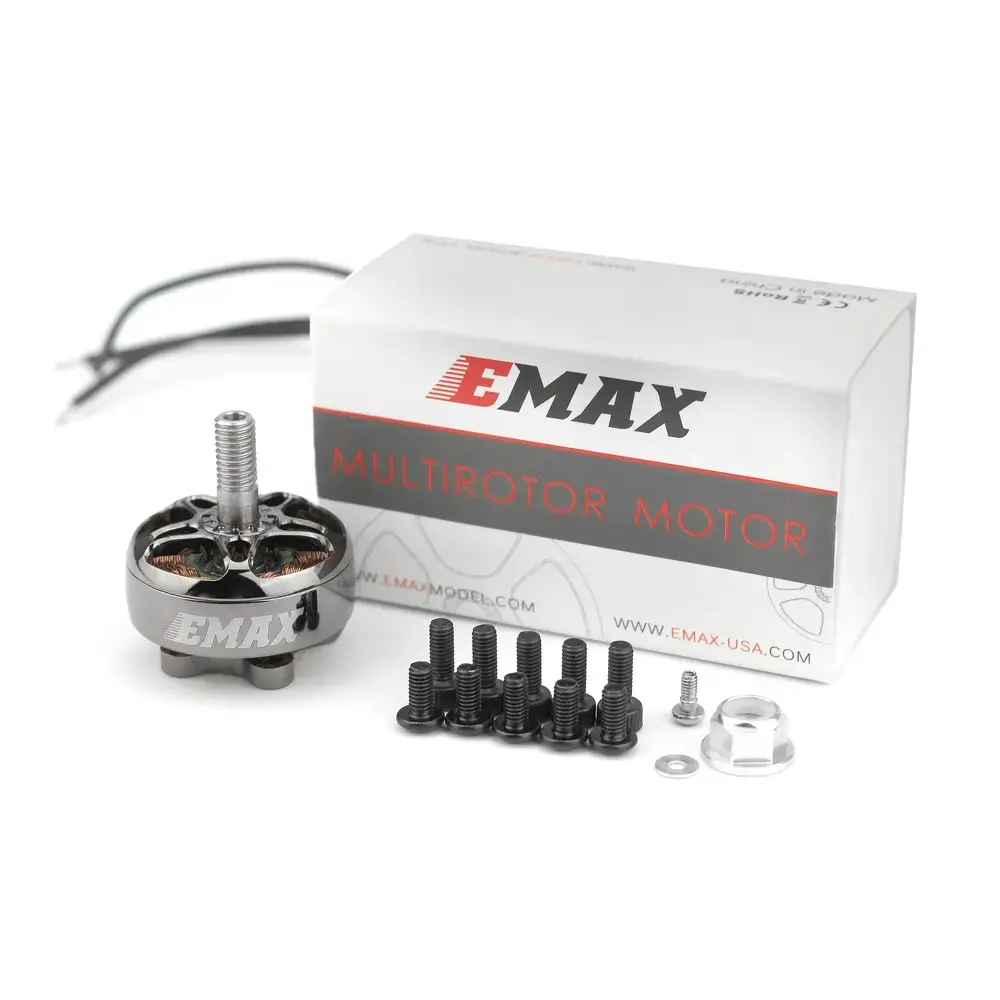

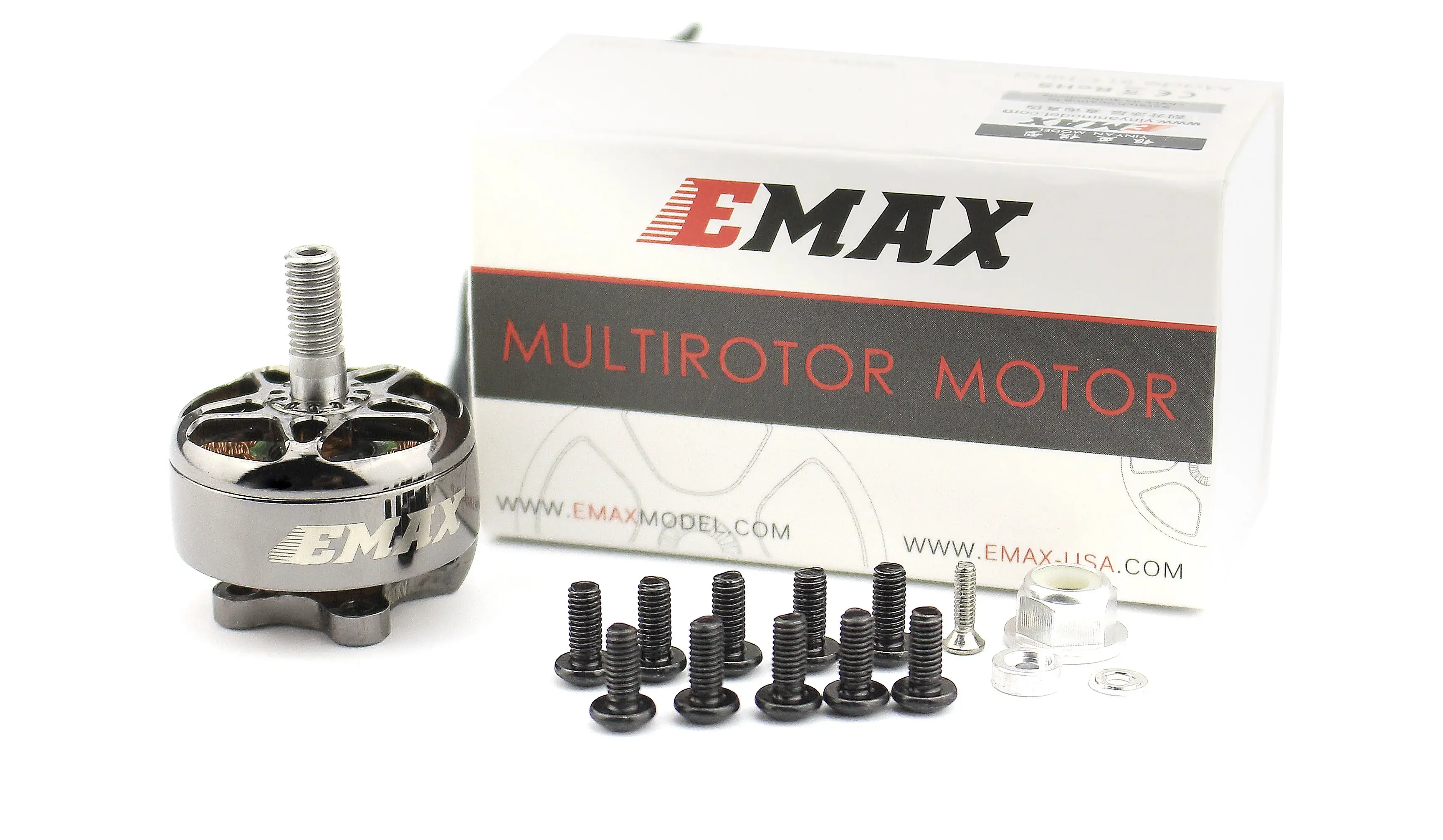

    Emax ECO II Series 2306 Brushless Motor 2400KV Package Includes

    • 1x Emax ECO II Series 2306 Brushless Motor 2400KV
    • 5x МЗ*8 Ѕсrеw
    • 5x M3*7 Screw
    • 5x МЗ*6 Ѕсrеw
    • 1x Aluminum M5 nylock nut
    • 1x Washer and Screw for shaft
