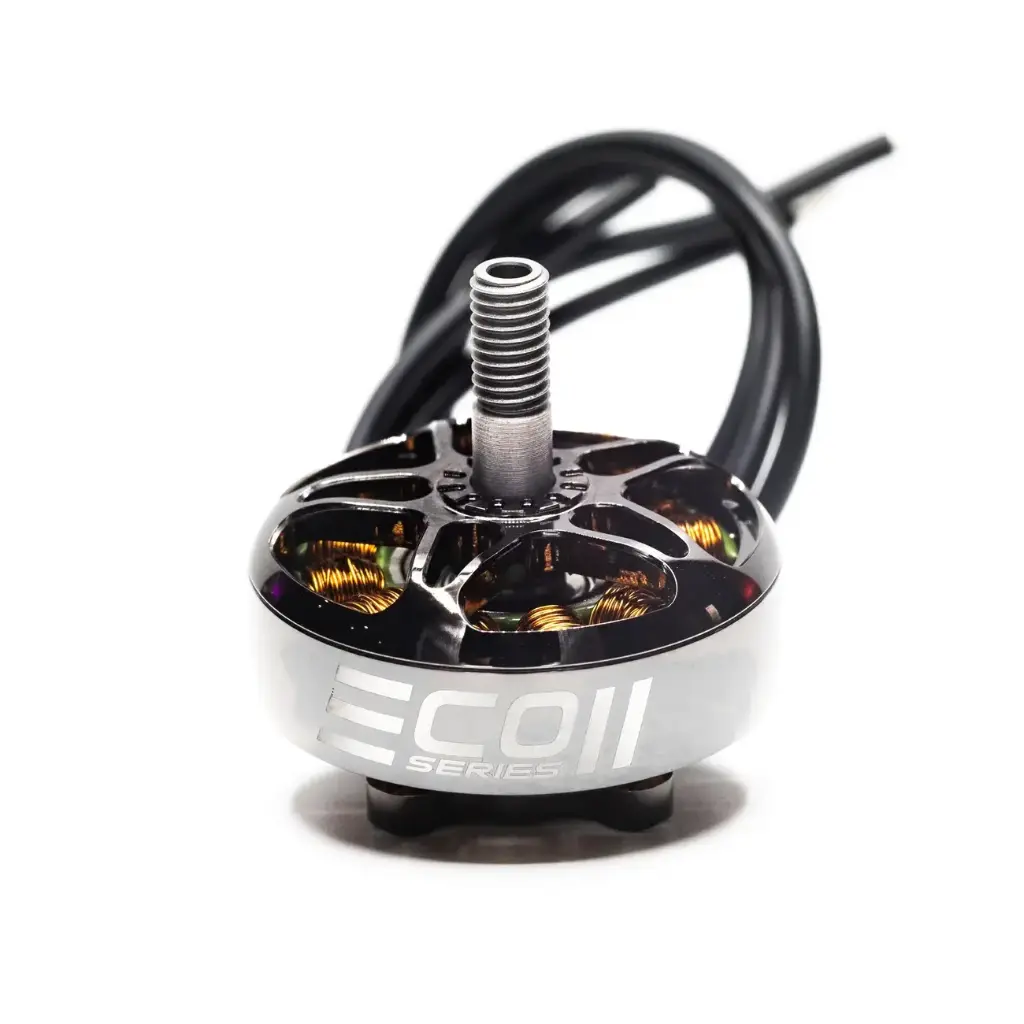

Emax ECO II Series 2807 Brushless Motor 1300KV
Compared to the original ECO Series, the ECO II features stronger magnets, improved bearings, and a more durable design, offering better thrust, smoother operation, and enhanced reliability — all while keeping the same great value.
Improved and Proven Design – Emax ECO II Series 2807 Brushless Motor 1300KV
The Emax ECO II Series 2807 Brushless Motor 1300KV is an upgraded version of the popular ECO motor lineup. This new generation focuses on improved durability and smoother performance while maintaining the affordability that made the original series widely used in FPV builds. It offers reliable power delivery, stable operation, and solid efficiency, making it a dependable choice for modern FPV drone setups.
Redesigned for Greater Durability
Redesigned from the ground up, the ECO II features a completely new internal structure. A more rounded design combined with thicker reinforcements improves the overall strength of the motor, helping it withstand demanding flight conditions. The reflective finish gives the motor a modern appearance while also emphasizing durability and solid construction.
Powerful Magnets
To improve performance compared to the previous generation, the ECO II uses N52 magnets instead of N48. This allows the motor to deliver a stronger throttle response and reach higher RPM during flight. The increased magnetic strength also generates more torque and thrust, giving pilots greater control and flexibility in different flying situations, from racing to freestyle flights.
Frequently asked questions - Emax ECO II Series 2807 Brushless Motor 1300KV
The Emax ECO II Series 2807 Brushless Motor 1300KV is best suited for 7-inch FPV drones, especially freestyle, cinematic, and long-range builds. It offers a good balance between power, efficiency, and flight control.
Yes. The Emax ECO II Series 2807 Brushless Motor 1300KV provides responsive throttle control and stable performance, making it suitable for both aggressive freestyle maneuvers and smoother flights.
The Emax ECO II Series 2807 Brushless Motor 1300KV is designed mainly for 7-inch propellers, including both two-blade and three-blade types. The final choice depends on the desired flight characteristics.
Yes. Thanks to its efficiency and stable performance, the Emax ECO II Series 2807 Brushless Motor 1300KV works well in long-range FPV drone builds.
Yes. The Emax ECO II Series 2807 Brushless Motor 1300KV provides predictable performance and good control, making it suitable for both beginners and experienced FPV pilots.
Yes. The Emax ECO II Series 2807 Brushless Motor 1300KV uses a standard mounting pattern commonly found in frames designed for 7-inch FPV drones.
Emax ECO II Series 2807 Brushless Motor 1300KV - Test Report
Propeller: Gemfan 7042 (2-blade)
Voltage (V) | Current (A) | Thrust (g) | Power (W) | Efficiency (g/W) | Speed (RPM) |
25.2 | 2.2 | 300 | 55.44 | 5.41 | 8440 |
25.2 | 4.0 | 500 | 100.80 | 4.96 | 10550 |
25.2 | 5.4 | 700 | 136.08 | 5.14 | 12370 |
| 25.2 | 9.3 | 900 | 234.36 | 3.84 | 13960 |
25.2 | 12.4 | 1100 | 312.48 | 3.52 | 15360 |
25.2 | 47.9 | 2190 | 1207.08 | 1.81 | Max |
Propeller: Gemfan 7040 (3-blade)
Voltage (V) | Current (A) | Thrust (g) | Power (W) | Efficiency (g/W) | Speed (RPM) |
25.2 | 2.3 | 300 | 57.96 | 5.18 | 8920 |
25.2 | 4.1 | 500 | 103.32 | 4.84 | 11000 |
25.2 | 6.4 | 700 | 161.28 | 4.34 | 12800 |
| 25.2 | 9.3 | 900 | 234.36 | 3.84 | 14400 |
25.2 | 12.5 | 1100 | 315.00 | 3.49 | 15700 |
25.2 | 45.2 | 2490 | 1139.04 | 2.19 | Max |
Propeller: HQ 7×3.5×3 (3-blade)
Voltage (V) | Current (A) | Thrust (g) | Power (W) | Efficiency (g/W) | Speed (RPM) |
25.2 | 2.1 | 300 | 52.92 | 5.67 | 7990 |
25.2 | 4.0 | 500 | 100.80 | 4.96 | 10100 |
25.2 | 6.4 | 700 | 161.28 | 4.34 | 11700 |
| 25.2 | 9.2 | 900 | 231.84 | 3.88 | 13200 |
25.2 | 12.4 | 1100 | 312.48 | 3.52 | 14600 |
25.2 | 47.1 | 2580 | 1186.92 | 2.17 | Max |
Propeller: HQ 7×4×3 (3-blade)
Voltage (V) | Current (A) | Thrust (g) | Power (W) | Efficiency (g/W) | Speed (RPM) |
25.2 | 2.2 | 300 | 55.44 | 5.41 | 6550 |
25.2 | 4.2 | 500 | 105.84 | 4.72 | 9600 |
25.2 | 6.5 | 700 | 163.80 | 4.27 | 11100 |
| 25.2 | 9.4 | 900 | 236.88 | 3.80 | 12500 |
25.2 | 13.4 | 1100 | 337.68 | 3.26 | 13900 |
25.2 | 51.2 | 2640 | 1290.24 | 2.05 | Max |
Emax ECO II Series 2807 Brushless Motor 1300KV Specifications
Motor Dimensions | Φ 33.9 × 34 mm |
Configuration | 12N14P |
Shaft Diameter | 4 mm |
Lead | 18# AWG, 200 mm |
Weight | 47.6 g (without silicone wire) |
Idle Current (10 V) | 1.3 A |
Internal Resistance | 58 mΩ |
Cell Count | 3-6S |
Recommended Propeller | 6–7 inch |
Peak Current (6S) | 52 A |
Max Power (6S) | 1310 W |
Emax ECO II Series 2807 Brushless Motor 1300KV Package Includes
- 1x Emax ECO II Series 2807 Brushless Motor 1300KV
- 5x МЗ*10 Ѕсrеw
- 5x M3*8 Screw
- 1x Aluminum M5 nylock nut
- 1x Washer and Screw for shaft
