Armored Construction and Simple Solderless Installation with Matrix 1S 5IN1 Brushless Flight Controller

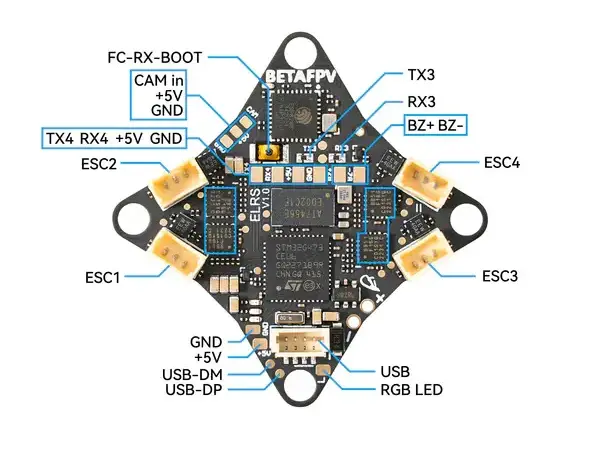

The Matrix 1S 5IN1 Brushless Flight Controller redefines standards of durability and convenience in the ultralight component category. When designing this model, engineers focused on beginners starting their FPV adventure as well as pilots looking for a maintenance-free platform for daily, intensive training. The use of a thickened 1 mm PCB drastically increases resistance to damage during crashes. By choosing the Matrix 1S 5IN1 Brushless Flight Controller, you get complete electronics with factory-built JST1.25 sockets for motors, which completely eliminates the need for welding and soldering cables, drastically speeding up the assembly and servicing process of the drone.

Key features of Matrix 1S 5IN1 Brushless Flight Controller

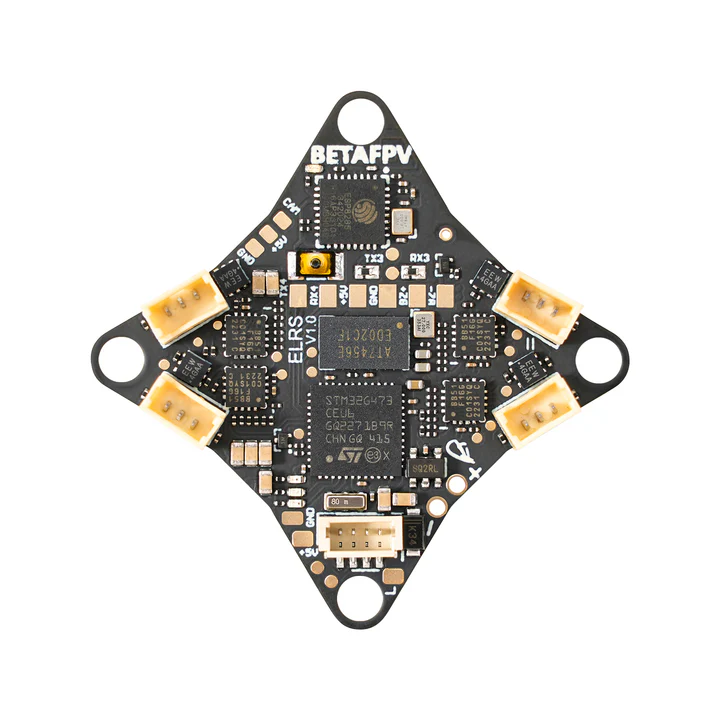

• Unmatched 5-in-1 integration: The advanced Matrix 1S 5IN1 Brushless Flight Controller combines a central processing unit, a powerful video transmitter, ESC regulators, an ELRS receiver, and an OSD on a single compact board.
• Powerful STM32G473CEU6 processor: The upgraded chip operating at a frequency of 168MHz guarantees a spectacular 55% increase in computing performance compared to older F411 processors.
• Full telemetry control: Integrated voltage and current sensors (Voltage & Current Sensor) allow for real-time monitoring of the BT2.0 battery status.
• Fast and smooth ESC protocol: Bluejay firmware supporting RPM filtering and digital signal protocols DShot300 and DShot600 ensures a perfectly smooth throttle stick response.
• Powerful and flexible VTX: The integrated video transmitter operating in the 25-400mW range with SmartAudio 2.0 support allows for remote power and channel changes directly from the radio transmitter.

Recommended Parts and Compatibility to Matrix 1S 5IN1 Brushless Flight Controller

By choosing the Matrix 1S 5IN1 Brushless Flight Controller, you gain the assurance of perfect compatibility with flagship micro drone designs. This system has been factory-matched and implemented to power upgraded versions of ready-to-fly models such as the Meteor65 Pro and Meteor75 Pro. It works perfectly with frames dedicated to these drones, as well as brushless motors designated 0702, 0702SE, 0802, 0802SE, and high-performance 1102 units. The use of these components guarantees full synergy, stable flight characteristics, and maximum utilization of the potential offered by the Matrix 1S 5IN1 Brushless Flight Controller
