BetaFPV 0702 Brushless Motor 2026 Racing 30000KV Purple 4pcs
Revolutionize Your Flight with the BetaFPV 0702 Brushless Motor 2026 Racing 30000KV Purple 4pcs
The BetaFPV 0702 Brushless Motor 2026 Racing 30000KV Purple 4pcs sets a new standard for micro FPV drone performance. Featuring an industry-first 0.10mm stator core, this motor significantly reduces magnetic losses and heat generation, resulting in a proven efficiency improvement of 0.1 to 0.2g/W compared to traditional designs. The Racing 30000KV variant is specifically engineered for high RPM and razor-sharp throttle response, making it the perfect choice for navigating technical race courses with extreme agility. Built with upgraded rotor housing materials and a reinforced shaft design, these lightweight motors provide the structural durability needed to withstand hard impacts and extend overall lifespan during intense racing sessions.
Key Features of BetaFPV 0702 Brushless Motor 2026 Racing 30000KV Purple 4pcs
- Thinnest 0.10mm Stator Core - This innovative technology maximizes energy conversion efficiency and reduces heat by minimizing magnetic losses.
- Racing-Tuned Performance - Engineered specifically for high RPM and instant throttle response, providing the necessary agility for technical race tracks.
- Enhanced Crash Durability - Features an upgraded rotor housing material and reinforced shaft design to withstand hard impacts and prolong flight life.
- Optimized for Air65 II - Perfectly matched with recommended parts like the Air65 II frame and GF 1207 3-blade propellers for seamless integration.
Industry-First 0.10mm Stator Core
BETAFPV pioneers a breakthrough in efficiency with the industry's first 0.10mm stator core. This ultra-thin design minimizes magnetic losses, dramatically improving energy conversion and reducing heat generation. Proven in testing, 0702 Brushless Motors (2026) deliver a significant efficiency gain of 0.1-0.2g/W compared to 0702 motors with a 0.15mm core.
Precision-Tuned
Designed exclusively for the Air65 II whoop, three distinct versions are precision-engineered to meet specific performance demands. Each features unique KV ratings, magnetic circuit designs, and winding processes for optimized power delivery. The Racing (30000KV) delivers higher RPMs and razor-sharp response for agility on technical race courses.

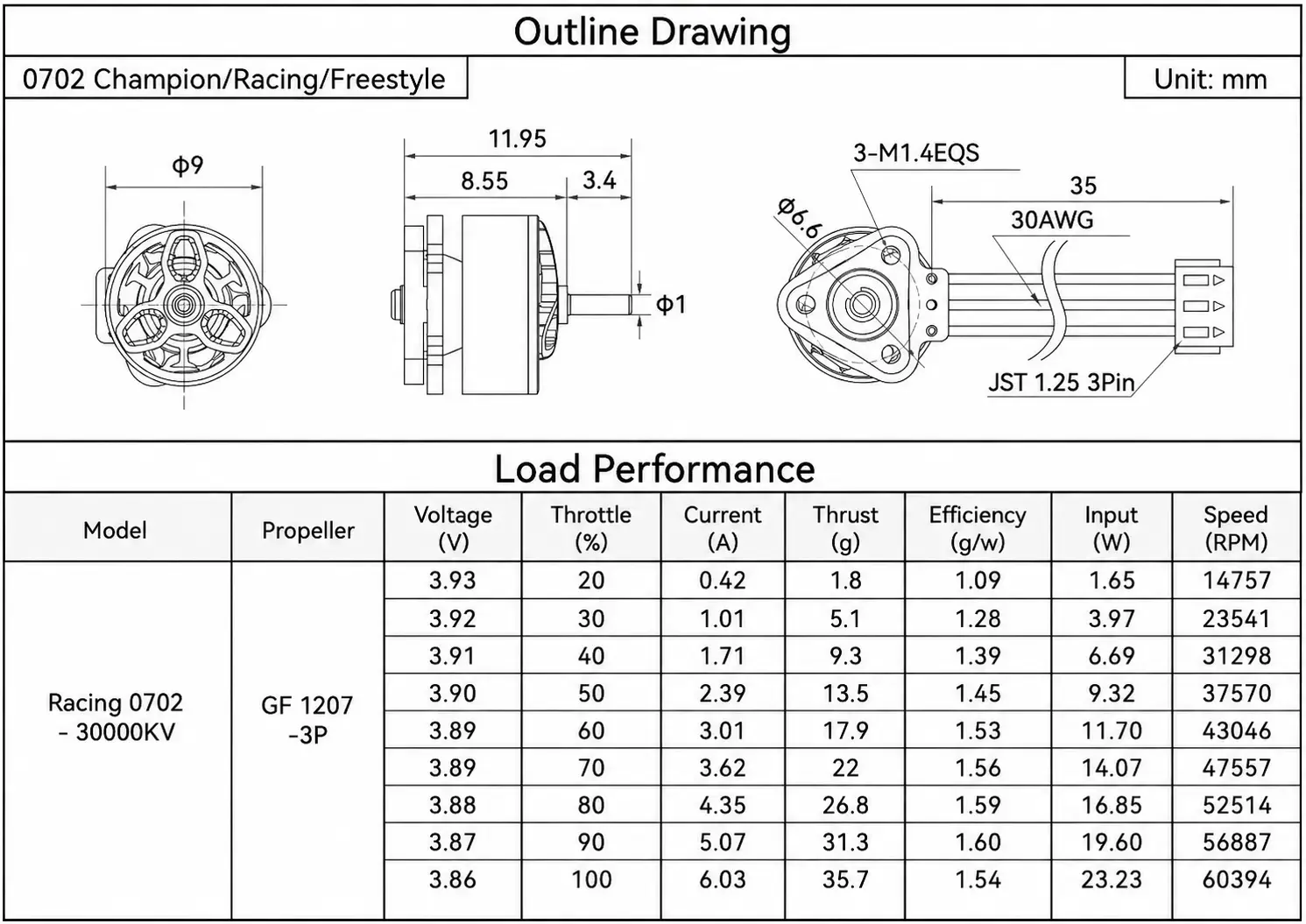

BetaFPV 0702 Brushless Motor 2026 Racing 30000KV Purple 4pcs Specifications
KV | 30000KV |
| Maximum Power | 23.3W |
| Maximum Current | 6.03A |
| Bearing Type | Brass bushings |
| Weight | 1.50g |
| Rated Voltage | 4.2V (1S) |

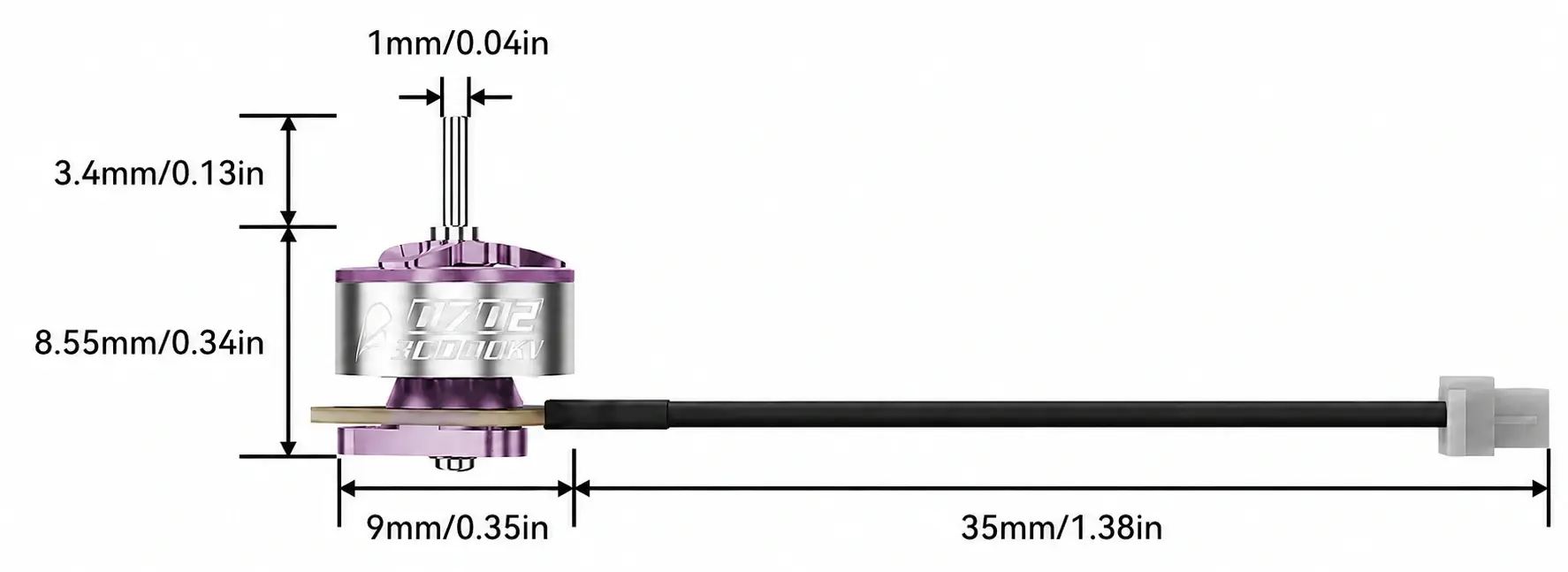

Shaft Diameter | ø1.0mm |
Shaft Length | 3.4mm |
Wire Gauge | 30AWG |
Wire Length | 35mm |
Connector | JST1.25 3Pin |
Mounting Hole Size | 3 x M1.4 EQS Ø6.6mm |
Color | Purple |



BetaFPV 0702 Brushless Motor 2026 Racing 30000KV Purple 4pcs Package Includes

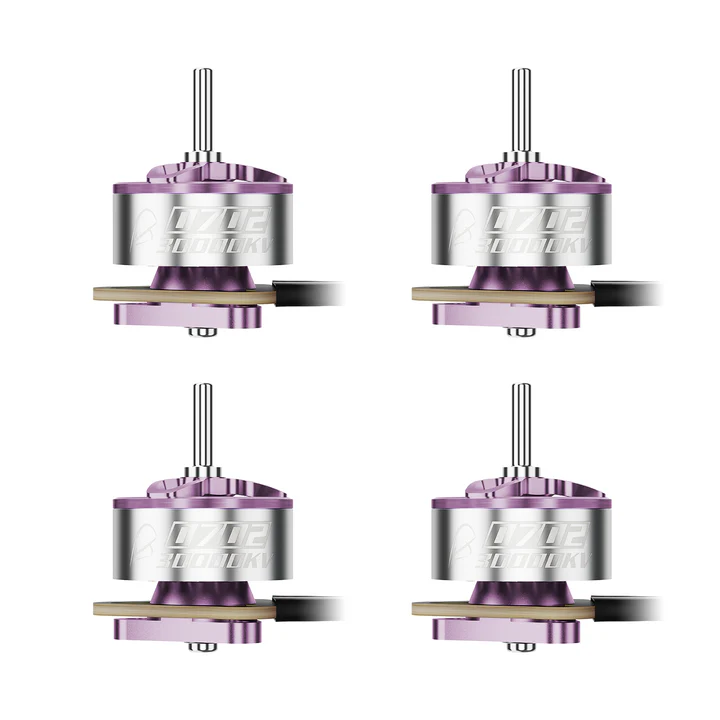

- 4x BetaFPV 0702 Brushless Motor 2026 Racing 30000KV Purple
- 12x M1.4*3 Screws
