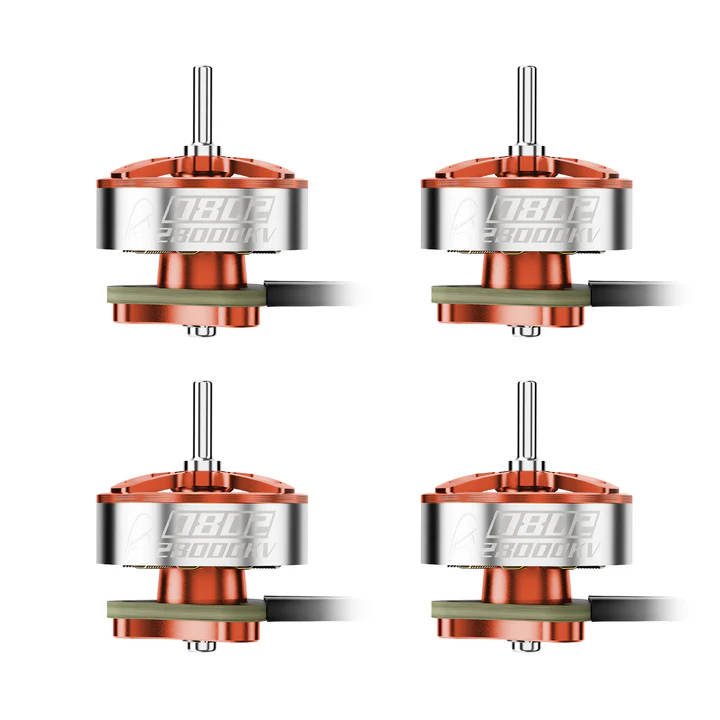

BetaFPV 0802 Brushless Motor 28000KV Orange (4PCS)
Built for Fast 1S Whoop Performance – BetaFPV 0802 Brushless Motor 28000KV Orange (4PCS)
BetaFPV 0802 Brushless Motor 28000KV Orange (4PCS) is designed for Air75 II platforms and pilots who want an aggressive flying feel. The Champion version combines 28000KV, strong maximum output, and durable dual-ball bearings, making it a solid choice for setups where instant throttle response, low weight, and dependable durability matter most.

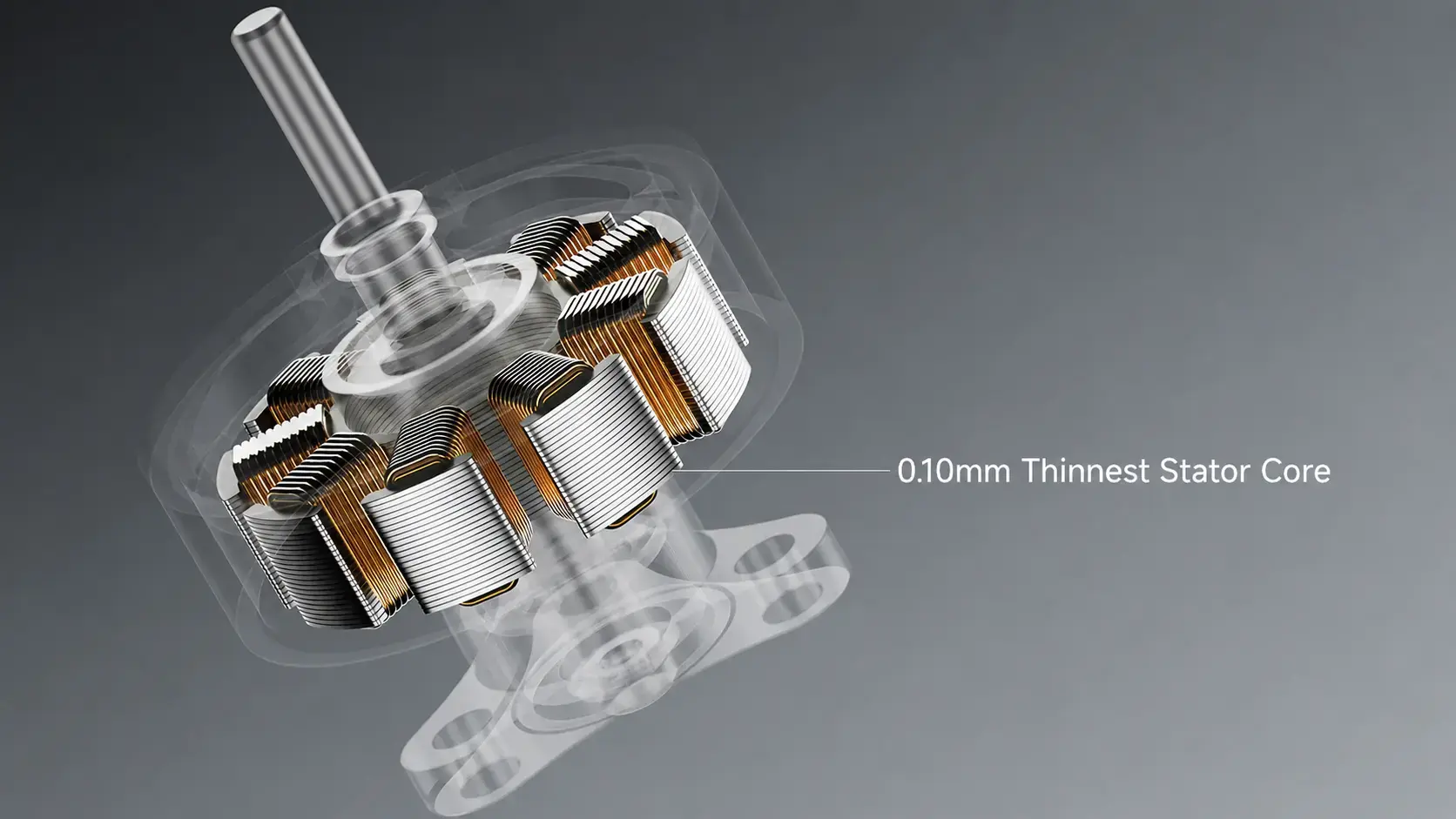

Better efficiency in a compact motor
The 0.10 mm stator core is designed to reduce magnetic loss, improve energy conversion, and lower heat generation. In real use, this helps the motor run more efficiently, which is especially valuable in lightweight 1S drones where every gram and every bit of performance counts.

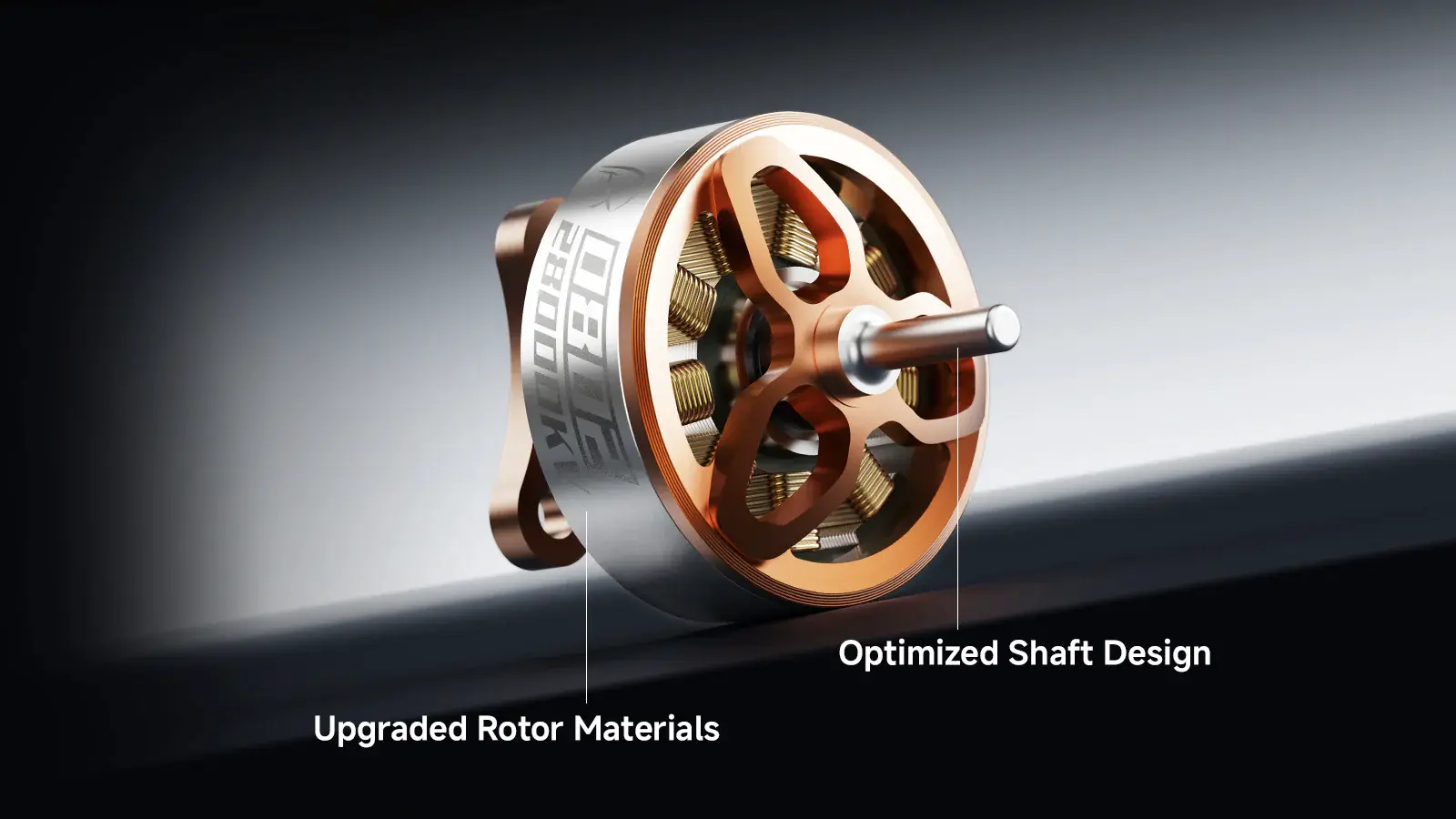

Upgraded Rotor Materials and Optimized Shaft Design
BETAFPV uses upgraded rotor housing materials and a reinforced shaft structure to help the motor handle harder impacts and daily wear more effectively. This makes it a practical option for pilots who fly aggressively and want greater confidence in long-term use.

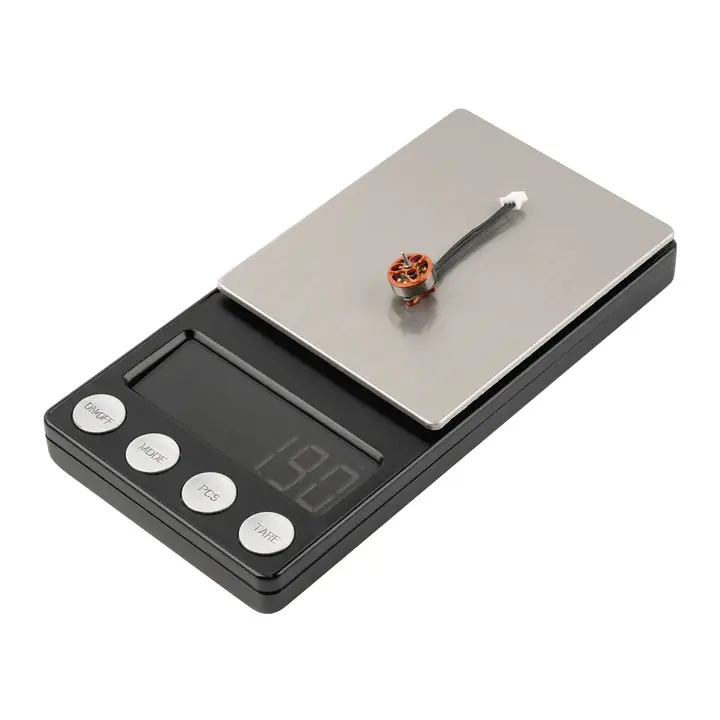

BetaFPV 0802 Brushless Motor 28000KV Orange (4PCS) Dimensions Test Report

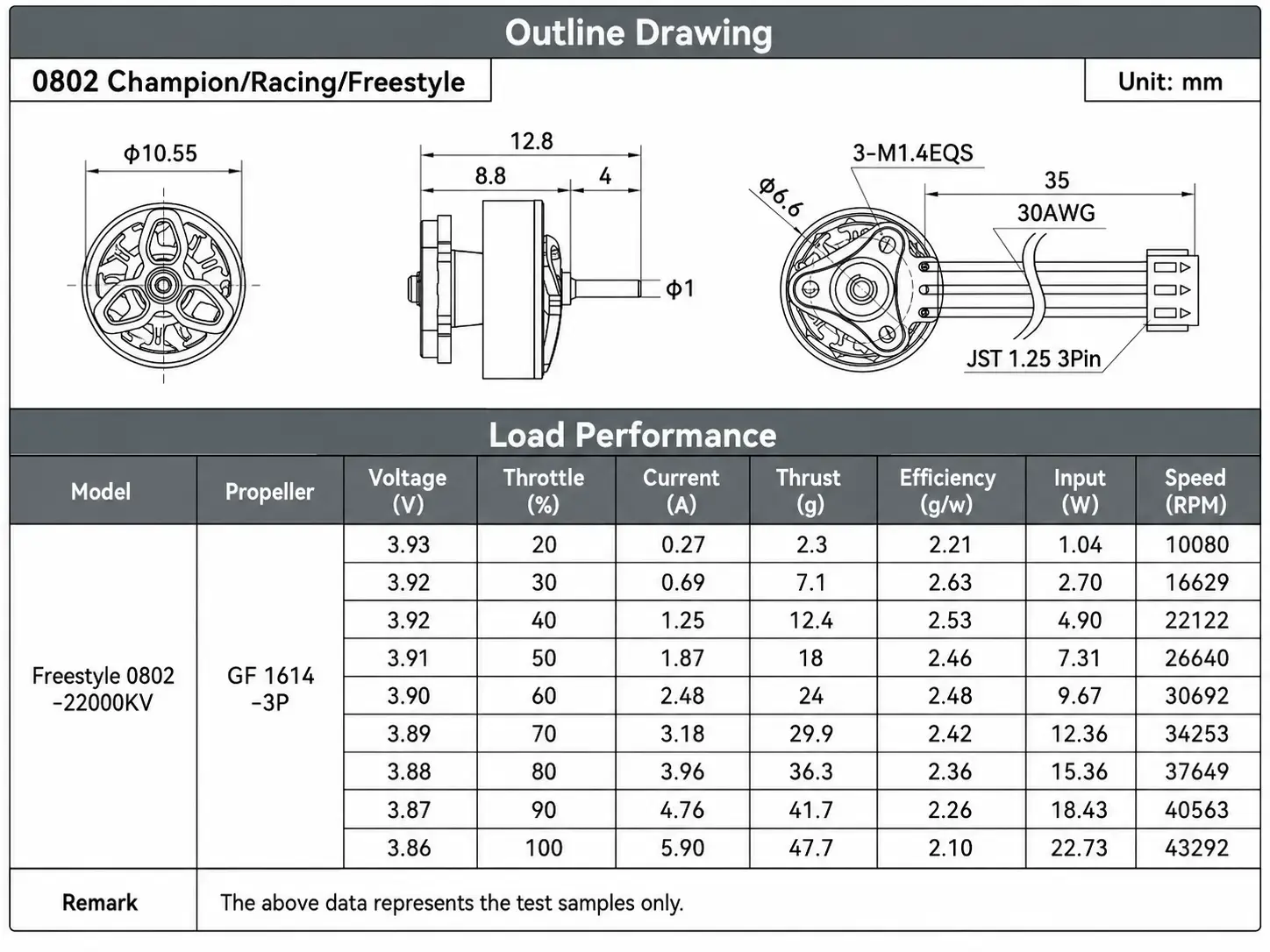

BetaFPV 0802 Brushless Motor 28000KV Orange (4PCS) Dimensions
BetaFPV 0802 Brushless Motor 28000KV Orange (4PCS) Specifications
KV | 28000KV |
Max. Power | 34.3W |
Max. Current | 9A |
Bearing Type | Dual-Ball Bearings |
Weight | 1.95g |
Rated Voltage | 4.2V (1S) |
Shaft Diameter | 1.0mm |
Shaft Length | 4.0mm |
Wire Gauge | 30AWG |
Wire Length | 35mm |
Connector | JST1.25 3Pin |
Mounting Hole Size | 3*M1.4 EQS 6.6mm |
BetaFPV 0802 Brushless Motor 28000KV Orange (4PCS) Package Includes
- 4x BetaFPV 0802 Brushless Motor 28000KV Orange
- 12x M1.4*3 Screw
