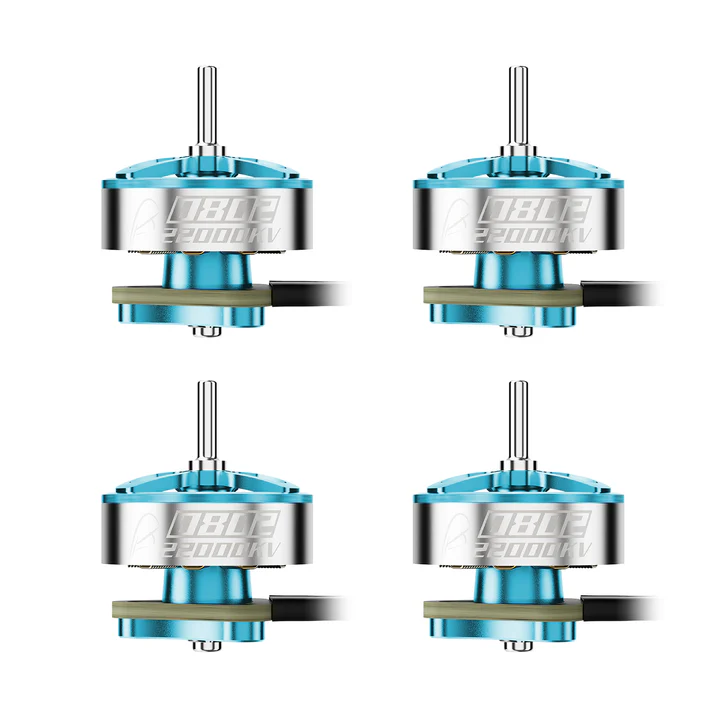

BetaFPV 0802 Brushless Motors 2026 Freestyle 22000KV Blue 4pcs
Smooth Control for Lightweight Whoops – BetaFPV 0802 Brushless Motor 22000KV Blue (4PCS)
BetaFPV 0802 Brushless Motor 22000KV Blue (4PCS) is the Freestyle variant designed specifically for the Air75 II platform. Its 22000KV tuning prioritizes predictable response and strong low-throttle torque, helping pilots maintain precise control during smooth lines and technical maneuvers. The 0.10 mm stator core improves energy conversion while reducing magnetic loss and heat generation.

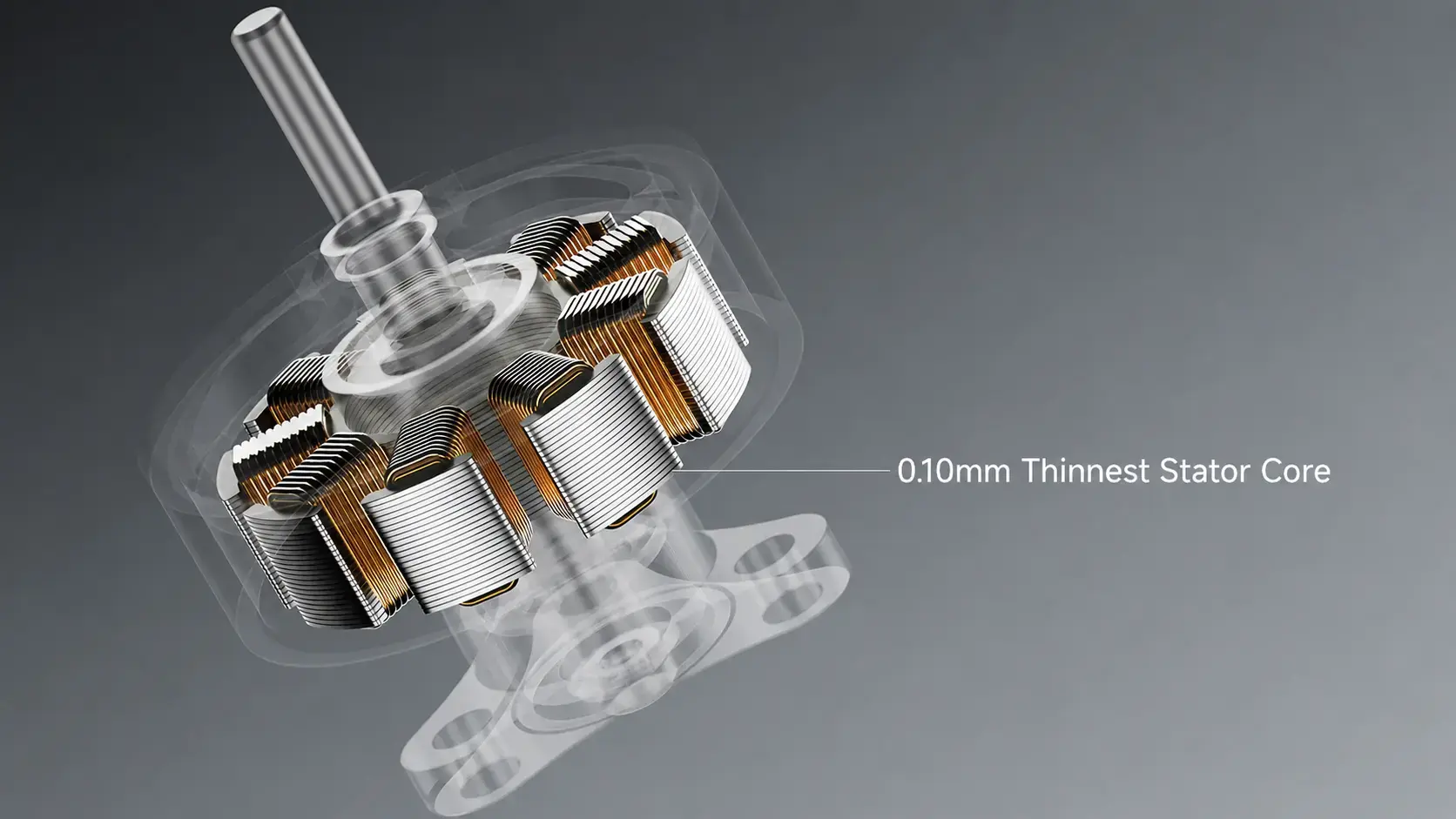

More efficient energy conversion
The ultra-thin stator core reduces magnetic loss, improving energy conversion and lowering heat generation. According to the manufacturer’s testing, this construction provides an efficiency improvement of approximately 0.1–0.2 g/W compared with 0802 motors using a 0.15 mm stator core. This is especially valuable in lightweight 1S builds where control and flight time both matter.

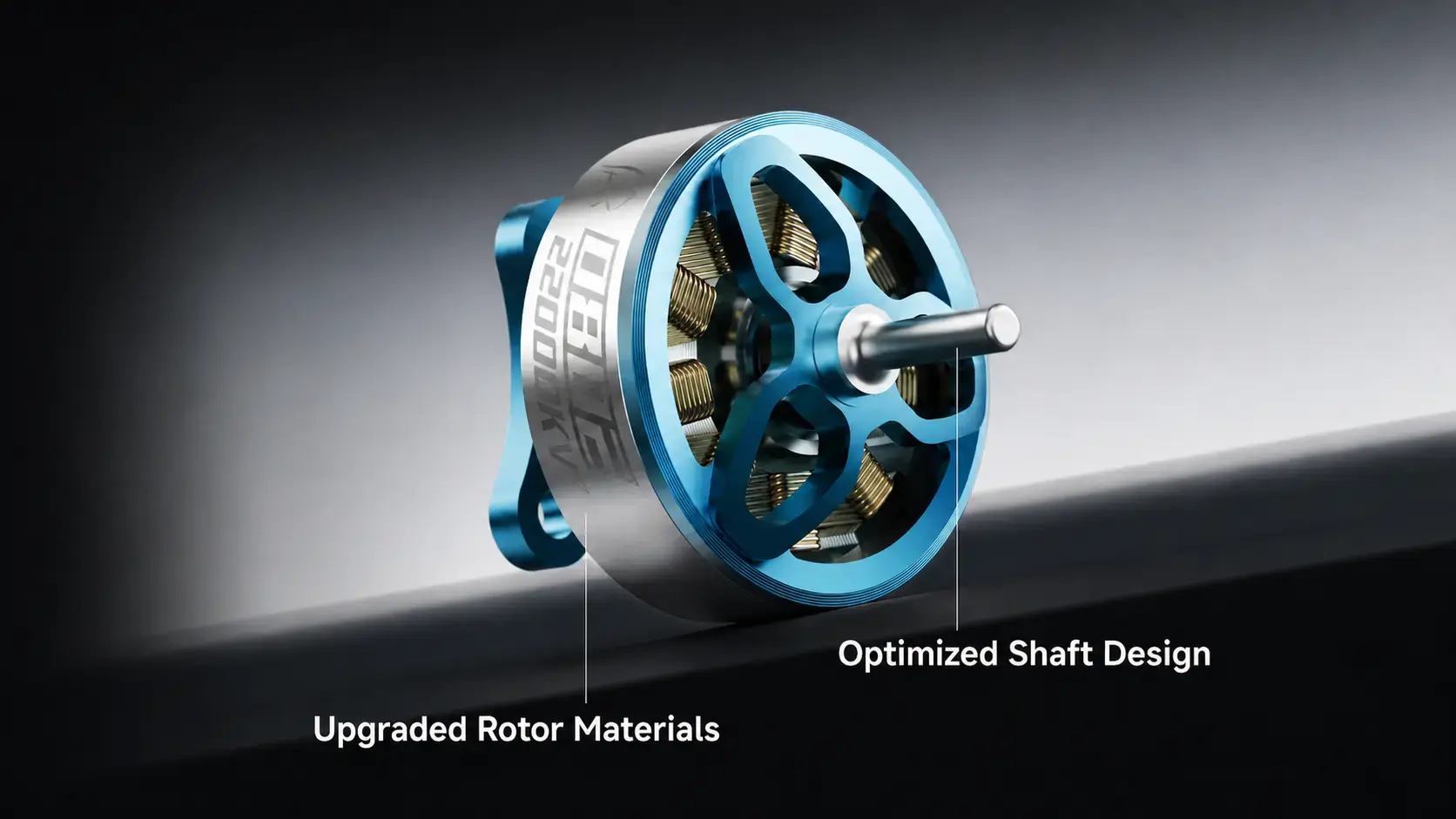

Improved durability for freestyle flying
The upgraded rotor housing material and reinforced shaft structure help the motor withstand harder impacts. This provides greater durability during regular practice, close-proximity maneuvers, and demanding freestyle flights where occasional crashes are difficult to avoid.

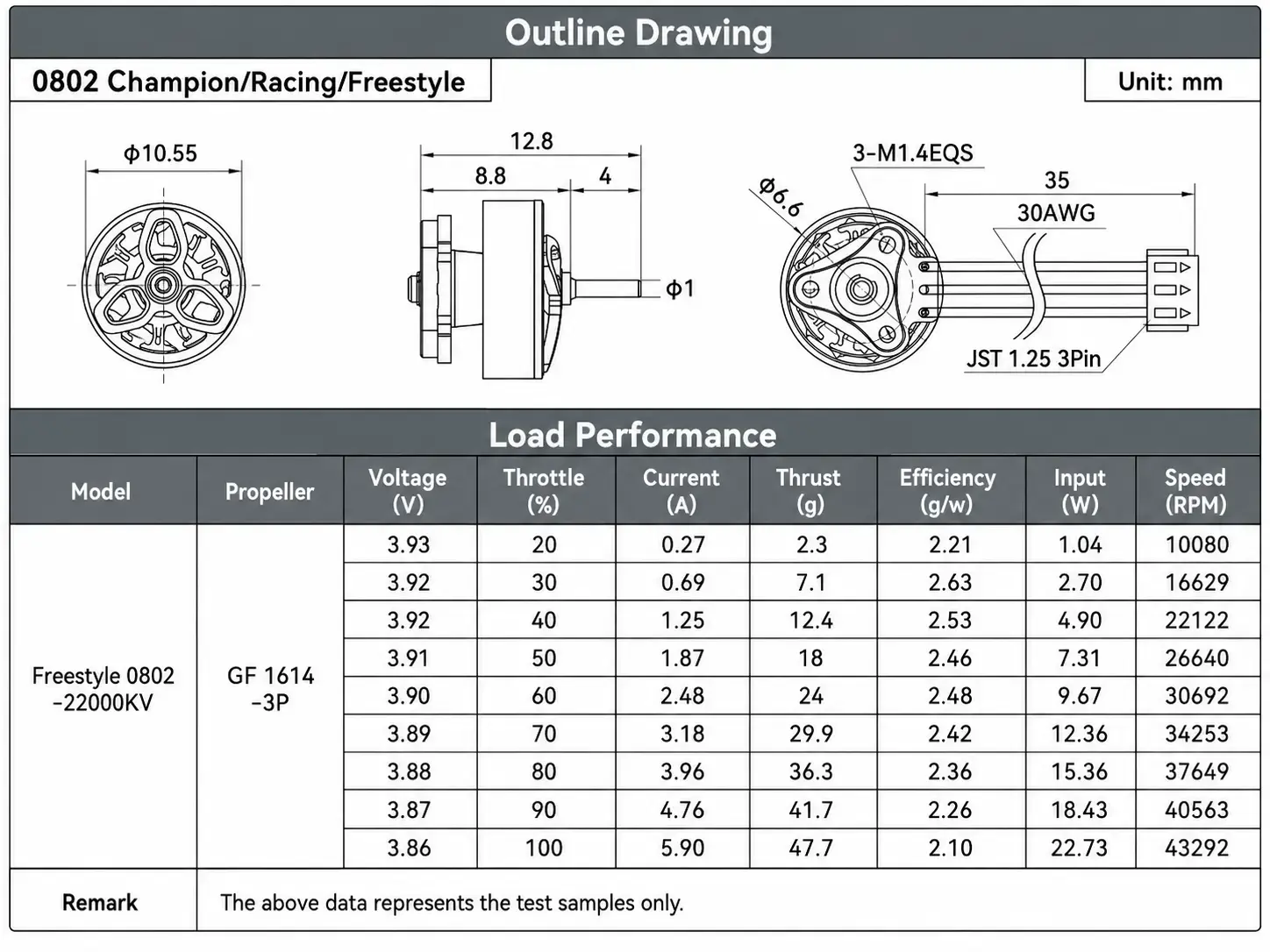

BetaFPV 0802 Brushless Motor 22000KV Blue (4PCS) Test Report

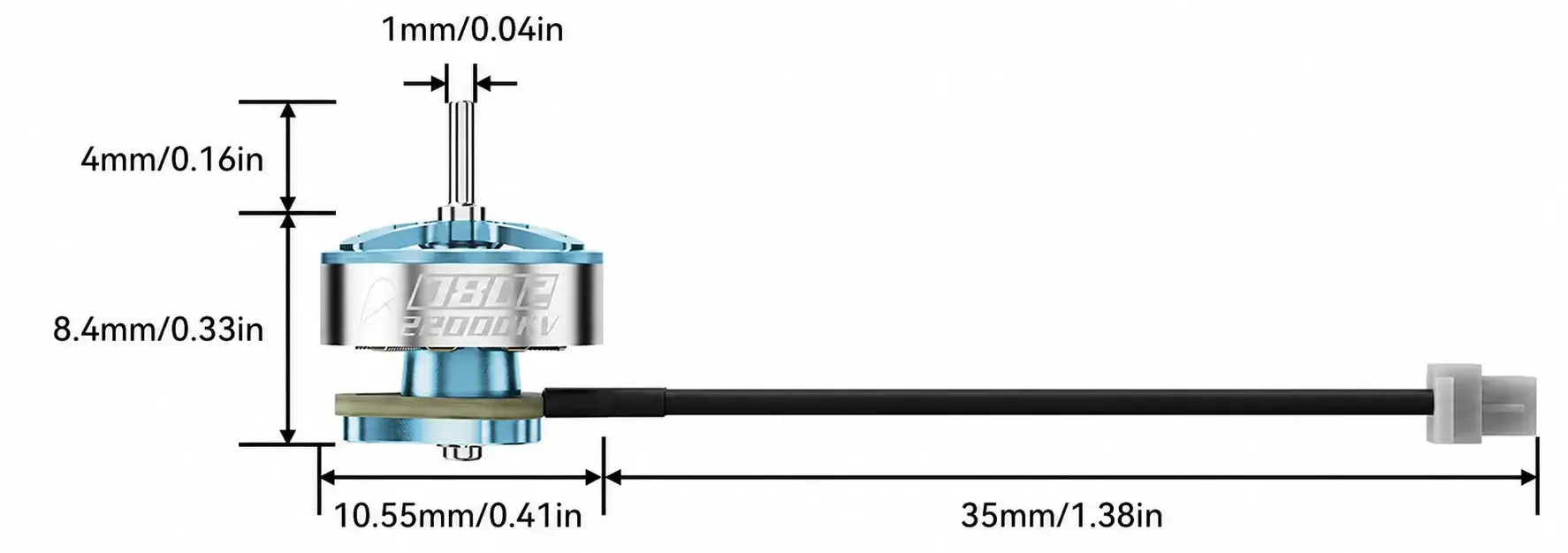

BetaFPV 0802 Brushless Motor 22000KV Blue (4PCS) Dimensions
BetaFPV 0802 Brushless Motor 22000KV Blue (4PCS) Specifications
KV | 22000 |
Max. Power | 22.73W |
Max. Current | 5.90A |
Bearing Type | Brass bushings |

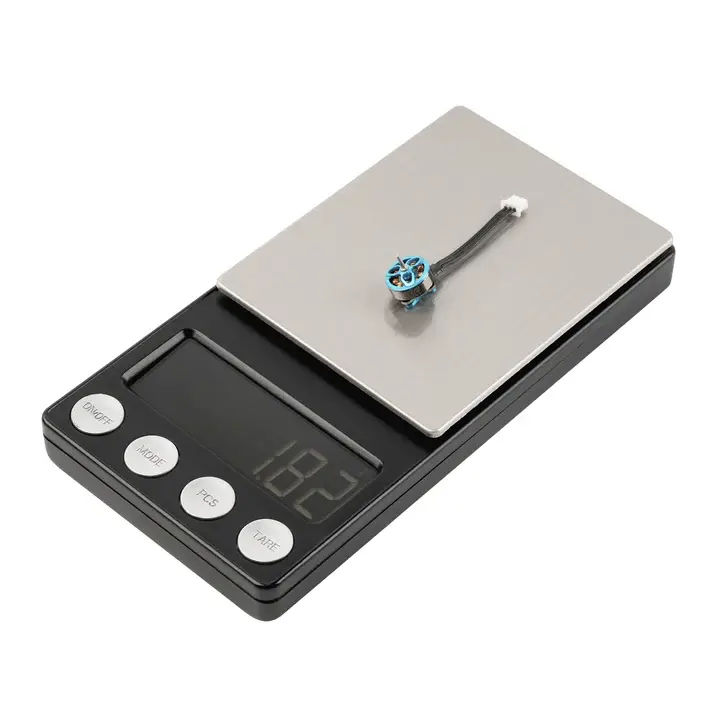

Weight | 1.88g |
Rated Voltage | 4.2V (1S) |
Shaft Diameter | 1.0mm |
Shaft Length | 4.0mm |
Wire Gauge | 30AWG |
Wire Length | 35mm |
Connector | JST1.25 3Pin |
Mounting Hole Size | 3*M1.4 EQS 6.6mm |

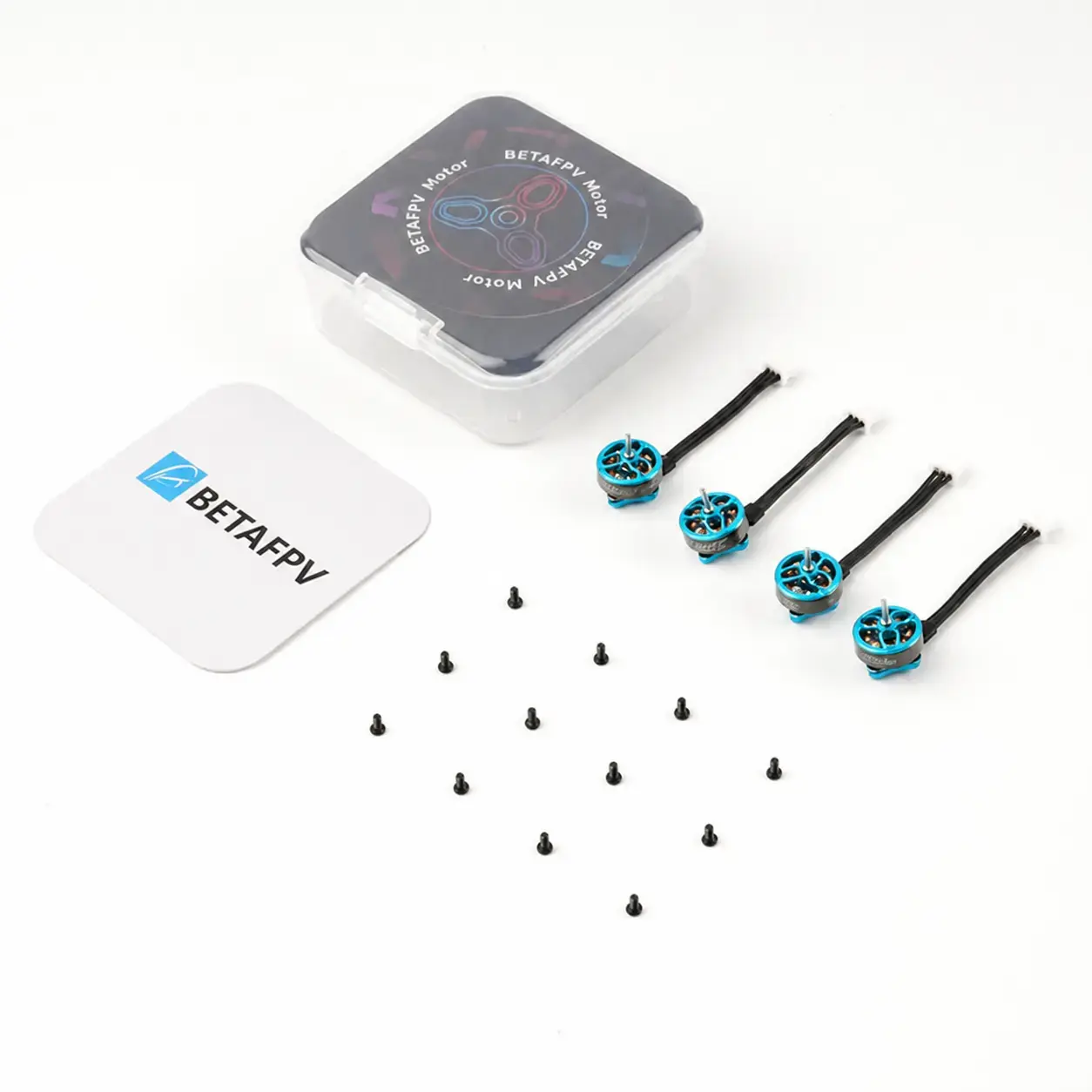

BetaFPV 0802 Brushless Motor 22000KV Blue (4PCS) Package Includes
- 4x BetaFPV 0802 Brushless Motor 22000KV Blue (4PCS)
- 12x M1.4*3 Screw
