BetaFPV Meteor65 Pro II Brushless Whoop Frame
| Color: Black |

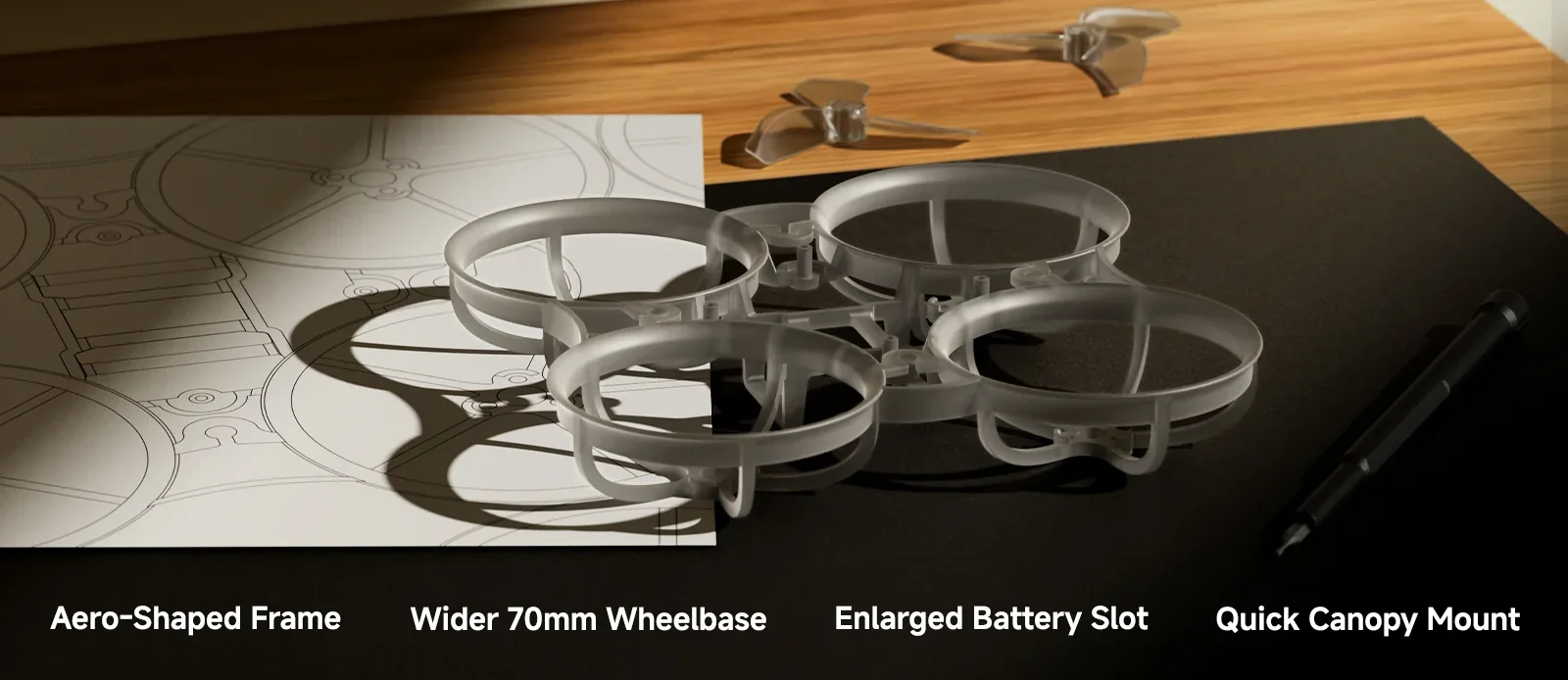

BetaFPV Meteor65 Pro II Brushless Whoop Frame – Built for Everyday Training

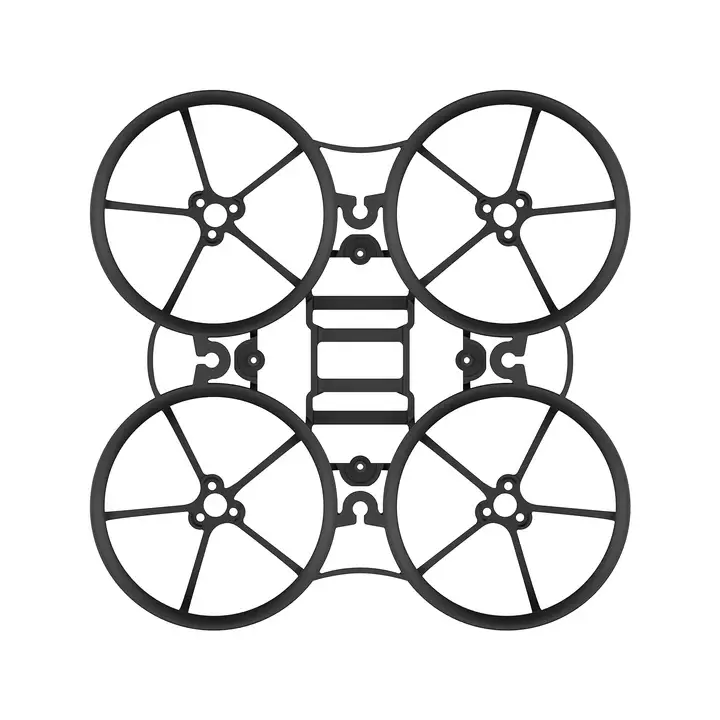

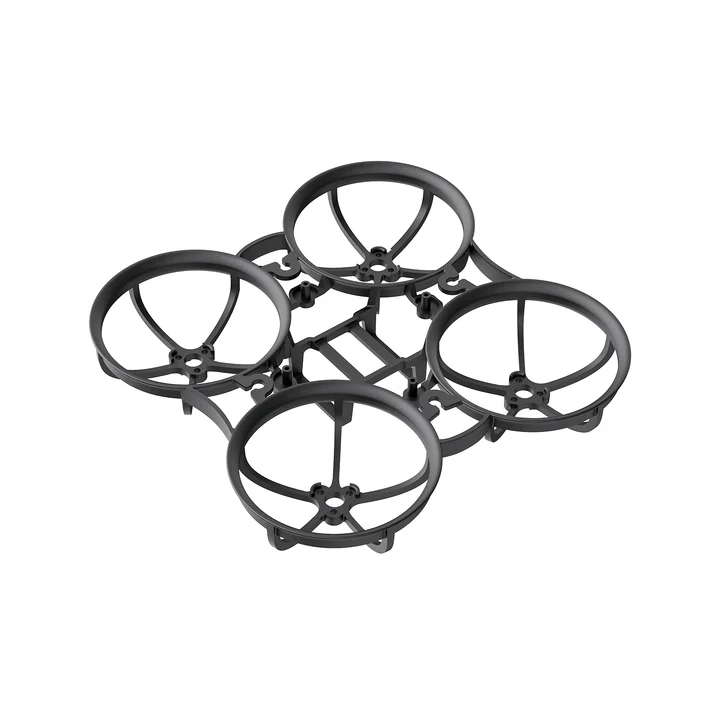

The BetaFPV Meteor65 Pro II Brushless Whoop Frame is a whoop frame for FPV drones with a 70mm wheelbase, made of PP and weighing 4.60g. It measures 91.4x91.4x15.4mm, and its 16.1x6.3mm battery slot fits a LAVA II 1S 480mAh battery. The motors mount with 3 M1.4 screws on a φ6.6mm hole pattern, and the flight controller on 26x26mm mounting holes. Four holes for shock-absorbing balls make it easy to fit a canopy such as the Canopy II for O4 Air Unit. The package contains the frame alone, in black.
BetaFPV Meteor65 Pro II Brushless Whoop Frame Key Features
Steadier Flight
The wheelbase has grown from 66mm to 70mm. A wider base makes the drone more stable and more responsive in flight.
Longer Flights
The 16.1x6.3mm battery slot fits the larger LAVA II 1S 480mAh battery instead of the 320mAh used before. According to the manufacturer this clearly extends flight time, so every session lasts longer.
Cleaner Airflow
Five arm braces instead of six and a curved duct shape reduce air resistance. Less drag means more efficient flight.
Tough Build
The manufacturer states that the strengthened frame is as tough as the Meteor75 Pro frame. It is built for daily training, when bumps are part of every session.
Easy Assembly
Four holes for shock-absorbing balls and compatibility with the Canopy II for O4 Air Unit make fitting and removing the canopy simple. Assembly and maintenance take less time.

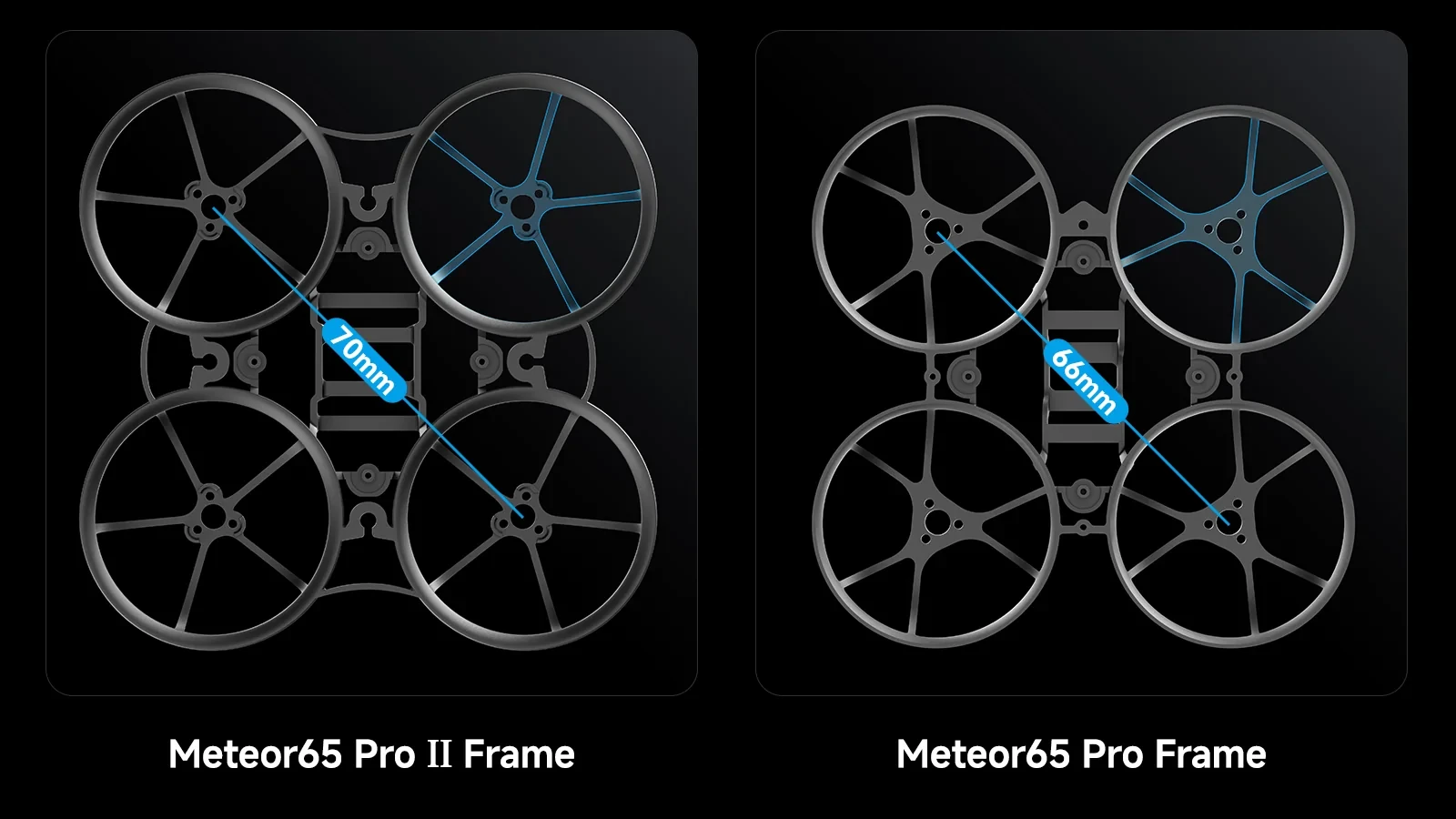

A Wider Wheelbase and Better Aerodynamics
The wheelbase has been enlarged from 66mm to 70mm, which gives a more stable and more responsive flight base. The number of arm braces has been reduced from six to five, and the curved duct shape was optimised to lower air resistance. Together these changes improve flight efficiency and overall performance.

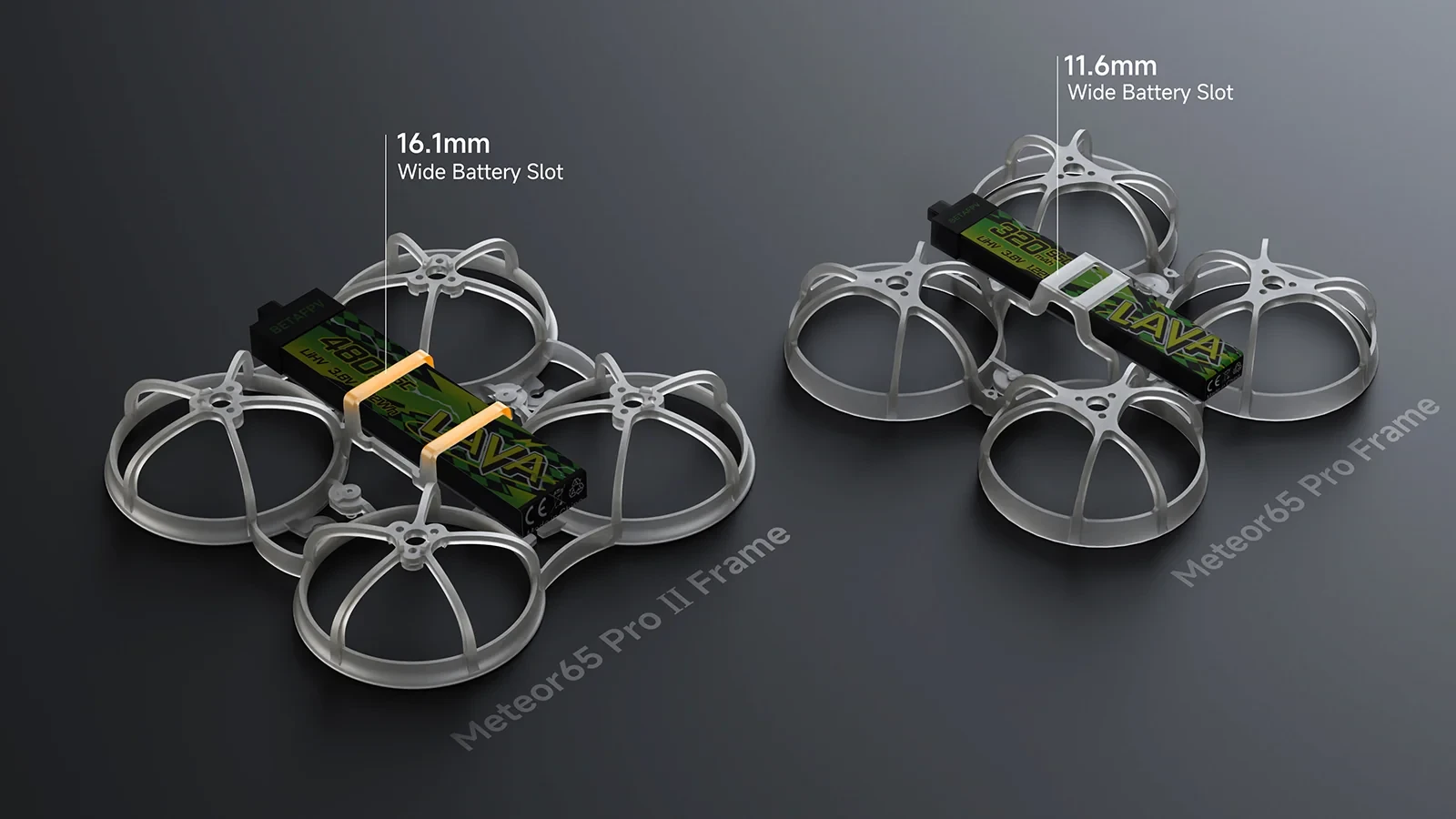

Room for a Bigger Battery
Thanks to the larger wheelbase, the battery slot has been widened to 16.1x6.3mm, compared with 11.6mm in the Meteor65 Pro frame. It fits the larger LAVA II 1S 480mAh battery, and the manufacturer also recommends the LAVA II 1S 580mAh. A bigger battery means longer sessions without compromise.
BetaFPV Meteor65 Pro II Brushless Whoop Frame Suitable Applications
The manufacturer recommends the frame for:
- daily FPV training
- micro aerial filming
- education and school programmes
- competitions, including youth competitions
Recommended Parts for Your Build
To build a drone on this frame, the manufacturer recommends:
- Motors: 0802 Brushless Motors (2026), 0702 Brushless Motors (2026)
- Propellers: GF 1409 3-Blade Props, GF 35mm 3-Blade Props
- Flight controller: Matrix 1S 3IN1/4IN1, Matrix 1S 5IN1 II, Matrix 1S 5IN1
- Battery: LAVA II 1S 480mAh or 580mAh
- Canopy: Canopy II for O4 Air Unit, Canopy for O4 Air Unit, Air II Canopy, Micro Canopy
- Motor screws: M1.4x3mm
BetaFPV Meteor65 Pro II Brushless Whoop Frame Compared with the Meteor65 Pro Frame
How the new frame differs from its predecessor, according to the manufacturer's data.
Meteor65 Pro II | Meteor65 Pro | |
Wheelbase | 70mm | 66mm |
Duct Diameter | 37mm | 36.6mm |
Duct Height | 4.5mm | 5.0mm |
Arm Braces | 5 | 6 |
Screw Protection Structure | Yes | - |
Motor Fixing Slot | Yes | |
Motor Screws | M1.4x3mm | |
Propellers | 35mm | |
Battery Slot Size | 16.1x6.3mm | 11.6x6mm |
Battery | LAVA II 1S 480mAh | LAVA II 1S 320mAh |
Weight | 4.60g | 3.20g |
Easy Assembly and Lasting Durability
Four new holes for shock-absorbing balls, paired with the Canopy II for O4 Air Unit, make both fitting and removing the canopy simple, and according to the manufacturer give stable footage without jello. The whole frame has been strengthened and, as the manufacturer states, is as tough as the Meteor75 Pro frame. This durable, low-maintenance design is ready for daily training, micro aerial filming, education and youth competitions.

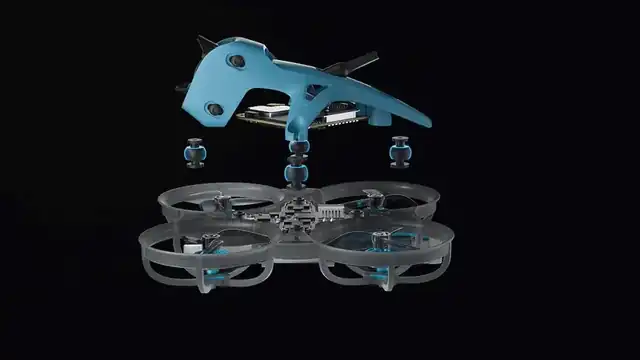

The animation shows the canopy mounted on shock-absorbing balls. The canopy, the balls and the electronics are not included with the frame.

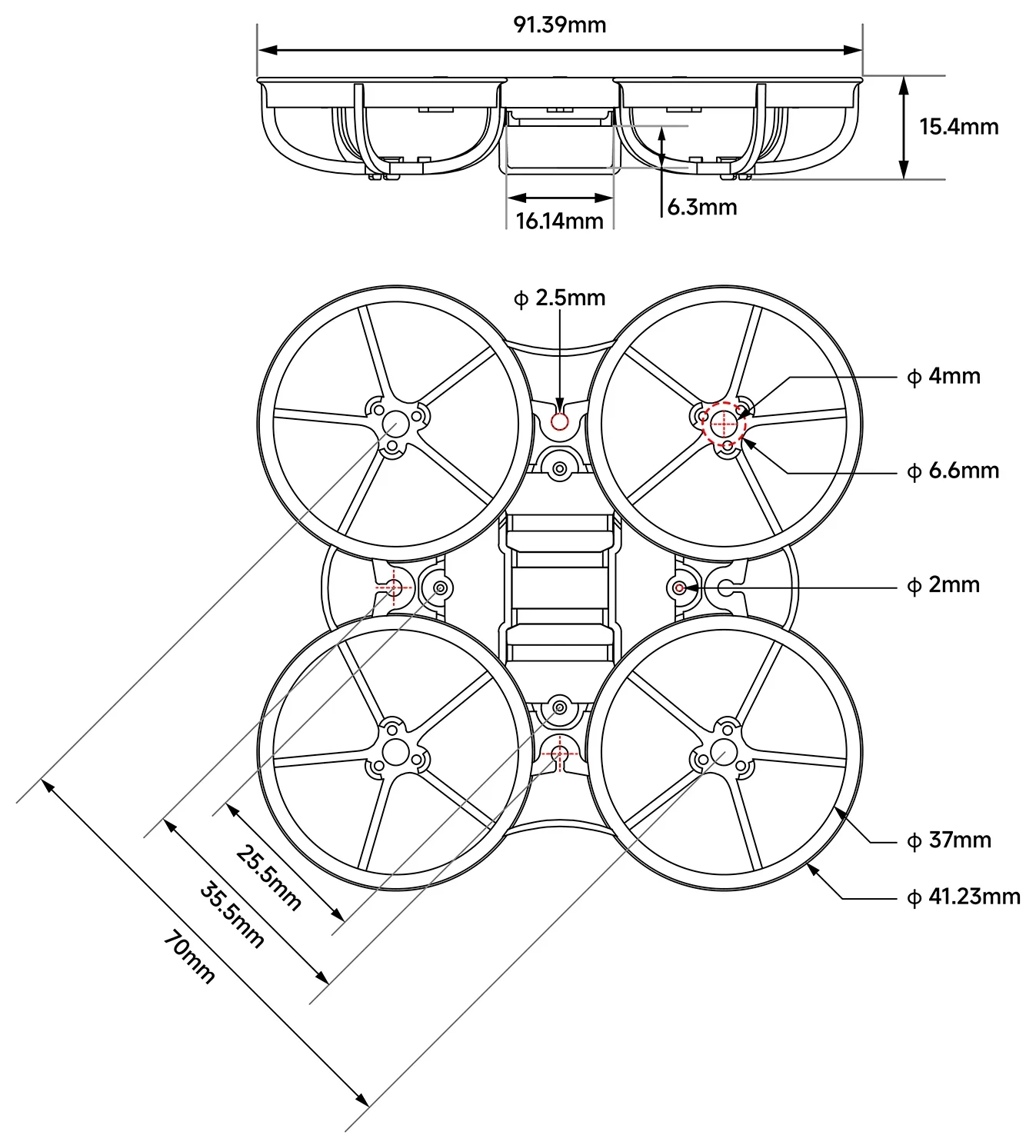

BetaFPV Meteor65 Pro II Brushless Whoop Frame Dimensions
BetaFPV Meteor65 Pro II Brushless Whoop Frame Specification
Material | PP |
Wheelbase | 70mm |

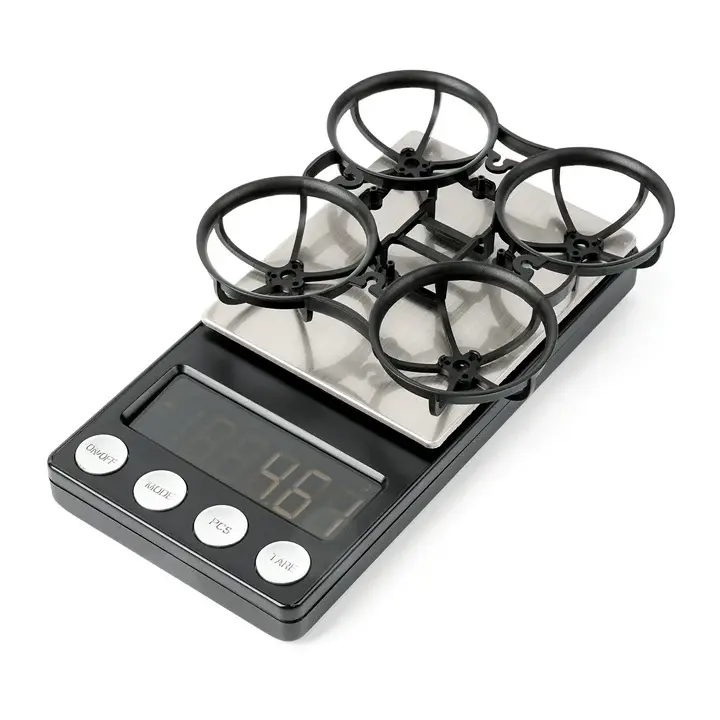

Weight | 4.60g |
Color | Black |
Motor Mounting Holes | 3x M1.4, φ6.6mm |
Flight Controller Mounting Holes | 26x26mm |
Battery Slot | 16.1x6.3mm |
Dimensions | 91.4x91.4x15.4mm |

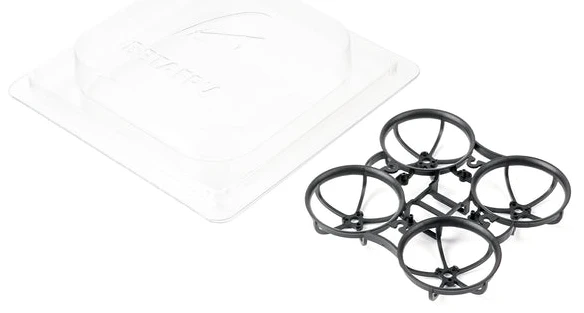

BetaFPV Meteor65 Pro II Brushless Whoop Frame Package Includes
- 1x BetaFPV Meteor65 Pro II Brushless Whoop Frame
