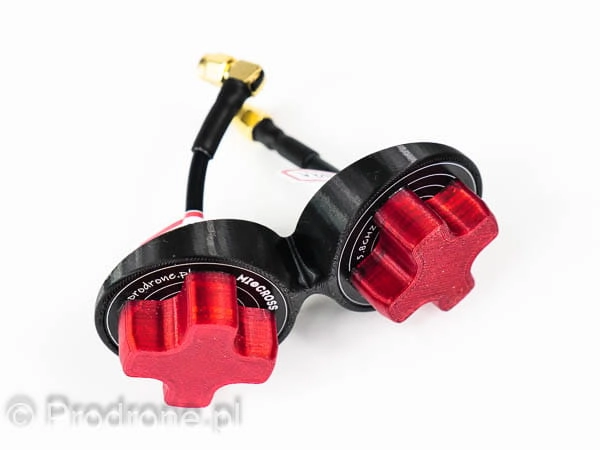

Prodrone Mi-array Long Range 5.8GHz Antenna Array for Rapidfire/Steadyview
The Prodrone Mi-array antenna kit is the ideal solution for FPV pilots looking for reliability over long distances. It includes two high performance antennas, angled at 30 degrees to each other. Each antenna features 9dBi gain, providing excellent reception quality even for weaker signals.
Upgrade your FPV set with Prodrone Mi-array Long Range 5.8GHz Antenna Array for Rapidfire/Steadyview - Because every millisecond without a signal is too long!
The Mi-Cross antenna kit is the ideal solution for FPV pilots looking for reliability over long distances. It includes two high performance antennas, angled at 30 degrees to each other. Each antenna features 9dBi gain, providing excellent reception quality even for weaker signals.
Key benefits of Prodrone Mi-array Long Range 5.8GHz Antenna Array for Rapidfire/Steadyview
- Tuned set of two mi-cross antennas (Crosshair)
- Small form factor
- Easy and fast assembly and disassembly (thumb spanners included)
- Lightweight - only 34g
- Compatible with most diversity receivers (Rapidfire, Steadyview, True-D, True-D X, Pro58, RX5808)
Fatshark goggles are not included
Important: Remember that this is a directional antenna set. Moving the antennas beyond their line of sight (behind the operator's back) may result in signal loss.
Prodrone Mi-array Long Range 5.8GHz Antenna Array for Rapidfire/Steadyview Specifications
Band | 5.8Ghz (VSWR <1.5) |
Polarization | Circular |
Antenna type | Directional |
VSWR | <1.3 at almost whole raceband (<1.2 at about 100-150Mhz) |
Gain | 9dbi |
Beam width | 145 degrees (up to 180 degrees at shorter ranges) |
Polarization | RHCP |
Connector type | SMA |
Weight | 34g |
Prodrone Mi-array Long Range 5.8GHz Antenna Array for Rapidfire/Steadyview Package Includes
- 1x Prodrone Mi-array Long Range 5.8GHz Antenna Array for Rapidfire/Steadyview (Set of two Mi-Cross antennas)
