Holybro’s DroneCAN H-RTK F9P ensures centimeter-level GNSS precision with multi-band RTK, fast convergence, and DroneCAN communication. It’s compatible with Pixhawk controllers and can function as a rover or base station. Ideal for challenging environments, it offers helical antennas for obstruction tolerance.
1,462.60 zł 1462.6 PLN VAT Excluded
1,462.60 zł VAT Excluded
Price on request

    This combination does not exist.

    Unlock localization superpowers with DroneCAN H-RTK F9P Helical

    The DroneCAN H-RTK F9P is the latest differential high-precision GNSS positioning system from Holybro. It has adopted the DroneCAN protocol for communication. It provides multi-band RTK with fast convergence times and reliable performance, concurrent reception of GPS, GLONASS, Galileo, and BeiDou, and a fast update rate for highly dynamic and high-volume applications with centimeter accuracy.

    With the adoption of the DroneCAN Protocol, it has up to an 8 Hz navigation update rate, upgradeability, noise immunity, and real-time features, and is more robust than UART due to its increased resistance to electromagnetic interference. It does not occupy any serial port of the flight controller, and multiple CAN devices can be connected to the same CAN bus via a hub.

    The DroneCAN H-RTK F9P uses a u-blox F9P module, a BMM150 compass, and a tri-colored LED indicator, and is equipped with the STM32G4 processor running at 170 MHz with 512 KByte Flash and 96KByte RAM. It supports DroneCAN firmware upgrades via the DroneCAN GUI Tool. It is compatible with the open-source Pixhawk series flight controller.



    DroneCAN H-RTK F9P Helical

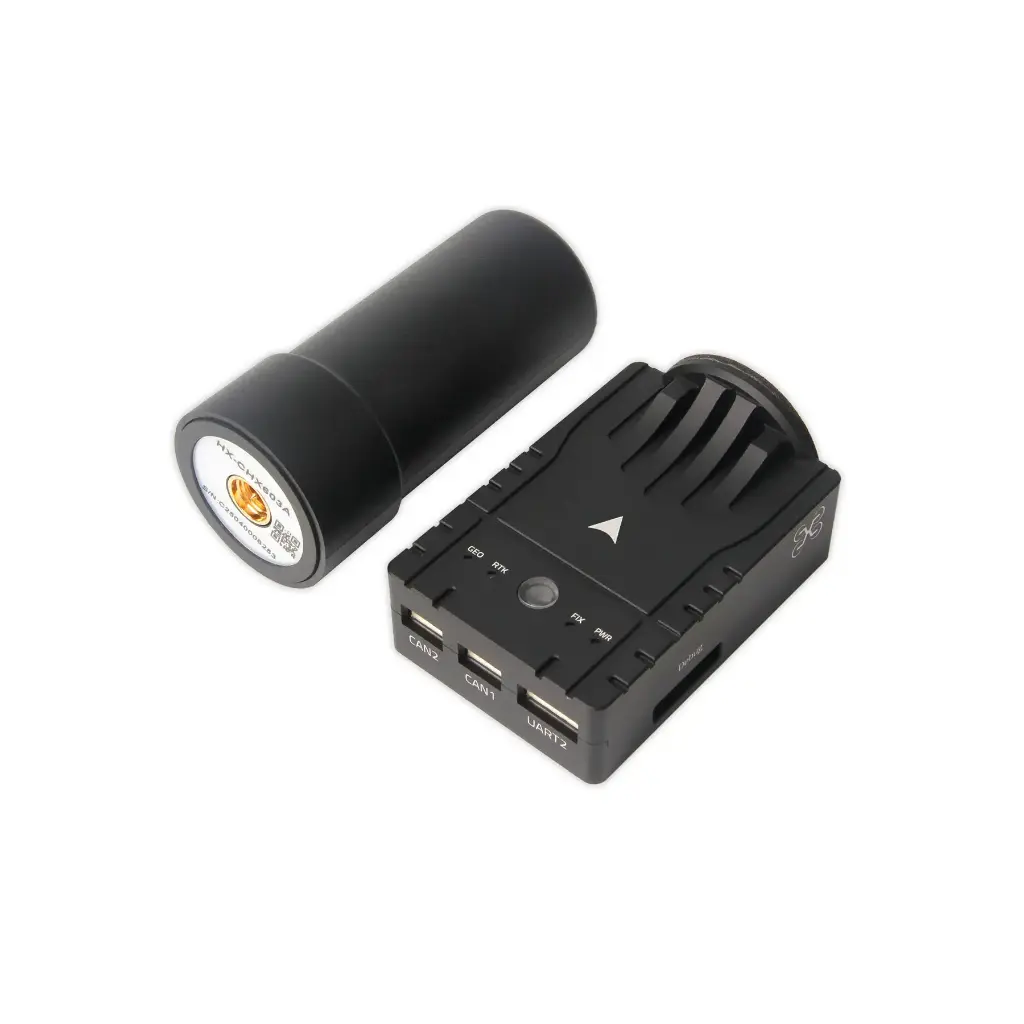

    This model uses a helical antenna, which has slightly better performance in space with obstructions than the Rover version. The antenna of this module can either be attached to the module directly or connected via a SMA cable, giving you the ultimate flexibility. It also has a UART2 port exposed, allowing you to do YAW/Heading (aka moving baseline).

    This model can be used either on the rover (aircraft) or as a base station. However, when used as a Base Station, RTK communicates with the Ground Control Station via USB, so the DroneCAN protocol is not used. You can consider using the standard H-RTK F9P Helical or Base for your Base Station.

    DroneCAN H-RTK F9P Helical Specification

    Intended Application

    Rover (aircraft) or Base station

    GNSS Receiver

    U-blox ZED-F9P high precision GNSS module

    Processor

    STM32G473

    Magnetometer

    BMM150

    GNSS

    BeiDou, Galileo, GLONASS, GPS / QZSS

    GNSS Band

    B1I, B2I, E1B/C, E5b, L1C/A, L1OF, L2C, L2OF

    Positioning accuracy

    3D FIX: 1.5 m / RTK: 0.01 m

    Communication Protocol

    DroneCAN 1Mbit/s

    Antennas Peak Gain (MAX)

    L1: 2dBi

    L2: 2dBi

    Time-TO-First Fix

    Cold start: ≤25s Hot start: ≤1s

    Navigation Update Rate

    RAW: 20Hz Max RTK: 8Hz Max

    Moving Base RTK: 5Hz Max

    Cable Length

    N/A

    Antenna Connection Type

    Board: SMA female Antenna: SMA male

    Working voltage:

    4.75V~5.25V

    Current Consumption

    ~250mA

    Dimensions

    Board: 51.1*35*22.9mm Antenna Diameter: 27.5mm Antenna height: 59mm

    Weight

    58g

    Operating Temperature

    -20℃ to 85℃

    Useful materials, documentation, and technical details for DroneCAN H-RTK F9P Helical can be found HERE.

    Sample Wiring Diagram

    DroneCAN H-RTK F9P Helical Package Includes

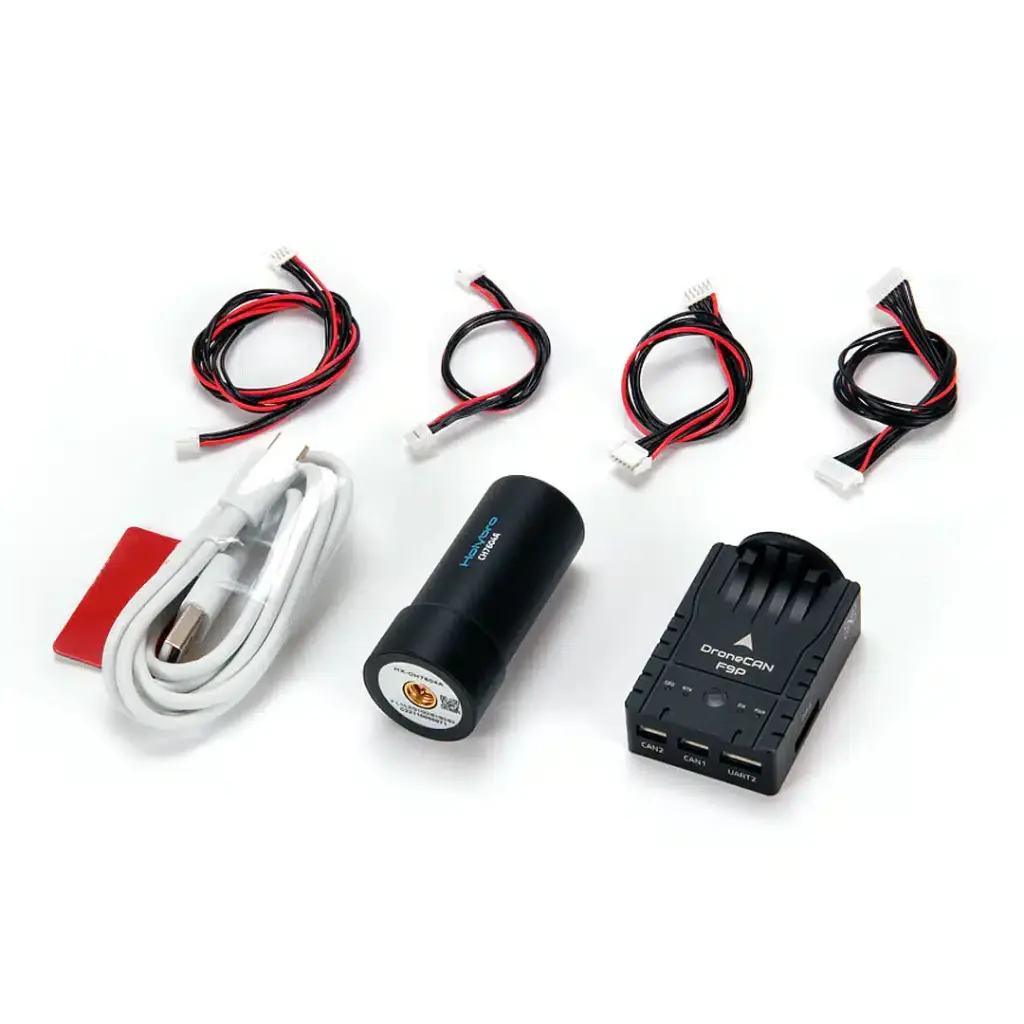

    • 1x DroneCAN F9P Helical
    • 1x High Precision Dual Band Helical Antenna (L1/L2)
    • 1x GH 4P cable 400mm
    • 1x GH 4P cable 150mm
    • 1x GH 6P cable 150mm
    • 1x SH 10P cable 150mm
    • 1x USB (type-c) cable
