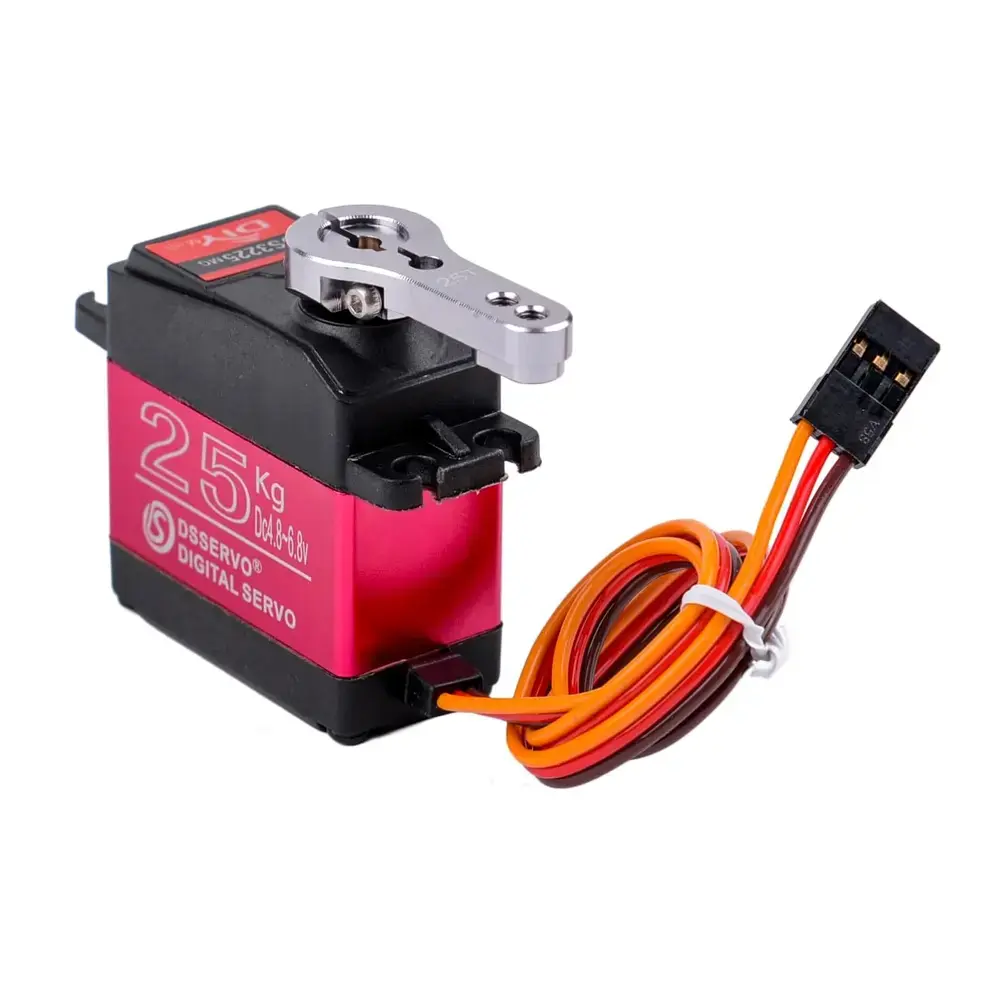

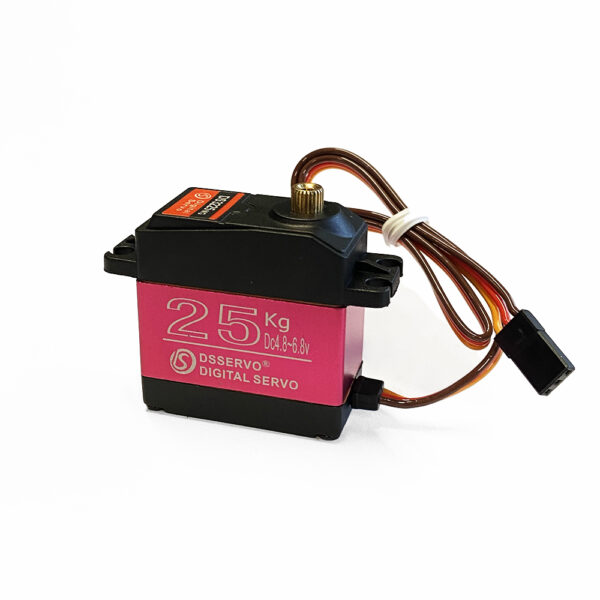

Super-powerful DSSERVO DS3225 25kg Digital Servo!
The DSSERVO DS3225 25kg is a high-performance digital servo that delivers high torque, precise control, and fast response times. It also features efficient heat dissipation and a robust metal gearbox for enhanced durability.
DSSERVO DS3225 25kg Digital Servo Key Features
- High torque - maximum torque is 28 kg at 6.8 V

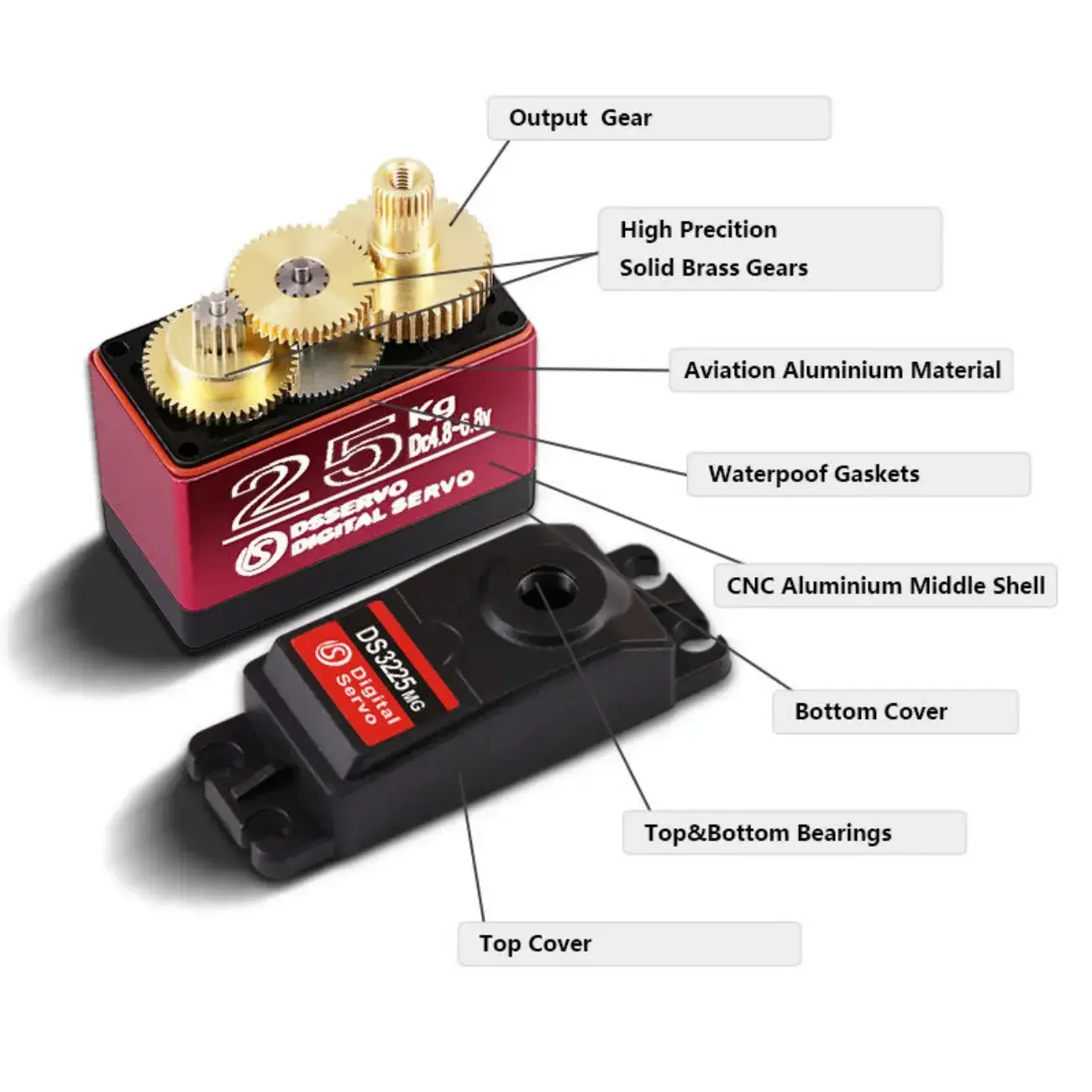

- High-quality metal and anodized gears ensure better precision and service life
- CNC-machined aluminum housing aids heat transfer and ensures efficient operation of the mechanism
- Screws with waterproof caps ensure waterproofing of the entire mechanism
- Standard digital servo with good performance
DSSERVO DS3225 25kg Digital Servo Specification
Storage Temperature Range | -30℃～80℃ |
Operating Temperature Range | -25℃～70℃ |
Operating Voltage Range | 4.8-6.8V |
Mechanical Specification | |

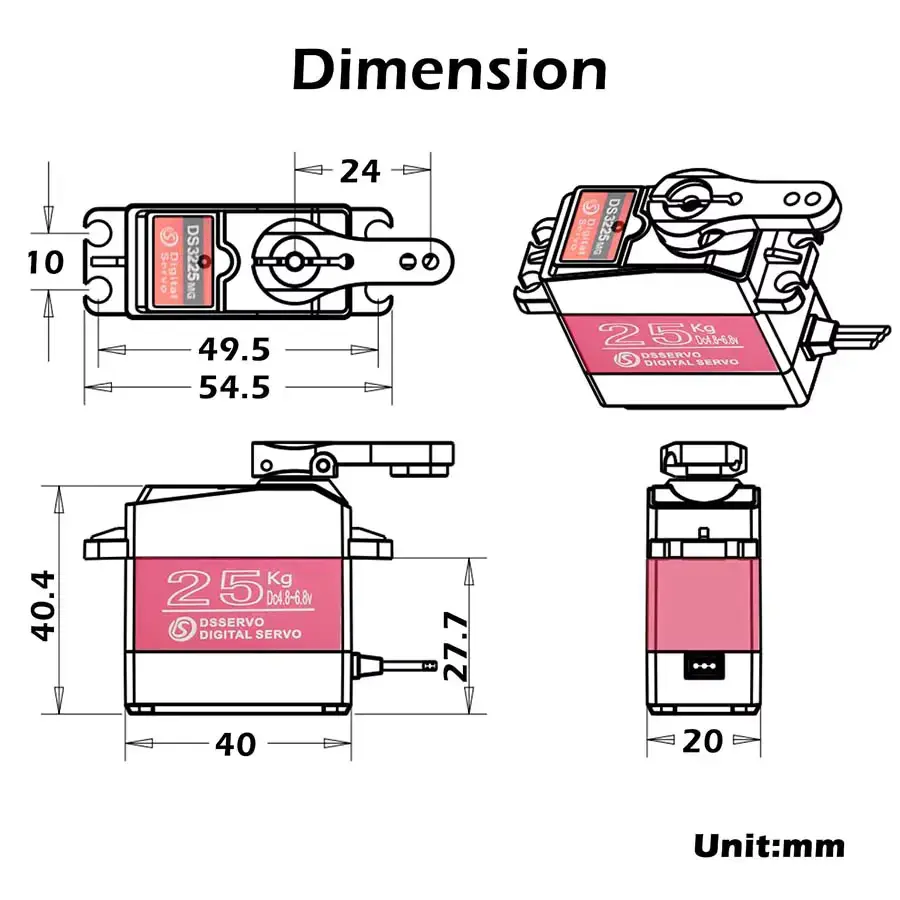

Size | 40*20*40.5mm |
Weight | 60g |
Gear Ratio | 275:1 |
Bearing | Double bearing |
Connector Wire | 300±5mm |
Motor | 3-pole(s) |
Waterproof Performance | IP66 |
Electrical Specification | |
Idle Current (at stopped) | 5V: 4mA |
Operating Speed (at no load) | 5V: 0.16 sec/60° |
Stall Torque (at locked) | 5V: 24.5 kg-cm |
Stall Current (at locked) | 5V: 2.1A |
Control Specification | |
Control System | PWM (Pulse width modification) |
Pulse Width Range | 500～2500µs |
Neutral Position | 1500µs |
Running Degree | 180° or 270° (when 500～2500 µs) |
Dead Band Width | 3 µs |
Operating Frequency | 50-330Hz |
Rotating Direction | Counterclockwise (when 500～2500 µs) |

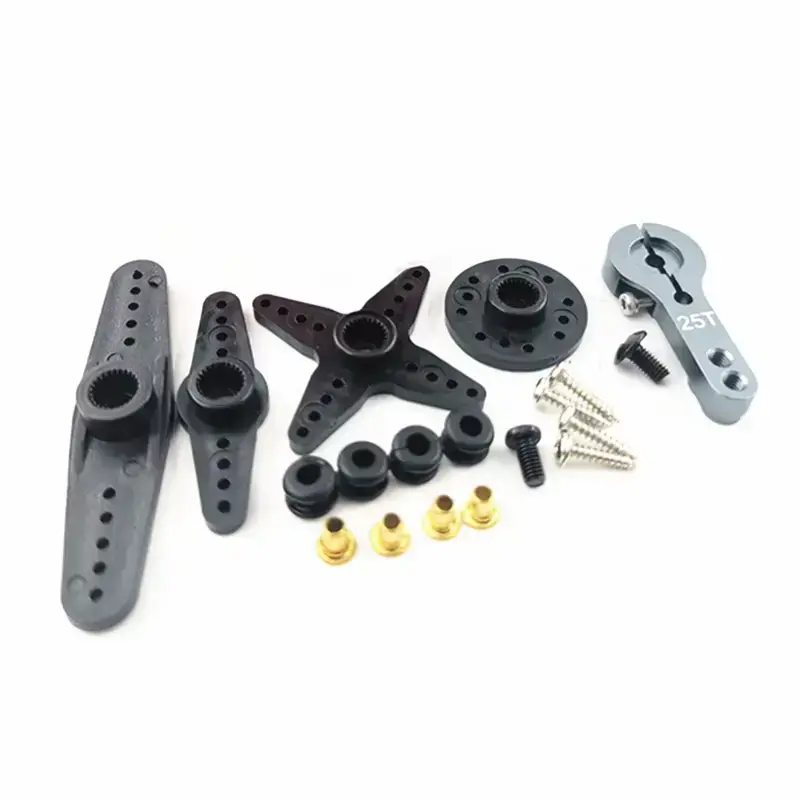

DSSERVO DS3225 25kg Digital Servo Package Includes
- 1x DS3225 25kg Digital Servo
- 1x Servo Horn Set
- 1x Rubber Grommets Set
- 1x Mounting Screws Set
