Extended Version of the Popular Antenna - Prodrone Pro Pagoda Long Goggle Edition 5.8GHz 3dBi Antenna 160mm

Prodrone Pro Pagoda Long Goggle Edition 5.8GHz 3dBi Antenna 160mm uses an extended design that positions the radiating element higher above the goggles and the pilot’s head. This reduces video dropouts when the aircraft flies behind the user or changes direction. Its omnidirectional pattern, RHCP polarization, and 3 dBi gain suit freestyle, racing, and everyday FPV flying.

Prodrone Pro Pagoda Long Goggle Edition 5.8GHz 3dBi Antenna 160mm Key Features

• 160 mm Overall Length: Raises the radiating element above the goggles and helps reduce signal attenuation caused by the pilot’s head.

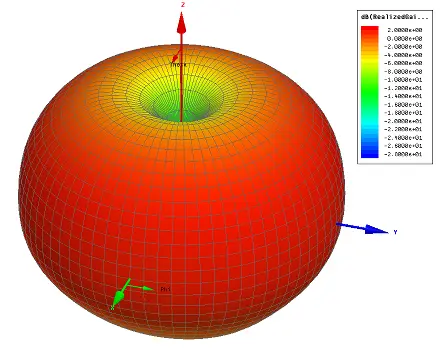

• Omnidirectional Radiation Pattern: Receives signals from multiple directions without requiring the antenna to be constantly aimed at the aircraft.
• 3 dBi Gain: Provides a practical balance between broad coverage and effective 5.8 GHz FPV reception.

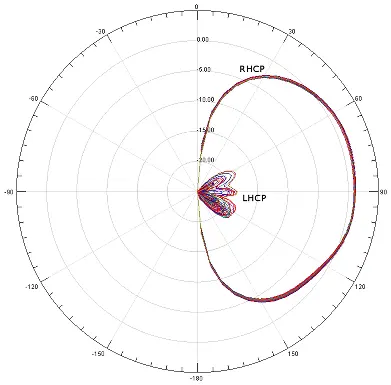

• RHCP Circular Polarization: Matches popular FPV systems using right-hand circularly polarized antennas. The BZB UAS version has a straight SMA connector.
• 5.5–6.0 GHz Operating Band: Its 500 MHz bandwidth covers frequencies used by 5.8 GHz FPV video systems.
• Up to 95% Efficiency: Reduced losses support effective use of the received or transmitted signal.
• 1.3 Axial Ratio: Good circular-polarization quality helps reduce losses as the aircraft changes orientation.
• VSWR Below 1.2: Good antenna matching limits reflected energy within the antenna system.
• Spectrum-Analyzer Testing: Each antenna is checked during production and tuned for the 5.8 GHz band.

• Transmit and Receive Capability: The Pagoda PRO design can be used with compatible receiving or transmitting equipment.
