The Cube Purple set

https://www.bzbuas.com/web/image/product.template/550/image_1920?unique=f2e3dd2
The Cube Purple module is a smaller and simplified version of the Cube Black. Cube Purple has a single IMU, making it perfectly suited for terrestrial vehicles such as cars, rovers, boats, etc. Thanks to its compact size, it can be easily integrated into any frame where space is of the essence.
1,543.90 zł 1543.9 PLN VAT Excluded
1,543.90 zł VAT Excluded
Price on request

    This combination does not exist.

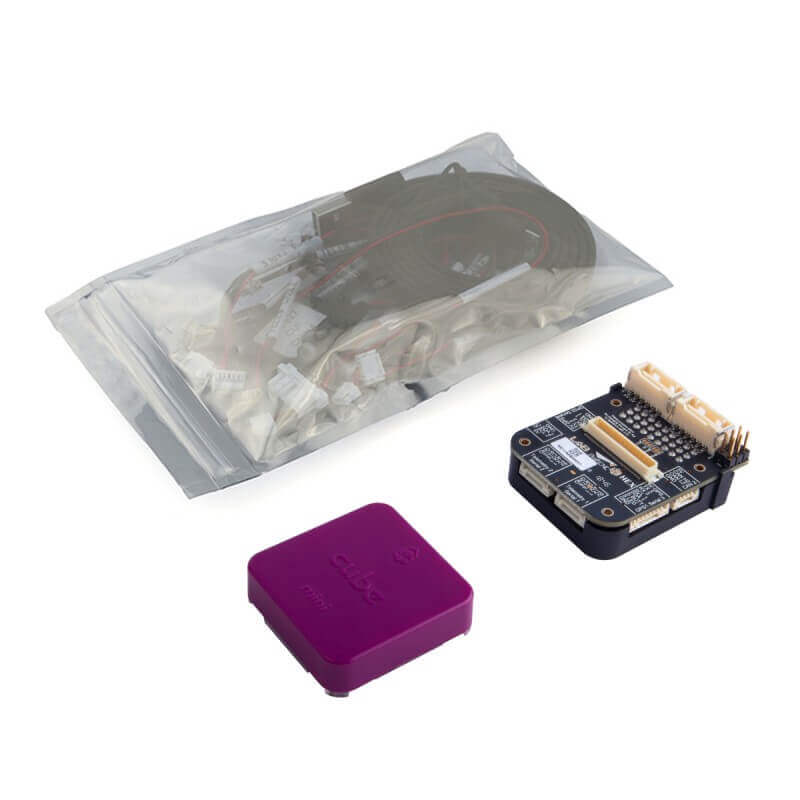

    Small but crazy Cube Purple with cables and a mini carrier board!

    The set consisting of The Cube Purple (mini) autopilot and the Carrier Board Mini is an excellent controller adapted to ground vehicles such as cars, rovers, boats, etc. Thanks to its compact size, it can be easily integrated into any frame that has space great importance. With The Cube Purple Set you get an advanced, powerful and reliable controller with countless possibilities!


    PRODUCT FEATURES

    • modular structure
    • independent IMU module, compass, barometer, accelerometer, magnetometer,
    • standard DF17 connector.


    CubePilot Documentation

    The documentation for this product is on the manufacturer's website.

    docs.cubepilot.org/autopilot/the-cube

    SPECIFICATION



    Pixhawk FMU – main controller

    Microcontroller

    STM32H753

    Flash Memory

    2MB

    RAM

    RAM 256KiB

    CPU Clock speed

    168 MHz

    Built-in memory

    16KB SPI FRAM

    Gyroscope / accelerometer

    MPU9250 or ICM 20649

    Barometer

    MS5611

    IMU connection

    via SPI

    Interface

    Micro SD via SDIO


    IMU module

    Integrated accelerometer / magnetometer

    LSM303D

    Gyroscope

    L3GD20

    Gyroscope / Accelerometer

    MPU9250 or ICM 20xxx

    Barometer

    MS5611

    IMU connection

    via SPI



    Mini Carrier Board

    • Dual power input (power redundancy, automatic switching to another power supply in case of failure),
    • power distribution (limit the current on each connector, avoiding overload when one device draws too much current),
    • voltage protection (protection against or under voltage, the circuit will be turned off if the voltage exceeds the limit).

    PACKAGE DETAIL

    WARNING


    Important Notice – Package Contents Update

    From 27 August 2026, The Cube Purple set ​is supplied without a microSD (uSD) card. If a microSD card is required for your configuration, it must be purchased separately.
