Axisflying Manta 5 Pro DC-O4 Frame Kit w/ Printed Parts
Unlock sharper FPV performance with Axisflying Manta 5 Pro DC-O4 Frame Kit w/ Printed Parts
Axisflying Manta 5 Pro DC-O4 Frame Kit w/ Printed Parts is made for pilots who want a rigid, responsive, and modern 5-inch FPV platform. Its Squashed X layout improves handling and flight feel, while T700 carbon fiber with a forged carbon appearance gives the frame a premium racing-inspired character. The integrated 32 LEDs help personalize your build, and the O4 Pro-compatible mounting design makes it easier to create a clean, reliable digital FPV setup.
Squashed X for sharper control
The Squashed X geometry is designed for dynamic FPV flying, where fast stick response, confident cornering, and predictable control matter most. It is a strong choice for freestyle lines, fast proximity flights, and technical maneuvers around obstacles.
Ready for O4 Pro
O4 Pro compatibility makes this frame a strong foundation for a modern digital FPV build. Dedicated VTX mounting holes, silicone pads, and a well-planned internal layout help create a clean, stable, and vibration-resistant setup.

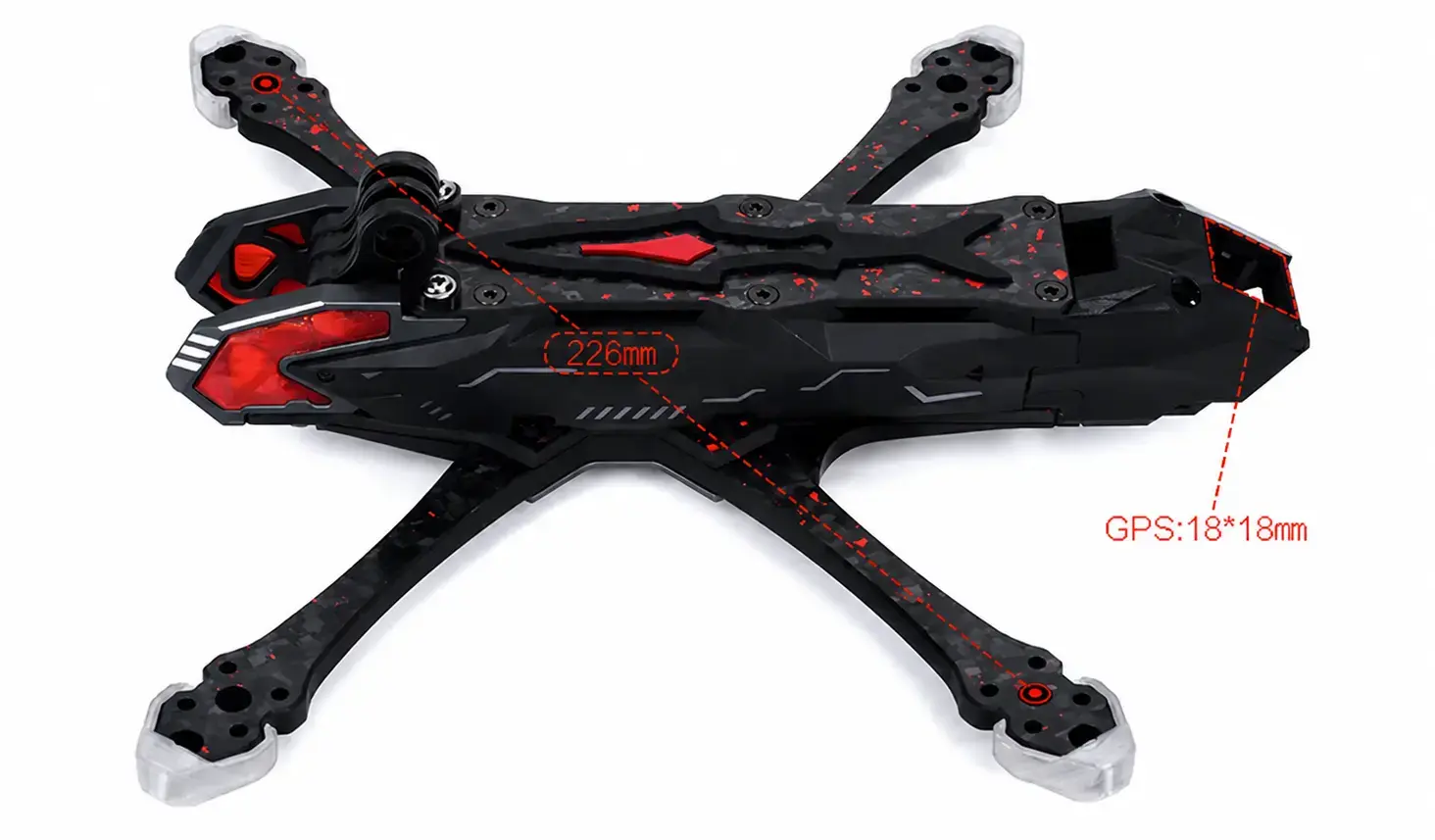

Axisflying Manta 5 Pro DC-O4 Frame Kit w/ Printed Parts Dimensions
Axisflying Manta 5 Pro DC-O4 Frame Kit w/ Printed Parts Specifications
Structure | Squashed X |
Wheelbase | 226.5mm |
Top Plate | 2mm |
Bottom Plate | 3mm |
Arm Thickness | 6mm |
Carbon Fiber Grade | T700 |
Stack Height | 23mm |
Camera Thickness | 19mm, 20mm |
Stack Mounting Holes | 20mm x 20mm; M3 |
VTX Mounting Holes | 20mm x 20mm; M2 / M1.6 25mm x 25mm; M2 |
Motor Mounting Holes | 16mm x 16mm; M3 |
Prop Mounting Holes | Max. 5.1 inch |
Frame Weight (Incl. exterior parts and aluminium parts) | 212±5g |

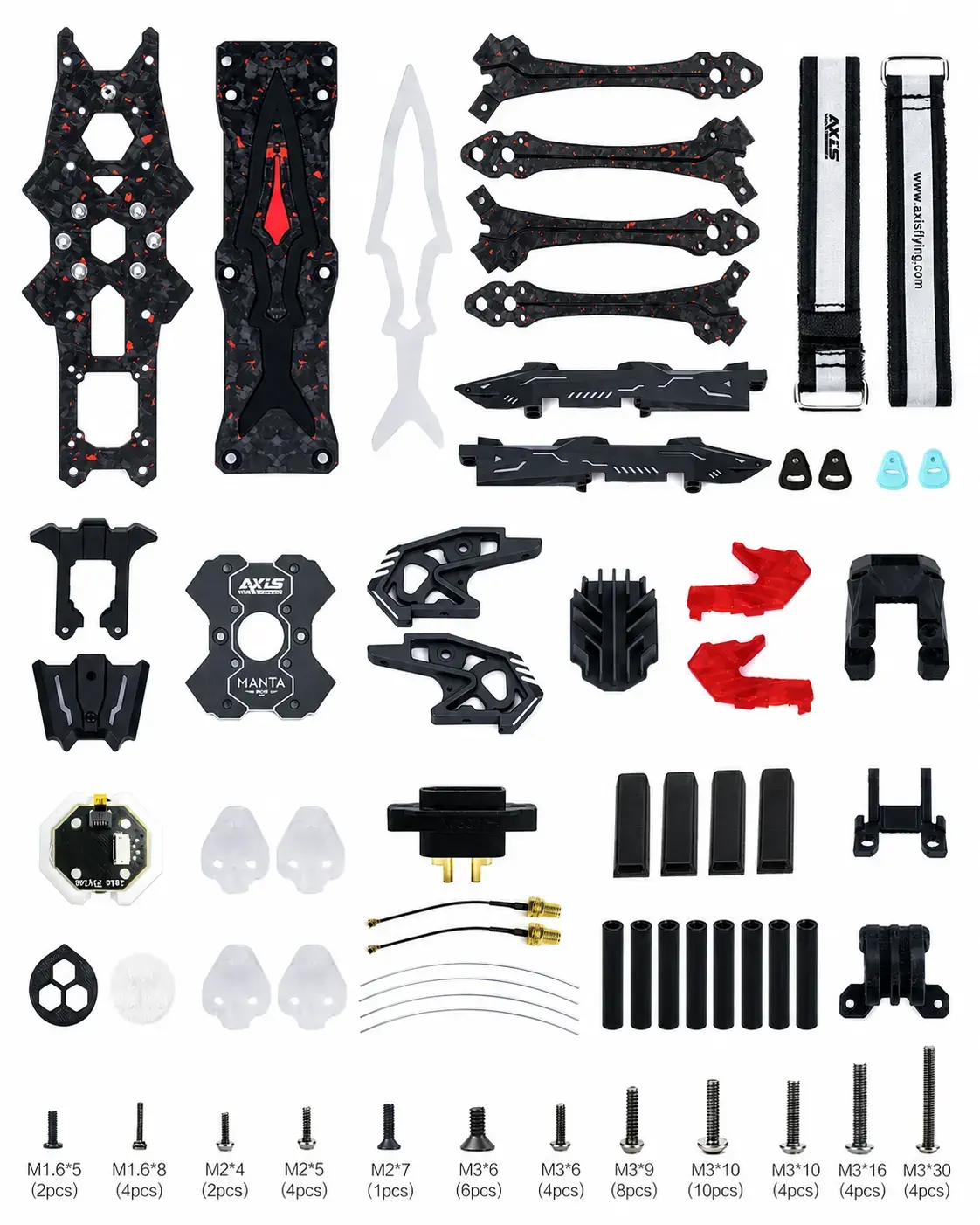

Axisflying Manta 5 Pro DC-O4 Frame Kit w/ Printed Parts Packing List
Axisflying Manta 5 Pro DC-O4 Frame Kit w/ Printed Parts Package Includes
- 1x O4 Pro Compatible Upper Carbon Plate
- 1x O4 Pro Lower Carbon Fiber Plate Adapter
- 1x Front Arm-L
- 1x Front Arm-R
- 1x Back Arm-L
- 1x Back Arm-R
- 1x O4 Pro Camera Aluminum Bracket-R
- 1x Aluminum Baseplate
- 2x O4 Pro Air Unit Aluminum Mount
- 1x Side Panel L (with light)
- 1x Side Panel R (with light)
- 1x Center Light Kit (with lamp)
- 1x Center Light Translucent Panel
- 1x Center Light Base Plate
- 1x Head Base Plate (with light)
- 1x Tail Base Plate
- 1x Lighting Control Board
- 1x Control Board Connection Cable 4Pin
- 4x 1.5mm Fiber
- 4x Wire Protector
- 2x Battery Strap
- 2x M1.6*5 Flat Head Screw
- 2x M2*4mm Dome Head Screw
- 4x M2*5mm Dome Head Screw
- 1x M2*7mm Countersunk Head Screw
- 5x M2*4mm Countersunk Head Screw
- 6x M3*8mm Countersunk Head Screw
- 4x M3*6mm Dome Head Screw
- 8x M3*8mm Dome Head Screw
- 10x M3*10mm Dome Head Screw with Pad
- 4x M3*10mm Dome Head Screw
- 4x M3*16mm Dome Head Screw
- 4x M3*30mm Dome Head Screw
- 8x M3*23mm Aluminum Standoff
- 4x M1.6*8mm Cup Head Screw
- 2x Silicone Camera Shock Absorbing Insert
- 1x XT-60-EW-M
- 2x IPEX to SMA Adapter Cable
- 4x TPU Arm Protector
- 1x TPU GoPro Base
- 1x Tail Print
- 1x TPU Antenna Mount
- 2x Battery Anti-slip Pad
- 2x TPU Camera Pad
