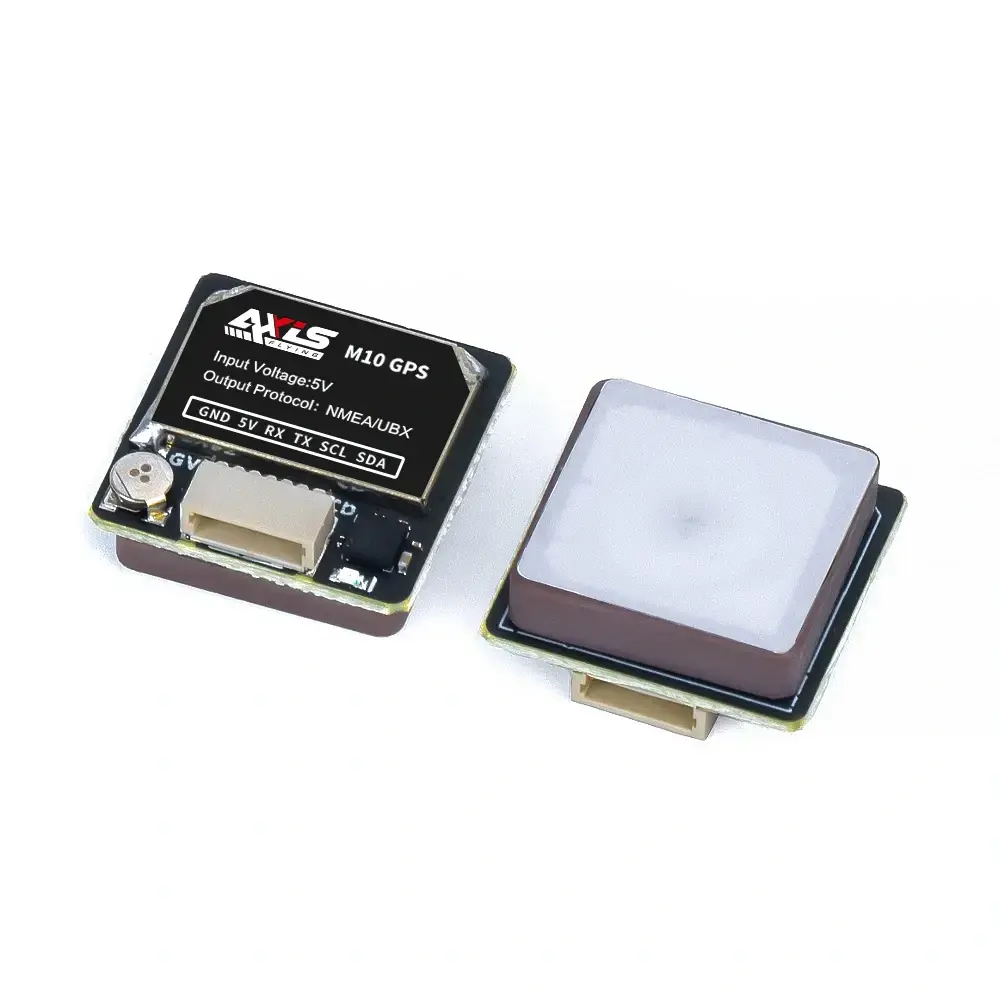

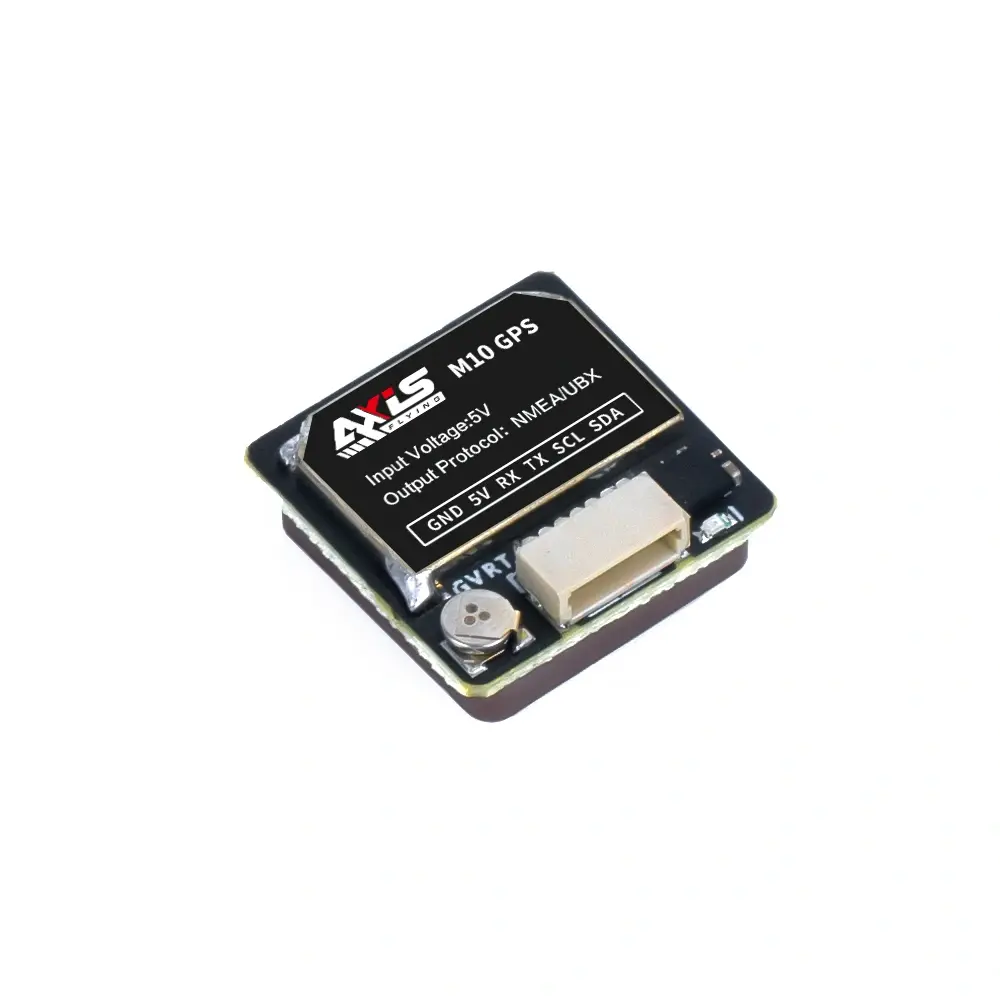

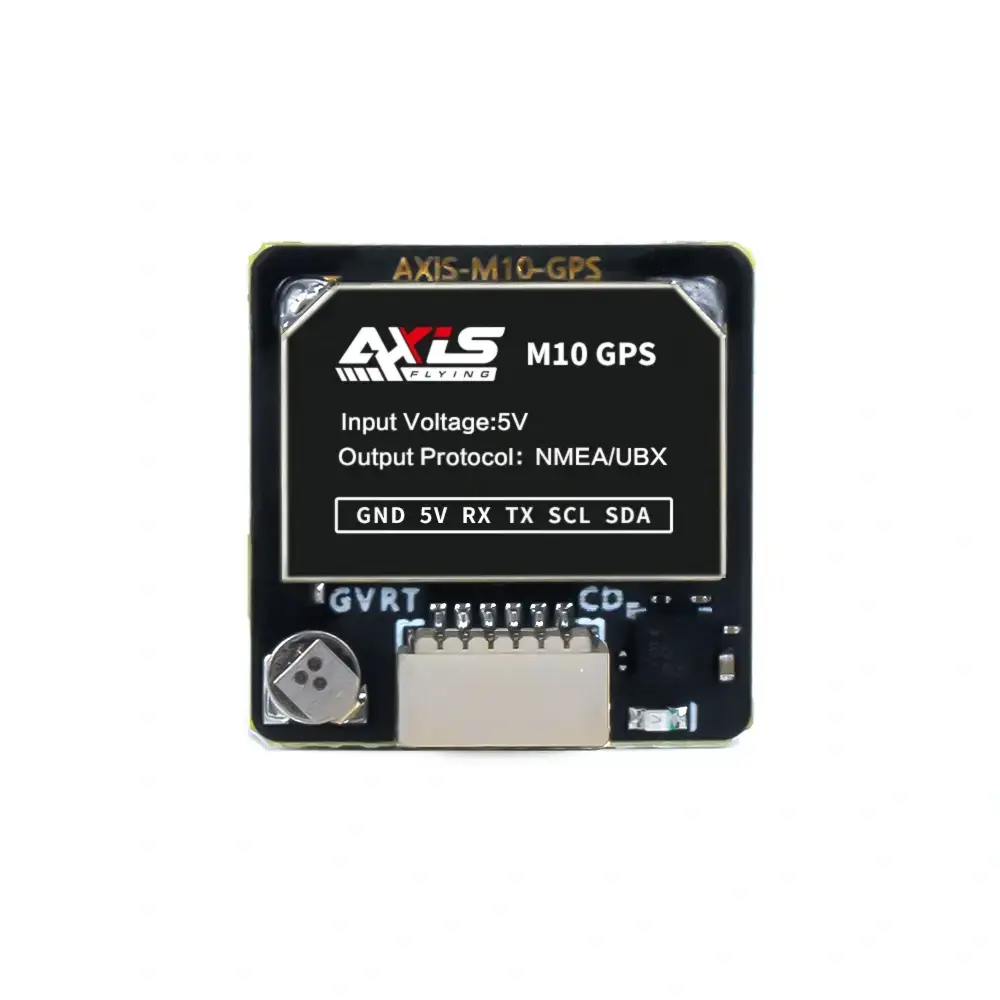

Axisflying GPS M10 Module w/compass

https://www.bzbuas.com/web/image/product.template/3320/image_1920?unique=73112e5
The Axisflying GPS M10 Module w/compass is a GPS module designed for FPV freestyle and long-range drone applications. It features an integrated electronic compass to support better orientation and stable navigation during flight. The module is intended to provide precise and reliable positioning for FPV drones. Its compact design makes it suitable for installation in drone builds where space is limited.
104.88 zł 104.88 PLN VAT Excluded
104.88 zł VAT Excluded

This combination does not exist.

Contact Us

Terms and Conditions

Axisflying GPS M10 Module w/compass - Reliable GPS Positioning for FPV Drone Builds

Add an extra layer of confidence to your FPV setup with a module focused on flight awareness and navigation support. It is a practical choice for pilots who want their drone to provide more useful position-related data during freestyle sessions, cruising, or longer-distance flights. Small and straightforward, it fits naturally into modern FPV builds without making the setup feel overcomplicated.

Axisflying GPS M10 Module w/compass Features

  • Designed for FPV: Suitable for FPV freestyle and long-range drone applications.
  • M10 GPS Module: Provides reliable positioning for navigation and return-to-home functions.
  • Integrated Compass: Built-in electronic compass supports improved orientation during flight.
  • 5V Input Voltage: Designed to operate with a 5V power input.
  • NMEA/UBX Protocols: Supports NMEA and UBX output protocols for flight controller integration.
  • Compact Size: 20mm x 20mm module size for easy installation in FPV drone builds.

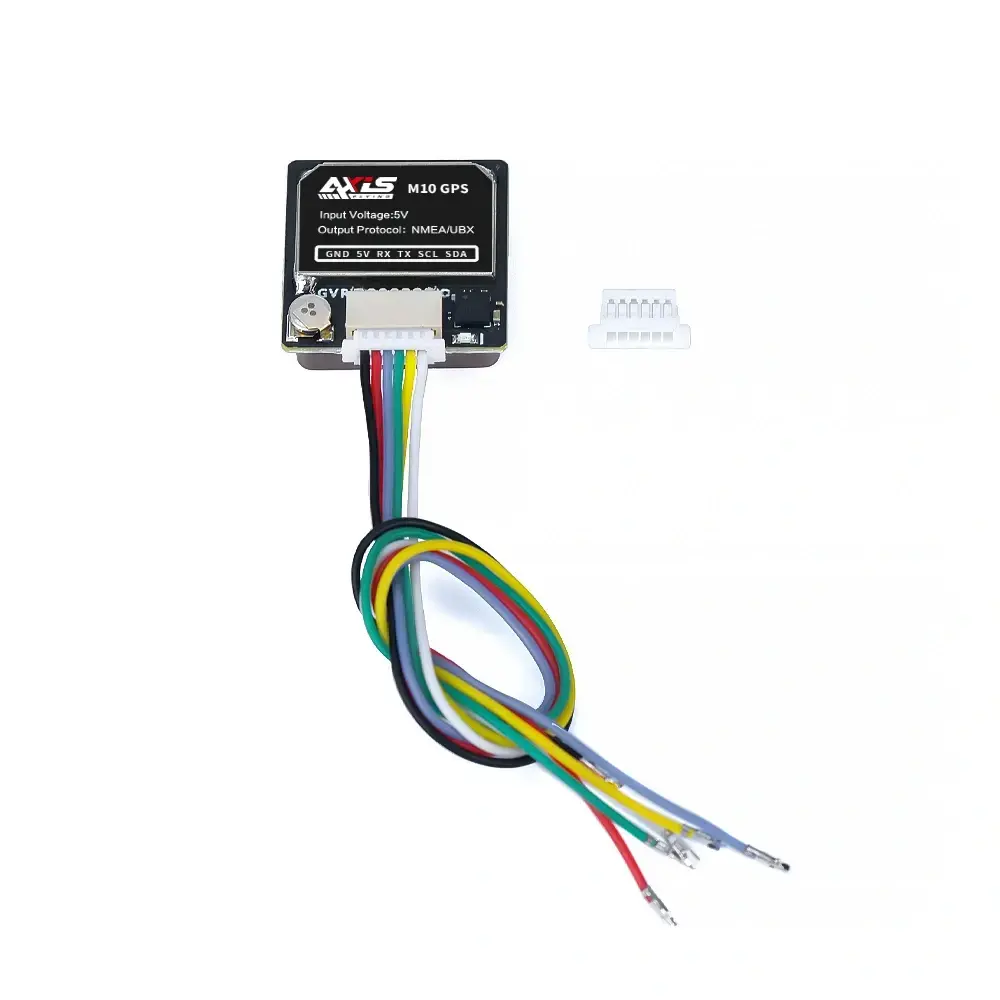

  • Wiring Included: Supplied with a cable for simple connection to compatible flight controllers.

Axisflying GPS M10 Module w/compass Connection Diagram

axisflying-gps-m10-module-w-compass

WARNING The Argus F7 flight controller shown in the connection diagram is for reference only and is not included with the product.

Axisflying GPS M10 Module w/compass Specifications

Chip Characteristic

Chip: M10050-KB;

Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1;

Work mode: GPS, GLONASS, BDS, GALILEO, SBAS and QZSS;

Channel: Search channels

Sensivity

Tracking: -167dBm;

Reacquisition: -160dBm;

Cold Start: -148dBm;

Hot Start: -156dBm

Accuracy

Horizontal: 2.0m CEP 2D RMS SBAS Auxiliary (Open Sky);

Speed Accuracy: 0.1m/s 95% (SA off);

Time Accuracy: 1ns

Startup Time

Cold Start: 26s;

Warm Start: 26s;

Hot Start: 1s

Output Data

Baud Rate: 4800  - 921600bps default 38400bps;

Output Level: 3.3V TTL Level;

Output Protocol: NMEA-0183 Protocol/UBX Protocol;

NMEA Statement: RMC, VTG, GGA, GSA, GSV, GGL;

Update Frequency: 1Hz - 10Hz, default 1Hz;

FLASH: 4M FLASH

Altitude Limit

<50000m

Speed Limit

<515m/s

Gravity acceleration Limit

<4g

Voltage

DC 3.6V - 5.5V

Current Power consumption

Normal 50mA/5.0V

Dimensions

20mm x 20mm x 6mm

Weight

12g

Connector

SH1.0-6P

Operating Temperature

-40°C ~ +85°C

Storage Temperature

-40°C ~ +105°C

TX Lamp

The power-on light blinks once, it is working properly

PPS Lamp

The indicator does not turn on. After 3D positioning, it start to blink

Compass

Internal with electronic compass QMC5883

Axisflying GPS M10 Module w/compass Dimensions

axisflying-gps-m10-module-w-compass

Axisflying GPS M10 Module w/compass Package Includes

  • 1x Axisflying GPS M10 Module w/compass
axisflying-gps-m10-module-w-compass
