T-Motor Velox F7 SE 3-6S Flight controller

T-Motor Velox F7 SE 3-6S Flight controller

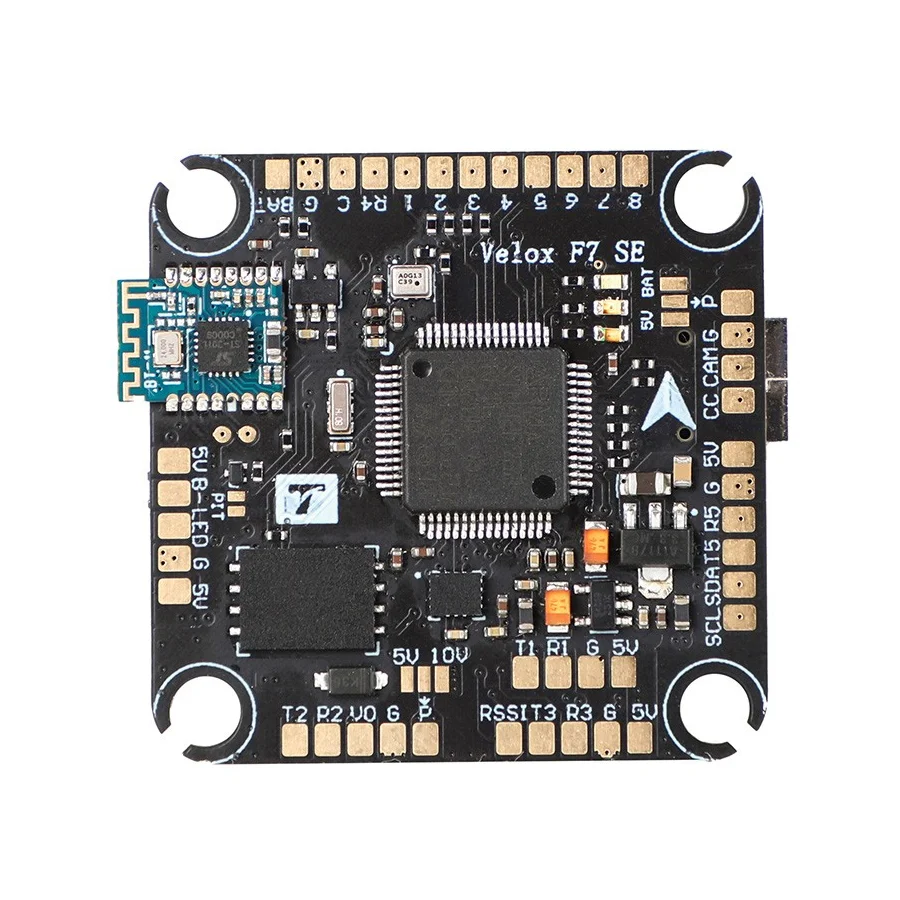

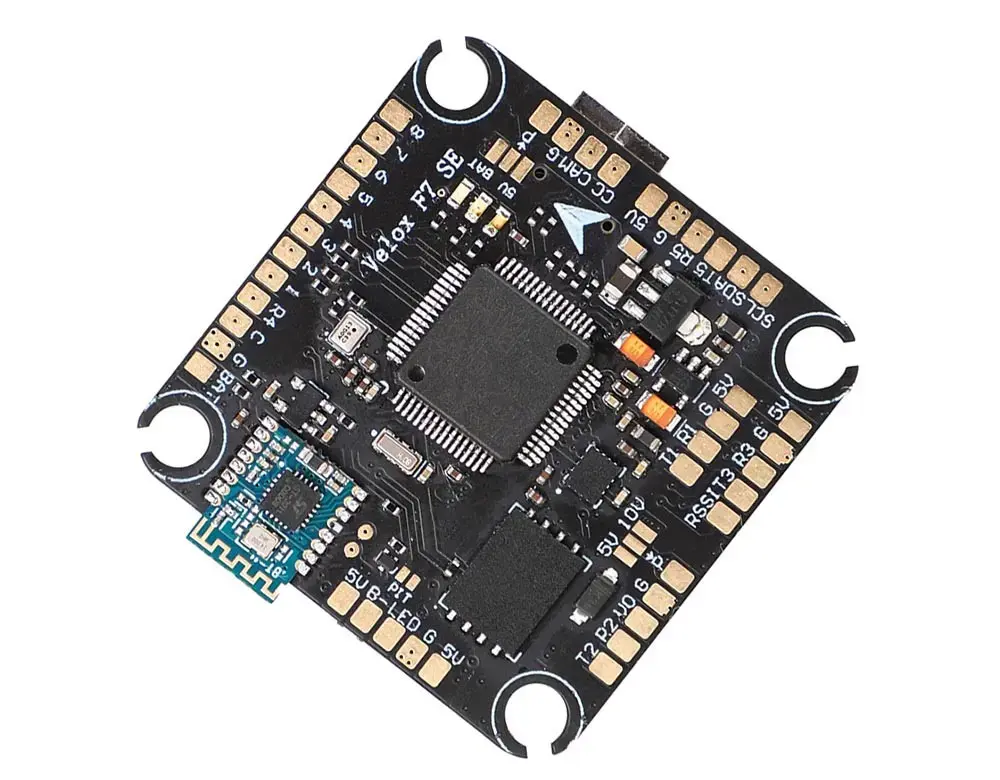

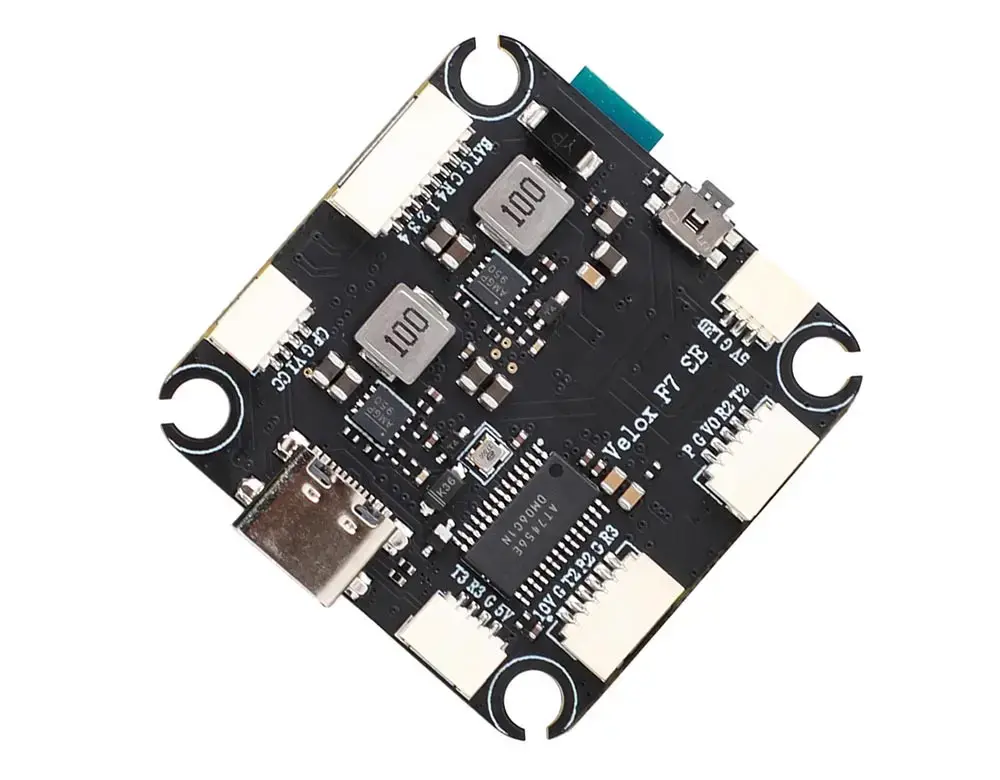

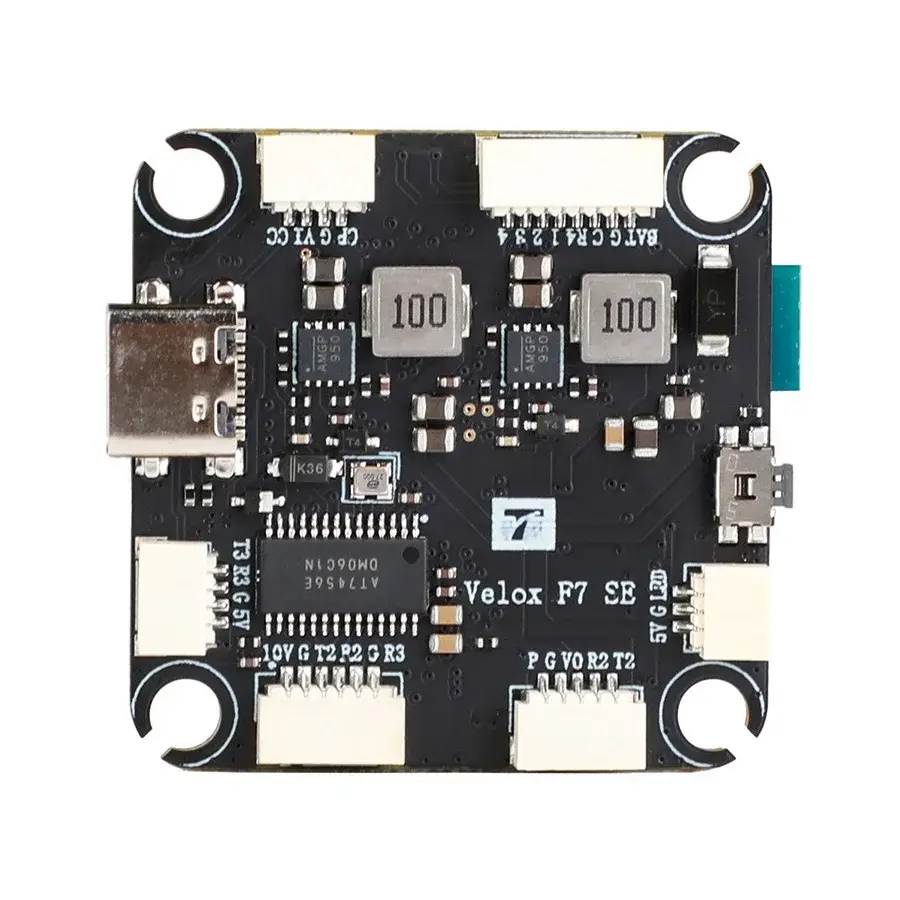

T-Motor Velox F7 SE 3-6S Flight controller is a feature-rich FPV flight controller equipped with an STM32F722 processor, ICM-42688-P gyroscope, barometer, 128 MB Blackbox memory, and Bluetooth connectivity. It supports analog and HD video systems, six UARTs, up to eight motors, and dual BEC outputs. Its 30.5mm x 30.5 mm mounting pattern fits many medium and large FPV frames.

218.70 zł VAT Excluded

This combination does not exist.

Add to cart Buy now

Terms and Conditions

Advanced Control with Convenient Configuration – T-Motor Velox F7 SE 3-6S Flight controller

Wireless Bluetooth

Built-in Bluetooth allows flight-controller parameters to be adjusted using a compatible smartphone. It is especially useful for field configuration when carrying a computer is inconvenient.

Dual BEC

Two independent regulated power outputs simplify the connection of devices with different voltage requirements. This helps power a camera, video transmitter, and other peripherals without additional external regulators.

HD and Analog Support

The controller supports both digital and analog FPV systems. This makes it easier to match the board to an existing build or upgrade the video system later.

Support for Up to 8 Motors

Eight-motor support enables use in more advanced platforms, including X8 configurations. It provides additional flexibility for high-payload aircraft and builds requiring propulsion redundancy.

128 MB Blackbox Memory

The large Blackbox memory can store extensive flight logs. These records help analyze aircraft behavior, tune filters, and optimize PID settings.

Built-in Barometer

The integrated barometer provides pressure and altitude data. This information can be used by compatible firmware functions and displayed through the OSD during flight.

The Second Generation Power Solution Ensures Smooth Flying

The power supply suppresses noise up to 90db, making the gyroscope low-noise and low-latency

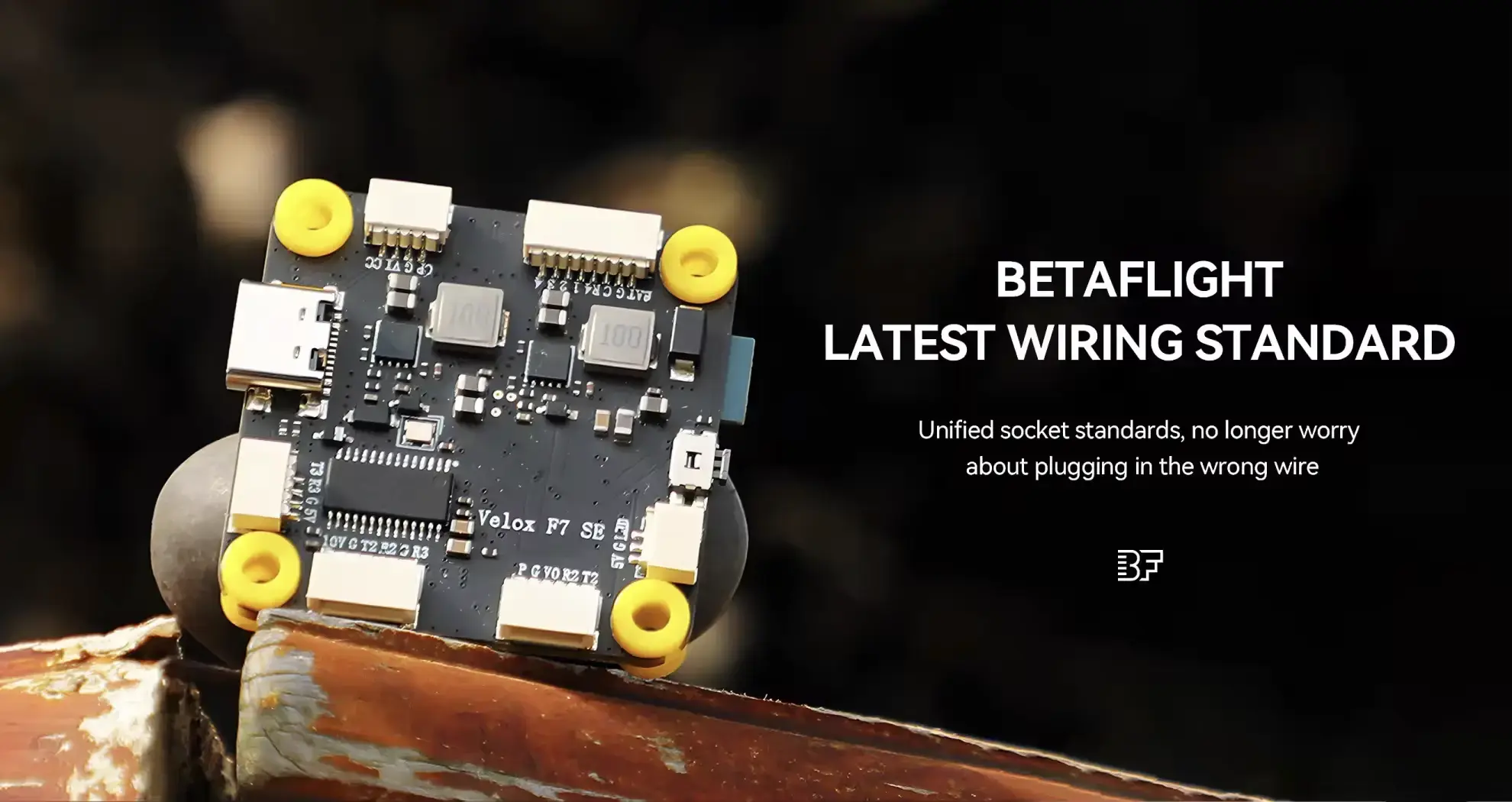

Unified connectors for easier installation

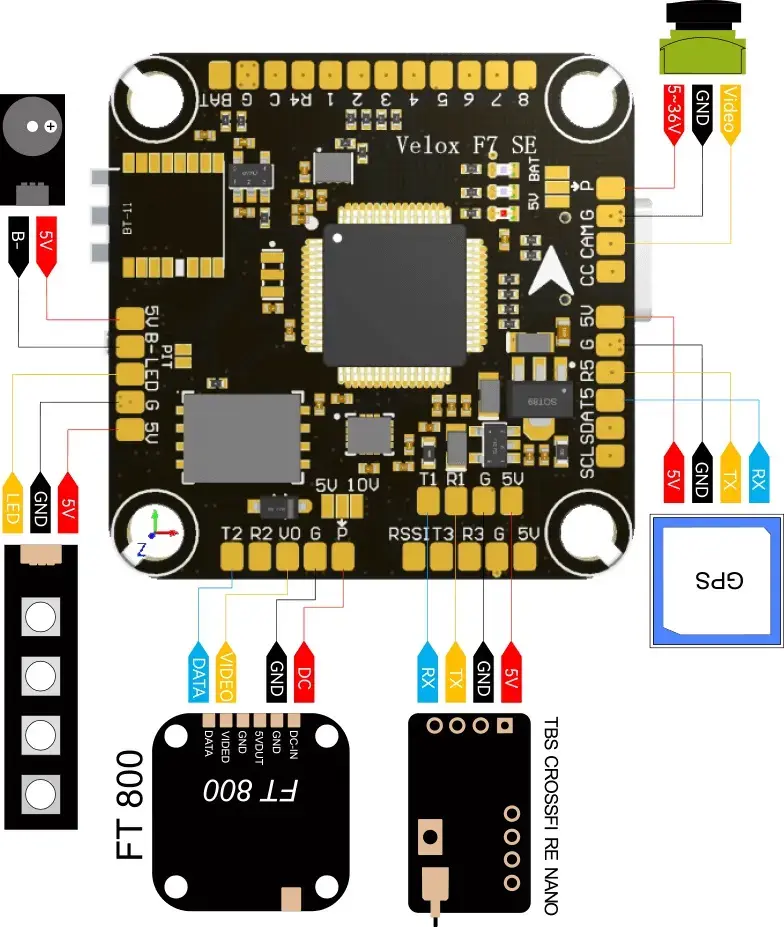

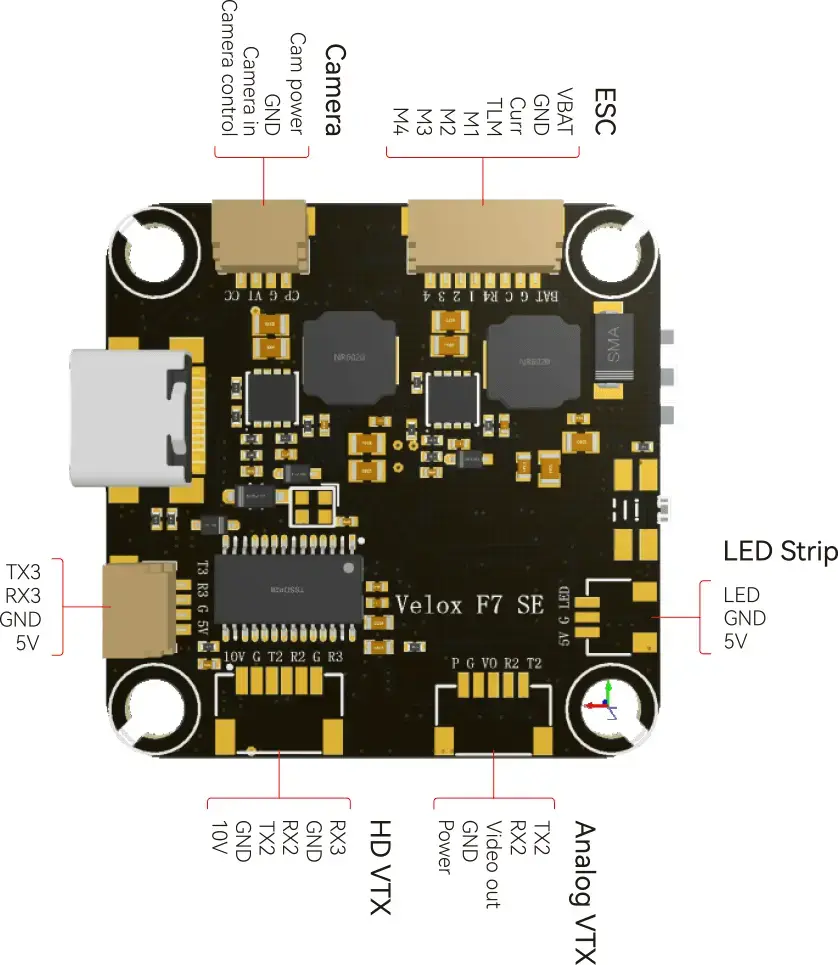

The controller follows the latest standardized wiring layout used in the Betaflight ecosystem. Unified sockets help reduce the risk of incorrect connections with compatible devices and simplify integration with an ESC and other electronics. The pin order of both connected products must still be verified before power is applied.

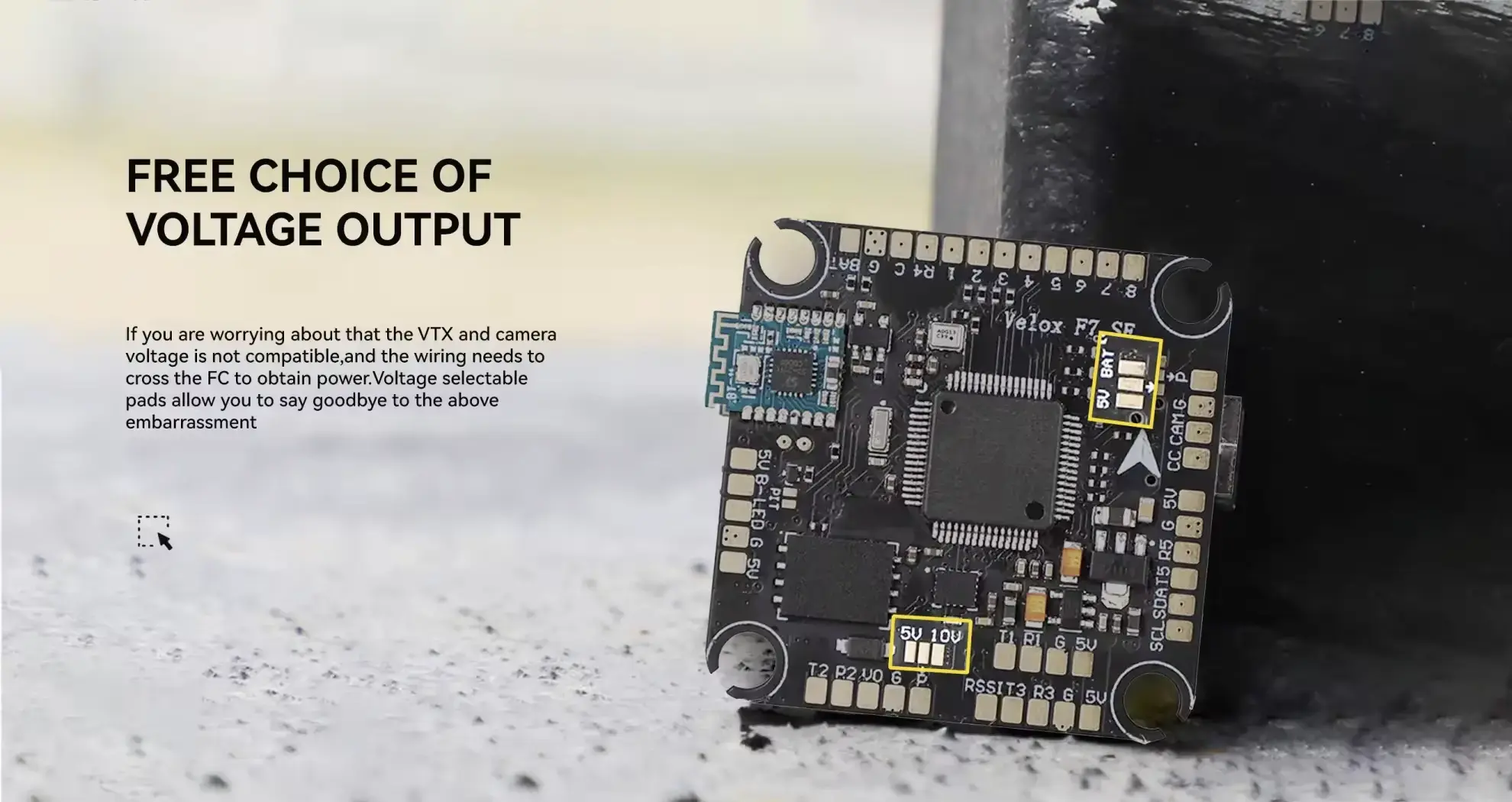

Match the power requirements of the camera and VTX

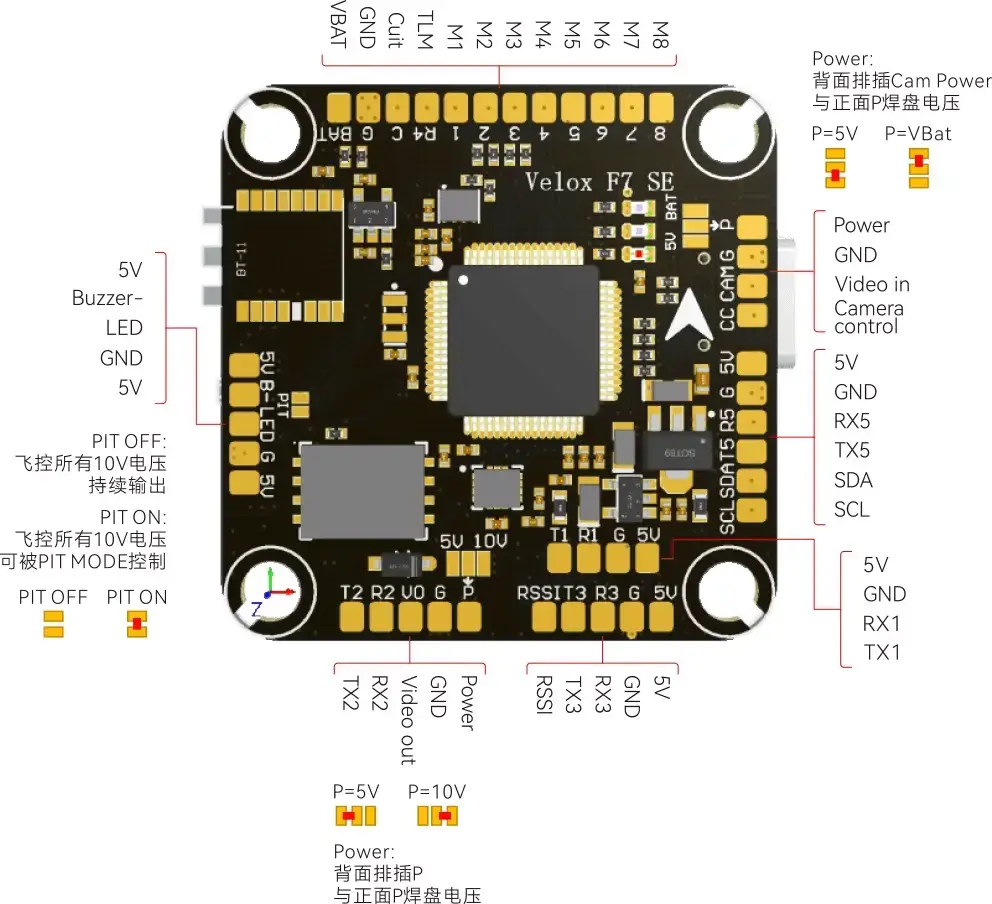

Selectable pads allow the output to be configured for 5 V or 10 V operation with compatible FPV devices. This simplifies matching the power requirements of a camera or video transmitter and reduces unnecessary wiring across the controller. Always verify the required voltage before connecting a device.

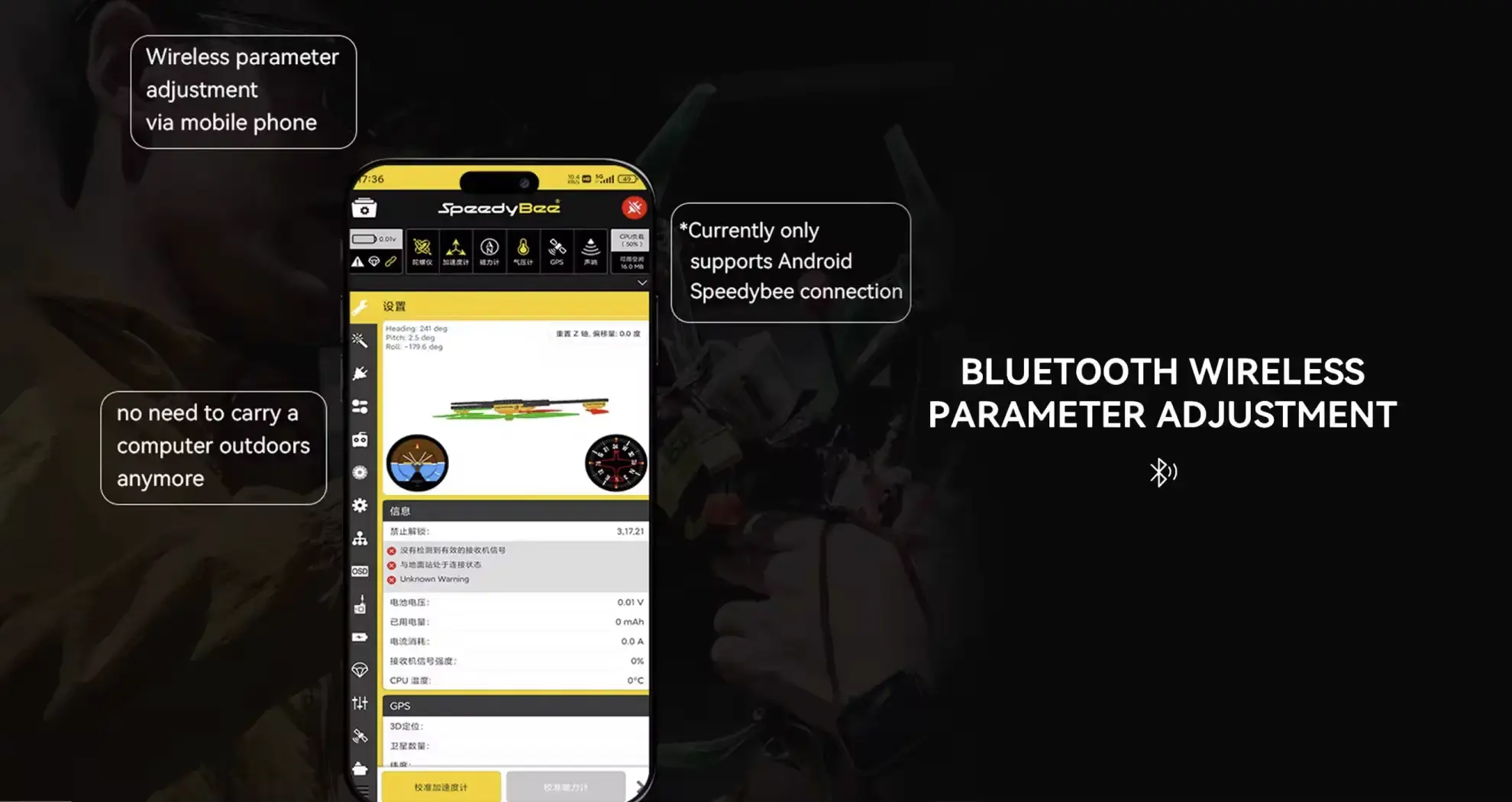

Wireless Field Tuning

Featuring Bluetooth connectivity with SpeedyBee app support for real-time parameter adjustments and flight monitoring via mobile, eliminating the need for a computer during outdoor sessions.
