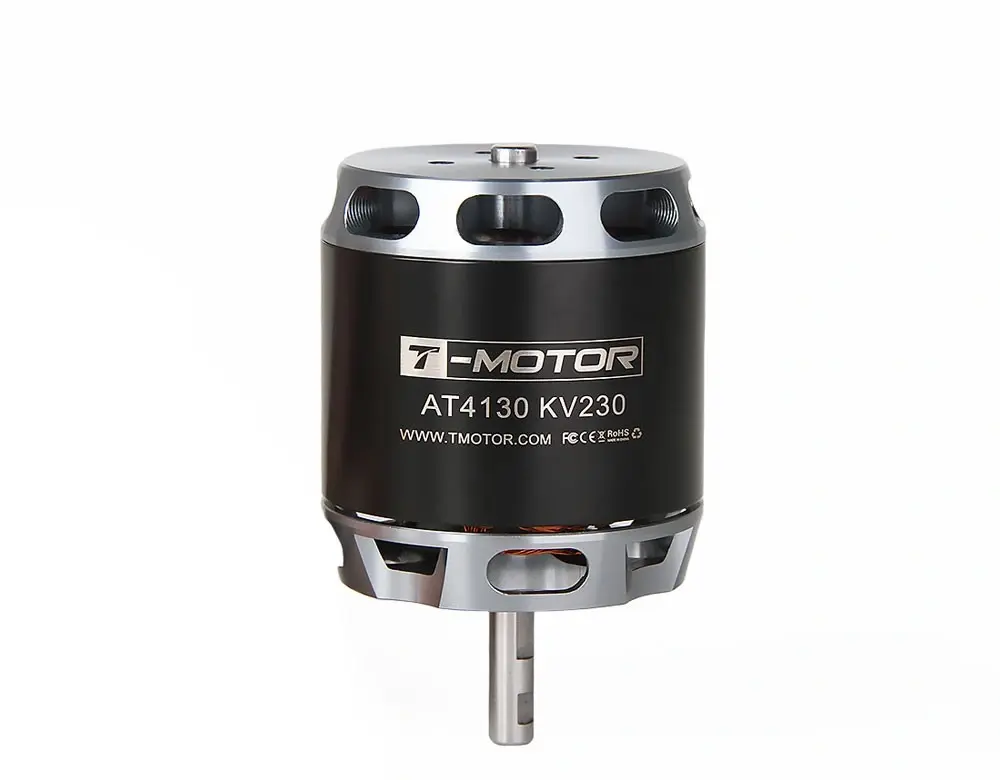

T-Motor AT4130 Long Shaft Fixed Wing Brushless Motor KV230

https://www.bzbuas.com/web/image/product.template/3362/image_1920?unique=4b50016

Looking for a reliable powertrain for your fixed-wing aircraft? The T-Motor AT4130 Long Shaft Fixed Wing Brushless Motor KV230 is a guarantee of peak efficiency, designed specifically for demanding builds. The extended shaft is ideal for scale airplanes and VTOL aircraft, making installation effortless. Invest in professional quality from T-Motor, enjoy an incredible power output up to 2500W, and fly with more confidence than ever before!
390.24 zł 390.24 PLN VAT Excluded
390.24 zł VAT Excluded

This combination does not exist.

Contact Us

Terms and Conditions

Robust Power for Demanding Pilots by T-Motor AT4130 Long Shaft Fixed Wing Brushless Motor KV230

Built for heavier platforms, VTOL aircraft, and intricate scale models, the T-Motor AT4130 Long Shaft Fixed Wing Brushless Motor KV230 delivers massive thrust combined with superb thermal efficiency. Its 12S voltage capability, paired with meticulously hand-wound enameled wire coils, guarantees an extended service life even under peak loads reaching up to 2500W. The utilization of enlarged ventilation channels decreases operating temperatures, ensuring your setup remains protected from overheating during your longest flights.

t-motor-at4130-long-shaft-fixed-wing-brushless-motor-kv230

Robust Body and Release Freely

The semi-box-shaped design features lateral outlet holes combined with an internal heat dissipation structure. This advanced configuration boosts the overall mechanical strength of the T-Motor AT4130 Long Shaft Fixed Wing Brushless Motor KV230, while significantly improving cooling efficiency. It effectively ensures highly reliable and stable performance, protecting your setup even during the most demanding flights.

The Upgraded AT Series

 The upgraded AT series is expertly designed for fixed-wing models, VTOL, UAVs, and industrial-driven applications. The T-Motor AT4130 Long Shaft Fixed Wing Brushless Motor KV230 utilizes high-temperature resistance arc magnets specifically selected for their incredibly strong power output. It offers highly efficient and stable endurance, showcasing the true beauty of the perfect balance between superior craftsmanship and raw power.

t-motor-at4130-long-shaft-fixed-wing-brushless-motor-kv230

T-Motor AT4130 Long Shaft Fixed Wing Brushless Motor KV230 Test Report

t-motor-at4130-long-shaft-fixed-wing-brushless-motor-kv230

T-Motor AT4130 Long Shaft Fixed Wing Brushless Motor KV230 Dimensions

t-motor-at4130-long-shaft-fixed-wing-brushless-motor-kv230

T-Motor AT4130 Long Shaft Fixed Wing Brushless Motor KV230 Specifications

Motor Dimensions

50mm x 79mm

Lead

Enameled Wire 100mm

Shaft Diameter

In: 6mm; Out: 6mm

Idle Current (10V)

1.4A

Max. Power (180s)

2500W

Weight (Incl. Cable)

408g

Internal Resistance

60mΩ

Configuration

12N14P

Rated  Voltage (LiPo)

12S

Peak Current (180s)

60A

t-motor-at4130-long-shaft-fixed-wing-brushless-motor-kv230

T-Motor AT4130 Long Shaft Fixed Wing Brushless Motor KV230 Package Includes

  • 1x T-Motor AT4130 Long Shaft Fixed Wing Brushless Motor KV230
  • 1x Parts Bag
