RCinpower AOS Supernova 2207 1980KV Brushless Motor
RCinpower AOS Supernova 2207 1980KV Brushless Motor – Performance for Demanding Freestyle and Racing
RCinpower AOS Supernova 2207 1980KV Brushless Motor was developed using extensive FPV motor testing and computer modelling involving more than 20,000 design iterations. Its optimized 2207 construction delivers rapid throttle response, strong torque, and the power required for dynamic freestyle, racing, and fast 5-inch builds. The 1980KV version supports 5–6S batteries, with 6S recommended for its intended performance range.
RCinpower AOS Supernova 2207 1980KV Brushless Motor Key Features
- 2207 Size and 1980KV Rating: Provide a dynamic power profile for high-performance 5-inch FPV drones.
- 5–6S LiPo Support: Allows use in powerful freestyle and racing builds, with 6S recommended.
- 31 g Weight: Supports a strong power-to-weight ratio without adding unnecessary mass to the quad.
- 12N14P Configuration: Provides smooth operation, responsive control, and consistent motor performance.
- N52H ARC Magnets: Support efficient conversion of electrical energy into mechanical torque.
- 7075 Aluminum Construction: A durable bell and base improve resistance to demanding FPV use.
- Japanese Bearings: Provide smooth rotation and dependable performance at high speed.
- Single-Strand Winding: Insulation rated to 260°C supports reliability under high electrical loads.
- 16 × 16 mm Mounting Pattern: Standard M3 mounting simplifies installation in popular 5-inch frames.
- High Motor Efficiency: Manufacturer data reports more than 86% efficiency between 5 and 11 A.

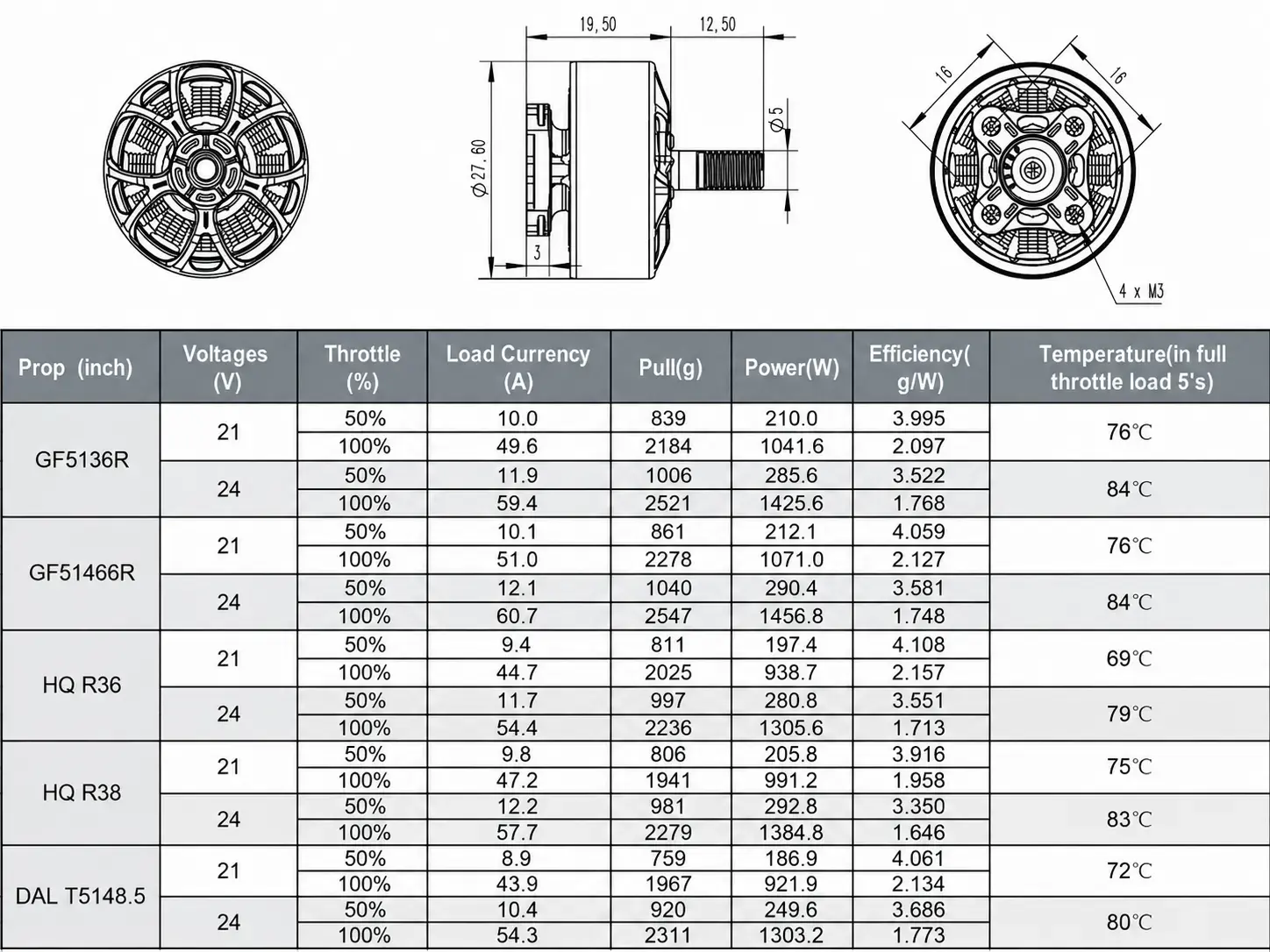

RCinpower AOS Supernova 2207 1980KV Brushless Motor Test Report
Frequently asked questions - RCinpower AOS Supernova 2207 1980KV Brushless Motor
The motor is primarily designed for high-performance 5-inch FPV drones powered by 5–6S batteries. Its strong torque, high thrust, and rapid throttle response suit freestyle and racing builds. A conventional quadcopter requires four motors.
It is primarily designed for 5-inch propellers. Manufacturer testing includes Gemfan 5136, Gemfan 51466, HQ R36, HQ R38, and DAL T5148.5 models, allowing pilots to choose between efficient freestyle setups and more aggressive high-thrust configurations. At BZB UAS, you can pair it with Gemfan 51466 V2 Hurricane PC 3 Blade 2L2R Propellers, designed for dynamic 5-inch FPV builds.
The motor supports 5–6S packs, while a 6S setup makes the best use of the 1980KV version’s performance profile. For a lightweight and responsive build, BZB UAS offers the GAONENG GNB LiHV 6S 22.8V 1100mAh 160C XT60 LiPo Battery which provides high discharge capability for freestyle and racing.
A powerful 6S build benefits from an ESC with sufficient current headroom. The Axisflying Argus Pro F7 FC + 65A 6S AM32 4in1 ESC with Aluminium Box Stack combines an F7 flight controller with a 65 A four-in-one ESC, providing a practical electronics base for a high-performance 5-inch quad.
The ToolkitRC M8DAC Charger is a suitable option for regularly charging 6S packs. It supports 1–8S LiPo and LiHV batteries, provides two independent channels, and includes an integrated AC power supply, allowing two packs to be prepared before a freestyle session or race day.
RCinpower AOS Supernova 2207 1980KV Brushless Motor Specifications
Model | AOS Supernova 2207 |
KV | 1980 |
Configuration | 12N14P |
Shaft Diameter | 4mm |
Motor Dimension | 27.6mm x 19.5mm |
Weight | 31g |
| Idle Current | 1.1A / 10V |
Cells | 5S - 6S LiPo |
Max Continuous (5S) | 1456W |
Internal Resistance | 45mΩ |
Max Current (5S) | 61A |
Max Efficiency Current | 5A - 11A / >86% |
RCinpower AOS Supernova 2207 1980KV Brushless Motor Package Includes
- 1x RCinpower AOS Supernova 2207 1980KV Brushless Motor
