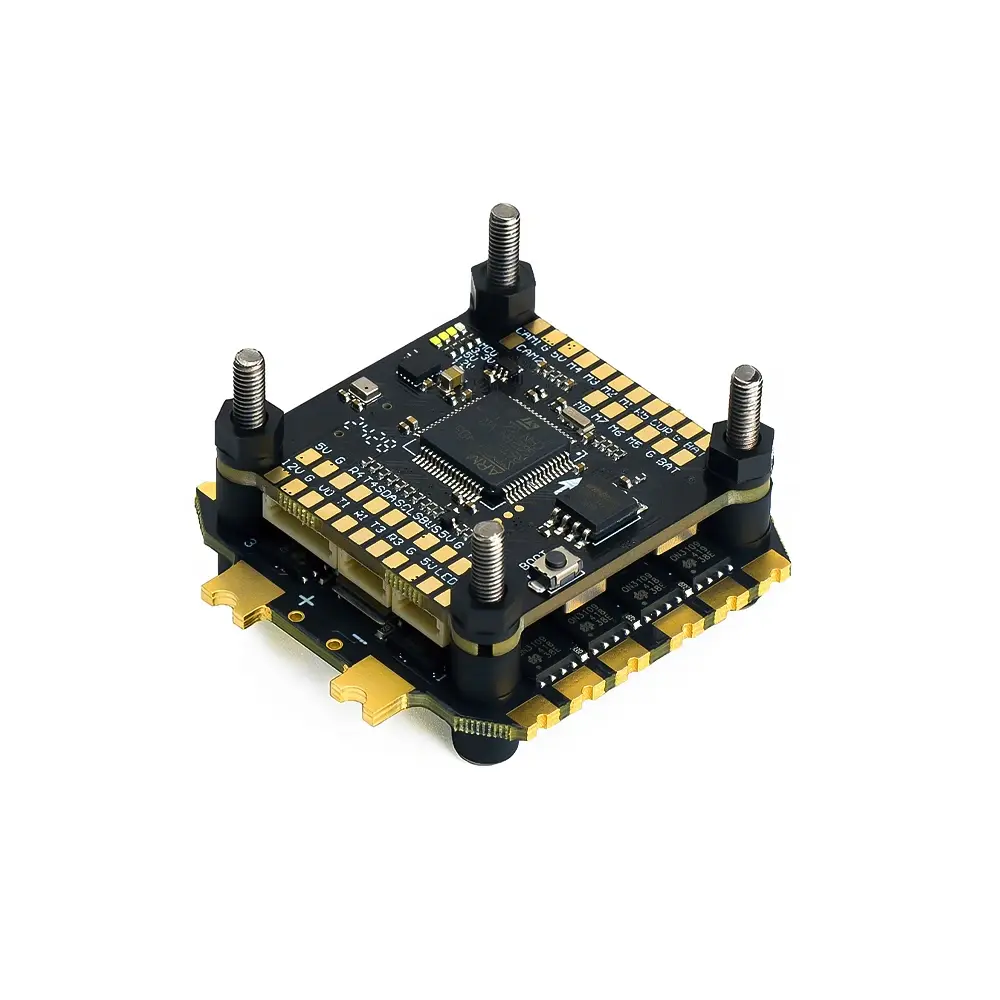

Axisflying Argus Eco F405 FC + 60A 6S 8bit 4in1 ESC Stack

https://www.bzbuas.com/web/image/product.template/3322/image_1920?unique=05351e0
Looking for a reliable and budget-friendly electronics bundle for your FPV drone? The Axisflying Argus Eco F405 FC + 60A 6S 8bit 4in1 ESC Stack is the perfect choice for pilots seeking optimal performance at a reasonable price. Combining a proven F405 flight controller with a powerful 60A speed controller, it ensures stability and precision during every flight. Build your dream quadcopter right now and enjoy seamless control in the air!
256.10 zł 256.1 PLN VAT Excluded
256.10 zł VAT Excluded

This combination does not exist.

Choose Proven Performance and Reliability on a Budget When Choosing the Axisflying Argus Eco F405 FC + 60A 6S 8bit 4in1 ESC Stack

The Axisflying Argus Eco F405 FC + 60A 6S 8bit 4in1 ESC Stack is an exceptionally balanced combination engineered for freestyle and racing quadcopters, granting pilots access to modern features without straining their budget. With full support for up to 6S power setups and a continuous current rating of 60A, the Axisflying Argus Eco F405 FC + 60A 6S 8bit 4in1 ESC Stack allows you to fully unleash the potential of modern, high-power motors. The optimized layout simplifies the building process within the frame while guaranteeing seamless communication between all onboard components.

Key Features of Axisflying Argus Eco F405 FC + 60A 6S 8bit 4in1 ESC Stack

  • High Continuous Current: A solid 60A load capacity guarantees a stable energy supply to demanding multirotor motors without overheating risks.
  • Proven F405 Microcontroller: Delivers highly stable PID loops and hassle-free cooperation with contemporary flight software.
  • Broad 4-6S Voltage Range: Offers great versatility and complete readiness for modern high-voltage LiPo battery packs.
  • Dependable 8-bit Layout: Ensures smooth operation with easy firmware upgrade paths to modern protocols for refined RPM filtering.

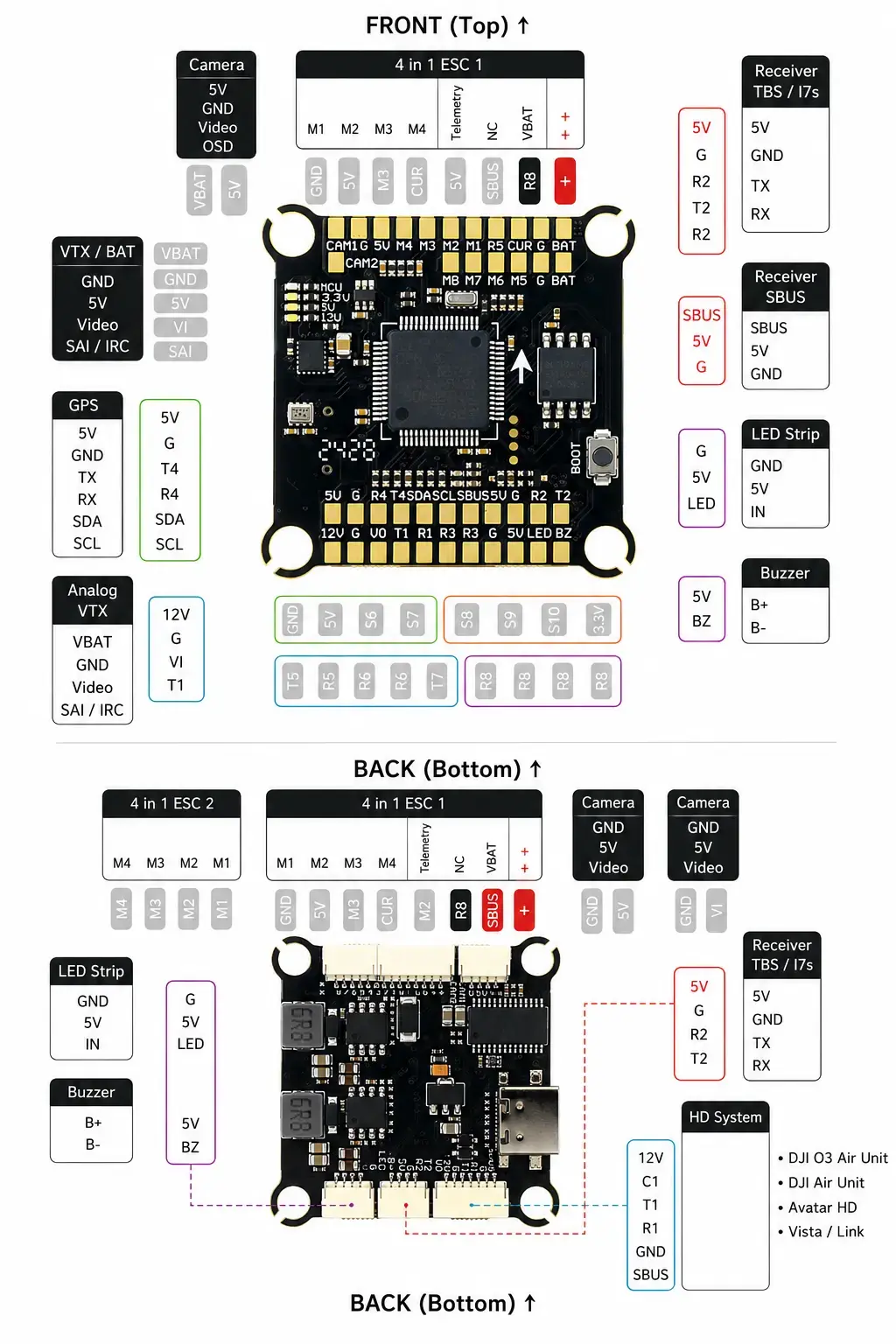

Axisflying Argus Eco F405 FC + 60A 6S 8bit 4in1 ESC Stack Interface Definition​

FC

axisflying-argus-eco-f405-fc-60a-6s-8bit-4in1-esc-stack

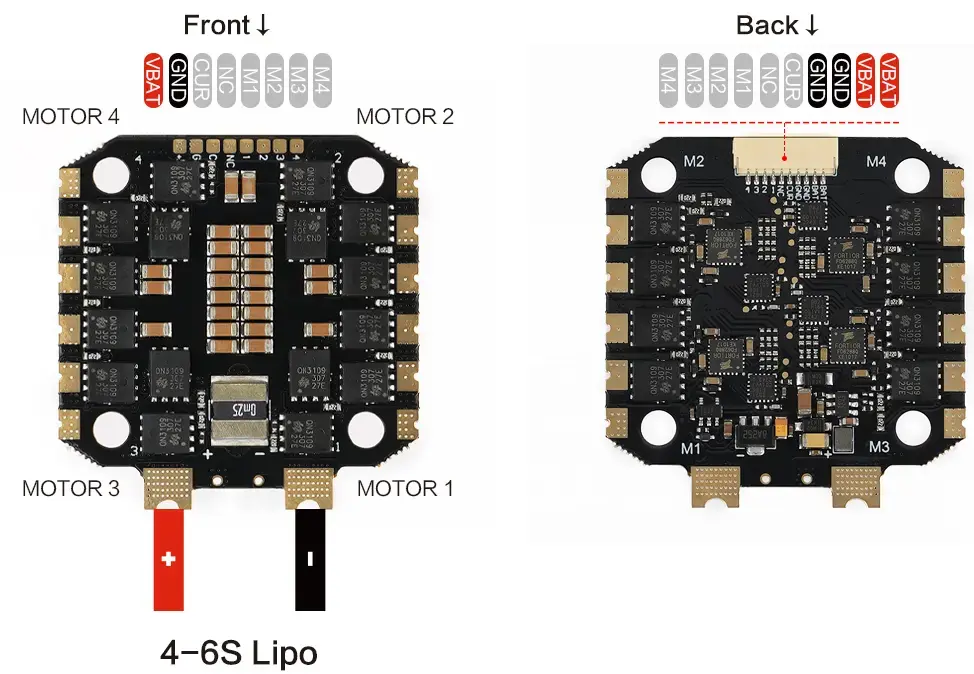

ESC

axisflying-argus-eco-f405-fc-60a-6s-8bit-4in1-esc-stack

Axisflying Argus Eco F405 FC + 60A 6S 8bit 4in1 ESC Stack Specifications

FC

Firmware

SPDX-SPEDIX F405 (Betaflight)

MCU

STM32F405RGT6v

Gyro

ICM42688P

Barometer

Supported

Blackbox

16M

Input Voltage

4-8S LiPo

BEC

12V2A

UART

5 sets

OSD

Supported

Size

36mm x 36mm x 6mm

Mounting Hole Size

30.5mm x 30.5mm / M3

Weight

7g

ESC

FirmwareBluejay_QH30
Input Voltage4-6S LiPo
Continuous Current60A
Burst Current70A
Ammeter200
Temperature ProtectionSupported

Telemetry

Not Supported

BEC

Not Supported

Size

44.8mm x 43mm x 6mm

Mounting Hole Size

30.5mm x 30.5mm / M3

Weight

13.5g

Axisflying Argus Eco F405 FC + 60A 6S 8bit 4in1 ESC Stack Package Includes

  • 1x Axisflying Argus Eco F405 FC + 60A 6S 8bit 4in1 ESC Stack
  • 1x Connecting Cable
  • 4x M3*30mm Screw
  • 4x M3 Locknuts
  • 1x Capacitor 35V 1000μF
  • 8x Rubber Damping Ring (4x ESC, 4x FC)
  • 1x XT60 Power Cable
  • 1x Connecting Cable for Receiver
  • 1x Connecting Cable for HD
  • 1x Connecting Cable for Analog
  • 1x Connecting Cable for LED & Beeper
