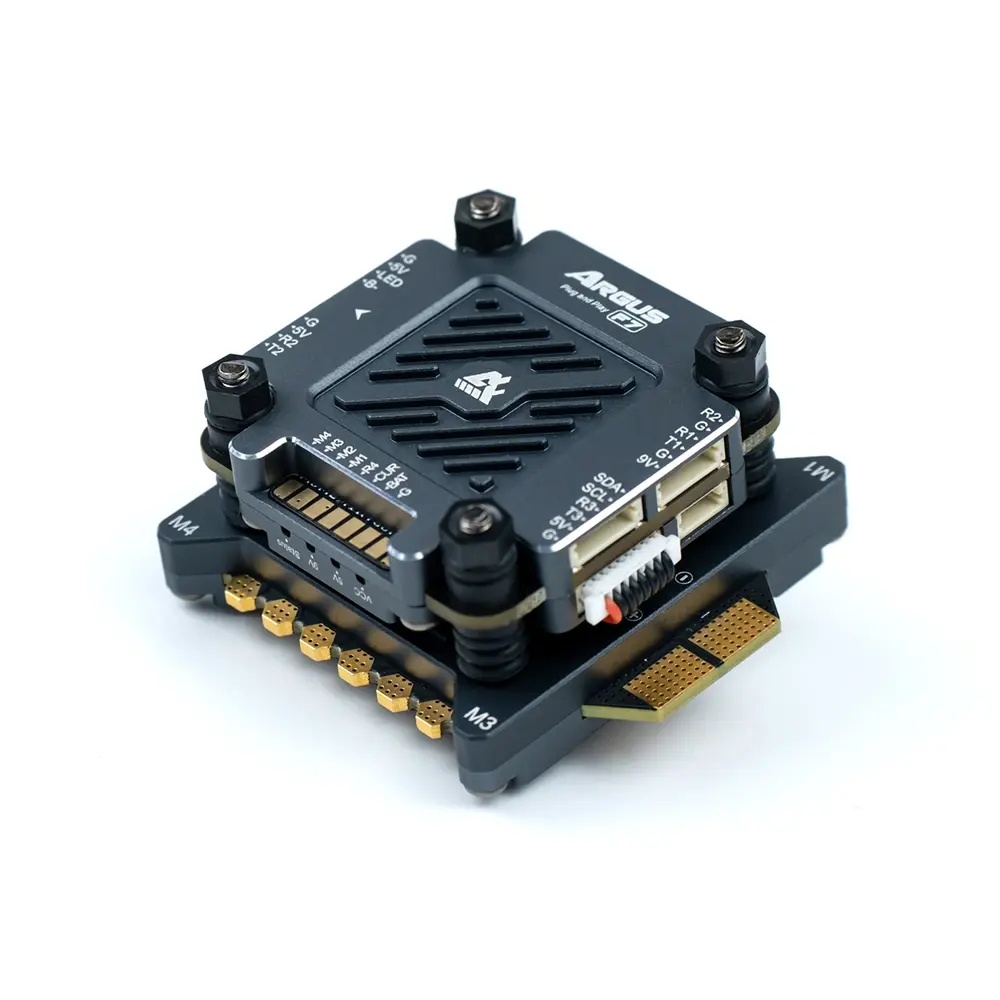

Axisflying Argus Pro F7 FC + 65A 6S AM32 4in1 ESC with Aluminium Box Stack
Build a Powerful Drone With Incredible Efficiency Choosing the Axisflying Argus Pro F7 FC + 65A 6S AM32 4in1 ESC with Aluminium Box Stack
The Axisflying Argus Pro F7 FC + 65A 6S AM32 4in1 ESC with Aluminium Box Stack is the perfect solution for professionals and ambitious amateurs who value uncompromising build quality. This setup combines a highly efficient flight controller equipped with an F7 processor and a massive electronic speed controller delivering 65A of continuous current. With full 6S support and advanced AM32 software, the Axisflying Argus Pro F7 FC + 65A 6S AM32 4in1 ESC with Aluminium Box Stack easily handles aggressive freestyle flying and dynamic racing tracks. Trust in proven architecture and enjoy smooth, failure-free flights under extreme loads.
Solder-Free More Convenient
A smartly designed connector architecture allows for the instantaneous linking of various drone modules using the included wiring harnesses. Entirely eliminating the need for manual soldering saves precious build time and significantly simplifies quick repairs while operating in the field.
Strict Industrial Design
The entire electronic layout was engineered strictly adhering to the highest quality standards utilized in the modern aviation industry. Such manufacturing precision and carefully selected internal components guarantee maximum reliability, even under peak loads in the harshest outdoor environments.
Full Aluminium Cover Wrapped
The extensive metal armor surrounding the electronic circuits provides phenomenal mechanical protection during heavy crashes and unexpected impacts. It simultaneously acts as a highly efficient heatsink that actively and successfully dissipates accumulated thermal energy away from critical power components.
Key Features of Axisflying Argus Pro F7 FC + 65A 6S AM32 4in1 ESC with Aluminium Box Stack
- Massive 65A Current: Guarantees stable power delivery perfectly suited for the most demanding and aggressive racing motors.
- Advanced F7 Microcontroller: Ensures lightning-fast PID loop calculations, offering exceptional flight smoothness across all axes.
- AM32 Firmware Capability: The newest standard in motor management algorithms, greatly increasing precise control over the aircraft.
- Dust and Moisture Protection: A tight IP54-rated coating expertly secures the internal board against damaging dirt, dust, and water splashes.

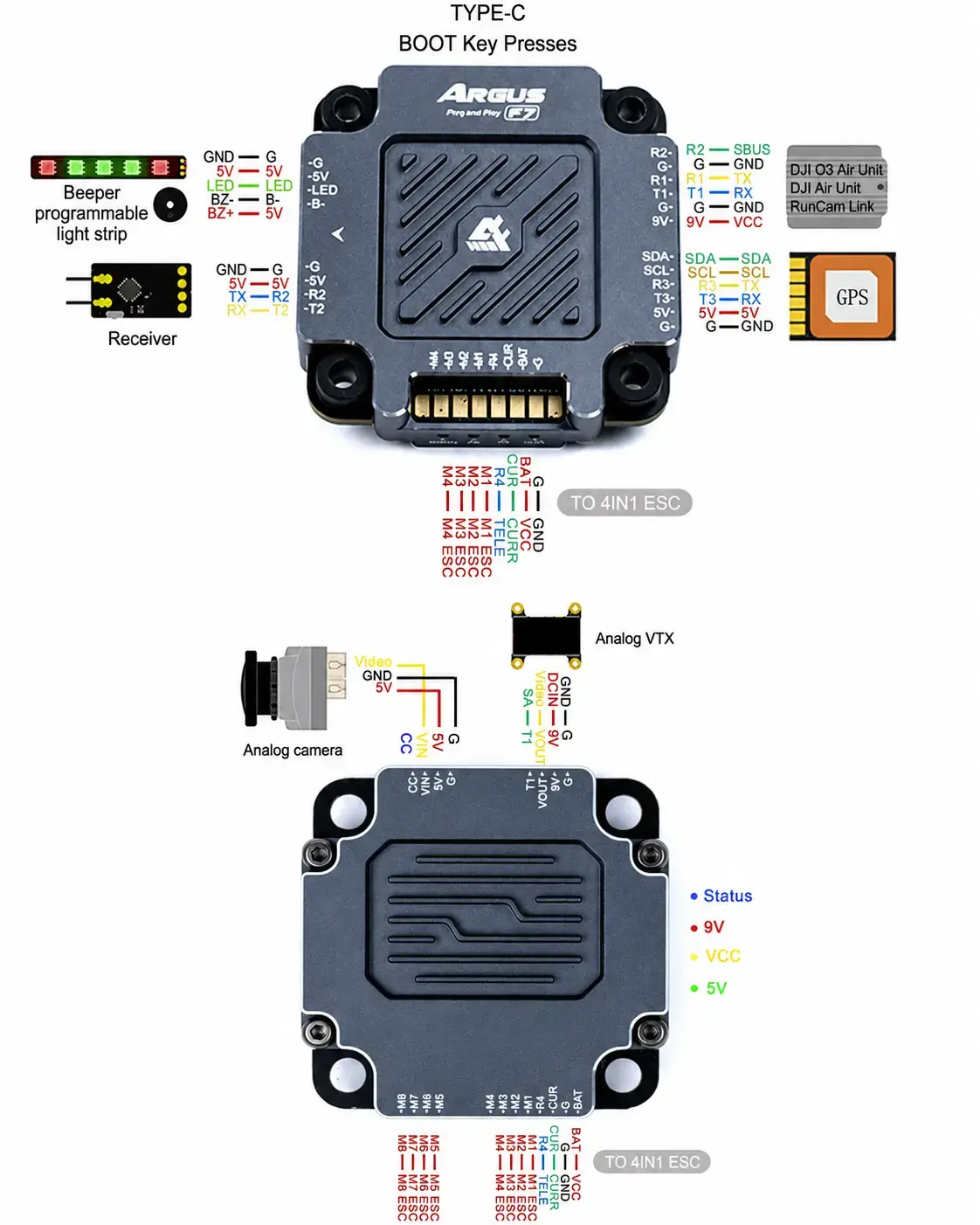

Axisflying Argus Pro F7 FC + 65A 6S AM32 4in1 ESC with Aluminium Box Stack Interface Definition
FC

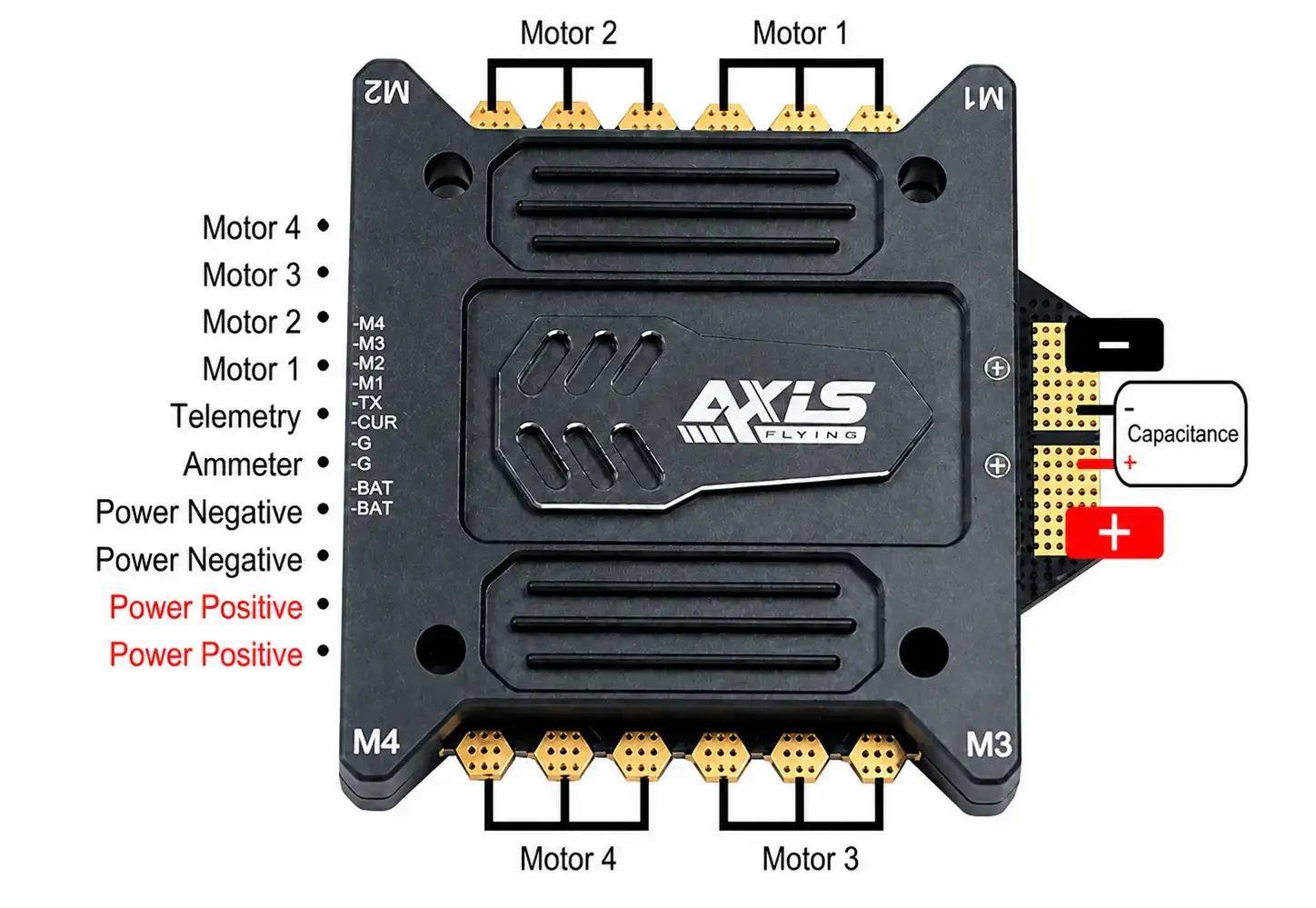

ESC
Axisflying Argus Pro F7 FC + 65A 6S AM32 4in1 ESC with Aluminium Box Stack Specifications
Stack
Model | ARGUS Pro Stack |
Size | 48.6mm x 46.6mm x 26mm |
Weight | 59g |
ESC
Rated Current | 65A |
Instantaneous Peak Current (10s) | 75A |
Input Voltage | 3-6S LiPo |
ESC Target | AM32 |
Current Proportion Value | Scale = 400 |
PWM Frequency Range | 16-96kHz |
Telemetry | Supported |
Ammeter | Supported |
BEC | Nothing |
Installing Hole | 30.5mm x 30.5mm / M3 |
FC
Master Control | STM32F722RET6 |
Gyro | 42688 |
Barometer | Supported |
OSD | Supported |
BEC | 9V/2A |
Black Box | 16Mb Flash Memory |
Number of Supported Motors | M1 - M8 |
Firmware Name | AXISFLYING F7 PRO (BF, INAV) |
Input Voltage | 3-8S LiPo |
Installing Hole | 30.5mm x 30.5mm / M3 |
Axisflying Argus Pro F7 FC + 65A 6S AM32 4in1 ESC with Aluminium Box Stack Package Includes
- 1x FC ESC Cable
- 1x GPS Cable
- 1x DJI Air Unit Wire
- 1x Receiver Wire
- 1x Beeper LED Wire
- 1x Analog Camera Cable
- 1x Analog VTX Wire
- 1x 5678 Motor Wire
- 1x Avatar VTX Wire
- 1x XT60 Power Cord
- 4x O Rubber Ring
- 4x High Damping Rubber Ring (FC)
- 4x Low Damping Rubber Ring (separated)
- 4x M3*34mm Cup Head Screw
- 1x Ruby 35V 470μF Capacitor
- 1x SH1.0 6P Plastic Case (GPS)
- 1x SH1.0 4P Plastic Case (GPS)
