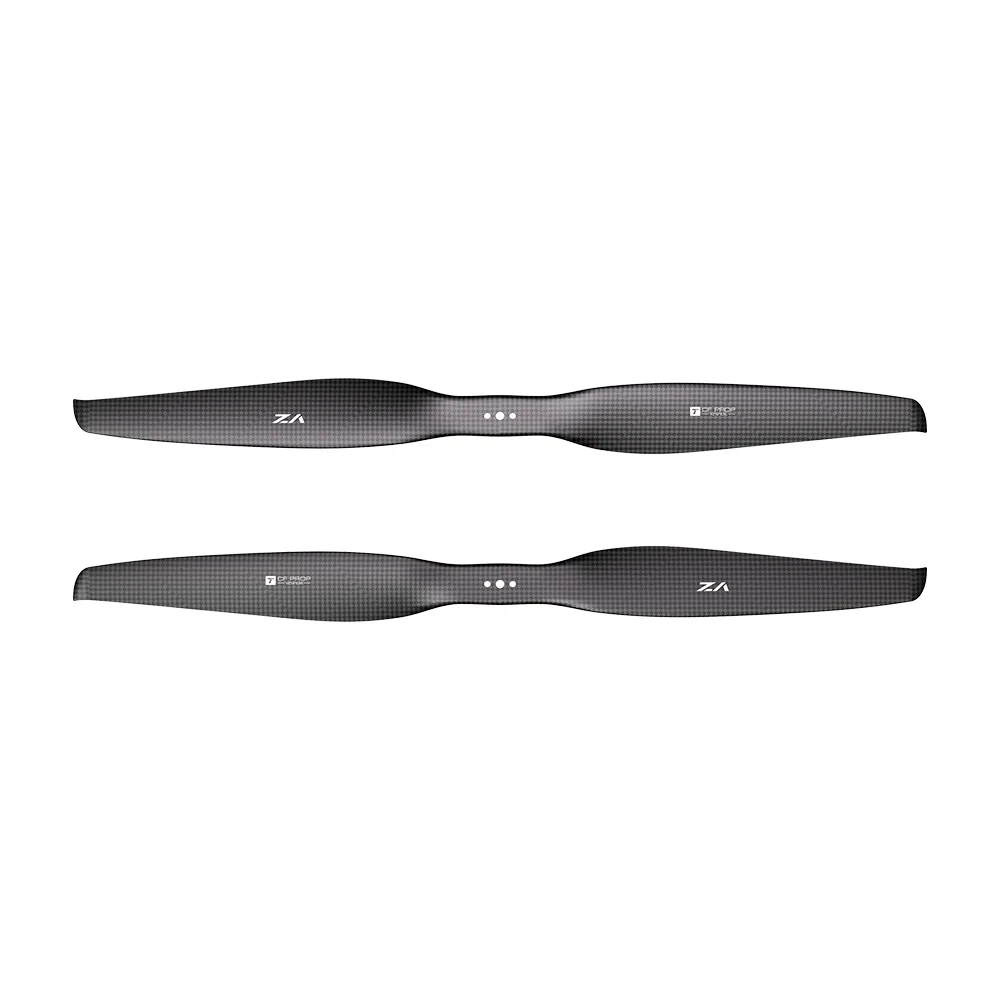

T-Motor VZ16x6.5 Propeller 2pcs

https://www.bzbuas.com/web/image/product.template/3367/image_1920?unique=b872855

The T-Motor VZ16x6.5 propellers are designed for VTOL UAV platforms that need to combine vertical takeoff and landing with efficient forward flight. Their aerodynamic profile helps deliver strong thrust in hover while reducing drag during cruise. Built with a carbon fiber composite structure and PMI foam core, they offer low weight, high stiffness, and stable performance in demanding conditions. A solid choice for UAV builds where reliability, control, and predictable propulsion response matter.
260.16 zł 260.16 PLN VAT Excluded
260.16 zł VAT Excluded
  • Diameter
  • Pitch

This combination does not exist.

Contact Us
Diameter: 16"
Pitch: 6.5"

Terms and Conditions

T-Motor VZ16x6.5 Propeller 2pcs - Built for VTOL Performance

The T-Motor VZ16x6.5 carbon fiber propeller is designed for VTOL fixed-wing UAVs, where vertical lift, cruise efficiency, and transition stability all matter. Its aerodynamic profile supports strong thrust during takeoff and landing, while helping reduce drag when the aircraft moves into cruise flight. With a lightweight composite structure and PMI foam core, it delivers the stiffness and reliability needed for demanding VTOL applications.

Key Features of T-Motor VZ16x6.5 Propeller 2pcs

High Strength

Withstands immense centrifugal loads and maneuver-induced alternating loads at high RPM, preventing structural failure

High Stiffness

Ensures safe blade-tip clearance in compact layouts, suppresses aeroelastic deformation, and prevents flutter

Lightweight Design

Reduce the moment of inertia to achieve rapid thrust response and higher attitude control bandwidth for the flight control system

Superior Aerodynamic Design

Vertical Takeoff & Landing Phase

Requiring high thrust and power, demanding maximum lift output from the propeller disk within a limited blade area

Cruise Phase

When the propeller stops rotating, it is necessary to minimize profile drag to reduce power consumption, achieving "stealthy" low-drag efficiency

T-Motor VZ16x6.5 Propeller 2pcs Specifications

Diameter

16inch (381.0mm)

Pitch

6.5inch (165.1mm)

Weight (Single Blade)

30g

Recommended Thrust/RPM

8kg/10200RPM

Limit RPM

11500RPM

Limit Thrust

10kg

Material

Resin-based Carbon Fiber Composite+PMI Foam Core

Surface Treatment

Matte

Type

One-Piece Straight Propeller

Application

VTOL Fixed-Wing UAVs, Multicopter Mode

Connections & Dimensions

Flange Mount, Ø4 mm Center Hole, Ø12 mm Bolt Circle, with 2x Ø3 mm Mounting Holes

T-Motor VZ16x6.5 Propeller 2pcs Diameter

t-motor-vz16x6-5-propeller-2pcs

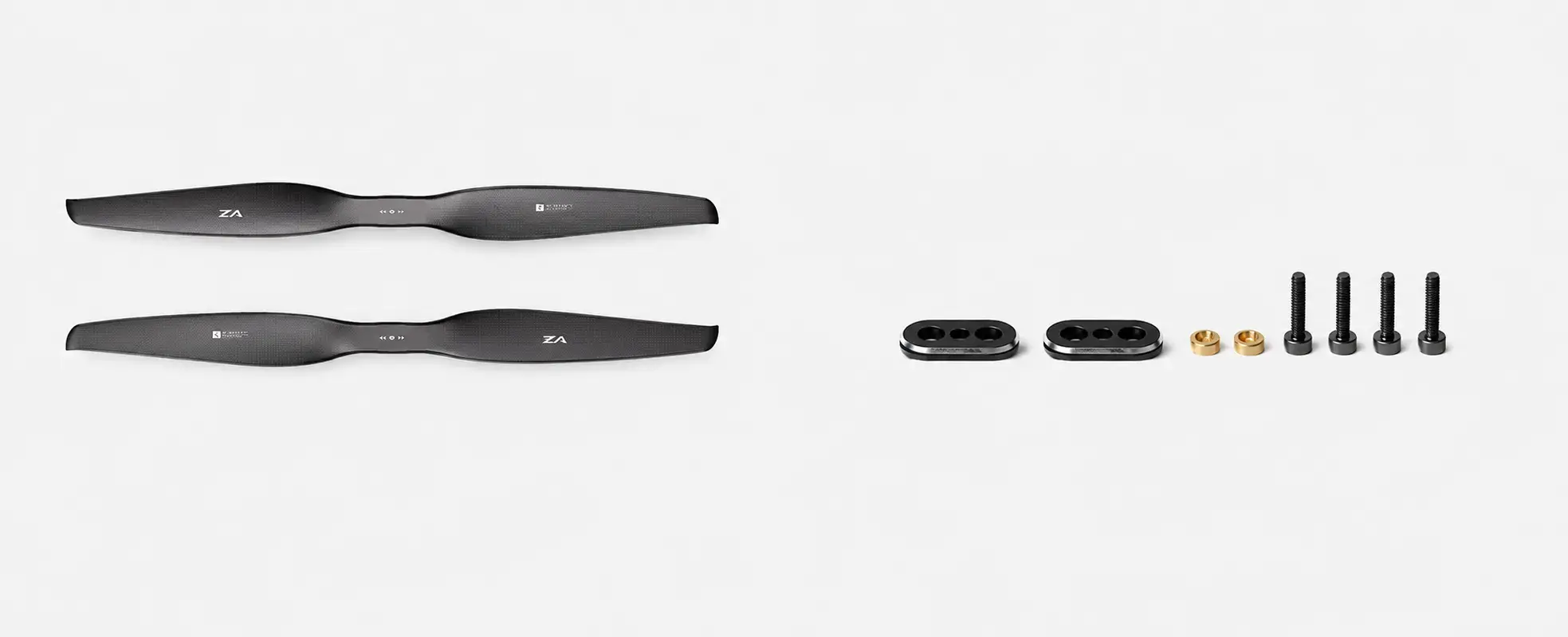

T-Motor VZ16x6.5 Propeller 2pcs Package Includes

  • 1x T-Motor VZ16x6.5 Propeller 2pcs
  • 1x Parts Bag
  • 1x Set of Protective Covers
