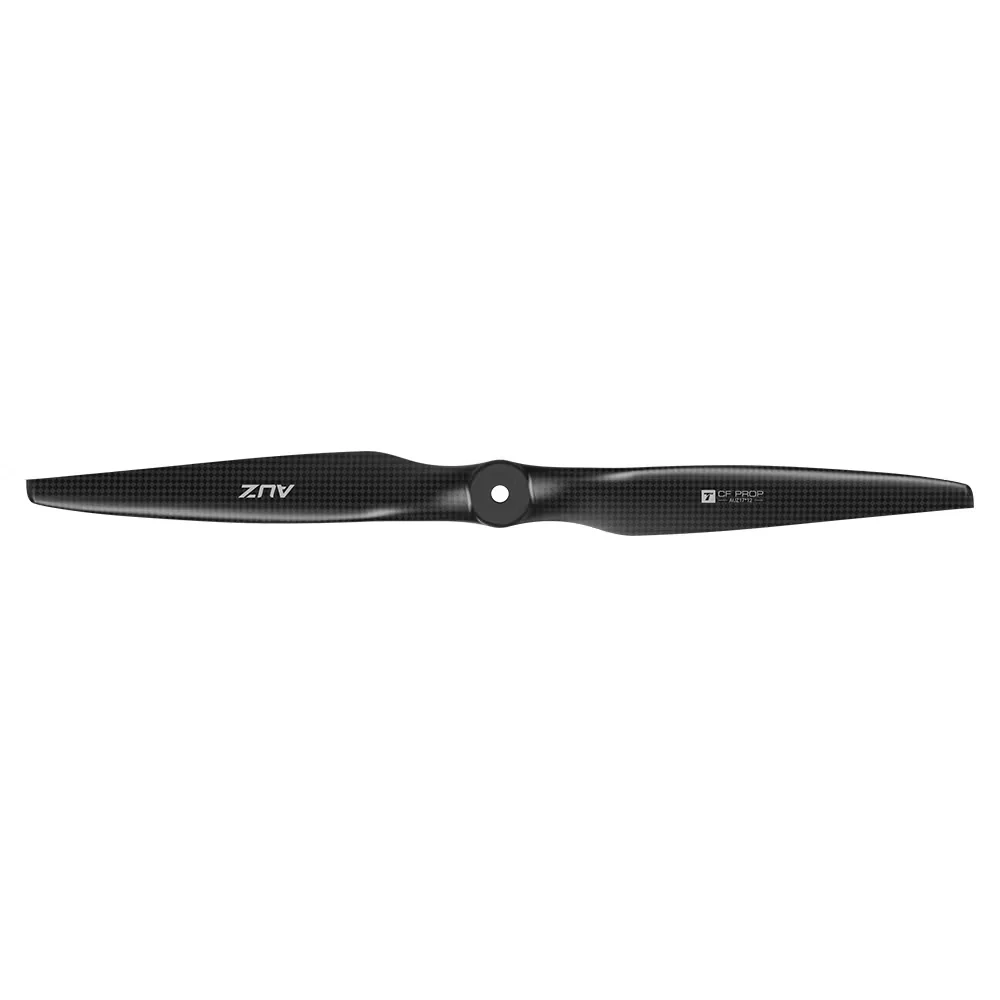

T-Motor AUZ17×12 Fixed-Wing Carbon Fiber Propeller

https://www.bzbuas.com/web/image/product.template/3368/image_1920?unique=339a9c3

The T-Motor AUZ17x12 is a carbon fiber propeller set designed for electric fixed-wing UAV platforms. Its blade profile is developed for efficient cruise flight, stable operation, and optimized use of motor power. The composite construction with a PMI foam core provides a balance of low weight, stiffness, and durability for demanding aerial applications. It is suitable for UAV systems used in mapping, inspection, logistics, and other missions where long flight time and reliable performance are important.
260.16 zł 260.16 PLN VAT Excluded
260.16 zł VAT Excluded
  • Diameter
  • Pitch

This combination does not exist.

Contact Us
Diameter: 17"
Pitch: 12

Terms and Conditions

T-Motor AUZ17×12 Fixed-Wing Carbon Fiber Propeller for Professional UAV

The T-Motor AUZ17×12 Fixed-Wing Carbon Fiber Propeller is designed for electric fixed-wing UAV platforms where efficient cruise flight and stable propulsion are important. Its aerodynamic blade profile supports smooth operation and helps make better use of motor power during long-distance missions. The carbon fiber composite structure with a PMI foam core provides a lightweight yet rigid build for reliable performance in demanding applications.

Optimized for Efficient Cruise Flight

The AUZ series uses airfoil profiles developed specifically for electric fixed-wing UAVs, with each pitch option matched to a defined speed range. This helps the propulsion system work efficiently within the target flight envelope, reducing unnecessary energy loss during cruise. For missions such as mapping, inspection, or long-distance operation, this kind of optimization can directly support longer and more stable flights.

t-motor-auz17x12-fixed-wing-carbon-fiber-propeller

Fast Response for Precise Control

The AUZ17x12 propeller is designed to support quick and predictable thrust changes during flight. Its lightweight structure helps reduce rotational inertia, allowing the propulsion system to respond more efficiently to motor input. This is especially important in fixed-wing UAV platforms where stable control, smooth acceleration, and reliable performance are needed throughout the mission.

t-motor-auz17x12-fixed-wing-carbon-fiber-propeller

T-Motor AUZ17×12 Fixed-Wing Carbon Fiber Propeller Specifications

Diameter

17inch (431.8mm)

Pitch

12inch (304.8mm)

Weight (Single Propeller)

35g

Recommended Thrust/RPM

9.6kg / 9000RPM

Limit RPM

10200RPM

Limit Thrust

12kg

Material

Resin-based Carbon Fiber Composite+PMI Foam Core

Surface Treatment

Matte

Type

Carbon Fiber Straight Propellers

Application

Fixed-Wing UAV Propellers

Connections & Dimension

Ø8mm Motor Shaft Central Locking

T-Motor AUZ17×12 Fixed-Wing Carbon Fiber Propeller Diameter

t-motor-auz17x12-fixed-wing-carbon-fiber-propeller

T-Motor AUZ17×12 Fixed-Wing Carbon Fiber Propeller Package Includes

  • 1x T-Motor AUZ17×12 Fixed-Wing Carbon Fiber Propeller
  • 1x Protective Cover
t-motor-auz17x12-fixed-wing-carbon-fiber-propeller
