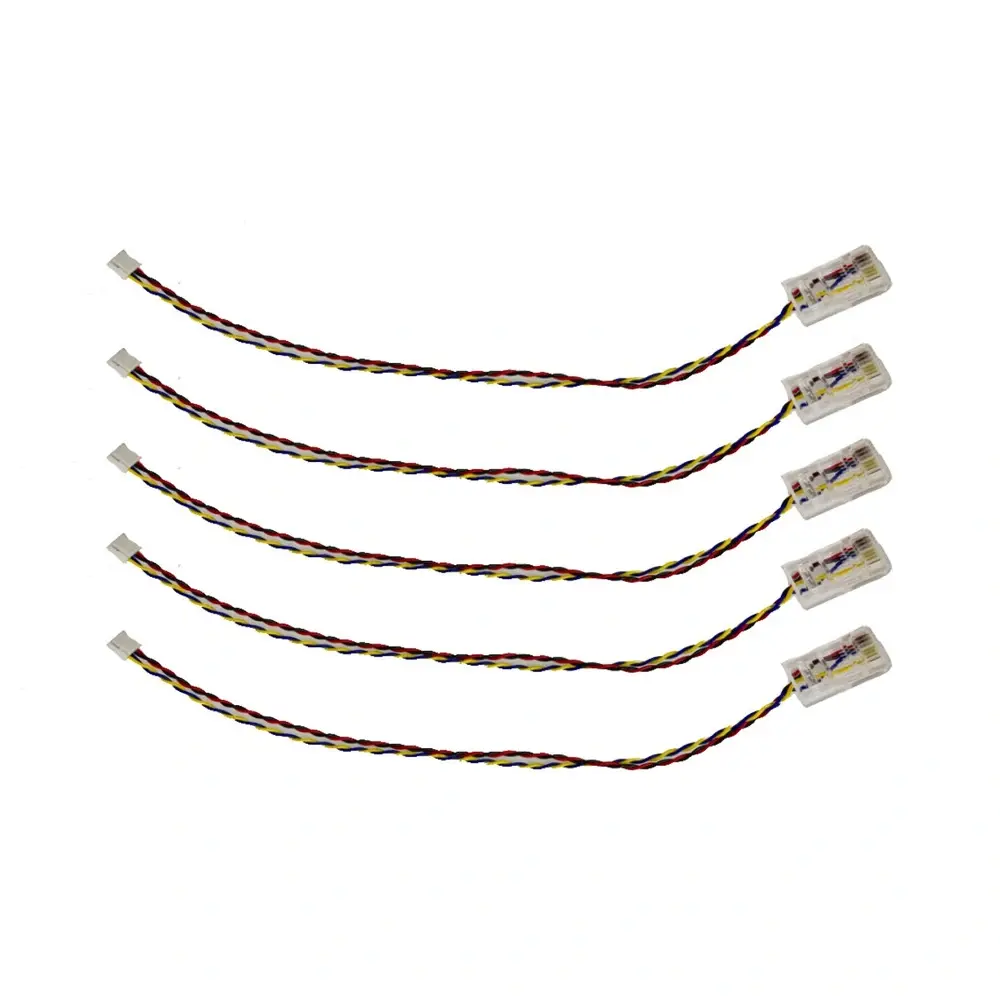

SwitchBlox Ardupilot Data Cable 5pcs
SwitchBlox Ardupilot Data Cable 5pcs – Ready-Made Ethernet Connections for SwitchBlox Ardupilot

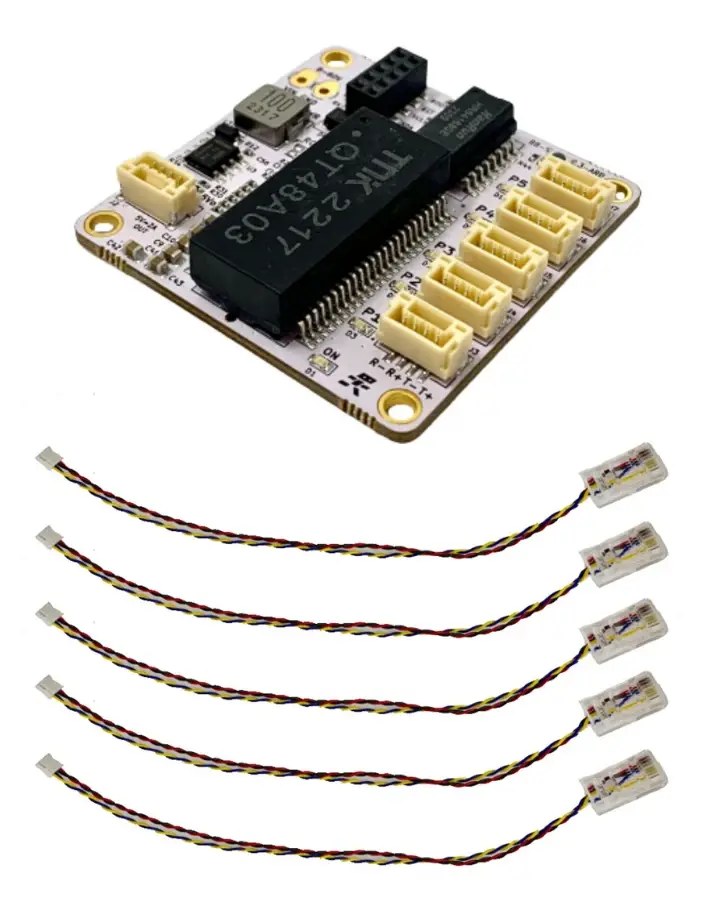

The set provides five dedicated data cables for the Ethernet ports of SwitchBlox for Ardupilot. Instead of preparing custom wiring between the compact JST interface used by the switch and RJ-45 Ethernet equipment, the cables provide the required connector conversion in a ready-to-install form. This makes them particularly useful when assembling or servicing Ethernet-based UAV and robotic systems built around SwitchBlox for Ardupilot.
SwitchBlox Ardupilot Data Cable 5pcs Key Features
- 5 cables per set – enough to match the five Ethernet ports available on SwitchBlox for Ardupilot.
- JST to RJ-45 conversion – connects the SwitchBlox Ardupilot JST interface to an RJ-45 Ethernet connector.
- Designed for SwitchBlox for Ardupilot – the cable set is specified directly by BotBlox for this switch.
- BotBlox part number BB-RJJST4-1-04-0.2 – allows the exact cable variant to be identified without confusing it with other BotBlox Ethernet cables
SwitchBlox Ardupilot Data Cable 5pcs Five Ready-to-Use Connections in One Set
A five-cable set matches the five Ethernet ports provided by SwitchBlox for Ardupilot. This is useful when several Ethernet devices need to be integrated into the same UAV or robotic network and avoids preparing separate connector conversions for each port.
SwitchBlox Ardupilot Data Cable 5pcs Compact JST Connection for ArduPilot Installations

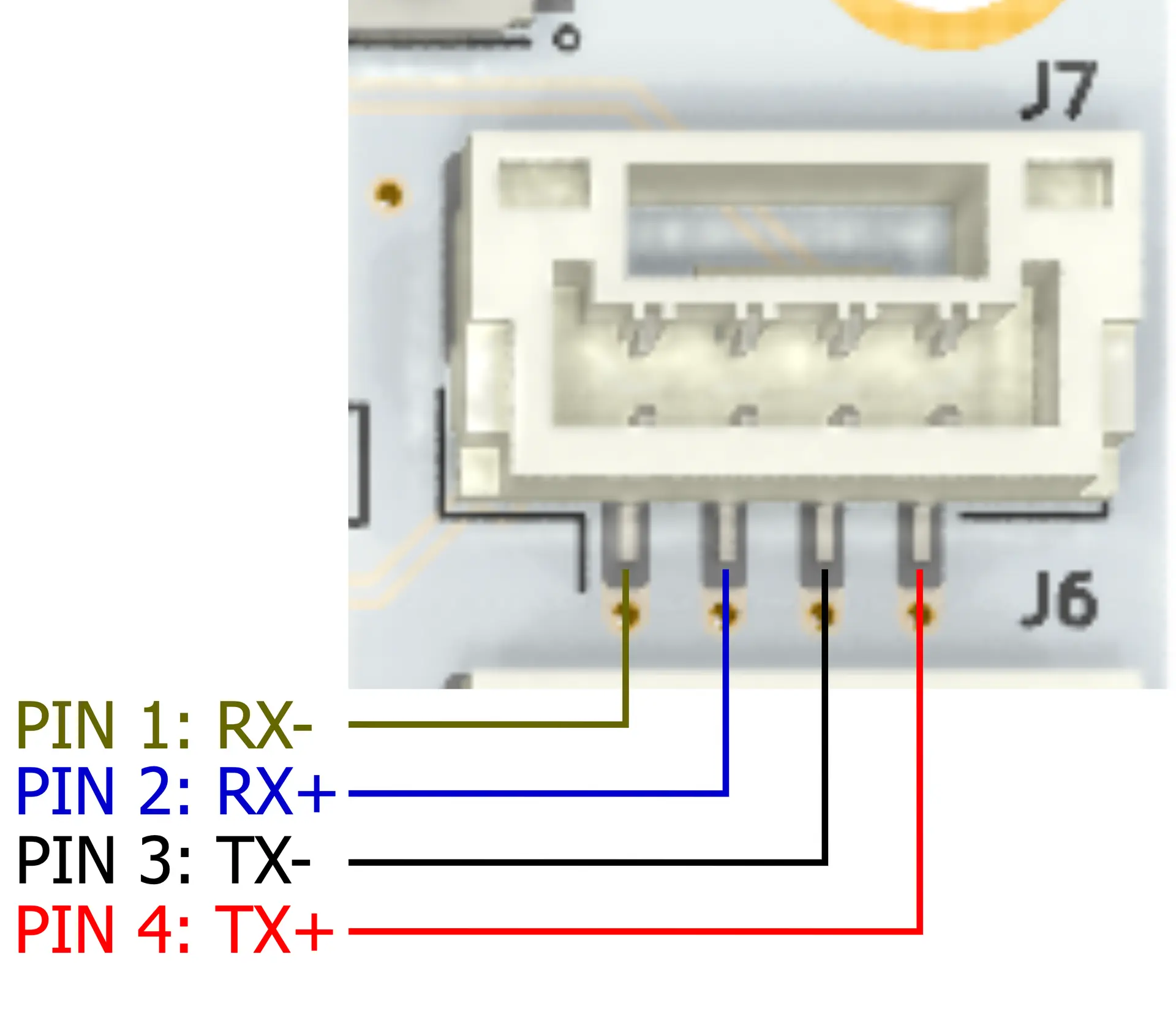

SwitchBlox for Ardupilot uses a 4-pin JST-GH 1.25 mm connector system for its Ethernet ports. The corresponding Ethernet signals are RX−, RX+, TX− and TX+, providing the four signal connections required by the switch's 10/100BASE-TX interface
SwitchBlox Ardupilot Data Cable 5pcs Specification
BotBlox Part Number
| BB-RJJST4-1-04-0.2 |
Quantity
| 5 cables |
SwitchBlox Side
| JST connector |
Other Side
| RJ-45 Ethernet connector |
Function
| Converts SwitchBlox Ardupilot JST connections to RJ-45 Ethernet connections |
SwitchBlox Ardupilot Data Cable 5pcs Package Contents
- 5x SwitchBlox Ardupilot Data Cable
