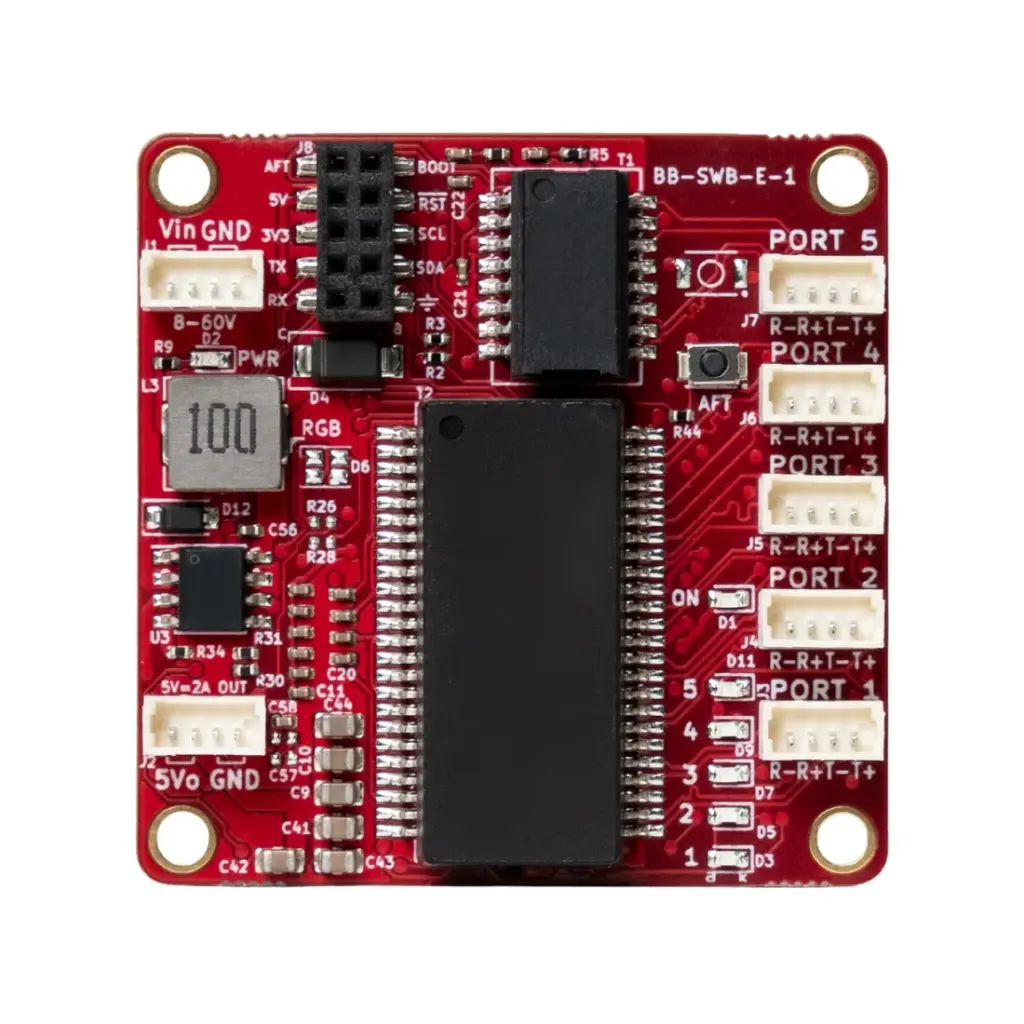

SwitchBlox - Small Ethernet Switch

https://www.bzbuas.com/web/image/product.template/3566/image_1920?unique=2397532

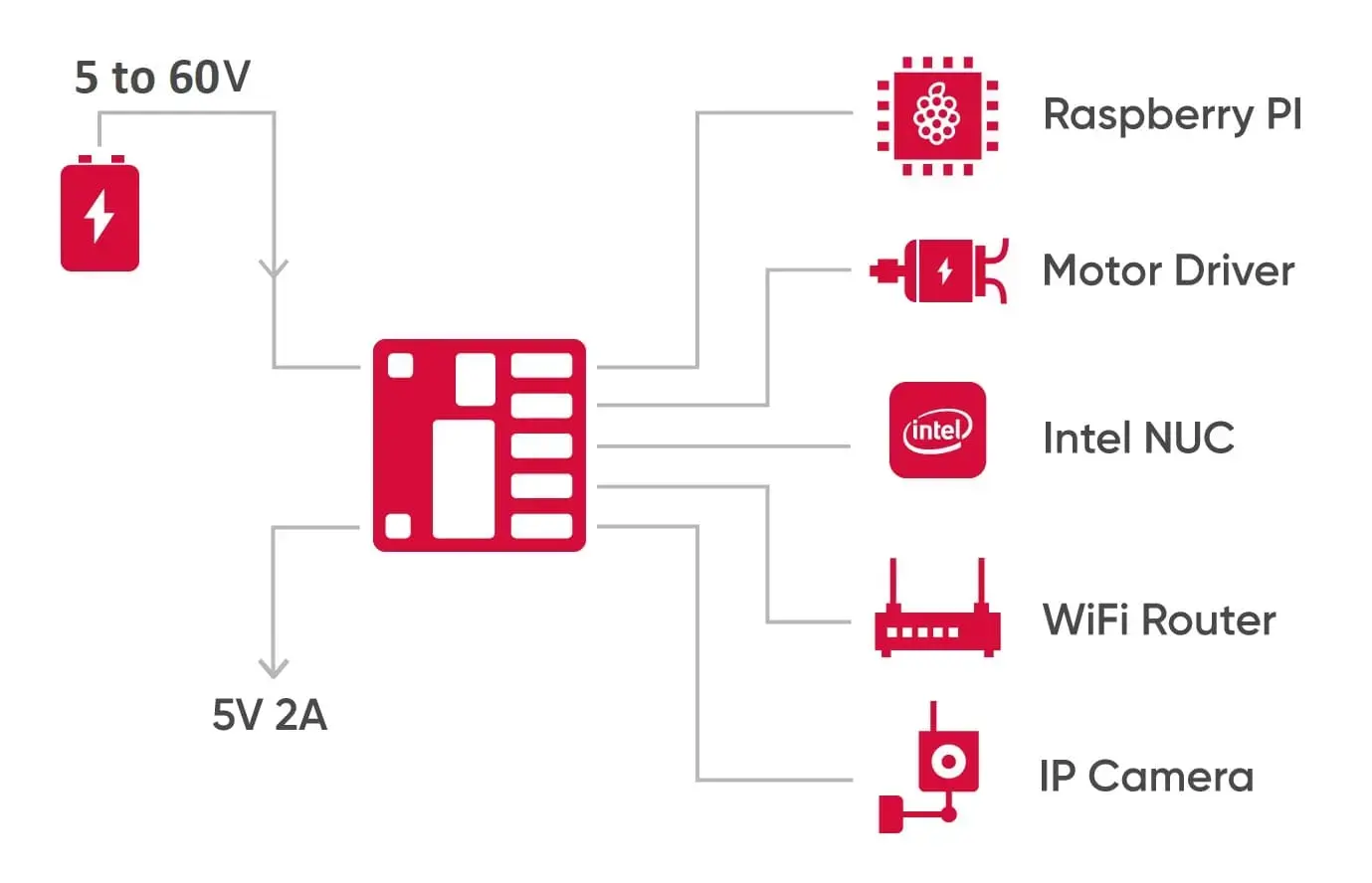

The ultimate game-changer for your tightest builds! Say goodbye to bulky network switches that clutter your hardware. Meet SwitchBlox—an ultra-compact 5-port Ethernet switch engineered to instantly connect your drones, robots, and IoT devices. Its unique superpower? It accepts an incredible 5V-60V DC input directly from your battery and powers your Raspberry Pi, eliminating extra converters. Stop letting legacy hardware hold your project back—buy SwitchBlox now!
324.39 zł 324.39 PLN VAT Excluded
324.39 zł VAT Excluded

This combination does not exist.

Contact Us

Terms and Conditions

Shrink Your Hardware, Not Your Network: Get SwitchBlox - Small Ethernet Switch

SwitchBlox - Small Ethernet Switch is an extremely lightweight and high-performance 5-port 10/100 Mbps Ethernet switch, designed for maximum miniaturization in advanced FPV drones, unmanned UAV platforms, and robotics. Thanks to its compact design measuring 44.5 x 44.5 mm and weighing just 15 g, it easily fits into tight frames and enclosures. A wide input voltage range allows the SwitchBlox - Small Ethernet Switch to be powered directly from onboard battery packs, eliminating the need for additional voltage regulators.

Key Features of SwitchBlox - Small Ethernet Switch

  • Compact and lightweight design: A board measuring 44.5 mm x 44.5 mm x 11.3 mm and weighing just 15 g makes integration easy in drones and small autonomous vehicles.
  • 5 Fast Ethernet 10/100 Mbps ports: Full support for 10BASE-T and 100BASE-TX protocols with a non-blocking switching fabric.
  • Wide input voltage range (5V to 60V): Direct power supply from a wide variety of battery packs and onboard networks.
  • Built-in 5V/2A power output: Enables direct powering of external modules and accessories.
  • Miniature Molex PicoBlade connectors: Secure, locked connections resistant to shocks and vibrations encountered during flight.
  • Plug and play: The switch works immediately upon connecting power and signal cables, requiring no initial configuration, firmware flashing, or driver installation.
bb-swb-e-1-switchblox-small-ethernet-switch

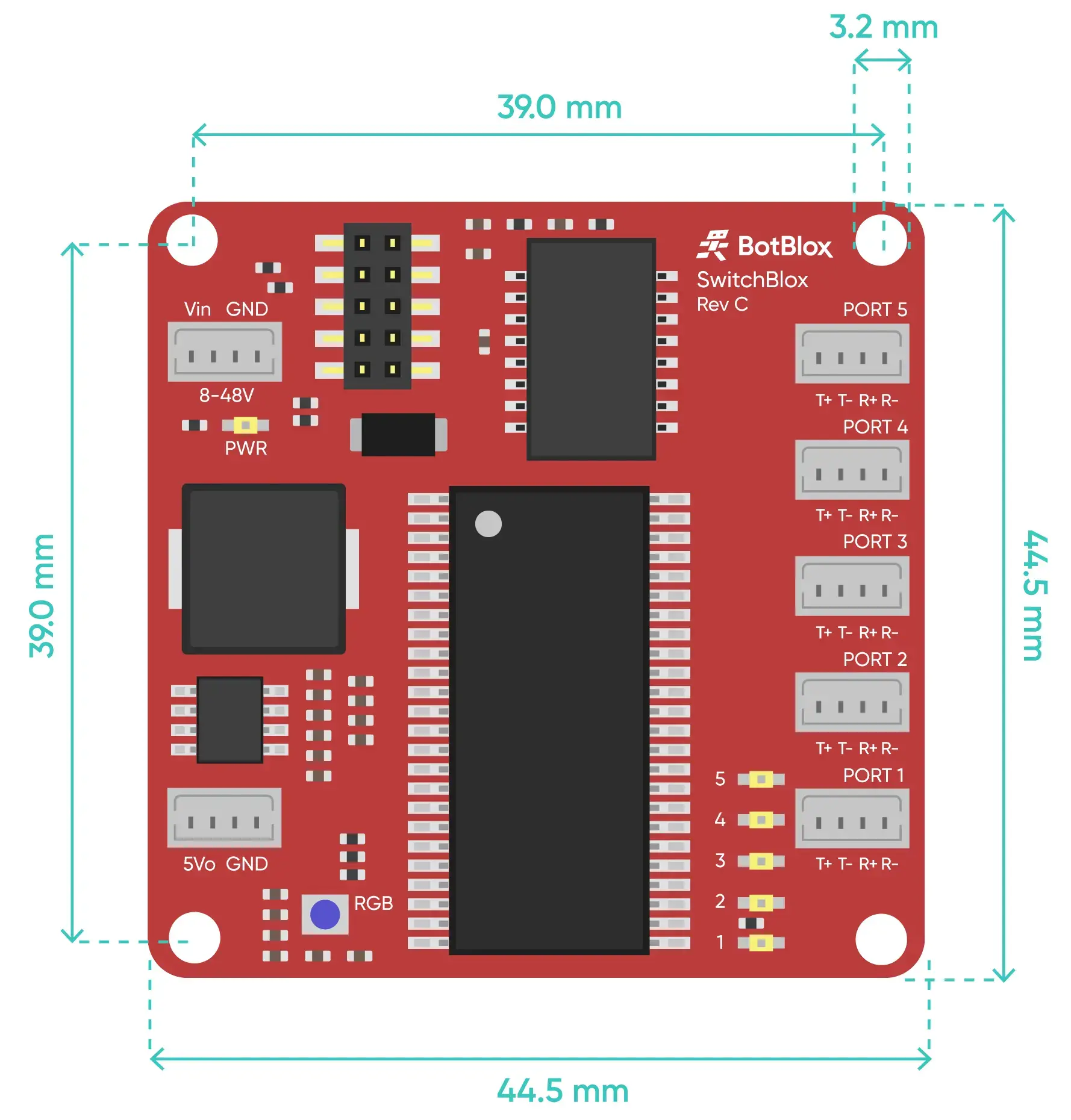

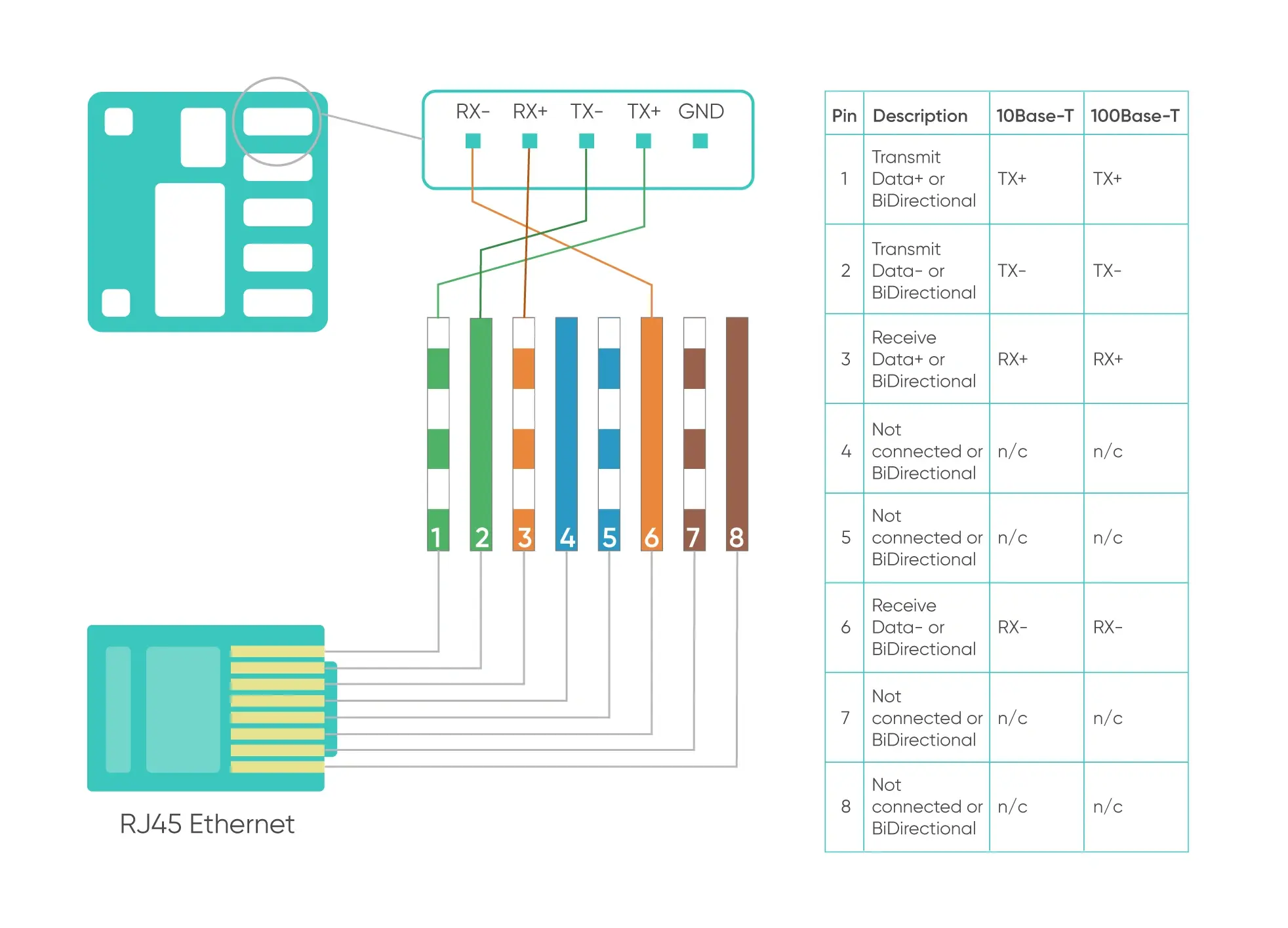

SwitchBlox - Small Ethernet Switch  Ethernet Pinout and Dimensions

bb-swb-e-1-switchblox-small-ethernet-switch
bb-swb-e-1-switchblox-small-ethernet-switch

Useful documentation of SwitchBlox - Small Ethernet Switch

SwitchBlox - Small Ethernet Switch Specifications

Input Voltage Range​

5-60V (reverse protected)

Power Consumption

300mW (Idle)
700mW (Max)

Output Voltage

5V, 2A (5V test results)

Ports

5 x 10/100Mb ports

Operating Temperature

-10 to +80°C

Storage Temperature

-65 to +150°C

Dimensions

44.5mm x 44.5mm x 11.3mm

Supported Protocols

10BASE-T, 100BASE-TX

Weight

15 g

bb-swb-e-1-switchblox-small-ethernet-switch

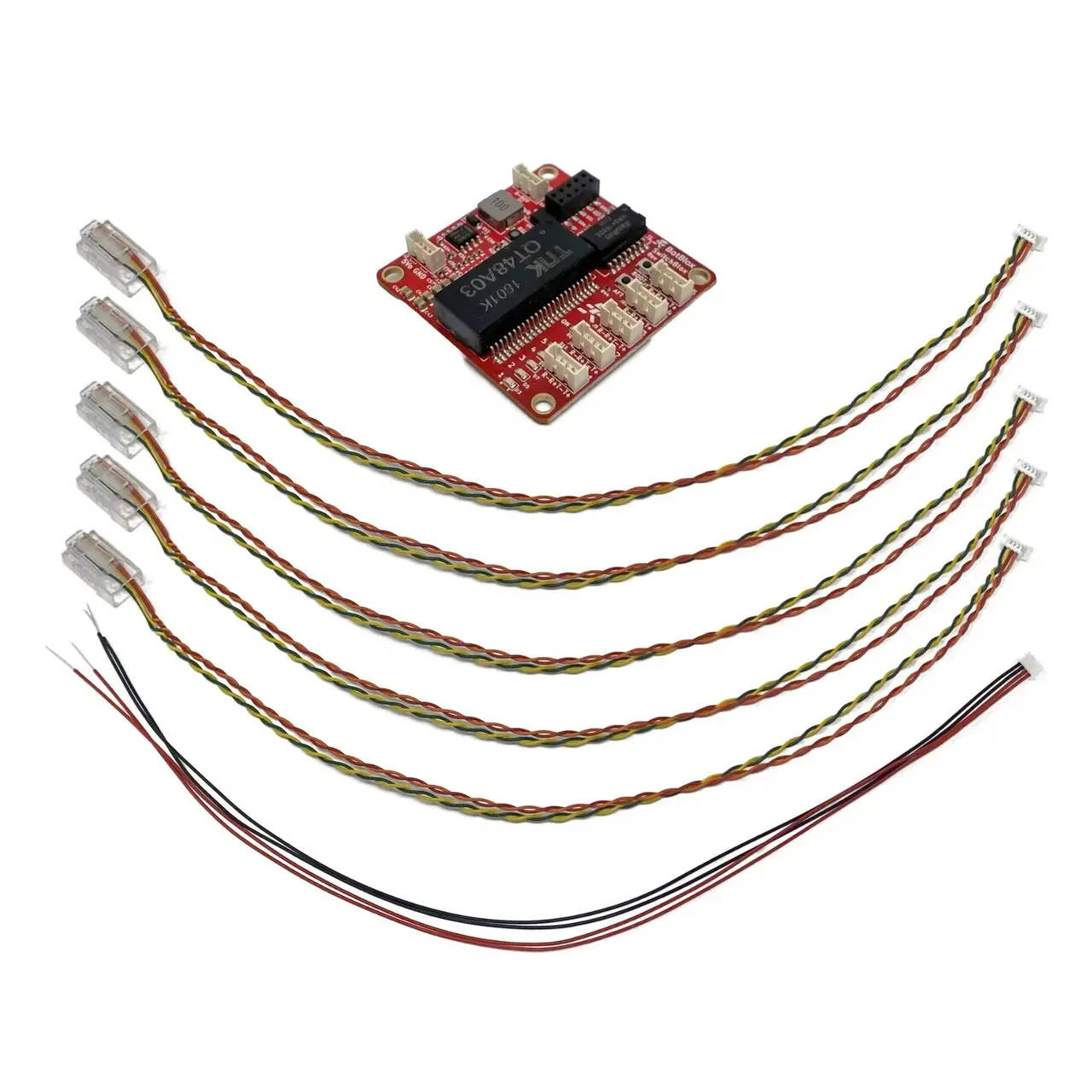

SwitchBlox - Small Ethernet Switch Package Includes

  • 1x SwitchBlox - Small Ethernet Switch
  • 5x Molex PicoBlade to RJ-45, 4 way, 0.3 meter (Data cables)
  • 1x Molex PicoBlade to Tinned Leads, 4 way, 0.3 meter (Power cables)
