BetaFPV Air Camera
BetaFPV Air Camera gives your tiny whoop a wider window on every run, so you see more of the course around each corner. Pick the 16:9 version for the widest view or the 4:3 version for the classic frame, and enjoy stable color through a glass lens that keeps its clarity flight after flight. At just 1.48g it adds almost nothing to your build, so your whoop stays as nimble as you like it.
BetaFPV Air Camera — More View in Every Corner

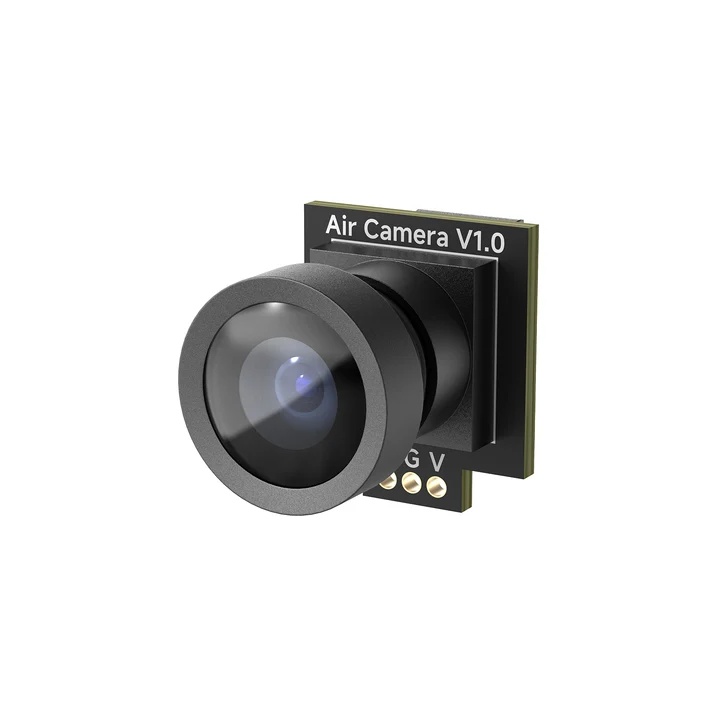

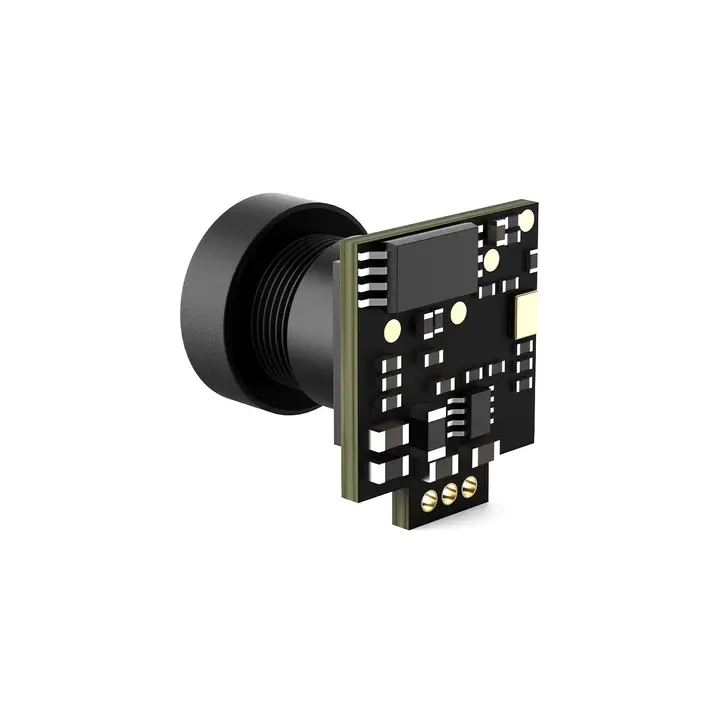

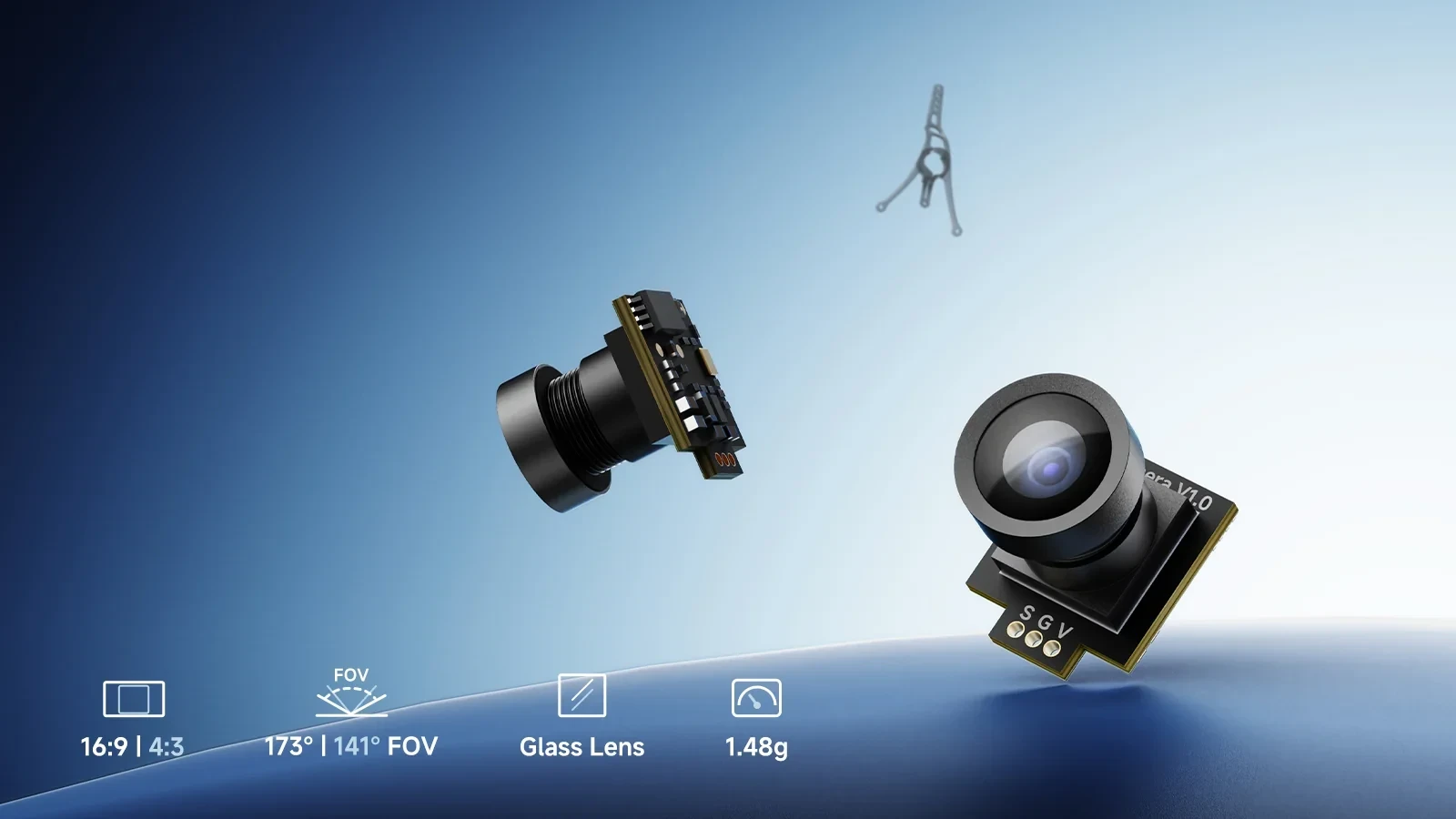

The BetaFPV Air Camera is a micro analog FPV camera for tiny whoops, available in two versions: 16:9 with a 173° ultra-wide field of view, or the classic 4:3 with a 141° field of view. In 16:9 it shows 33% more of the scene horizontally than 4:3. A 1/4.5-inch CMOS sensor delivers 600TVL in NTSC with stable color, and the precision glass lens gives sharper video and better scratch resistance than plastic. The camera weighs 1.48g, measures 11x13x12.5mm, runs on 5-12V (60mA at 5V) and connects with a JST 0.8mm plug on a 40mm cable. BetaFPV recommends it with the Air II Canopy and the Matrix 1S 5IN1 and 5IN1 II flight controllers for its Air and Meteor whoops, and fits the 16:9 version as standard in the Meteor65 Pro II and Meteor75 Pro II.
BetaFPV Air Camera Key Features
Two Aspect Ratios
Choose the 16:9 or the 4:3 version. You pick the frame that suits your goggles and your flying style.
Ultra-Wide View
A 173° field of view in 16:9 and 141° in 4:3. A wider view keeps more of the course in sight through tight, continuous corners.
Glass Lens
A precision glass lens instead of plastic. It gives sharper video and stands up to scratches better.
Stable Color
A new CMOS sensor with integrated color processing. It keeps colors vivid and stable while drawing little power and running cooler.

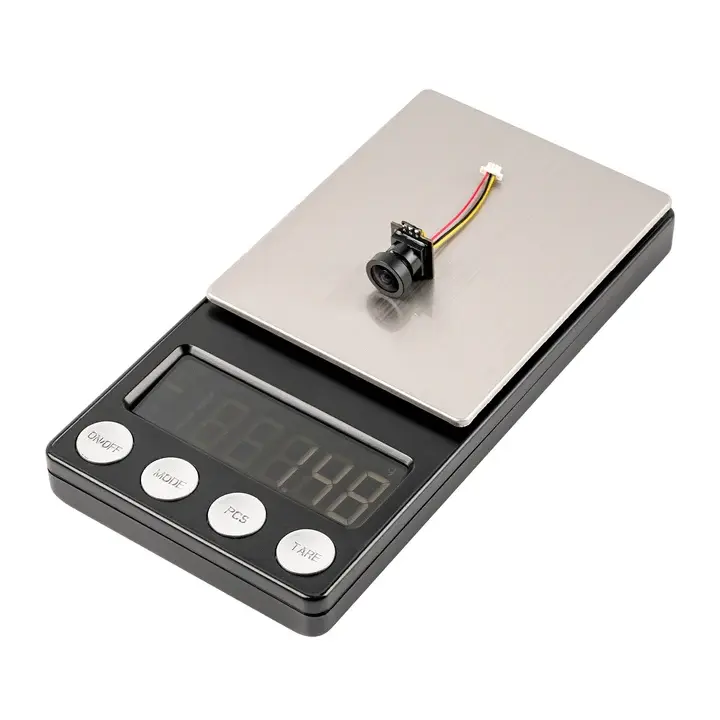

Light Weight
Just 1.48g in an 11x13x12.5mm body. It adds almost nothing to a tiny whoop, so the drone stays nimble.
Simple Connection
A JST 0.8mm plug on a 40mm cable, 5-12V input. BetaFPV recommends it with its Matrix 1S 5IN1 and 5IN1 II flight controllers.
BetaFPV Air Camera 16:9 or 4:3

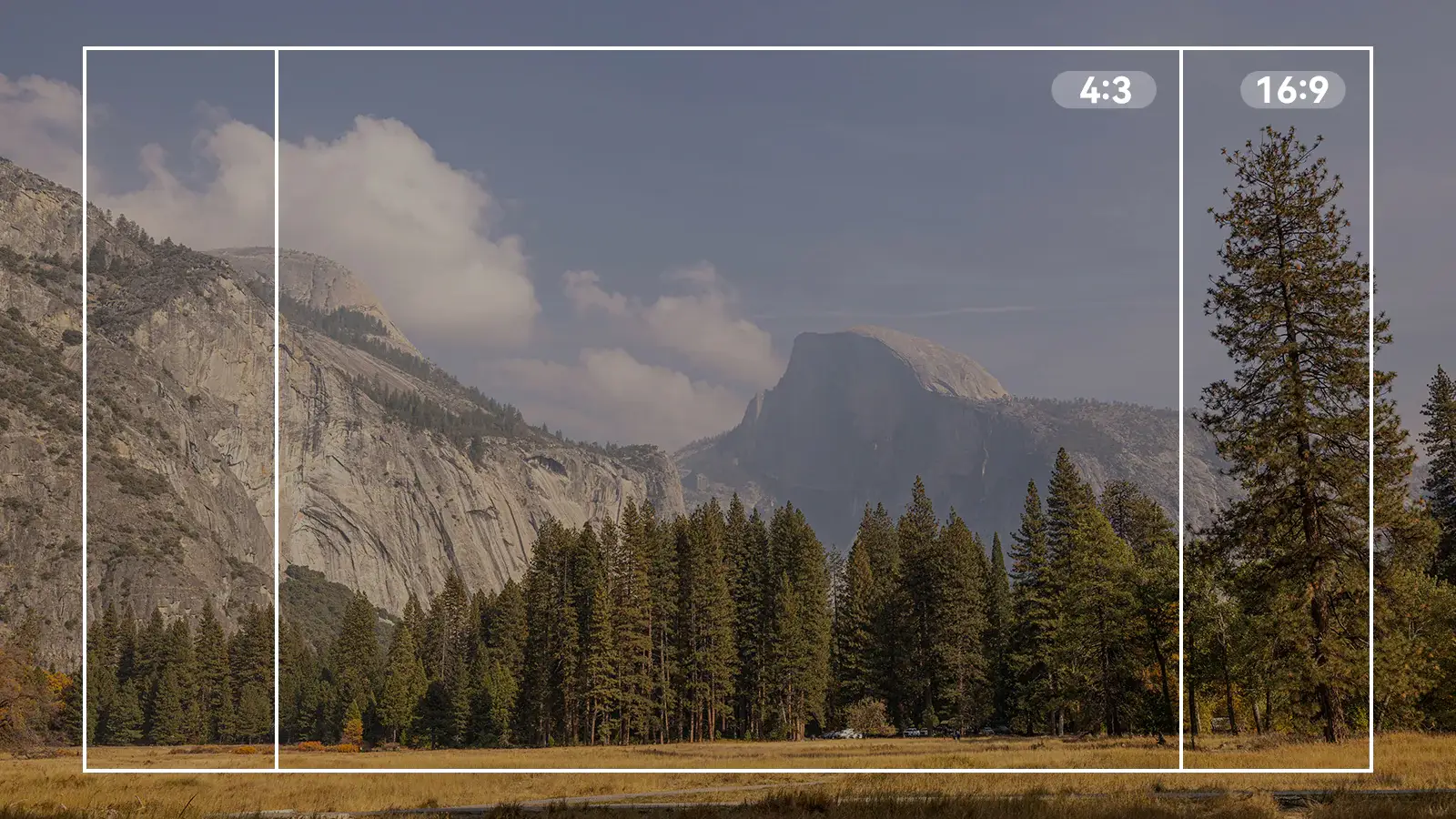

The 16:9 version shows 33% more of the scene horizontally than the standard 4:3 and pairs it with a 173° ultra-wide field of view, which BetaFPV calls essential for racing courses with tight, continuous corners and for complex freestyle environments. The classic 4:3 version has a 141° field of view. Choose the frame that fits your flying style.
16:9 | 4:3 | |
Aspect ratio | 16:9 | 4:3 |
Field of view | 173° | 141° |
Horizontal view | 33% more than 4:3 | Classic frame |
Goggles or screen | Must support 16:9 | Standard 4:3 |
If you choose the 16:9 version, make sure your FPV goggles or screen also support 16:9. Otherwise the image may appear deformed.
New CMOS Sensor, Better Color
The new image sensor combines the CMOS and color processing in one compact chip. Expect vivid, stable color with low power consumption, which means less heat and consistently better color in every shot.

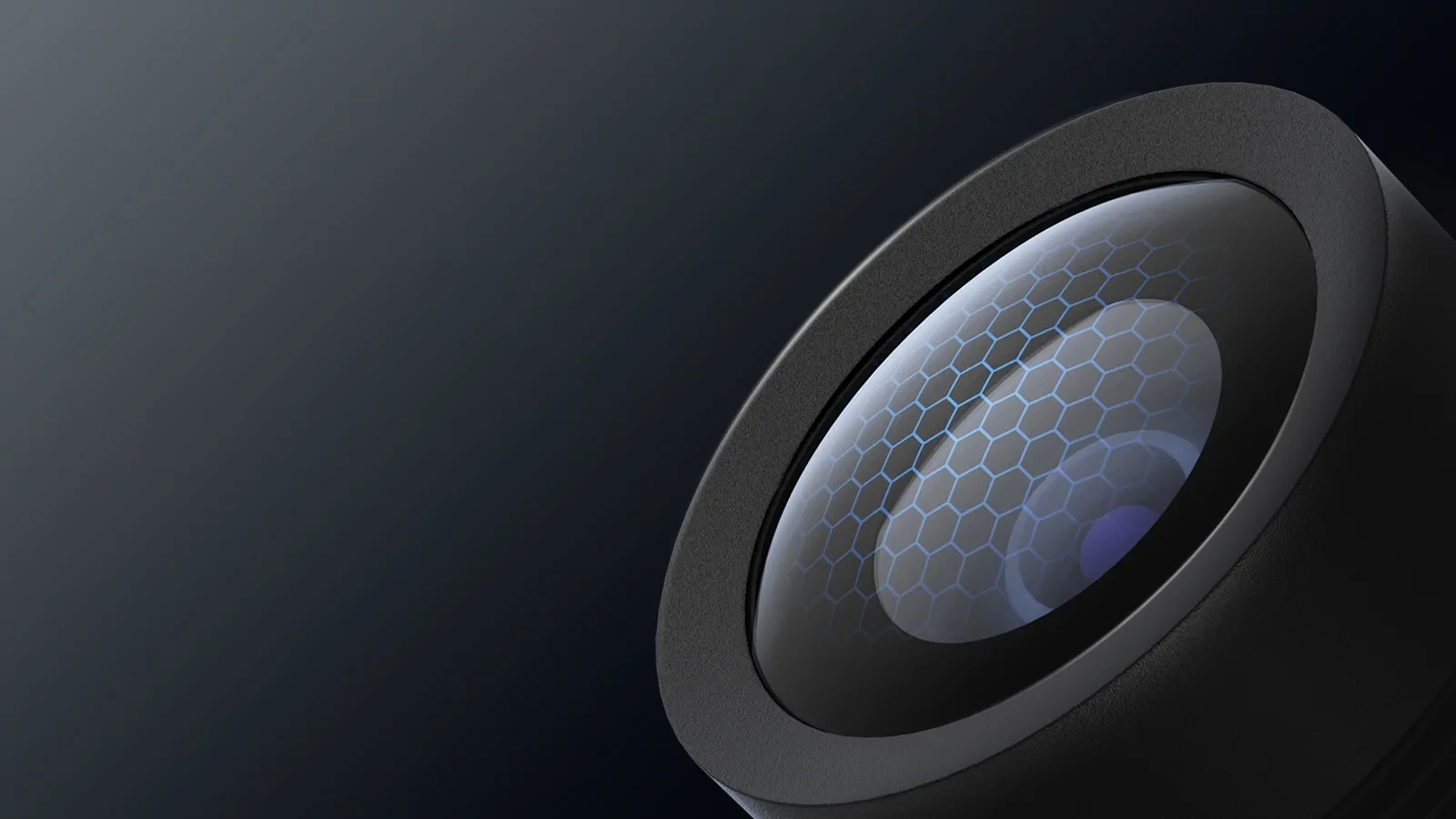

Glass Lens That Resists Scratches
A precision glass lens gives better image stability and video quality than plastic, and it is highly resistant to scratches, so the picture stays clear after many flights.
BetaFPV Air Camera Suitable Applications
BetaFPV recommends the Air Camera for:
- BetaFPV Air series tiny whoops, such as the Air65, Air75, Air65 II and Air75 II
- BetaFPV Meteor series tiny whoops, including the Meteor65 Pro II and Meteor75 Pro II, which ship with the 16:9 version
- Racing courses with tight, continuous corners
- Freestyle in complex environments

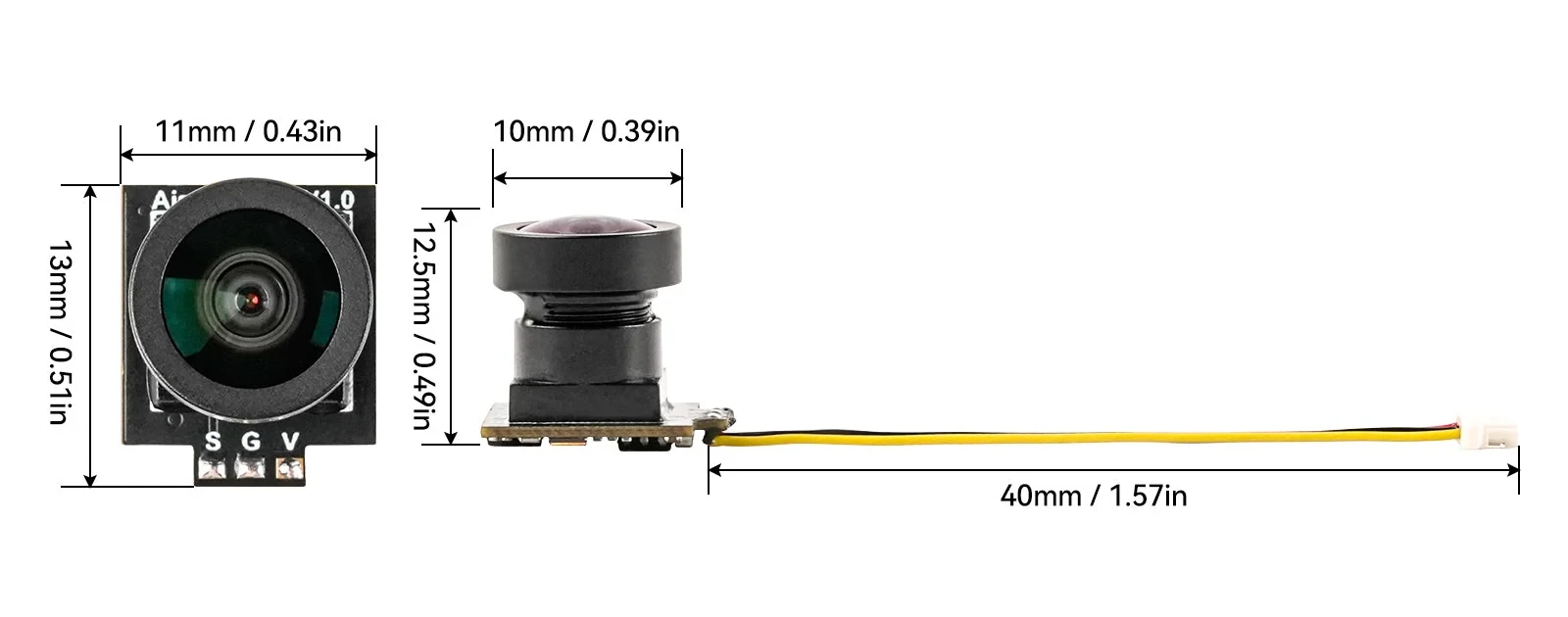

BetaFPV Air Camera Dimensions
BetaFPV Air Camera Specification
Model | Air Camera |
Image Sensor | 1/4.5" CMOS |
Horizontal Resolution | 600TVL |
Signal System | NTSC |
Aspect Ratio | 16:9 or 4:3 (depending on version) |
Field of View | 173° (16:9), 141° (4:3) |
S/N Ratio | 40.59dB |
Electronic Shutter | Auto |
Auto Gain Control | Auto |
Lens | Glass lens, 10mm diameter (manufacturer drawing) |
Power Input | DC 5-12V |
Current | 60mA@5V |
Connector | JST 0.8mm, 40mm cable |
Dimensions | 11x13x12.5mm |
Weight | 1.48g |

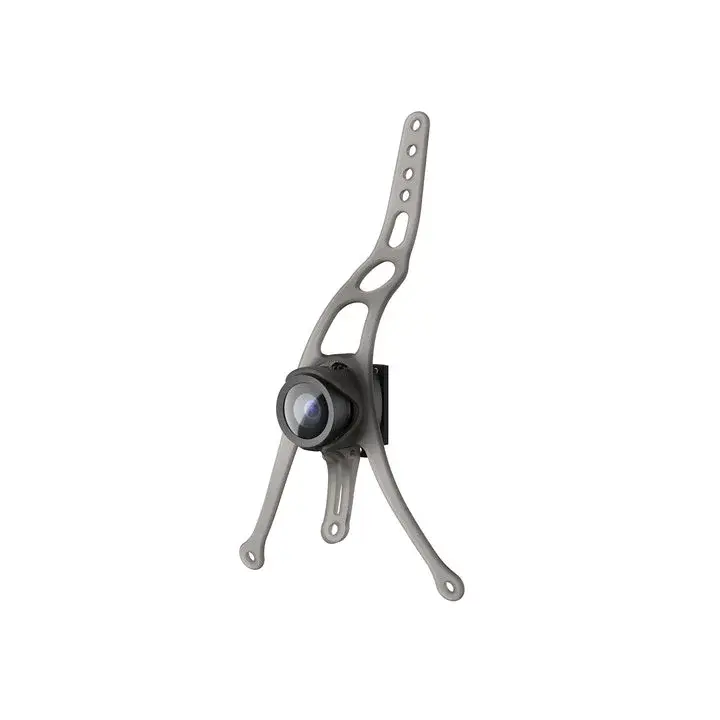

Recommended With | Air II Canopy, Matrix 1S 5IN1 II, Matrix 1S 5IN1 |

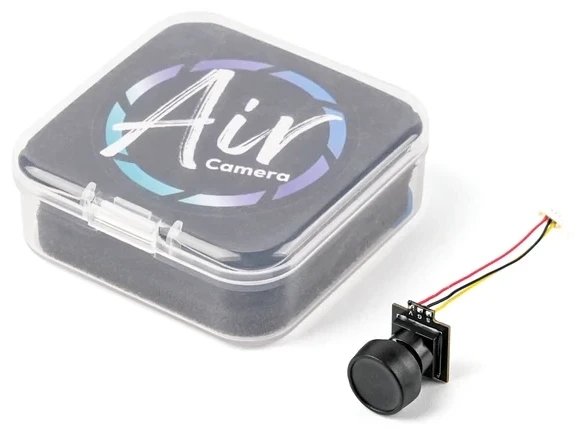

BetaFPV Air Camera Package Includes
- 1x BetaFPV Air Camera
